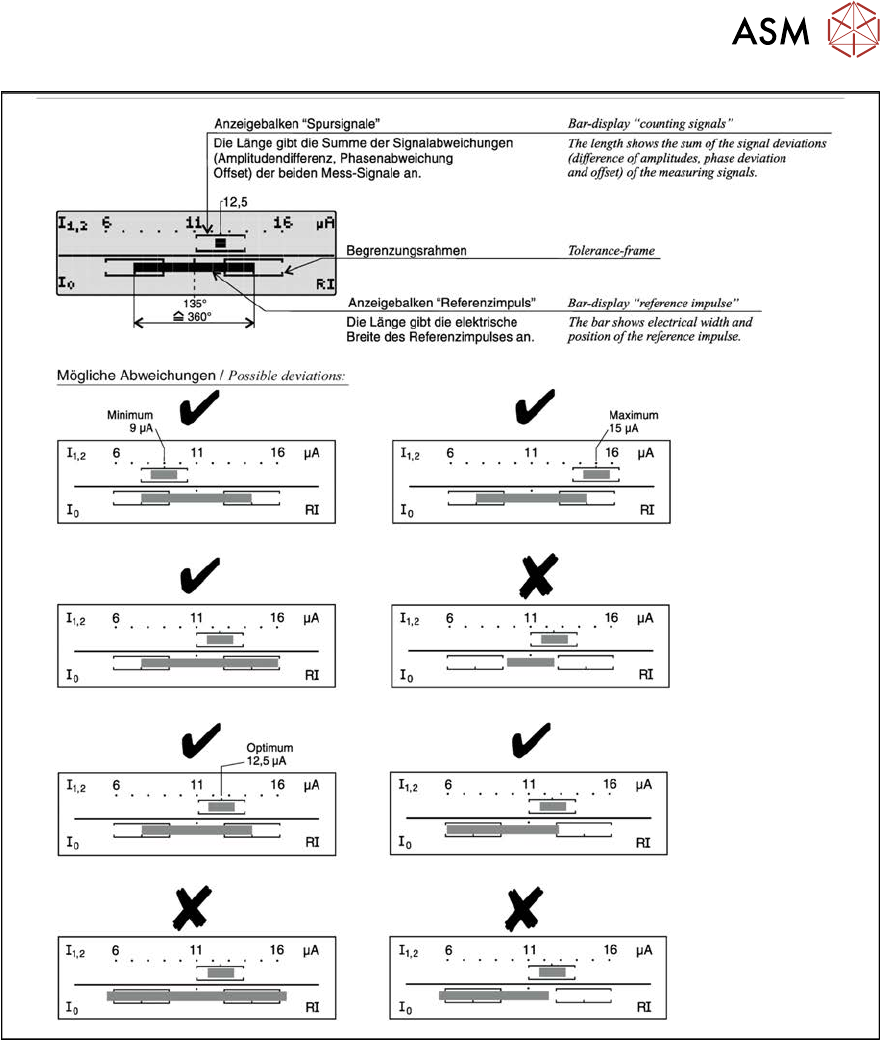

6 Gantries 6.3 X and Y axis 156 Service Manual SIPLACE X-Serie S 06/2019 Fig.193: Operation of test device PG1-I - 3 Test device PG-U [03071361‑xx] Fig.194: Operation of test device PG-U - 1

100%1 / 428
6 Gantries
6.3 X and Y axis
Service Manual SIPLACE X-Serie S 06/2019 155
Fig.192: Operation of test device PG1-I - 2
6 Gantries
6.3 X and Y axis
156 Service Manual SIPLACE X-Serie S 06/2019
Fig.193: Operation of test device PG1-I - 3
Test device PG-U [03071361‑xx]

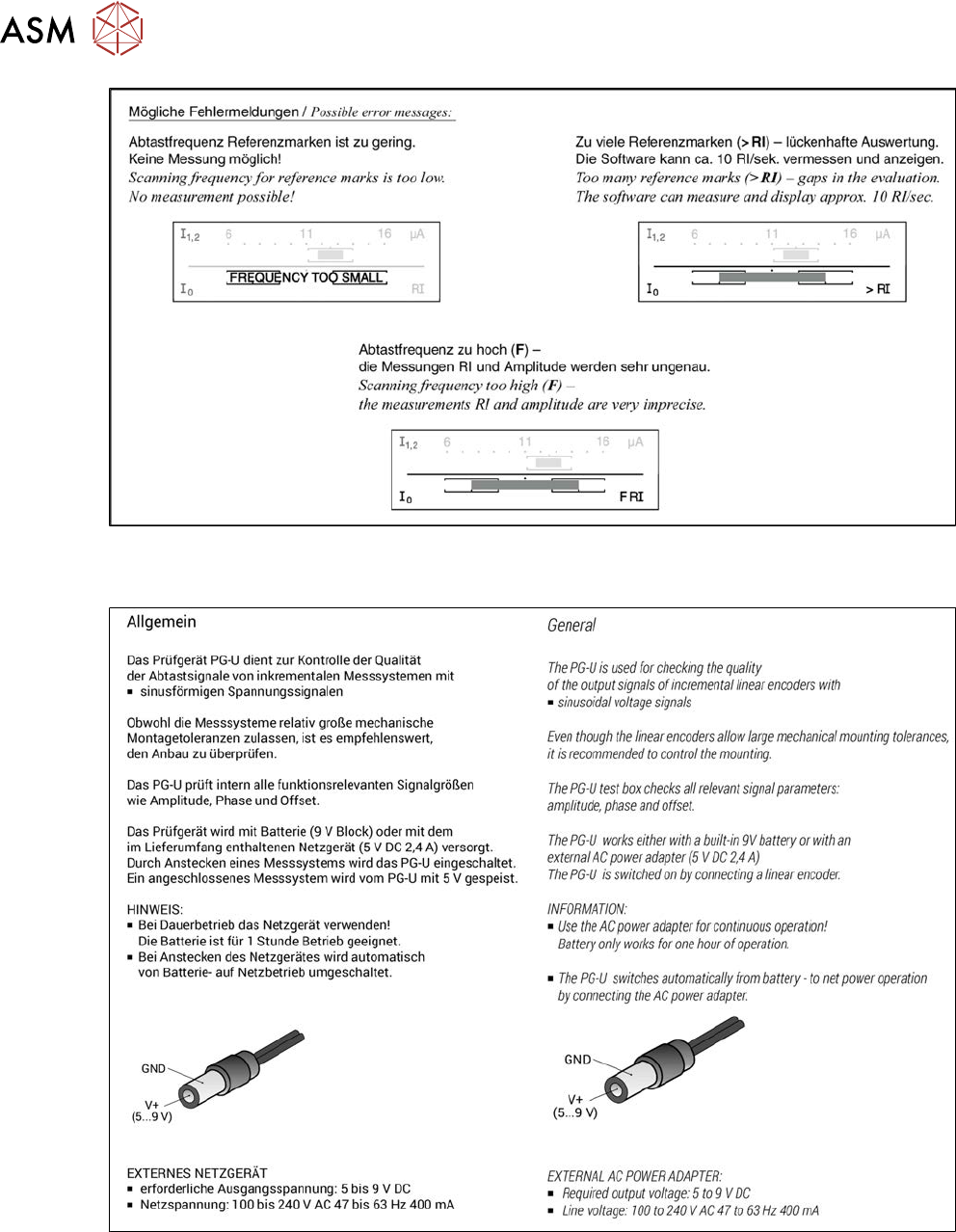

Fig.194: Operation of test device PG-U - 1
6 Gantries
6.3 X and Y axis
Service Manual SIPLACE X-Serie S 06/2019 157

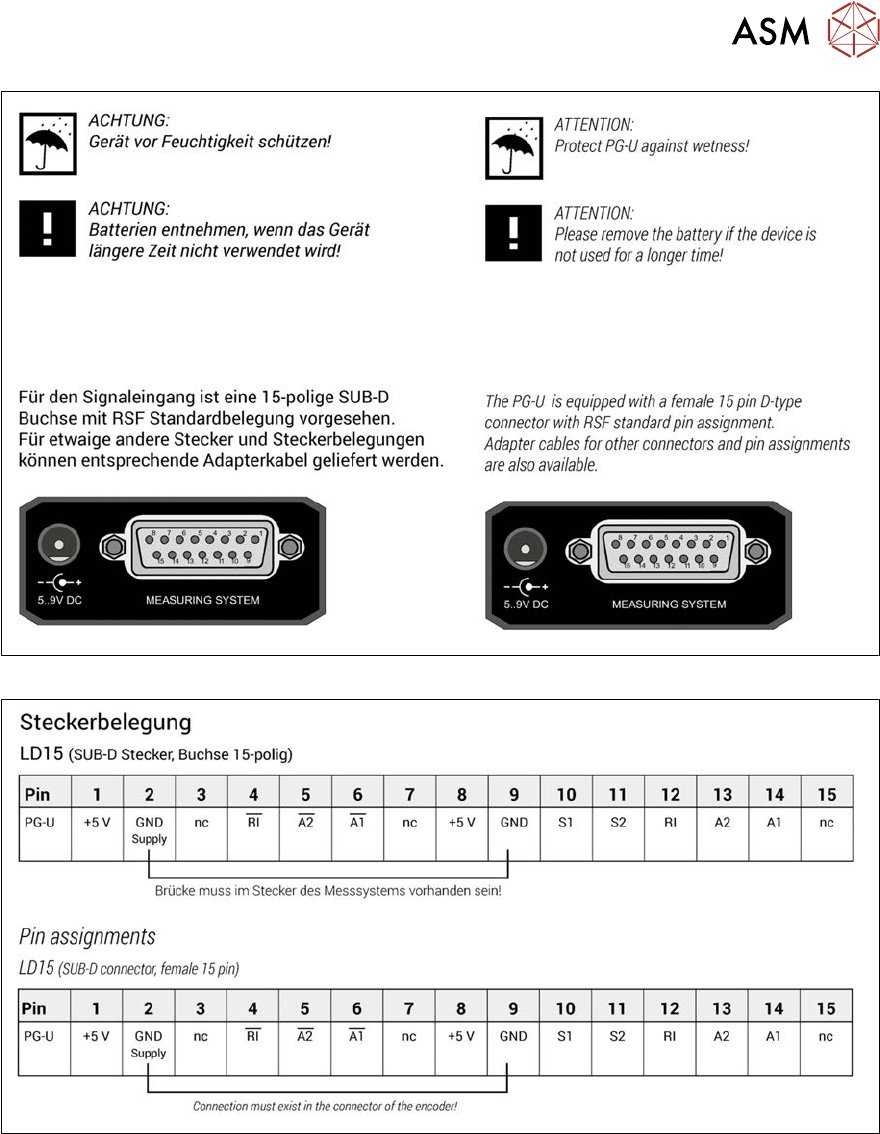

Fig.195: Operation of test device PG-U - 2
Fig.196: Operation of test device PG-U - 3
