6 Gantries
6.4 Trailing cable and printed circuit boards
Service Manual SIPLACE X-Serie S 06/2019 169
6.4.3 Replacing the Vision Base Interface (VBI)
The Vision Base Interface is fitted in machines from serial number Hxxxx.
Parts, equipment and tools
●
Vision Base Interface (VBI) [03115474‑xx]
Overview

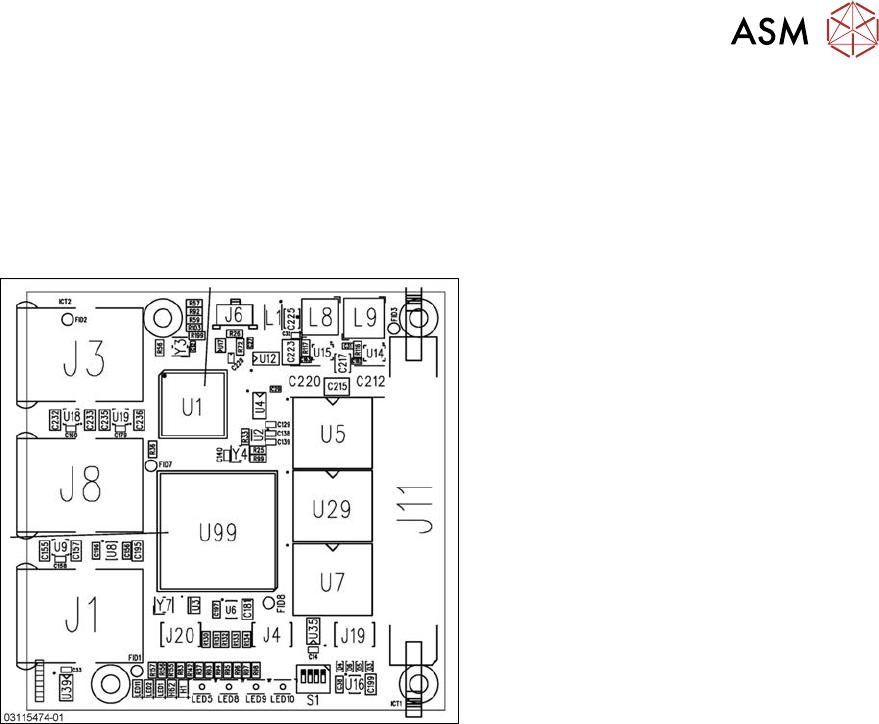

Fig.214: Vision base interface [03115474-xx]
The Vision Base Interface [03115474‑xx] is
fitted next to the trailing cable interface.
J1: Not used
J3: BoxPC
J4: Not used
J6: Power supply
J8: Stationary camera
J11: Trailing cable (head)
J19: Not used
J20: Not used
Removal/installation
► Removal and installation of the Vision Base Interface (VBI) is the same as that for the trailing
cable interface. Please read section 6.4.2 "Replacing the Trailing Cable Interface" [}168].
► Checking the embedded software and performing a download if needed.
6.9 "eSW Download (SW 70x)" [}202]
6 Gantries
6.4 Trailing cable and printed circuit boards
170 Service Manual SIPLACE X-Serie S 06/2019
6.4.4 Replacing the gantry interface
Parts, equipment and tools
●
Gantry interface gantry 1 and 3 SX4a [03089220-xx]
●
Gantry interface gantry 2 and 4 SX4a [03089221-xx]
NOTICE
Machines from Serial Number Hxxxx
The gantry interface version used for machines from serial number Hxxxx must be at least -03.
Overview

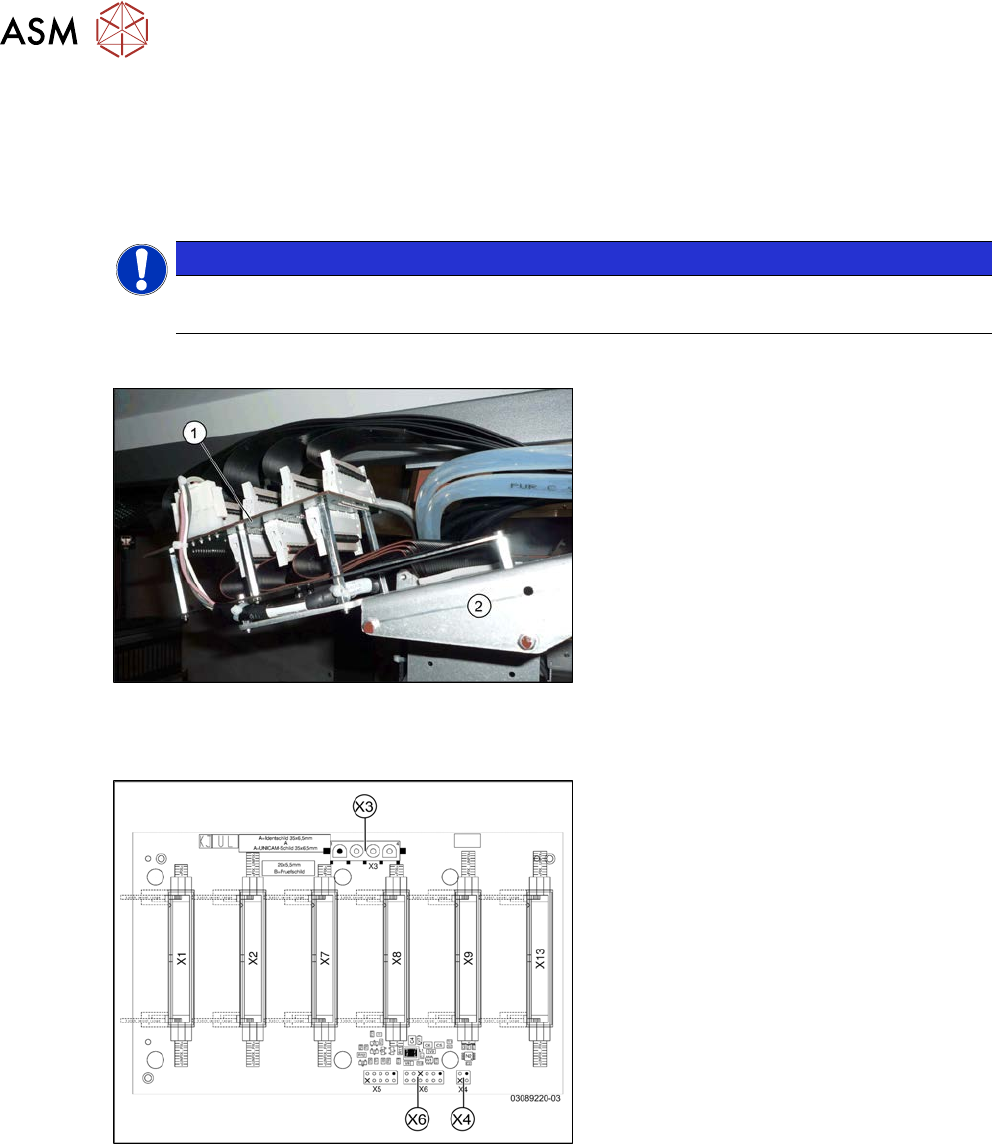

Fig.215: Gantry interface
1. Gantry interface
2. Trailing cable holder on gantry
Overview
Fig.216: Gantry interface [03089220-03]
Gantry interface [03089220-03]:
This gantry interface is used at gantries 1
and 3.
X3) Y axis motor power
X4) Y axis motor temperature sensor
X6) Y axis incremental encoder
6 Gantries
6.4 Trailing cable and printed circuit boards
Service Manual SIPLACE X-Serie S 06/2019 171
Fig.217: Gantry interface [03089221-03]
Gantry interface [03089221-03]:
This gantry interface is used at gantries 2
and 4.
X3) Y axis motor power
X4) Y axis motor temperature sensor
X6) Y axis incremental encoder
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation.
1.2 "Preparatory work..." [}16]
► Unplug all electrical connections to the gantry interface. You may want to mark the positions
of these connections to make clear assignment easier later on.
► Remove the screws fastening the gantry interface and remove the gantry interface from the
machine.
Installation
► Follow the removal instructions in reverse order for installation.
