6 Gantries
6.4 Trailing cable and printed circuit boards
176 Service Manual SIPLACE X-Serie S 06/2019
7-segment display V2 [03091013-01] [03091023-01]
Display Status Description
Decimal point Flashes HCU2 OK
7-segment display V12 [03091013-01] [03091023-01]
Display Status Description
Decimal point Flashes HCU1 OK
DIP switch S1 [03091013-01] [03091023-01]
Switch Status Signal name Description
Gantry 1 Gantry 2 Gantry 3 Gantry 4
S1.1 OFF/ON Gantry_ID0 OFF ON OFF ON
S1.2 OFF/ON Gantry_ID1 OFF OFF ON ON
S1.3 OFF COM_BOOT_HCU ON: set HCU to bootstrap mode
S1.4 OFF RESET_HCU2 ON: Reset HCU2
S1.5 OFF RESET_HCU1 ON: Reset HCU1
S1.6 OFF FAN Not used
S1.7 OFF DCDC_OFF ON: Reset, when not all the voltages are present
S1.8 OFF HCU_1_2 Not used
6 Gantries
6.4 Trailing cable and printed circuit boards
Service Manual SIPLACE X-Serie S 06/2019 177
6.4.6 Replacing the Power Cube Module on the Head Interface
NOTICE
SIPLACE C&P20 P
The following additional conditions must be fulfilled for operating a SIPLACE C&P20P:
► The module power cube must have at least function state [03055514-02].
► You find a complete list of the prerequisites in section 8.5 "Replacing the SIPLACE
C&P20P/M2" [}313].
Overview

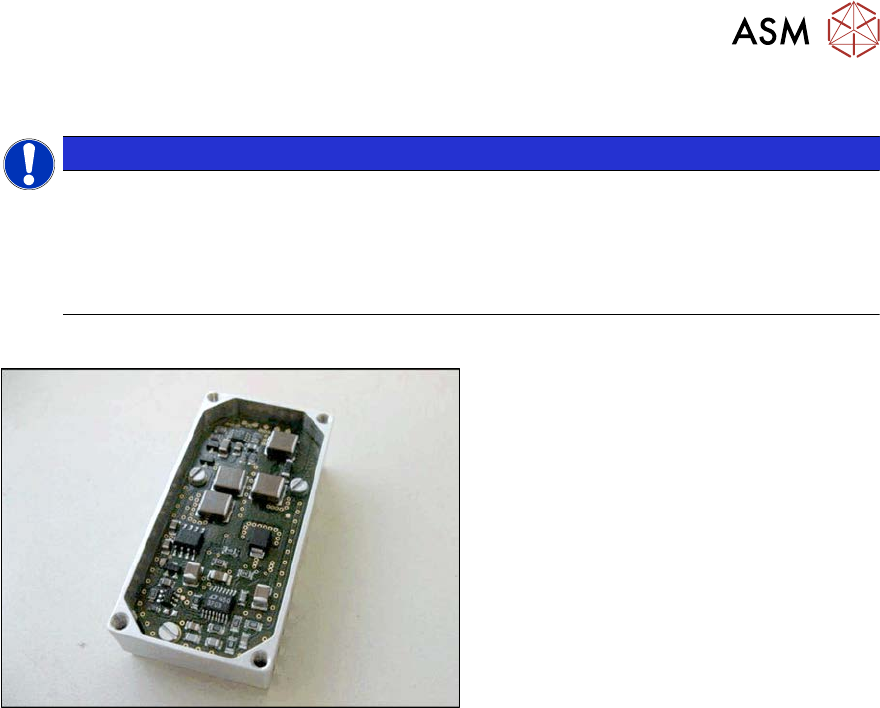

Fig.225: Powercube module
Powercube module [03055514-xx]
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation.
1.2 "Preparatory work..." [}16]
► Dismantle the head interface. Also read section 6.4.5 "Replacing the Head Interface" [}172].
► Remove the four screws fastening the power cube and carefully lift off the power cube from
the head interface.
Installation
► Installation is performed by following the above instructions in the reverse order. Also observe
the following instructions:
– Make sure that the power cube is positioned correctly.
6 Gantries
6.4 Trailing cable and printed circuit boards
178 Service Manual SIPLACE X-Serie S 06/2019
6.4.7 Replacing the Vision board spread spectrum HCU
This section applies for SIPLACE X-Series S machines up to Gxxxx.
Parts, equipment and tools
●
Vision board spread spectrum HCU assembly [03067289-xx]
Overview

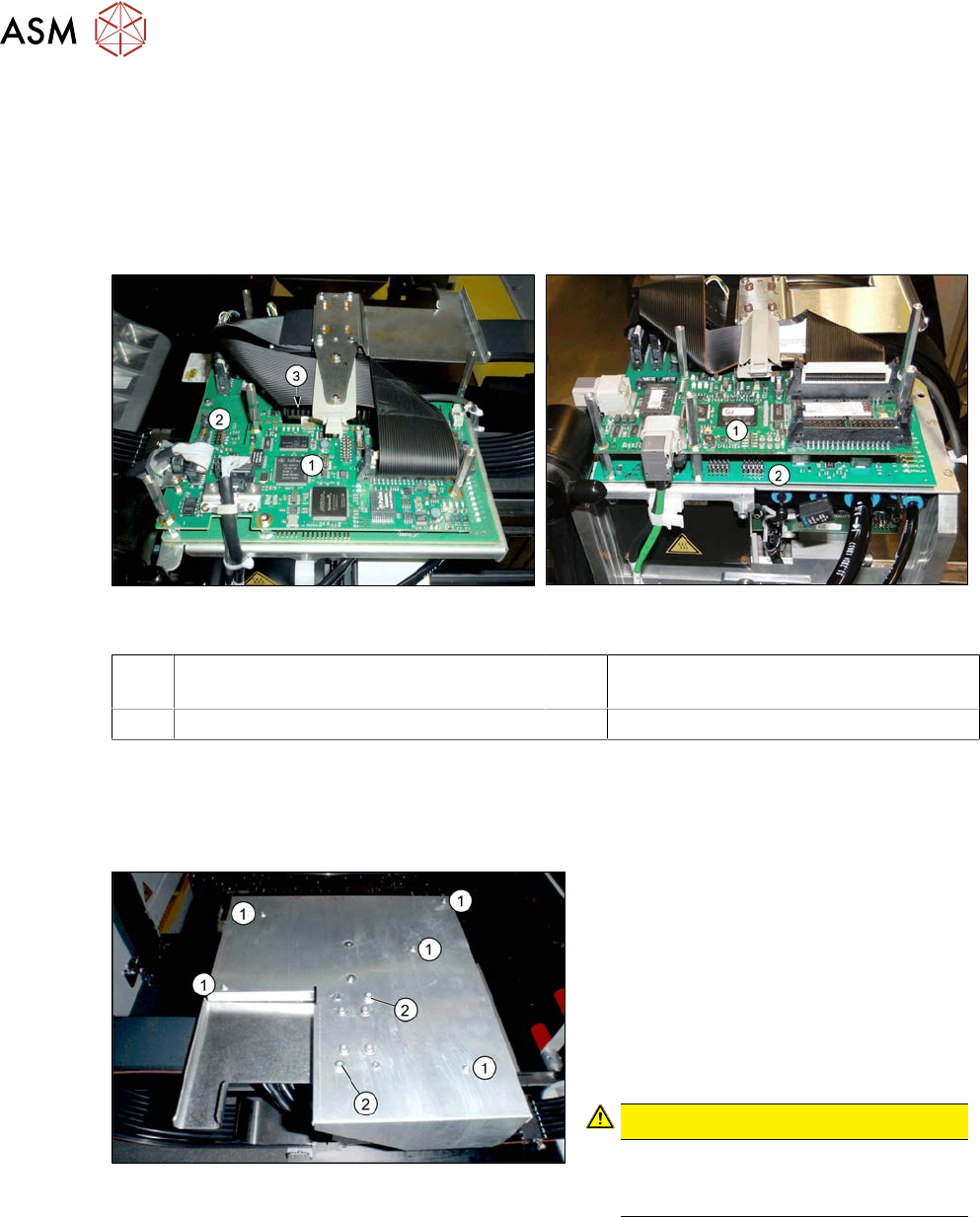

Fig.226: Boards on the gantry (up to Gxxxx, without
GigE)
Fig.227: Boards on the gantry (from Hxxxx, with GigE)
1 Vision board spread spectrum / Vision
Head Interface (VHI)
2 Head interface
3 Power cube on the head interface
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation.
1.2 "Preparatory work..." [}16]
Fig.228: Board cover
1. Fastening screws 5x
2. If present:
fastening screws 2x (with Loctite)
► Remove the fastening screws(1).
► If present: remove the fastening
screws(2).
► Remove the board cover.
 CAUTION!
To avoid short circuits, only dismantle
the cover when the machine is
switched off!
.
► Unplug all electrical connections to the Vision board spread spectrum. You may want to mark
the positions of these connections to make clear assignment easier later on.
► Remove thescrews fastening the Vision board spread spectrum and remove the board.
