6 Gantries

6.9 eSW Download (SW 70x)

202 Service Manual SIPLACE X-Serie S 06/2019

6.9 eSW Download (SW 70x)

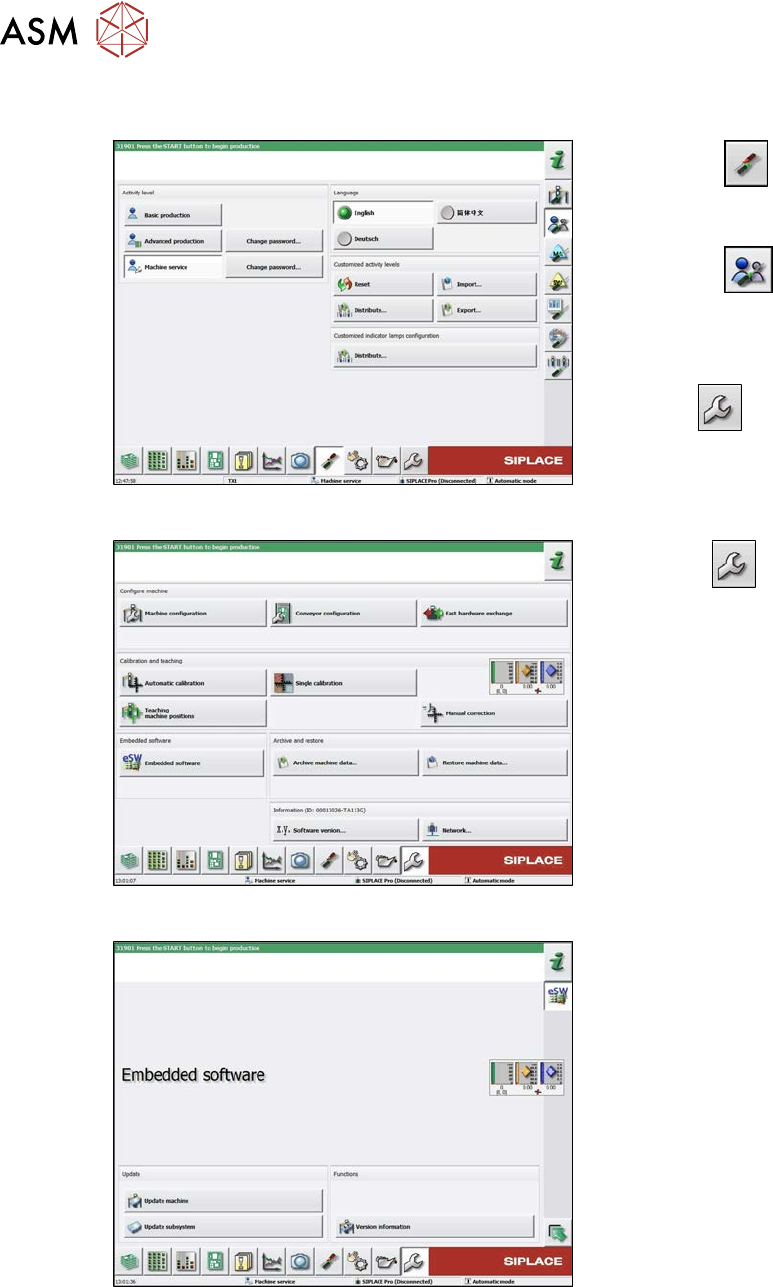

Fig.256: Select operator level

► Select the

button, to open the

Configure, update and calibrate the

machine menu.

► Select the

button to open the

Check and set user settings menu.

► Switch over to the operator level Ma-

chine service.

ð The

button will be shown.

Fig.257: Service menu

► Click the

button to enter the Ser-

vice menu.

► Click on the Embedded software but-

ton.

Fig.258: Embedded software menu

Select the required function:

► Click on Update machine… to check

the entire machine and to perform an

eSW download for multiple subsystems

(see next picture).

► Click on Update subsystem… to se-

lect one subsystem, check and to per-

form an eSW download.

► Click on the button Version informa-

tion…, to view all versions of the sub-

systems, BIOS, application 1/2/3/5.

6 Gantries

6.9 eSW Download (SW 70x)

Service Manual SIPLACE X-Serie S 06/2019 203

Fig.259: Select subsystem

► Select the subsystem for the eSW

download.

► Click on the Continue button.

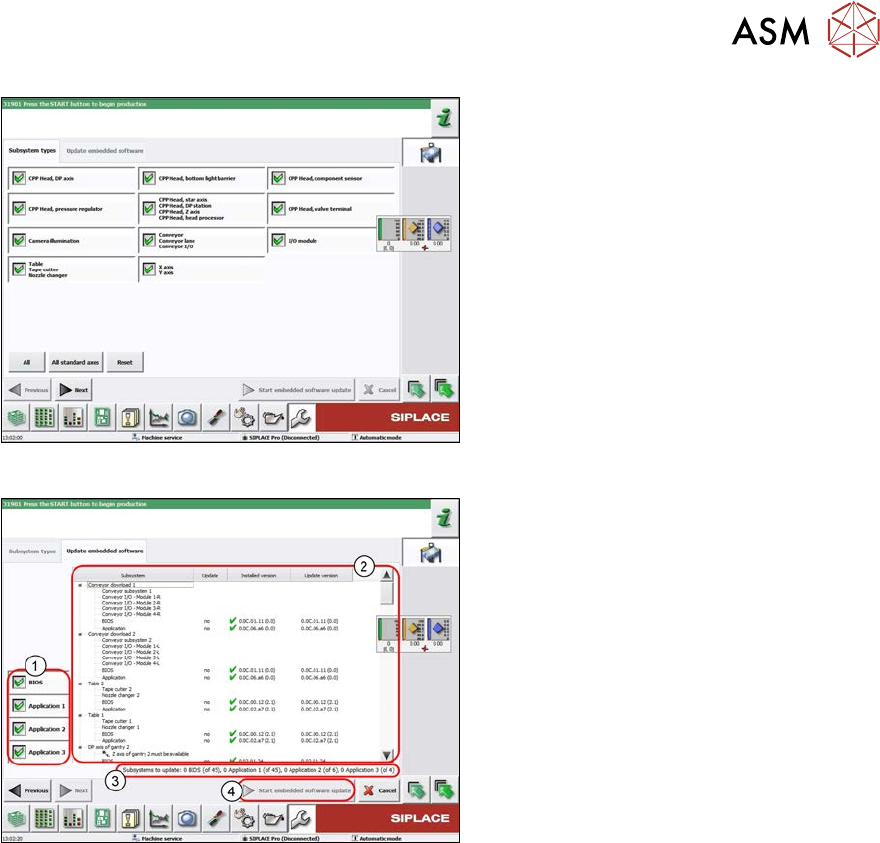

Fig.260: Update machine menu

1. Selection buttons:

BIOS

Application 1

Application 2

Application 3

2. Shows the status of the individual sub-

systems

3. Update information

This shows you the number of subsys-

tems which still need to be down-

loaded.

4. Starts the download
