7 Conveyor
7.7 Clamping Plate, Clamping Rails and Belt Guidance
Service Manual SIPLACE X-Serie S 06/2019 259
7.7.3 Replacing the Clamping Rail/Belt Guidance
Parts, equipment and tools

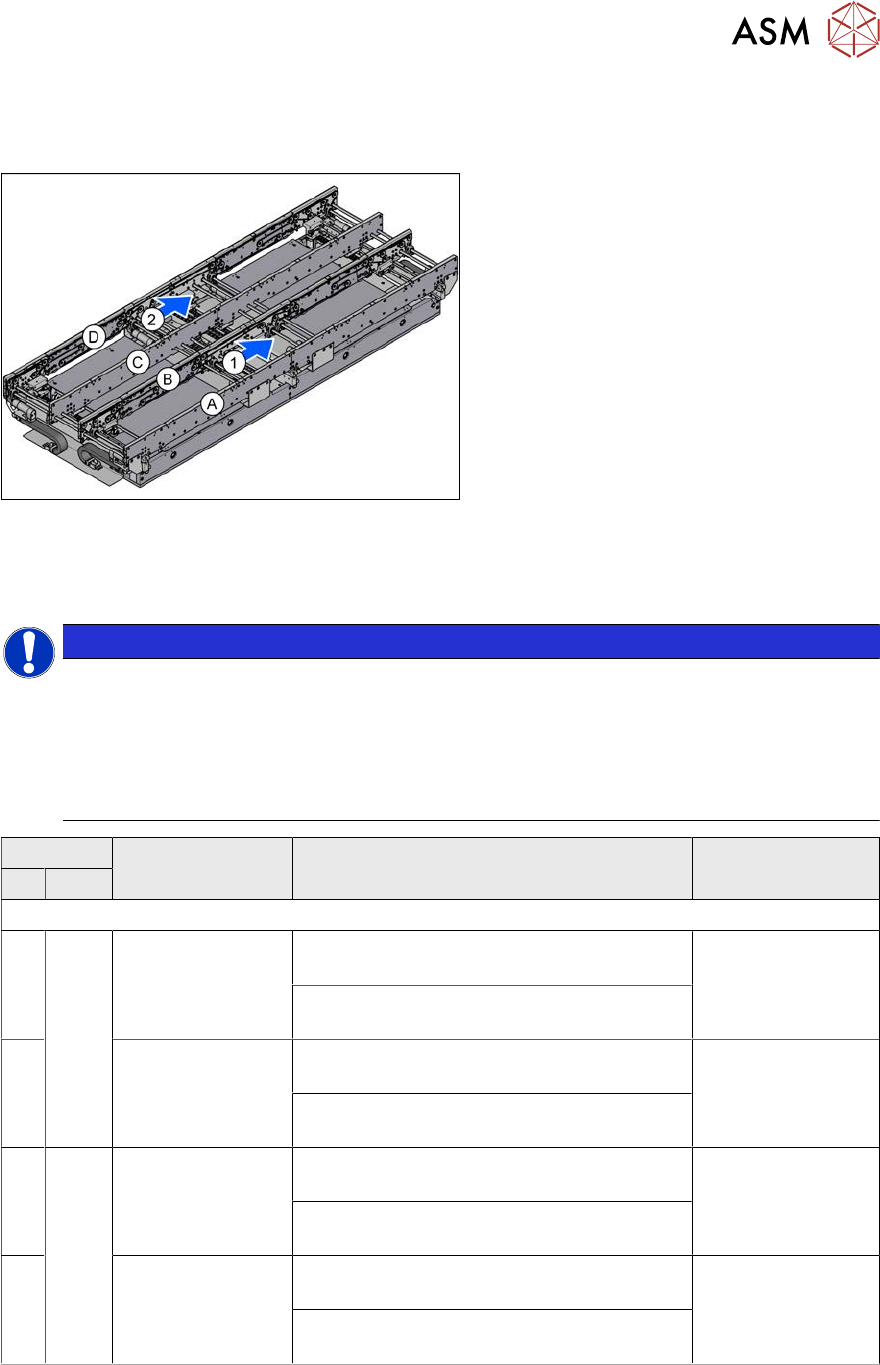

Fig.327: Overview of conveyor sides and lanes
1, 2 = Conveyor lane 1 and 2
A to D = conveyor side A to D
The single conveyor only has sides A and B.
Select the required belt guide or clamping rail:
(DC = dual conveyor, SC = single conveyor, PA1/PA2 = placement area 1/2)
NOTICE
Single conveyor
In the case of "single conveyor right", sides A and B of the dual conveyor are used.
In the case of "single conveyor left", sides C and D of the dual conveyor are used.
It is not possible to convert the single conveyor from right to left or vice versa. In this case,
you need to change the conveyor itself. You may wish to contact your SIPLACE service
team regarding this work.
Side panel Input area PA1 Center PA1
DC SC
SIPLACE X4 S, X3 S
A Fixed,
right
[03093894-xx] Belt
guidance A/C PA1
IC SX4a
[03094127-xx] Clamping rail A/C PA1 380
450 assembly SX4a
[03093880-xx] Belt
guidance A/C PA1
OC SX4a
Thick board: [03100557-xx] clamping rail
TBO A/C PA1 380 450 assembly SX4a
B [03094528-xx] Belt
guidance B/D PA1
IC SX4a
[03097848-xx] Clamping rail B/D PA1 450
assembly SX4a
[03094526-xx] Belt
guidance B/D PA1
OC SX4a
Thick board: [03100574-xx] clamping rail
TBO B/D PA1 450 assembly SX4a
C Fixed,
left
[03093894-xx] Belt
guidance A/C PA1
IC SX4a
[03094127-xx] Clamping rail A/C PA1 380
450 assembly SX4a
[03093880-xx] Belt
guidance A/C PA1
OC SX4a
Thick board: [03100557-xx] clamping rail
TBO A/C PA1 380 450 assembly SX4a
D [03094528-xx] Belt
guidance B/D PA1
IC SX4a
[03097848-xx] Clamping rail B/D PA1 450
assembly SX4a
[03094526-xx] Belt
guidance B/D PA1
OC SX4a
Thick board: [03100574-xx] clamping rail
TBO B/D PA1 450 assembly SX4a
7 Conveyor
7.7 Clamping Plate, Clamping Rails and Belt Guidance
260 Service Manual SIPLACE X-Serie S 06/2019
Side panel Input area PA1 Center PA1
DC SC
SIPLACE X4i S
A Fixed,
right
[03093894-xx] Belt
guidance A/C PA1
IC SX4a
[03094127-xx] Clamping rail A/C PA1 380
450 assembly SX4a
[03093880-xx] Belt
guidance A/C PA1
OC SX4a
Thick board: [03100557-xx] clamping rail
TBO A/C PA1 380 450 assembly SX4a
B [03094528-xx] Belt
guidance B/D PA1
IC SX4a
[03094541-xx] Clamping rail B/D PA1 380
assembly SX4a
[03094526-xx] Belt
guidance B/D PA1
OC SX4a
Thick board: [03100571-xx] Clamping rail
TBO B/D PA1 380 assembly SX4a
C Fixed,
left
[03093894-xx] Belt
guidance A/C PA1
IC SX4a
[03094127-xx] Clamping rail A/C PA1 380
450 assembly SX4a
[03093880-xx] Belt
guidance A/C PA1
OC SX4a
Thick board: [03100557-xx] clamping rail
TBO A/C PA1 380 450 assembly SX4a
D [03094528-xx] Belt
guidance B/D PA1
IC SX4a
[03094541-xx] Clamping rail B/D PA1 380
assembly SX4a
[03094526-xx] Belt
guidance B/D PA1
OC SX4a
Thick board: [03100571-xx] Clamping rail
TBO B/D PA1 380 assembly SX4a
Side panel Center PA2 PA2 Output area
DC SC
SIPLACE X4 S, X3 S
A Fixed,
right
[03093767-xx] Belt
guidance A/C PA2
IC SX4a
[03094115-xx] Clamping rail A/C PA2 380
450 assembly SX4a
[03093766-xx] Belt
guidance A/C PA2
OC SX4a
Thick board: [03100554-xx] clamping rail
TBO A/C PA2 380 450 assembly SX4a
B [03094434-xx] Belt
guidance B/D PA2
IC SX4a
[03094452-xx] Clamping rail B/D PA2 450
assembly SX4a
[03094433-xx] Belt
guidance B/D PA2
OC SX4a
Thick board: [03100563-xx] Clamping rail
TBO B/D PA2 450 assembly SX4a
C Fixed,
left
[03093767-xx] Belt
guidance A/C PA2
IC SX4a
[03094115-xx] Clamping rail A/C PA2 380
450 assembly SX4a
[03093766-xx] Belt
guidance A/C PA2
OC SX4a
Thick board: [03100554-xx] clamping rail
TBO A/C PA2 380 450 assembly SX4a
D [03094434-xx] Belt
guidance B/D PA2
IC SX4a
[03094452-xx] Clamping rail B/D PA2 450
assembly SX4a
[03094433-xx] Belt
guidance B/D PA2
OC SX4a
Thick board: [03100563-xx] Clamping rail
TBO B/D PA2 450 assembly SX4a
7 Conveyor
7.7 Clamping Plate, Clamping Rails and Belt Guidance
Service Manual SIPLACE X-Serie S 06/2019 261
Side panel Input area PA1 Center PA1
DC SC
SIPLACE X4i S
A Fixed,
right
[03093767-xx] Belt
guidance A/C PA2
IC SX4a
[03094115-xx] Clamping rail A/C PA2 380
450 assembly SX4a
[03093766-xx] Belt
guidance A/C PA2
OC SX4a
Thick board: [03100554-xx] clamping rail
TBO A/C PA2 380 450 assembly SX4a
B [03094434-xx] Belt
guidance B/D PA2
IC SX4a
[03094452-xx] Clamping rail B/D PA2 450
assembly SX4a
[03094433-xx] Belt
guidance B/D PA2
OC SX4a
Thick board: [03100563-xx] Clamping rail
TBO B/D PA2 450 assembly SX4a
C Fixed,
left
[03093767-xx] Belt
guidance A/C PA2
IC SX4a
[03094115-xx] Clamping rail A/C PA2 380
450 assembly SX4a
[03093766-xx] Belt
guidance A/C PA2
OC SX4a
Thick board: [03100554-xx] clamping rail
TBO A/C PA2 380 450 assembly SX4a
D [03094434-xx] Belt
guidance B/D PA2
IC SX4a
[03094452-xx] Clamping rail B/D PA2 450
assembly SX4a
[03094433-xx] Belt
guidance B/D PA2
OC SX4a
Thick board: [03100563-xx]
Clamping rail TBO B/D PA2 450 assembly
SX4a
Removal
CAUTION
Move the conveyor sides carefully!
The clamping rails and belt guides are a key stabilizing element for the conveyor side,
which is then less stable once they have been removed.
► Move the opened conveyor sides very carefully.
Make sure that the rails are always pushed equally on the left and right.
Also make sure that you do not distort the rails.
► Use the software to move the conveyor sides into a position which allows you best access. As
an alternative, you can loosen the clamps for the relevant sides in dual conveyors.
7.2 "Loosening the Conveyor Side Clamps" [}207]
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation.
1.2 "Preparatory work..." [}16]
► Only in the input, output and intermediate areas: loosen the movable idler pulley for the con-
veyor belt.
