7 Conveyor 7.9 Boards Service Manual SIPLACE X-Serie S 06/2019 293 Fig.370: 03087641-02
7 Conveyor
7.9 Boards
292 Service Manual SIPLACE X-Serie S 06/2019
Fig.369: 03087640-02
●
F1: fuse T5A 1500A 5x20mm SPT series (0001.2511 Schurter)
●
F2: fuse T2A 5x20mm (0034.3120 Schurter / 0239 002 XP Littelfuse)
7 Conveyor
7.9 Boards
Service Manual SIPLACE X-Serie S 06/2019 293
Fig.370: 03087641-02
7 Conveyor
7.9 Boards
294 Service Manual SIPLACE X-Serie S 06/2019

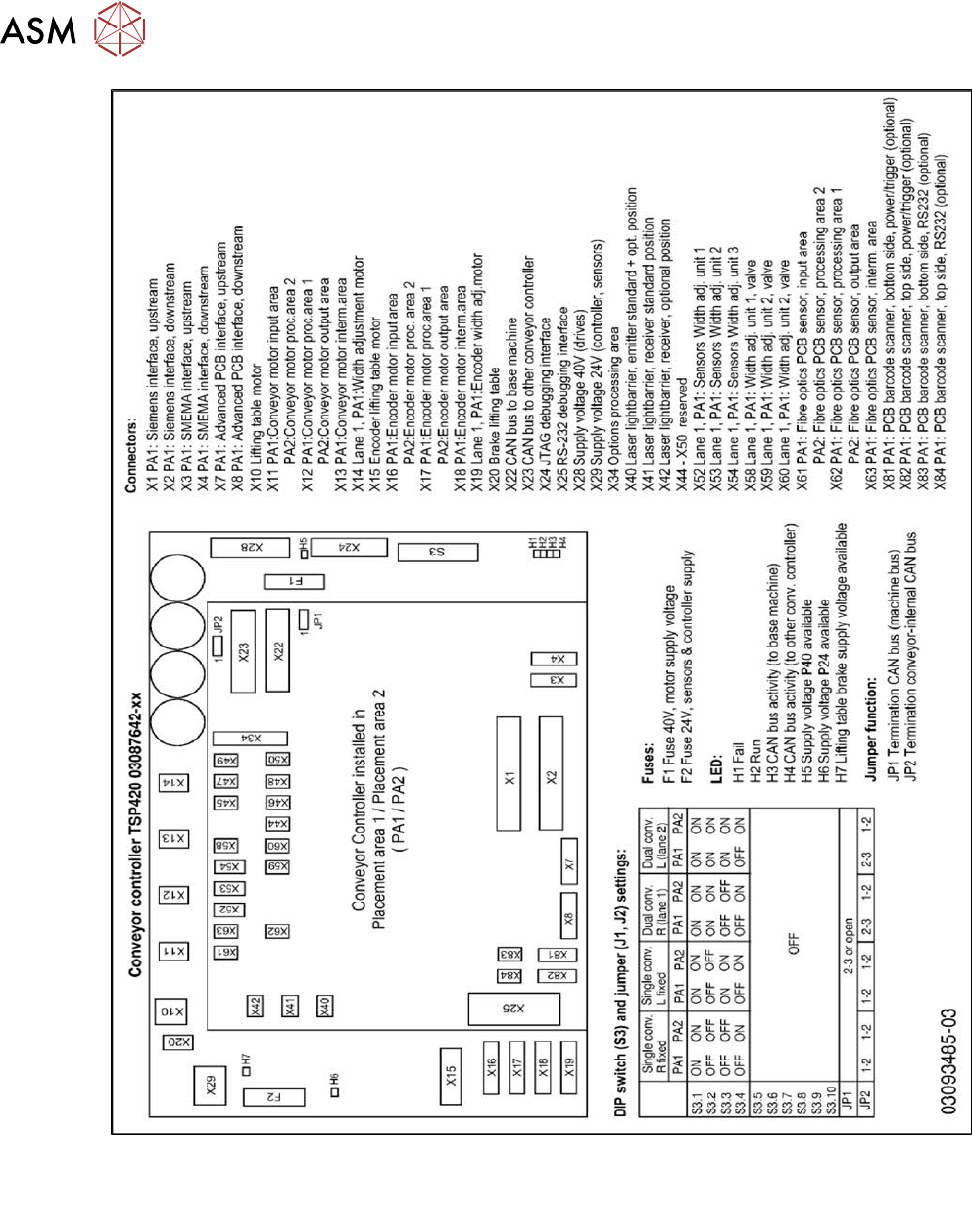

Fig.371: TSP420 machine plate SIPLACE X4 S
Spare fuses:
●
F1: Fuse T5A 5x20mm SPT series / Schurter
●
F2: Fuse T2A 5x20 mm / Schurter Littelfuse
