7 Conveyor
7.11 eSW Download (SW 70x)
Service Manual SIPLACE X-Serie S 06/2019 303
7.11 eSW Download (SW 70x)

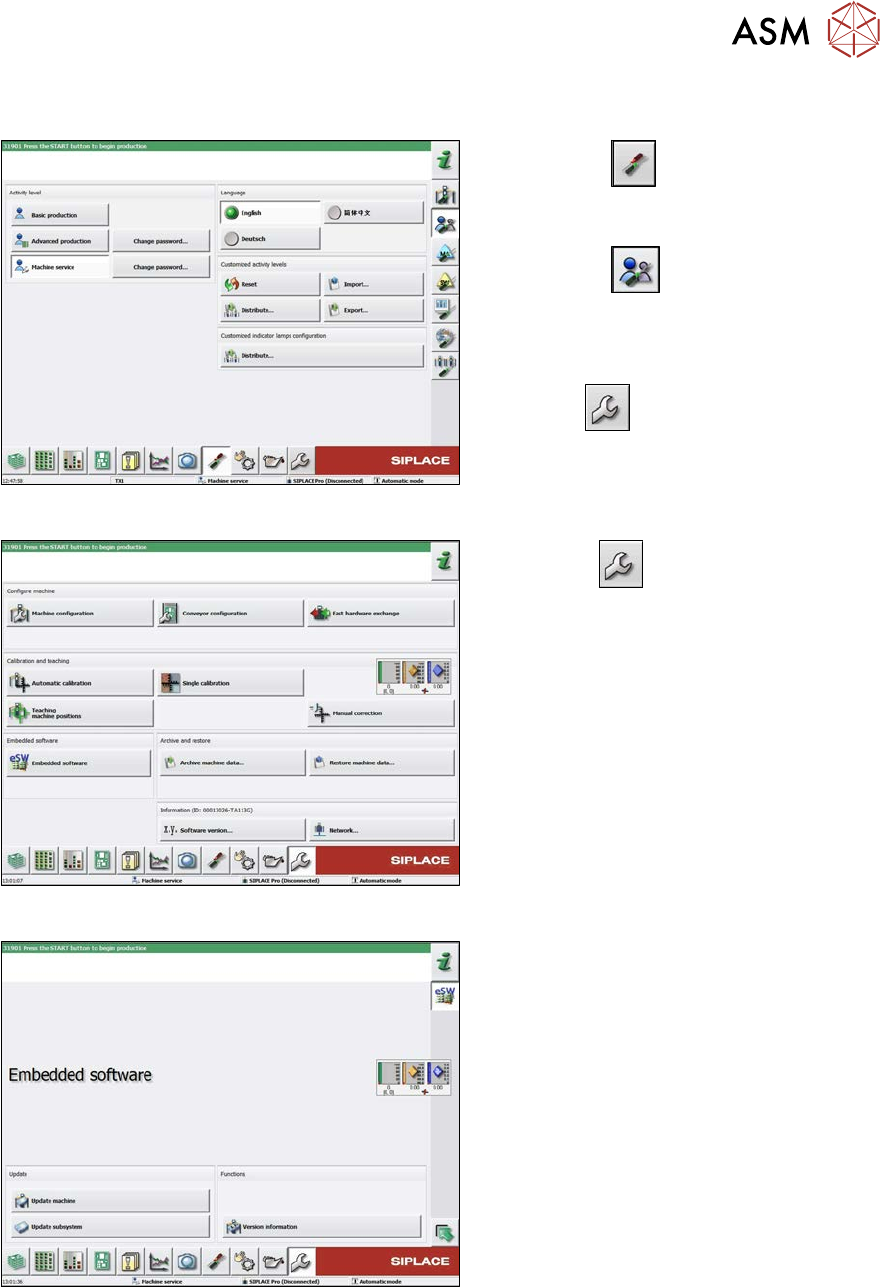

Fig.384: Select operator level
► Select the
button, to open the
Configure, update and calibrate the
machine menu.
► Select the
button to open the
Check and set user settings menu.
► Switch over to the operator level Ma-
chine service.
ð The
button will be shown.
Fig.385: Service menu
► Click the
button to enter the Ser-
vice menu.
► Click on the Embedded software but-
ton.
Fig.386: Embedded software menu
Select the required function:
► Click on Update machine… to check
the entire machine and to perform an
eSW download for multiple subsystems
(see next picture).
► Click on Update subsystem… to se-
lect one subsystem, check and to per-
form an eSW download.
► Click on the button Version informa-
tion…, to view all versions of the sub-
systems, BIOS, application 1/2/3/5.
7 Conveyor
7.12 Mapping
304 Service Manual SIPLACE X-Serie S 06/2019

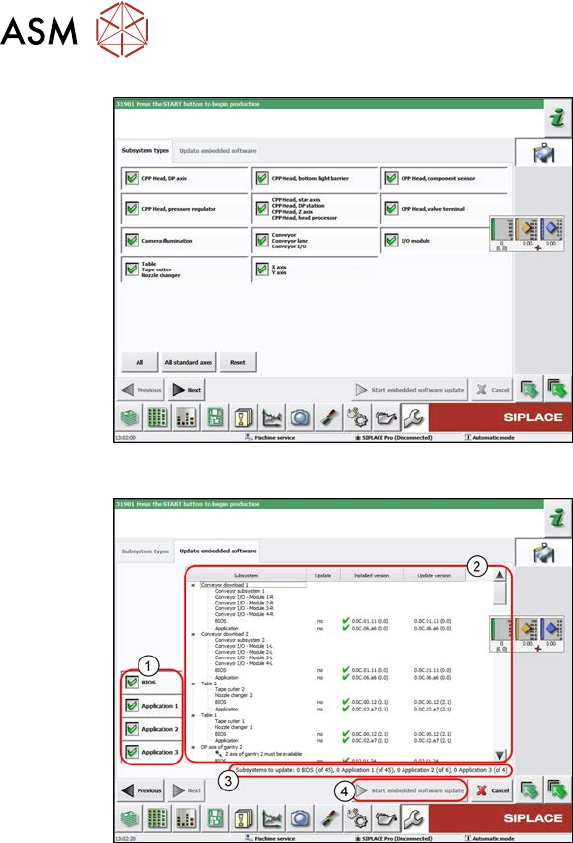

Fig.387: Select subsystem
► Select the subsystem for the eSW
download.
► Click on the Continue button.
Fig.388: Update machine menu
1. Selection buttons:
BIOS
Application 1
Application 2
Application 3
2. Shows the status of the individual sub-
systems
3. Update information
This shows you the number of subsys-
tems which still need to be down-
loaded.
4. Starts the download
7.12 Mapping
For information about mapping, refer to the technical information "Overview of all mapping plates
and allocation to the machines" [DE:TI2017‑10D04] [EN:TI2017‑10E04].
8 Head exchange
8.1 Fast Hardware Exchange
Service Manual SIPLACE X-Serie S 06/2019 305
8 Head exchange
DANGER
Observe User Manual
► Please observe the safety instructions in the user manual for all work!
See also
2 8.2 "Differentiation of the SIPLACE C&P20 head variants" [}309]
8.1 Fast Hardware Exchange
Fast Hardware Exchange (FHE) enables you to change a placement head within 15minutes.
NOTICE
SIPLACE CPP/M and SIPLACE C&P20M/M2/P/P2 only
FHE is only possible with SIPLACE CPP and SIPLACE C&P20M/M2/P/P2.
SIPLACE Twin needs to be manually processed and calibrated.
Equipment and tools
The head exchange kits contain all the tools required for replacing the relevant head:
●
Head Exchange Kit for SIPLACE CPx [03109694‑xx]
●
Head Exchange Kit for SIPLACE C&P20A [03109567‑xx]
●
Head Exchange Kit for SIPLACE CPP [03109570‑xx]
●
Head Exchange Kit for SIPLACE C&P20P [03114808‑xx]
●
Head Exchange Kit for SIPLACE C&P20P2 [03172724‑xx]
