8 Head exchange
8.3 Replacing the SIPLACE C&P20/A/M
310 Service Manual SIPLACE X-Serie S 06/2019
8.3 Replacing the SIPLACE C&P20/A/M
NOTICE
Vacuum test
If required, perform a vacuum test before removing the placement head.
Read the "Service manual Vacuum test at C&P placement head" [DE+EN:
00196101‑xx] for this.
NOTICE
Fast Hardware Exchange (FHE)
Observe the instructions in section 8.1 "Fast Hardware Exchange" [}305] when ex-
changing a head.
NOTICE
Example shown as diagram
Replacement of the placement head is shown using the example of a SIPLACE C&P20 A
machine. Replacement of other SIPLACE C&P20 types follows the same procedure. Any
relevant differences will be mentioned explicitly.
Parts, equipment and tools
Select the placement head:
Head type Camera Item no.
SIPLACE C&P20A With camera SST23 03062095-xx
Without camera 03058420-xx
SIPLACE C&P20M With camera SST41 03107086-xx
Without camera 03103108-xx
Torque screwdriver 1-5 Nm [03078400-xx]
Extension/straight TX20 [03073256-xx]
Bit holder for Torque Vario-S screwdriver [03078706‑xx]
Torx offset screwdriver TX8 [03080081-xx]
Calibration tool version SST23 [03034148-xx]
Protective hose for component sensor [03078596-xx]
For additional work on the placement head:
Head mount [03056231‑xx]
Service manual "C&P20 / C&P20A / C&P20M head" [DE:00197464‑xx] [EN:00197465‑xx]
Job Card "Preventive Maintenance C&P20 A/M" [DE:00197504‑xx] [EN:00197502‑xx] (other
languages available)
If needed, for vacuum pump operation:
Assembly instructions "Vacuum Pump SIPLACE X-Series S from Hxxxx" [00198599‑xx]
Assembly instructions "Vacuum Pump SIPLACE X-Series S, SX4/DX4 up to
Hxxxx" [00196845‑xx]
8 Head exchange
8.3 Replacing the SIPLACE C&P20/A/M
Service Manual SIPLACE X-Serie S 06/2019 311
Removal
Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation.
1.2 "Preparatory work..." [}16]
Switch off the compressed air supply
5.2 "Disabling the compressed air supply" [}134]

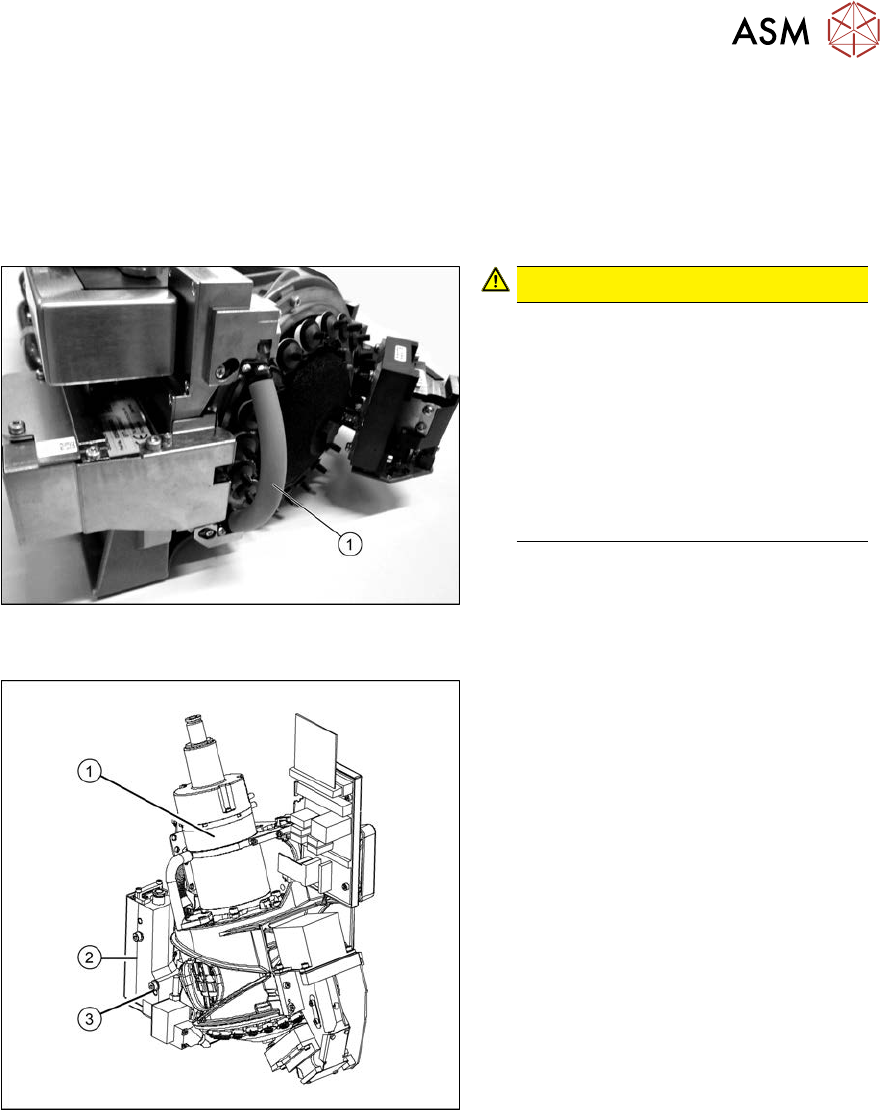

Fig.395: Hose on component sensor (example of C&P20 A
shown)
 CAUTION!
The component sensor prisms, under-
neath the placement head, are easily
damaged. Take great care when dis-
mantling the head!
Protect the component sensor with a
piece of hose (1). This is delivered
with the placement head or component
sensor and should be stored in the
service box for the machine, as it is re-
quired for dismantling the head.
.
Fig.396: Removing the placement head
Unplug the pneumatic connection(1).
Disconnect the flat ribbon cable from
the placement head.
Remove the screws fastening the strain
relief on the component camera cables
and carefully unplug the cables. While
unplugging the cables, press the
clamps on both sides of the connect-
ors.
Loosen the two screws on the pressure
control valve (2).
Undo the screw(3) from the pressure
control valve and swing the pressure
control valve to one side.
The head fastening screw near the
pressure control valve is now access-
ible.
Unscrew all four M4 fastening screws with a long Torx key (TX20).
Carefully lift the head out of the locating pins on the head plate.
Placing the head into the head transport box
If you need to perform further work on this head (e.g. replacing spare parts), fit the head to the
head mount [03056231-xx].
8 Head exchange
8.4 SIPLACE C&P20 P on SIPLACE X-Series S machines
312 Service Manual SIPLACE X-Serie S 06/2019
Installation
Follow the removal instructions in reverse order for installation. Also observe the following
instructions:
If you replace the head without component camera, you will need to fit the old camera into
the new head. Read the service manual for your placement head for more information.
In vacuum pump mode, you need to dismantle the silencer from the old head and fit it to
the new one. Refer to the appropriate vacuum pump assembly instructions for details.
Make sure that the assembly position on the head plate is correct.
Tighten the four head fastening screws (M4, TX20) with a torque of 2.7 Nm.
NOTICE
Various hose lengths on SIPLACE X-Series S
The hose to the pressure control valve will vary in length, depending on the installation loc-
ation (standard gantry or rotated gantry).
Shorten or replace the hose, where necessary.
1.2 "Preparatory work..." [}16]
5.2 "Disabling the compressed air supply" [}134]
See also
2 8.8 "Installation Positions on the Head Plate" [}323]
8.4 SIPLACE C&P20 P on SIPLACE X-Series S machines
NOTICE
Vacuum pump/compressed air mode on SIPLACE X-Series S machines
Compressed air mode: if the SIPLACE C&P20 P is operated without a vacuum
pump, you must convert the head to compressed air mode. You will need the "Conver-
sion kit for compressed air mode SIPLACE C&P20P" [03106765‑xx].
Vacuum pump mode (default): If the SIPLACE C&P20 P is operated with a vacuum
pump, you will need the "Upgrade kit pressure sensor vacuum C&P20P for SIPLACE
X‑SeriesS" [03108457‑xx].
