8 Head exchange

8.6 Replacing the SIPLACE CPP/M

316 Service Manual SIPLACE X-Serie S 06/2019

8.6 Replacing the SIPLACE CPP/M

Parts, equipment and tools

Fig.402: SIPLACE CPP with camera

●

SIPLACE CPP with camera SST29 [03070108-xx] or

SIPLACE CPP without camera [03053528Sxx]

●

Torx screwdriver ESD 1.0-5.0 Nm [03078400-xx]

●

Extension/straight TX20 [03073256-xx]

●

Bit holder for TorqueVario screwdriver [03078706-xx]

●

Component sensor protective cap [03080984-xx]

●

Torx offset screwdriver TX8 [03080081-xx]

●

Calibration tool version 3 [03010565-xx]

●

Calibration tool version SST23 [03034148-xx]

For additional work to the placement head:

●

Head mount [03056231‑xx]

●

Service manual "SIPLACE CPP head" [DE:00197462‑xx] [EN:00197463‑xx]

●

Job Card "Preventive Maintenance CPP" [DE:00197505‑xx] [EN:00197503‑xx] (other lan-

guages available)

Overview

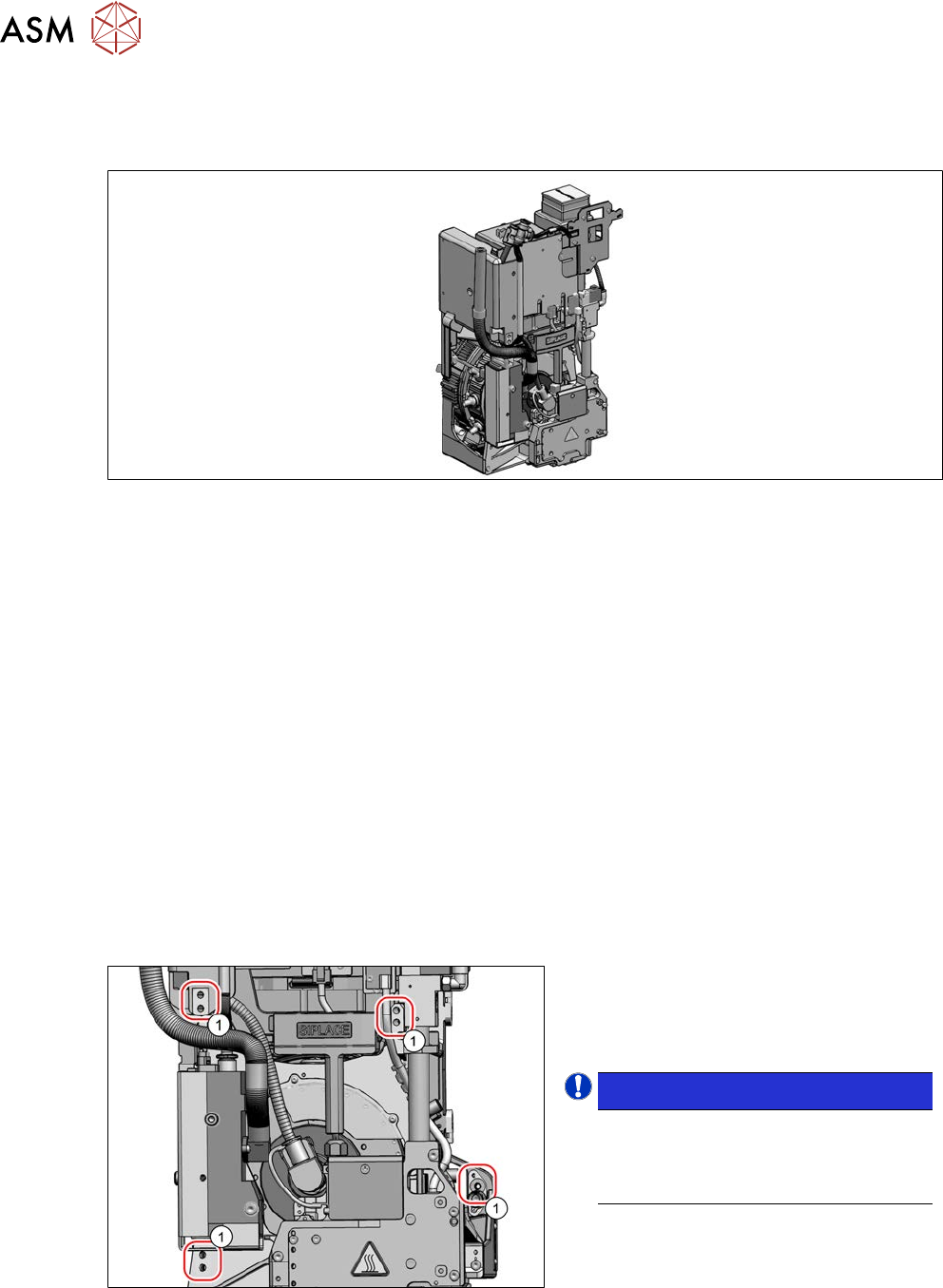

Fig.403: Overview (example of SIPLACE CPP head shown)

1 to 4: Fixture holes (two each, depends on

installation height)

5: Dowel holes for the index pins

6: Component camera

 NOTICE!

The length of the exhaust air hose "Sil-

icon hose Di8 Da12 electrically con-

ductive 1m" [03006727Sxx] on the

SIPLACE CPP/CPP M is 316mm.

8 Head exchange

8.6 Replacing the SIPLACE CPP/M

Service Manual SIPLACE X-Serie S 06/2019 317

Removal

NOTICE

Vacuum test

► If required, perform a vacuum test before removing the placement head.

Read the "Service manual Vacuum test at C&P placement head" [DE+EN:

00196101‑xx] for this.

NOTICE

Fast Hardware Exchange (FHE)

► Observe the instructions in section 8.1 "Fast Hardware Exchange" [}305] when ex-

changing a head.

► Switch off the machine, disconnect it from the power supply and secure it to prevent

unauthorized reactivation.

1.2 "Preparatory work..." [}16]

► Switch off the compressed air supply

5.2 "Disabling the compressed air supply" [}134]

CAUTION

Take great care when dismantling the placement head!

The component sensor prisms, underneath the placement head, could be damaged.

► Never place the placement head down on the component sensor.

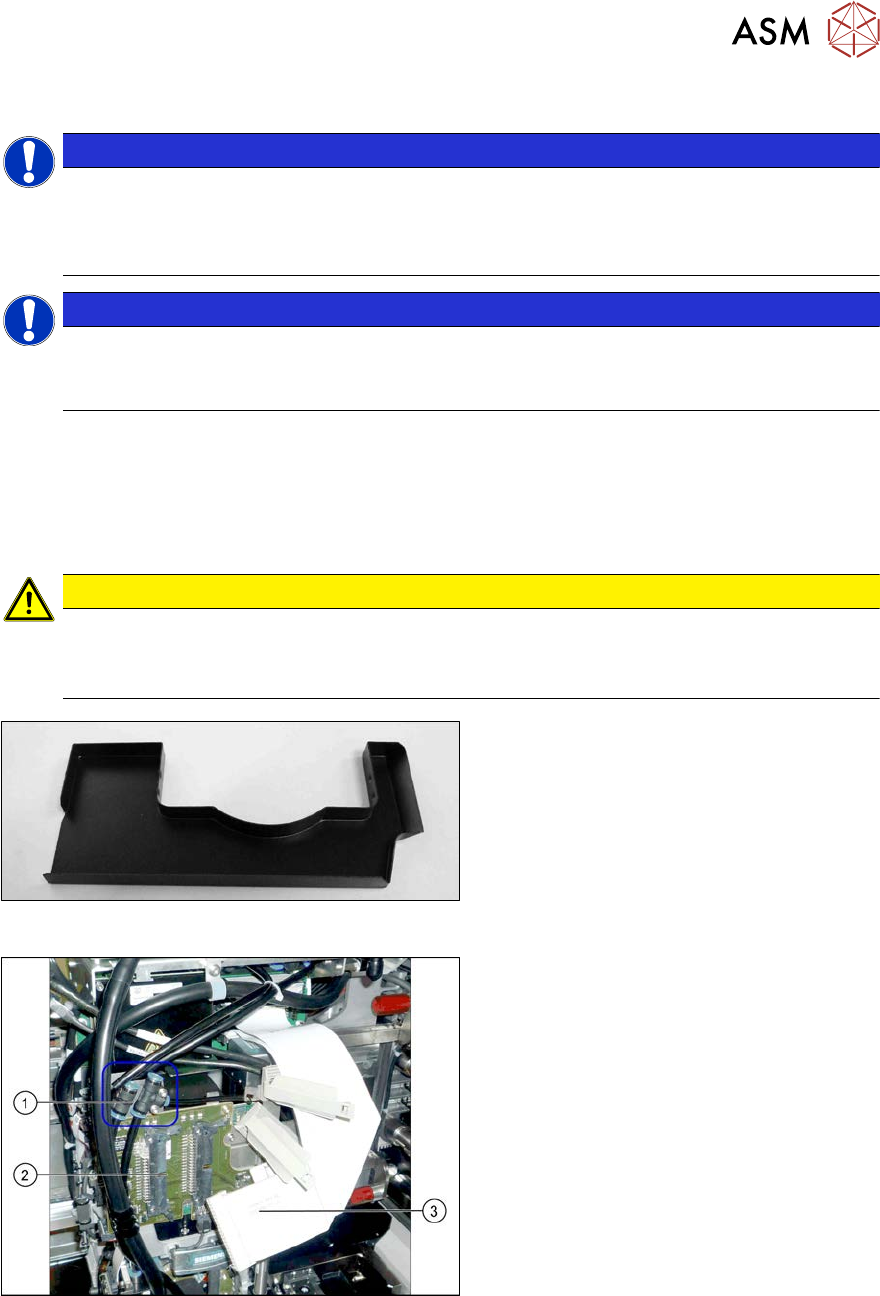

Fig.404: Component sensor protective cap

► Fit the protective cap onto the compo-

nent sensor for the placement head.

Fig.405: Connections

► Unplug the pneumatic connections(1)

from the placement head. You may

want to mark the positions to make

clear assignment easier later on.

► Disconnect the flat ribbon cables(3)

from the intermediate distributor(2).

8 Head exchange

8.6 Replacing the SIPLACE CPP/M

318 Service Manual SIPLACE X-Serie S 06/2019

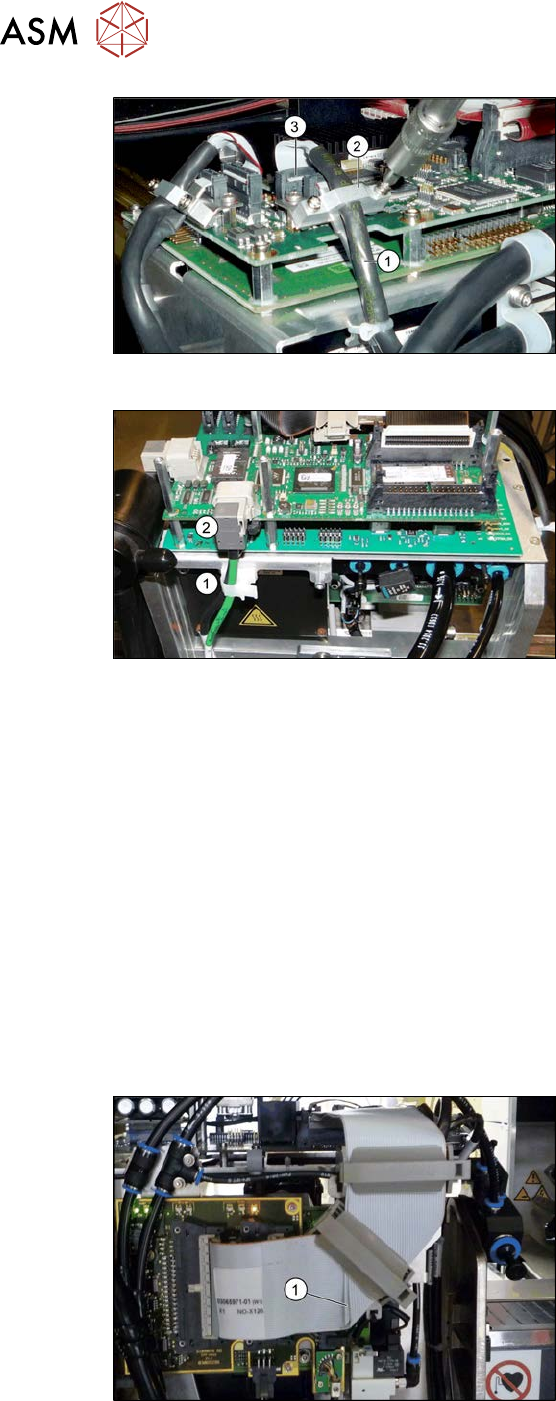

Fig.406: Cables (up to Gxxxx, without GigE)

Up to Gxxxx, without GigE:

► Remove the screws fastening the strain

relief (2) on the component camera cable

(1) and carefully unplug the cable. While

unplugging the cable press the clamps

on both sides of the connector(3). You

may want to mark the positions to make

clear assignment easier later on.

Fig.407: Cables (from Hxxxx, with GigE)

From Hxxxx, with GigE:

► Open the cable holder(1) and unplug the

component camera cable(2).

► Remove all four screws fastening the head with a long Torx screwdriver.

► Carefully lift the head out of the locating pins on the head plate and off the hook.

► Placing the head into the head transport box

Installation

► Follow the removal instructions in reverse order for installation. Also observe the following

instructions:

– If you replace the head without the component camera, you will need to fit the old camera onto

the new head. Read the service manual for your placement head for more information.

– Observe the correct installation height of the head (top or bottom position, see 8.6.1 "Pre-

paring the SIPLACE CPP for the installation height" [}319])!

– Make sure that the assembly position on the head plate is correct.

– Tighten the four fastening screws with a torque of 2.7Nm.

– Make sure that the flat ribbon cable is run correctly to the head adapter (see below).

Fig.408: Flat ribbon cable

Correct running of flat ribbon cable to head

adapter

► Make sure that the flat ribbon cable is run

correctly to the head adapter. In particu-

lar, the cables must lie inside one an-

other at the 90 degrees turn(1) and not

on top of one another, otherwise the con-

nections on the head adapter could be

easily confused.
