9 Component feeding
9.1 Cutter
Service Manual SIPLACE X-Serie S 06/2019 331
NOTICE
The spring rings used to date are no longer permissible. The mount must therefore
be changed.
► When fastening the new rail [03008869-03] use the four serrated lock washers M4-
FST.1.4401 [03047857-xx], instead of the four spring rings.
► Use the following screws to fasten the brackets:
2x ISO4762-M4x16-A2-70 [03042507-xx] and 2x ISO4762-M4x30-A2-70 [03042557-xx]
► If longer or shorter screws are used or if the serrated lock washers are missing, the
metal buffers will be subjected to excess strain and the screws could work loose. In
this case, the cutter fixtures are no longer reliable.
► Secure the screws with Loctite 243.
► Used screw clamps to protect the metal buffers from torsion during tightening.
► The maximum tightening torque is 2 Nm.
► Carefully lift the cutter onto the spacer sleeves. Use the spacer disks if provided.
► Tighten all four fastening screws.

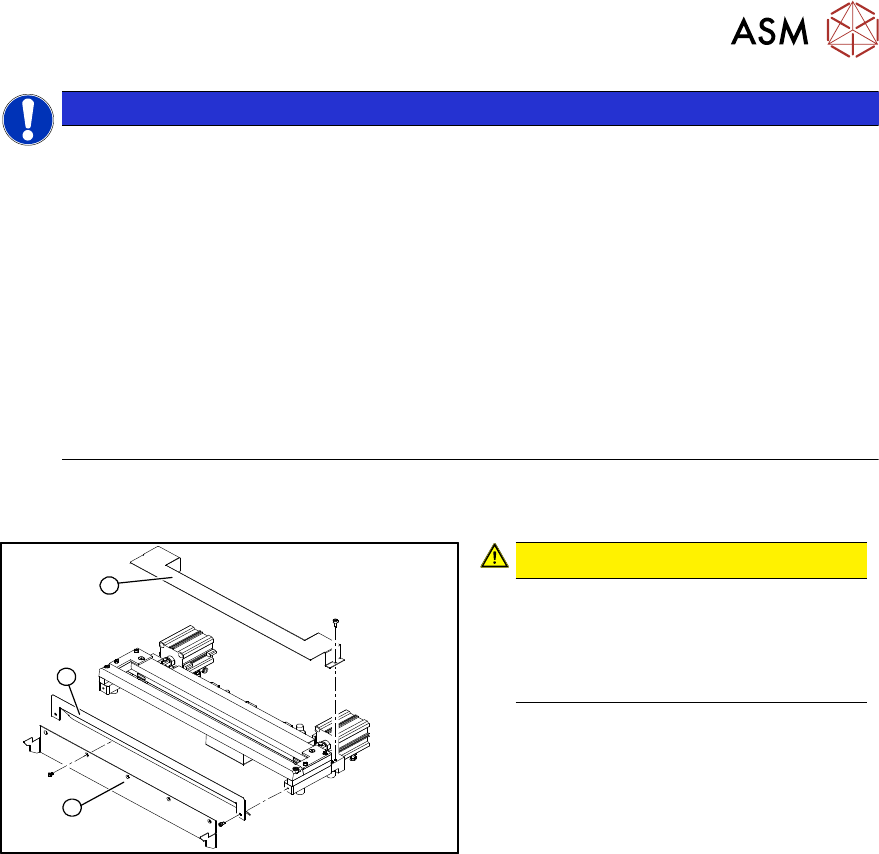

Fig.426: Cutter (using example of X-Series)
 CAUTION!
There is a risk of injuring yourself on
the cutting edge of the blades.
For this reason, the deflector plate (2),
cover plate (1) and protective sheet (3)
must be left mounted in place!
.
► Move the cutter into its installation position, using the support/chair for assistance.
► Carefully lift the cutter into the planned position.
► Tighten all four fastening screws.
► Reconnect to the electrical and compressed air systems.
► Fit the waste tape container.
► Follow the removal instructions in reverse order for further installation.
9 Component feeding
9.1 Cutter
332 Service Manual SIPLACE X-Serie S 06/2019
9.1.4 Replacing the Metal Buffer/Spacer Distance Piece
Parts
Fig.427: Spacer and metal buffer
03007432‑xx Spacer
00329209‑xx Metal buffer M4.65 Shore
Equipment and tools
00353832-xx Allen key set
Wire cutters
Cable ties
Overview
Fig.428: Metal buffer and spacer distance piece on cutter
1. Metal buffer and spacer (two on each
side)
The metal butters absorb the cutting vi-
bration to the machine base.
9 Component feeding
9.1 Cutter
Service Manual SIPLACE X-Serie S 06/2019 333
Removal
NOTICE
Same procedure
The removal and installation is described below using the example of the metal buffer. The
removal and installation of the spacer is the same as that for the metal buffer.
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation.
1.2 "Preparatory work..." [}16]
► Remove the cutter from the machine.
9.1.3 "Replacing the Cutter on the COT Insert [03066690-xx]" [}329]
Fig.429: Removing the metal buffer
► Remove the plastic cover(1).
► Take out the screws(2).
► Remove the complete mounting
strip(3).
► Remove the metal buffer.
Installation
► Follow the removal instructions in reverse order for further installation.
