9 Component feeding
9.1 Cutter
Service Manual SIPLACE X-Serie S 06/2019 347
Overview

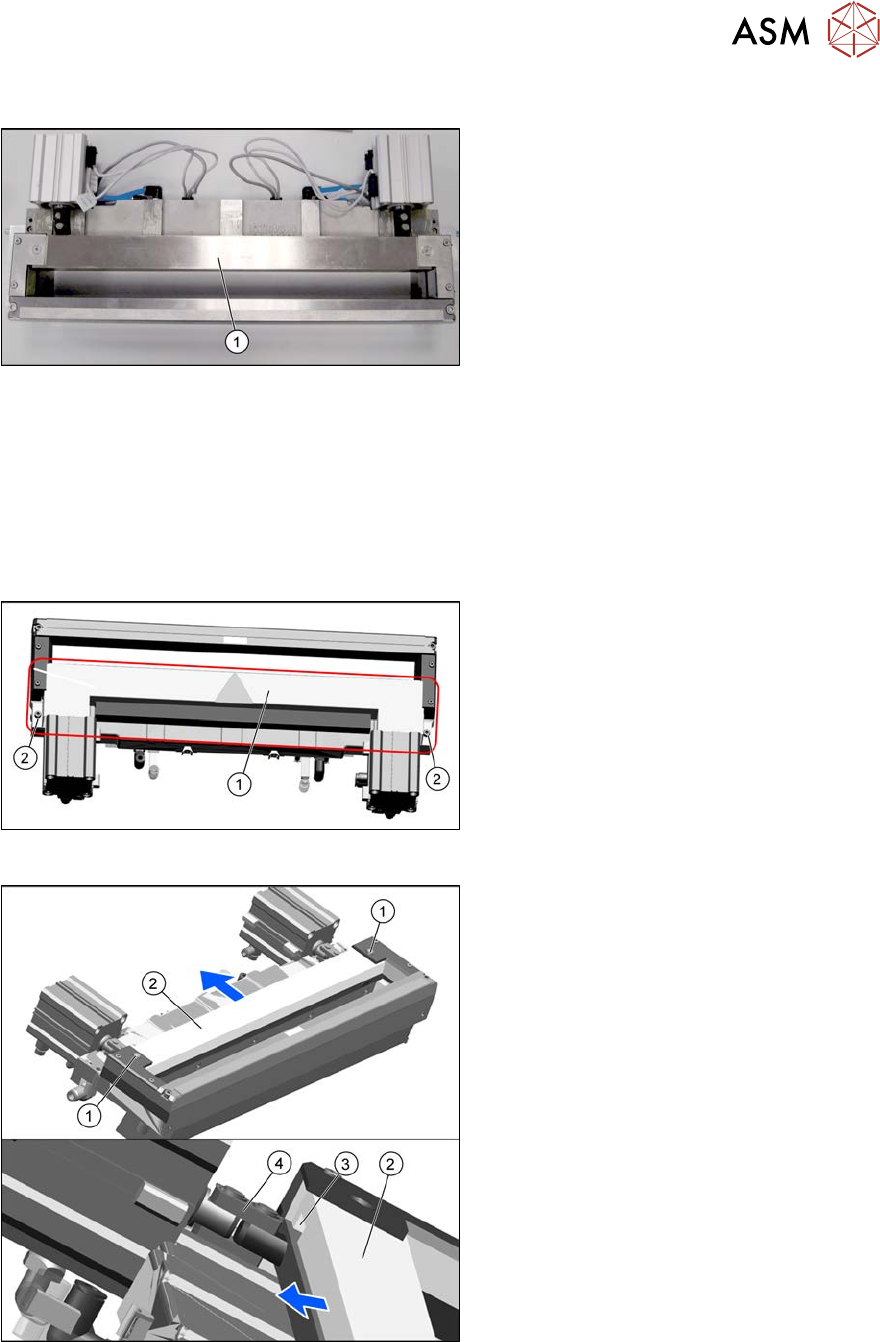

Fig.458: Wiper on cutter
1. Wiper
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation.
1.2 "Preparatory work..." [}16]
► Remove the cutter from the machine.
9.1.3 "Replacing the Cutter on the COT Insert [03066690-xx]" [}329]
Fig.459: Cover plate
► Remove the screws(2) fastening the
top cover plate(1) and then remove the
top cover plate.
Fig.460: Removing the wiper
► Remove the two screws(1) fixing the
wiper(2).
► Remove the wiper(2).
The notch(3) in the wiper will move
over the articulated joint(4) on the
short-stroke cylinder.
Installation
► Follow the removal instructions in reverse order for installation.
9 Component feeding
9.1 Cutter
348 Service Manual SIPLACE X-Serie S 06/2019
9.1.11 Replacing Wiper Clip
Parts

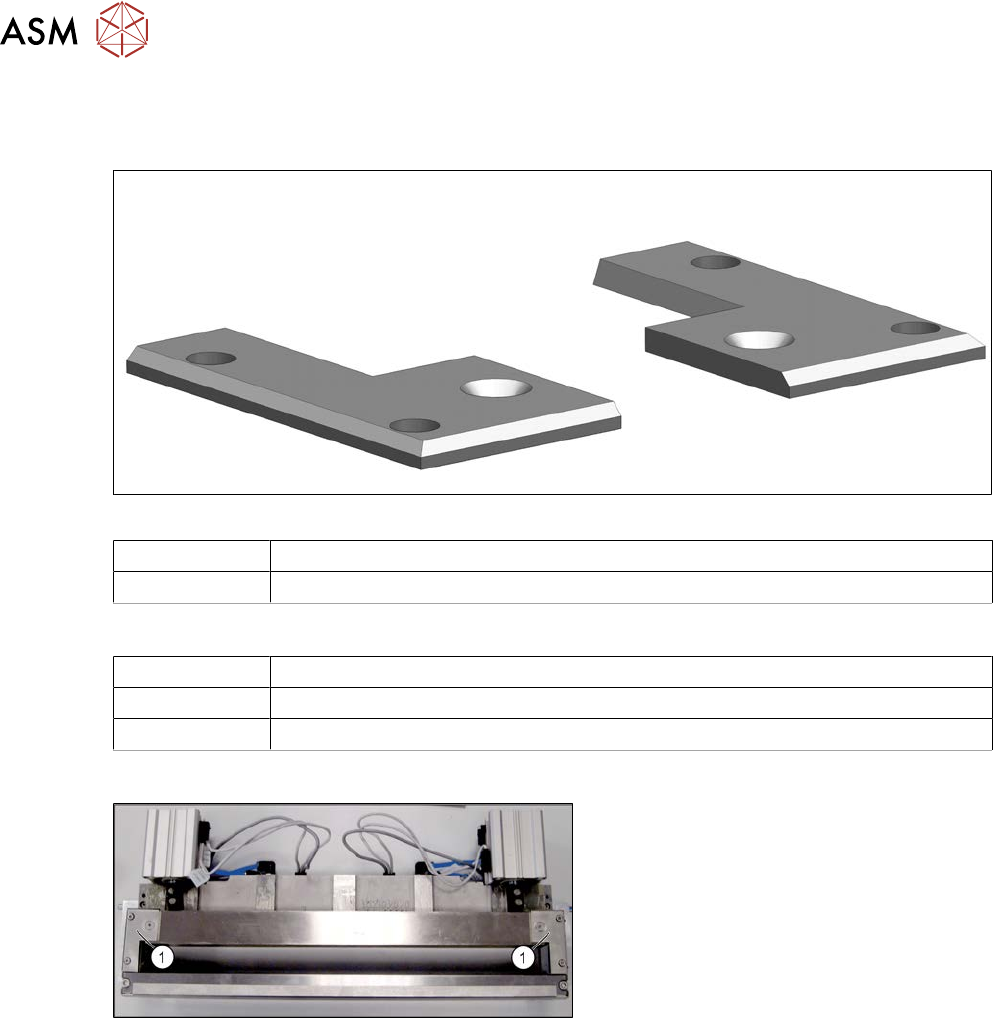

Fig.461: Wiper left and right
03000506‑xx Wiper clip left (SIPLACE HF)
03000505‑xx Wiper clip, right (cutter HF)
Equipment and tools
00353832-xx Allen key set
Wire cutters
Cable ties
Overview

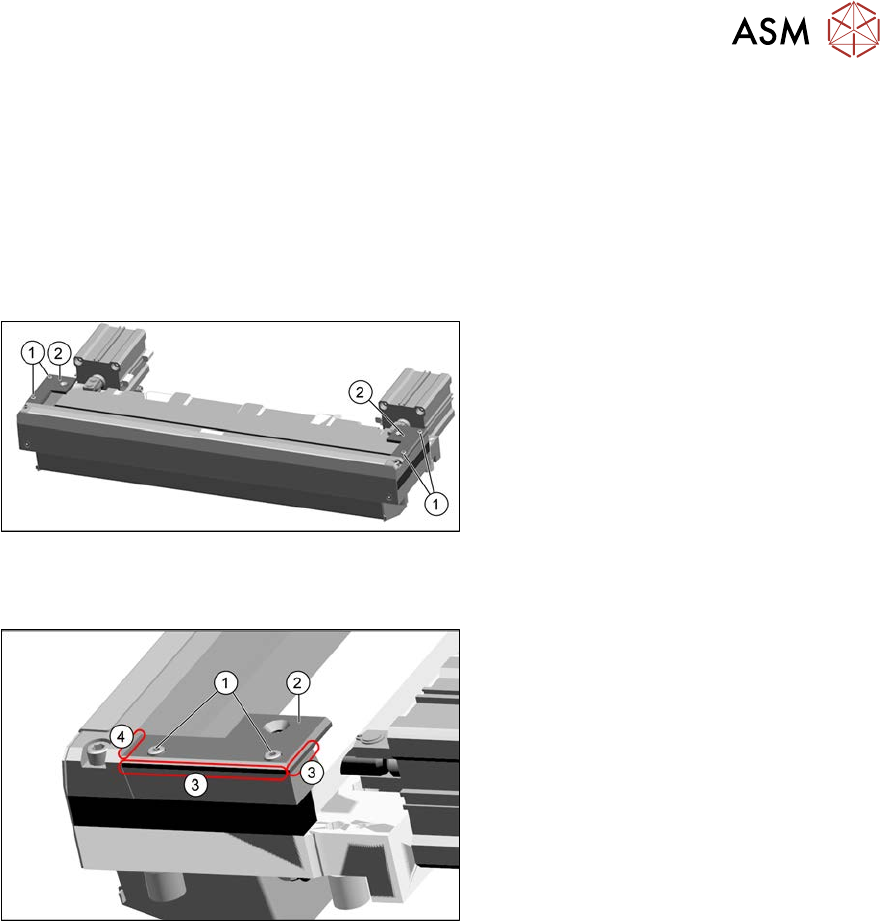

Fig.462: Wiper clips on cutter
1. Wiper clips
9 Component feeding
9.1 Cutter
Service Manual SIPLACE X-Serie S 06/2019 349
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation.
1.2 "Preparatory work..." [}16]
► Remove the cutter from the machine.
9.1.3 "Replacing the Cutter on the COT Insert [03066690-xx]" [}329]
► Remove the wiper.
9.1.10 "Replacing the wiper" [}346]
Fig.463: Removing the wiper clips
► Remove the two screws(1) (left and
right) and remove the wiper clips(2).
Installation
Fig.464: Installing the wiper clips
► Install the new wiper clips(2) on both
sides and loosely put the screws(1)
back in.
► Align the wiper clips to the edges of the
cutter frame(3) and to the cutter top
blade(4).
► Tighten the screws(1) fixing the wiper
clips.
► Follow the removal instructions in reverse order for further installation.
