2 Basic Machine
2.4 Setting the Covers
34 Service Manual SIPLACE X-Serie S 06/2019
2.4.6 Setting the Cover Rollers

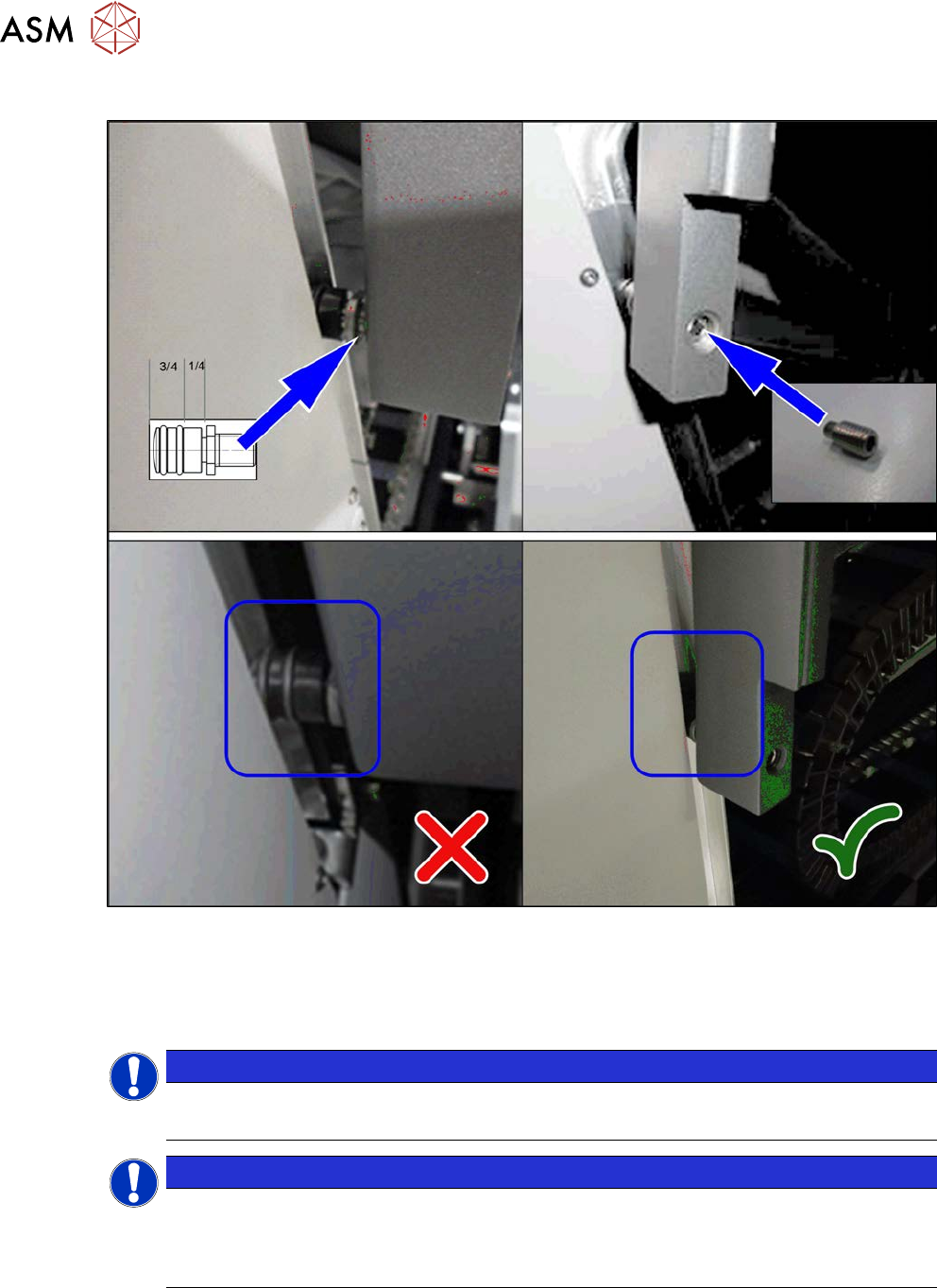

Fig.22: Cover rollers (example of SIPLACE SX2 shown)
► Set the cover roller by using the grub screw, so that it is inserted by at least 75% into the guid-
ance, along its whole length. Lock the roller with a threaded pin DIN915-M8x16 [00304354-xx]
or DIN-EN-ISO4026-M8x16-A2-21H [03025582-xx].
Place washers between the roller and cover for greater stability.
NOTICE
Missing O-rings
► Replace the following missing O-rings on the roller: O-ring 8.5x1.6 [03078577-xx]
NOTICE
Maintenance
There are O-rings on the roller. These need to be checked every 6 months and replaced
when necessary. If the roller or bottom stop is already damaged, this will also need to be
replaced.
2 Basic Machine
2.5 Replacing the barcode laminate for the X feeder
Service Manual SIPLACE X-Serie S 06/2019 35
2.5 Replacing the barcode laminate for the X feeder
Parts, equipment and tools
Fig.23: Barcode laminate X feeder sector 1 SX4 [03085971-xx]
Select the correct laminate for the location:
●
Barcode laminate X feeder sector 1 SX4 [03085971-xx]
●
Barcode laminate X feeder sector 2 SX4 [03085976-xx]
●
Barcode laminate X feeder sector 3 SX4 [03085994-xx]
●
Barcode laminate X feeder sector 4 SX4 [03085995-xx]
You also need the following:
●
Cleaning agent
CAUTION
ESD coating
The choice of cleaning agent for the protective covers must be made with particular care so
as not to damage the ESD coating on the protective covers! Never use acid or strong al-
kaline agents and avoid all ketones, esters, aromatics, halogenated hydrocarbons, essen-
tial oils or similar.
► Only apply light pressure as you clean the protective covers so as not to damage the
ESD coating!
Removal
► Remove the old barcode laminate.
Installation
► Follow the removal instructions in reverse order for installation. Also observe the following
instructions:
– Make sure that the adhesive surface is clean and free of grease. Clean if necessary.
– Make sure that the tracks shown on the label match those of the table or the track label.
Fig.24: Positioning the barcode ruler
●
The barcode ruler must be flat against
the disk on the left of all locations (1).
●
The track ruler must always be placed
so that it indicates towards the machine
center(2).
NOTICE!
Recommendation
Place the two 8mm feeders on
tracks1 and40, in order to estimate
the correct position more precisely.
.
2 Basic Machine
2.6 Replacing the machine foot
36 Service Manual SIPLACE X-Serie S 06/2019
2.6 Replacing the machine foot
DANGER
Heavy machine part
► The machine feet are very heavy. When screws are loosened, there is a risk that
these could fall down and crush limbs.
► When replacing the machine feet, you need to raise the machine slightly.
► Make sure that there is nobody in the hazard area. The unintentional movement or
lowering of the machine can create a risk of crushing limbs.
CAUTION
Do not move the machine
► Make sure that the machine is not moved and that the conveyor sides are not dam-
aged.
Parts, equipment and tools
Fig.25: Machine foot [03000890-xx] and machine foot HF [03002561-xx]
●
Machine foot [03000890-xx] or
Machine foot HF [03002561-xx]
●
Instruction manual for your machine
Removal/installation
► Please read the relevant chapter of the instruction manual:
– "Presetting the height of the middle machine feet"
– "Presetting the height of the outer machine feet"
See also
2 1.2 "Preparatory work..." [}16]
