9 Component feeding 9.1 Cutter 350 Service Manual SIPLACE X-Serie S 06/2019 9.1.12 Replacing the cutter cable Parts 03063590-xx Cutter cable X-Series Equipment and tools 00353832-xx Allen key set Wire cutters Cable ties …
9 Component feeding
9.1 Cutter
Service Manual SIPLACE X-Serie S 06/2019 349
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation.
1.2 "Preparatory work..." [}16]
► Remove the cutter from the machine.
9.1.3 "Replacing the Cutter on the COT Insert [03066690-xx]" [}329]
► Remove the wiper.
9.1.10 "Replacing the wiper" [}346]
Fig.463: Removing the wiper clips
► Remove the two screws(1) (left and
right) and remove the wiper clips(2).
Installation
Fig.464: Installing the wiper clips
► Install the new wiper clips(2) on both
sides and loosely put the screws(1)
back in.
► Align the wiper clips to the edges of the
cutter frame(3) and to the cutter top
blade(4).
► Tighten the screws(1) fixing the wiper
clips.
► Follow the removal instructions in reverse order for further installation.
9 Component feeding
9.1 Cutter
350 Service Manual SIPLACE X-Serie S 06/2019
9.1.12 Replacing the cutter cable
Parts
03063590-xx Cutter cable X-Series
Equipment and tools
00353832-xx Allen key set
Wire cutters
Cable ties
Overview

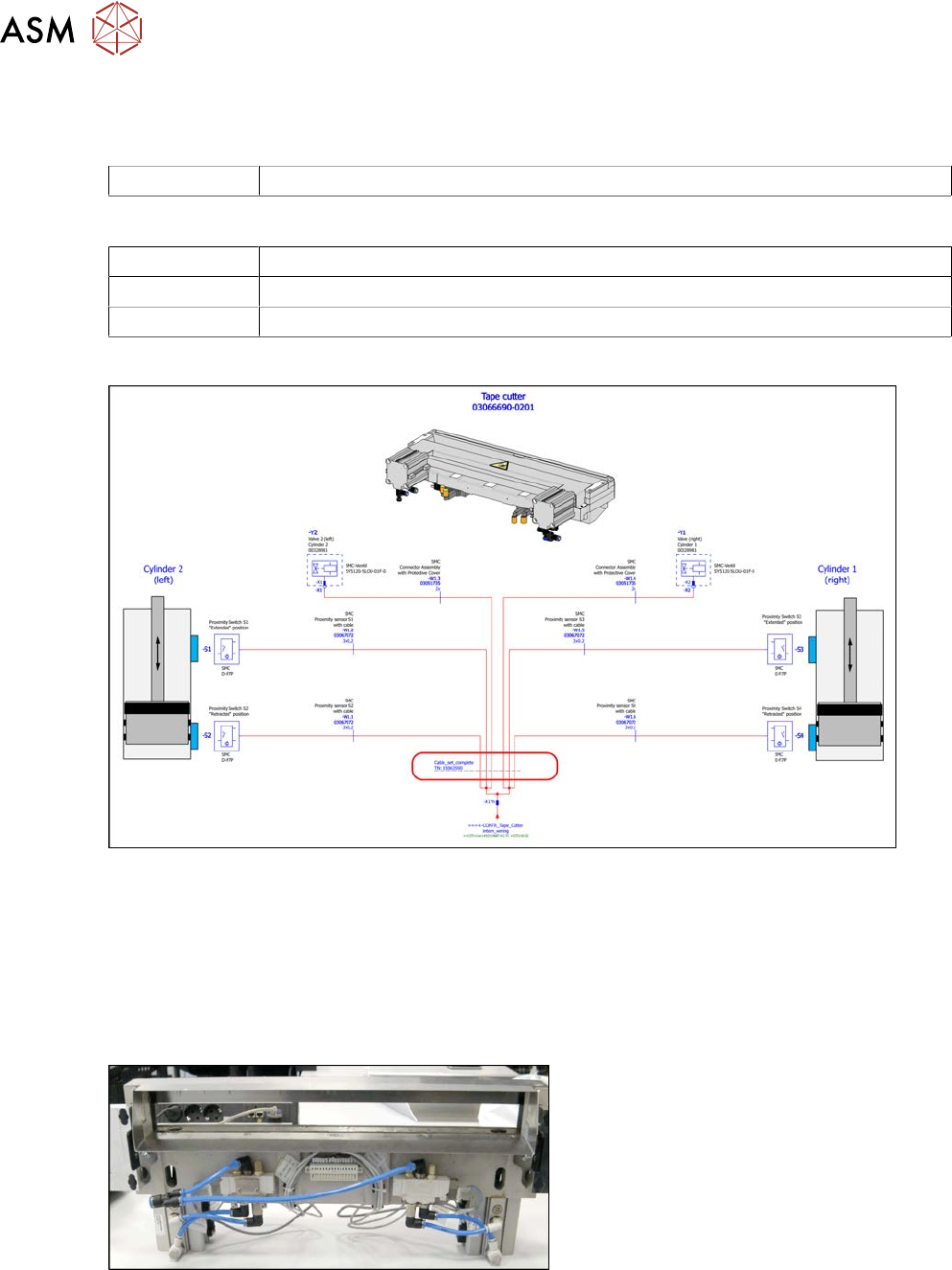

Fig.465: Electrical connections
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation.
1.2 "Preparatory work..." [}16]
► Switch off the compressed air supply
5.2 "Disabling the compressed air supply" [}134]
Fig.466: Cutter cable
► Disconnect all sensors and plugs and
remove the cable set completely.
Mark the position of old sensors, espe-
cially the sensors responsible for posi-
tioning the short-stroke cylinders.
Installation
► Fit the new cable set and adjust the sensors to the correct position.
► Follow the removal instructions in reverse order for further installation.
●
Attach cables ties if necessary (strain relief).
9 Component feeding
9.1 Cutter
Service Manual SIPLACE X-Serie S 06/2019 351
9.1.13 Replacing the throttle valve
Parts

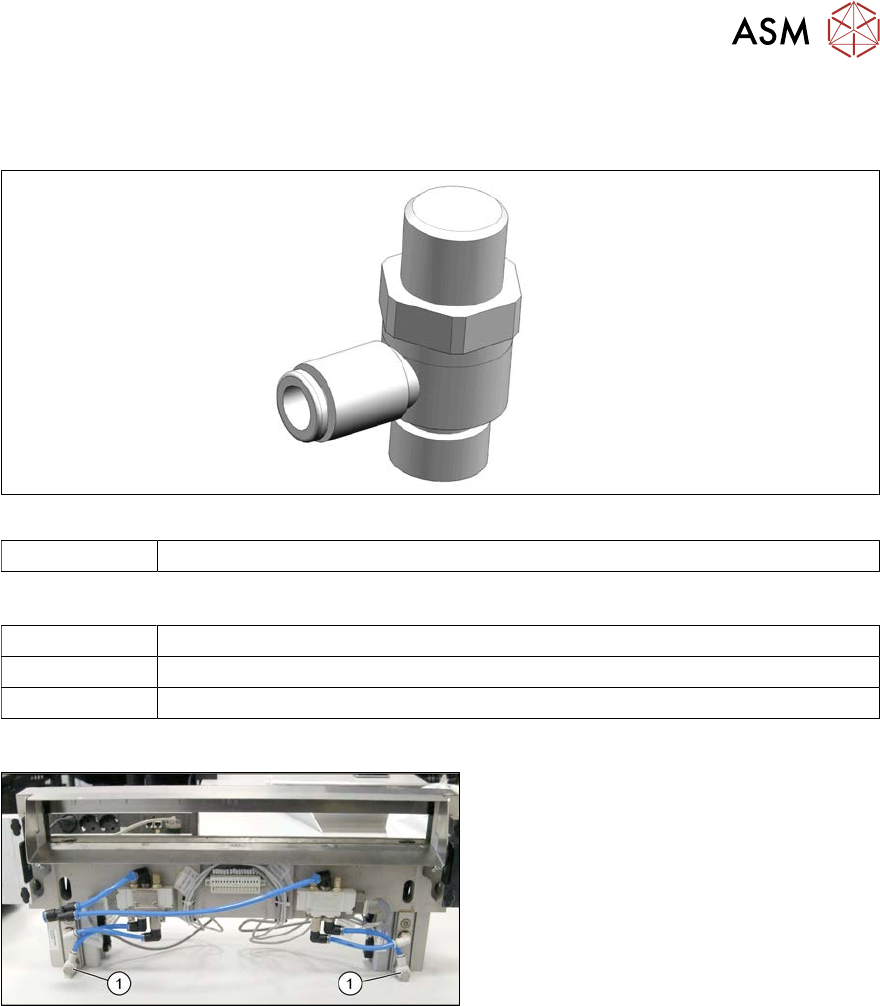

Fig.467: Throttle valve
03000600‑xx Throttle valve AS2201F-02-06SA
Equipment and tools
00096290-xx Fork wrench set
Wire cutters
Cable ties
Overview
Fig.468: Throttle valves on cutter
1. Throttle valves
The throttle valves are installed at the lower
sides of the short-stroke cylinders.
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation.
1.2 "Preparatory work..." [}16]
► Switch off the compressed air supply
5.2 "Disabling the compressed air supply" [}134]
► Try to perform the exchange on the installed cutter.
If access is too limited, remove the cutter from the machine.
Replacing the Cutter on the COT Insert [03066690-xx]
