9 Component feeding
9.2 COT insert
368 Service Manual SIPLACE X-Serie S 06/2019
9.2.9 Replacing the control valve
Parts, equipment and tools
●
Valve assembly SX4 [03097252-xx]
Overview
1

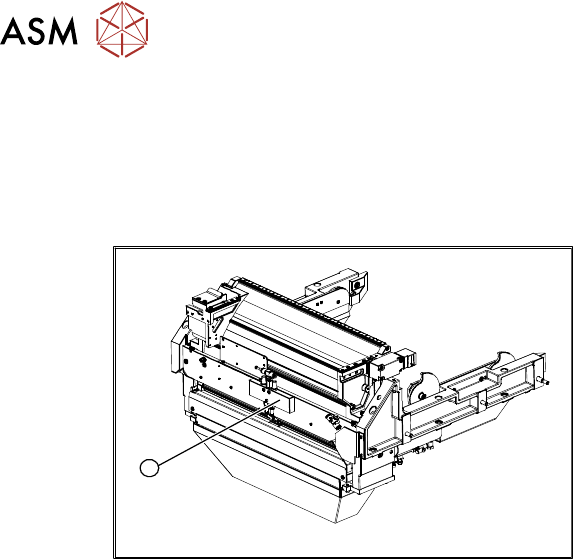

Fig.492: Control valve on the COT insert
► Control valve
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation.
1.2 "Preparatory work..." [}16]
► Switch off the compressed air supply
5.2 "Disabling the compressed air supply" [}134]
► You may have to move out the COTi out a little to improve the accessibility.
9.2.3 "Replacing the COT Insert Assembly" [}356]
► Dismantle the cover plate over the valve.
► Disconnect the electrical and pneumatic connections to the control valve(1). Mark their posi-
tions, to make clear assignment easier later on.
► Remove the fastening screws and remove the control valve.
Installation
► Installation is performed by following the above instructions in the reverse order.
9 Component feeding
9.2 COT insert
Service Manual SIPLACE X-Serie S 06/2019 369
9.2.10 Replacing the empty tape duct Einsatz
► Read the relevant section of the user manual for your machine.
Parts, equipment and tools
●
Empty tape duct Einsatz
(The number can be found in catalog of parts.)
Overview
1
2

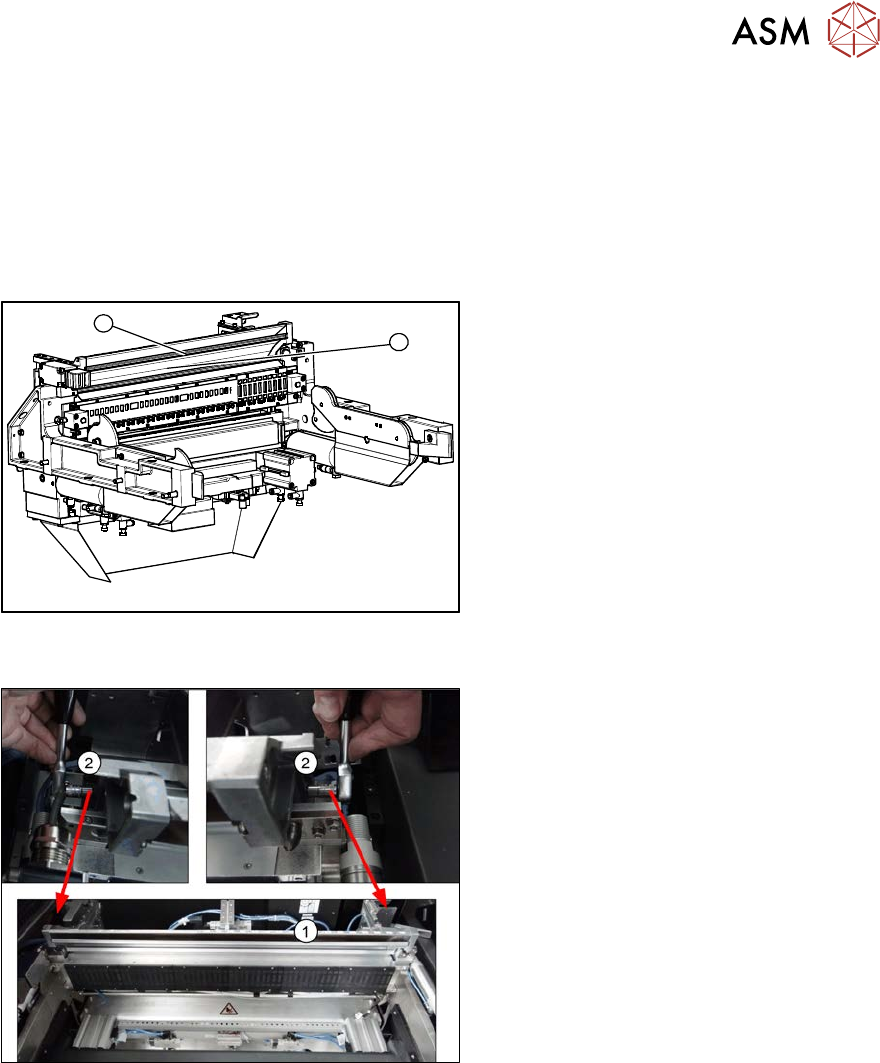

Fig.493: Empty tape duct (example of SIPLACE X‑Series
shown)
1. Empty tape duct assembly
2. Empty tape duct Einsatz
Fig.494: Empty tape duct Einsatz (example of SIPLACE
SX4 shown)
1. Empty tape duct
2. Screws fastening the empty tape duct
Einsatz (left and right)
9 Component feeding
9.2 COT insert
370 Service Manual SIPLACE X-Serie S 06/2019
Removal
CAUTION
Do not dismantle the empty tape duct
Only the empty tae duct Einsatz may be replaced. Dismantling the empty tape duct is not
permitted.
NOTICE
Inner empty tape duct Einsatz
When using tape reels with deep pockets, you may need to remove the inner baffle. Refer
to the operating manual of your machine for details.
All screws are accessible in the installed state. The baffles can therefore be replaced inside
the machine.
► Remove the two screws fastening the empty tape duct Einsatz and remove these.
Installation
► Installation is performed by following the above instructions in the reverse order. Also observe
the following instructions:
– Refit the empty tape duct Einsatz on the empty tape duct if you are not using any compon-
ents >15mm.
CAUTION
The empty tape duct Einsatz fits somewhat tightly in the empty tape duct
These can damage the coating in the empty tape duct, which can then lead to component
tapes getting jammed at the edges. This could then cause a head crash.
► Never use sharp-edged objects to position the empty tape duct Einsatz.

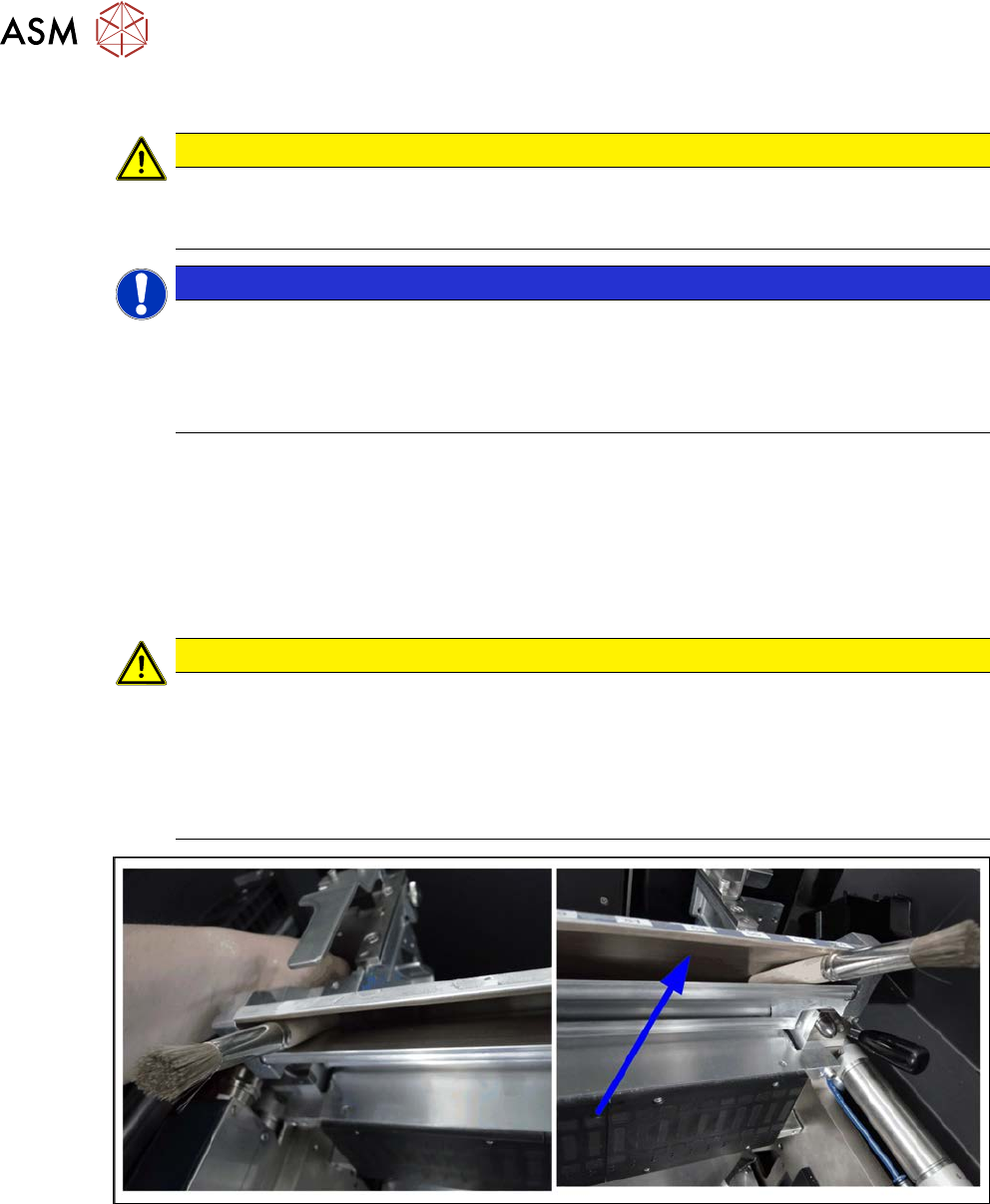

► If necessary, use a wooden wedge or, as shown in the following diagram, a brush with
wooden handle.
Fig.495: Empty tape duct
