9.3.4 Replacing the Guide Profile/Entering Guide Feeder
Parts
Fig.502: Entering guide and guide profile
03002898-xx Short guide profile
03039368-xx Feeder entering guide
Equipment and tools
00353832-xx Allen key set
Overview
Fig.503: Guide profiles on component trolley
1. Short guide profile
2. Feeder entering guide
The short guide profiles are fixed from
above with one screw each.
The feeder entering guide is screwed into
place from below.
9 Component feeding
9.3 X-Series Component Trolley
376 Service Manual SIPLACE X-Serie S 06/2019
9.3.5 Replacing the bearing assembly
Parts

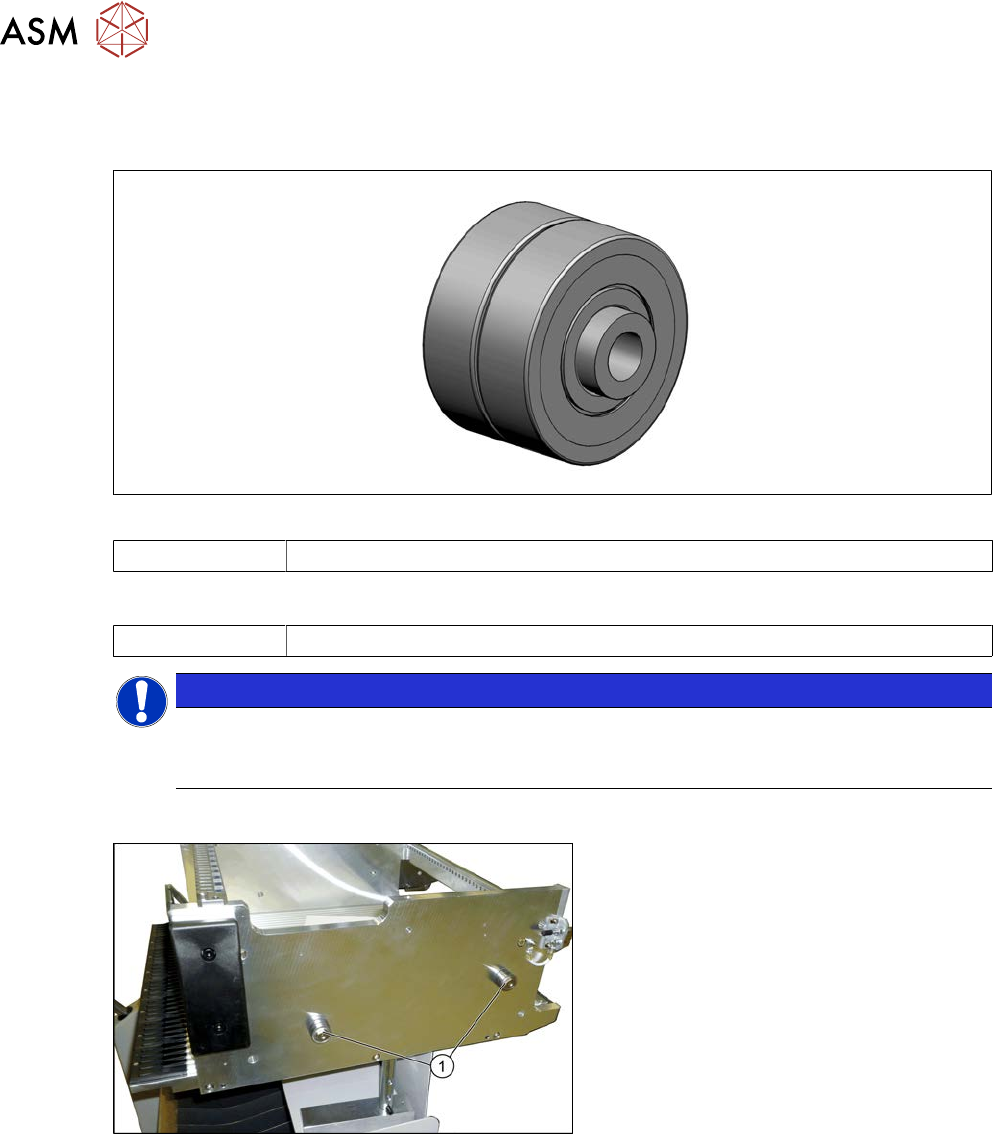

Fig.504: Bearing assembly
03103947-xx Bearing assembly
Tools
00334892-xx Loctite 243
NOTICE
Replacing all sleeves
We recommend that you always replace all bearing assemblies belonging to a changeover
table at the same time.
Overview
Fig.505: Centering sleeves
1. Bearing assembly (four per table)
Removal
► Loosen the screw fastening the bearing assembly and then remove the bearing assembly.
Installation
► Follow the removal instructions in reverse order for installation. Also observe the following
instructions:
– Secure the screws with Loctite 243.
9 Component feeding
9.3 X-Series Component Trolley
Service Manual SIPLACE X-Serie S 06/2019 377
9.3.6 Replacing the insert feeder
Parts, equipment and tools
Select the right insert feeder:

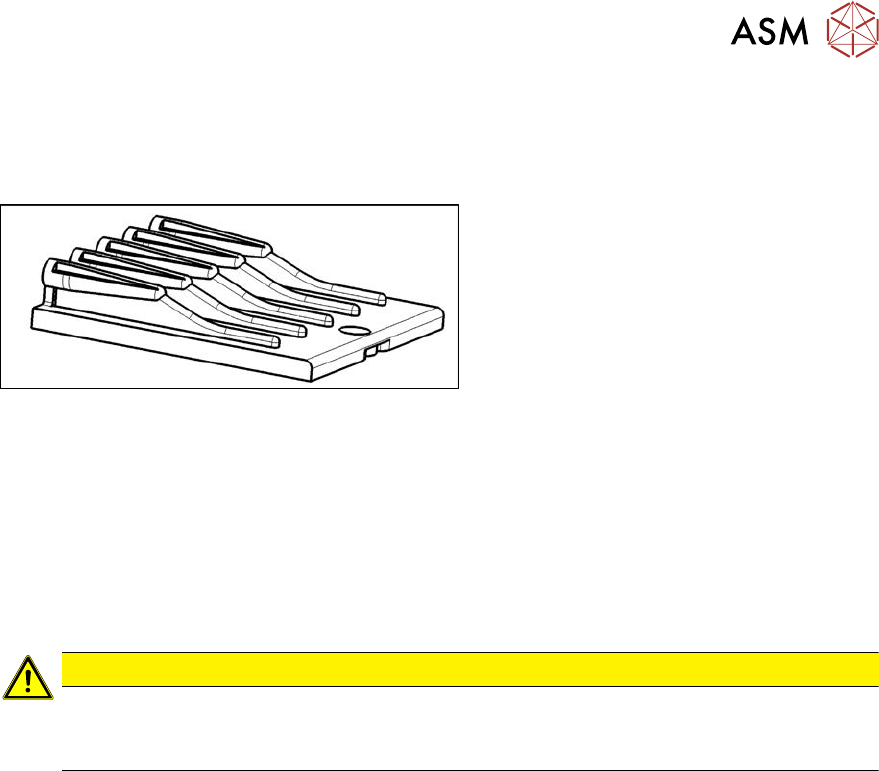

Fig.506: Insert feeder [03002898-xx]
Insert feeder [03002898-xx]
Suitable for:
●
X-Series component trolley
●
Component trolley SX1/SX2 (30 or 60
tracks)
●
Manual table X-Series S
Removal
► Move the component trolley out of the machine.
► Loosen the screw fastening the guide profile and remove the guide profile.
Installation
► Follow the removal instructions in reverse order for installation. Also observe the following
instructions:
CAUTION
Installation instructions
► Make sure that the insert is aligned properly with the guidance behind it. You must be
able to push feeder modules into the feeder location without edge interference.
