9 Component feeding
9.4 Docking Station for Component Trolley
Service Manual SIPLACE X-Serie S 06/2019 387
Installation
► Loosely screw in the new position end switch.
► Run the connection cable to the connector.
► Reconnect the connection cable and close the connector casing.
► Align the position end switch so that the locking lever actuator switches properly.
► Tighten the fastening screws.
► Connect the power pack connection cable and press the ON/OFF button to switch on.
► Check the position end switch function by trying out the locking procedure.

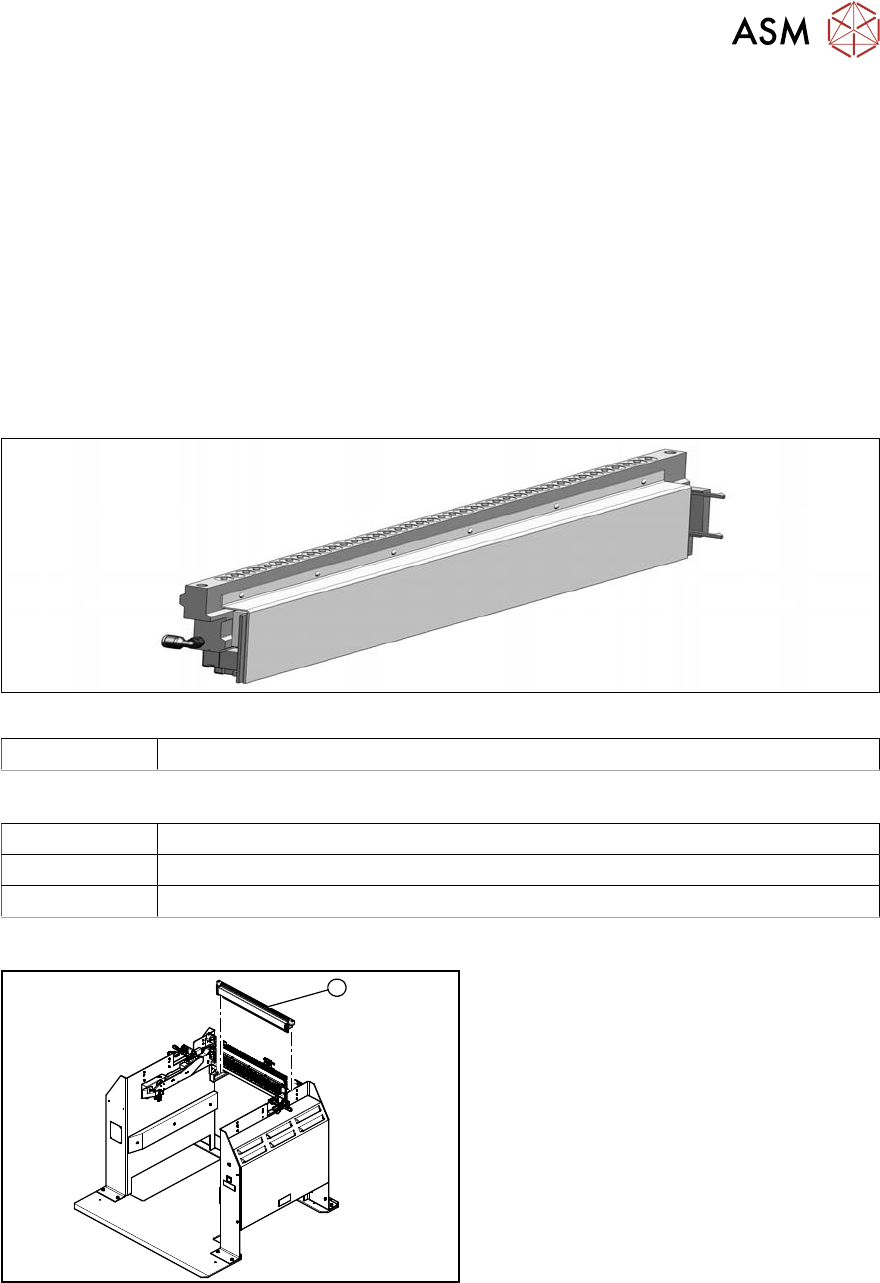

9.4.7 Replacing the 40-fold feeder unlocking device
Parts
Fig.523: 40 fold feeder unlocking device
03011582-xx 40 fold feeder unlocking device
Equipment and tools
00353832-xx Allen key set
Wire cutters
Cable ties

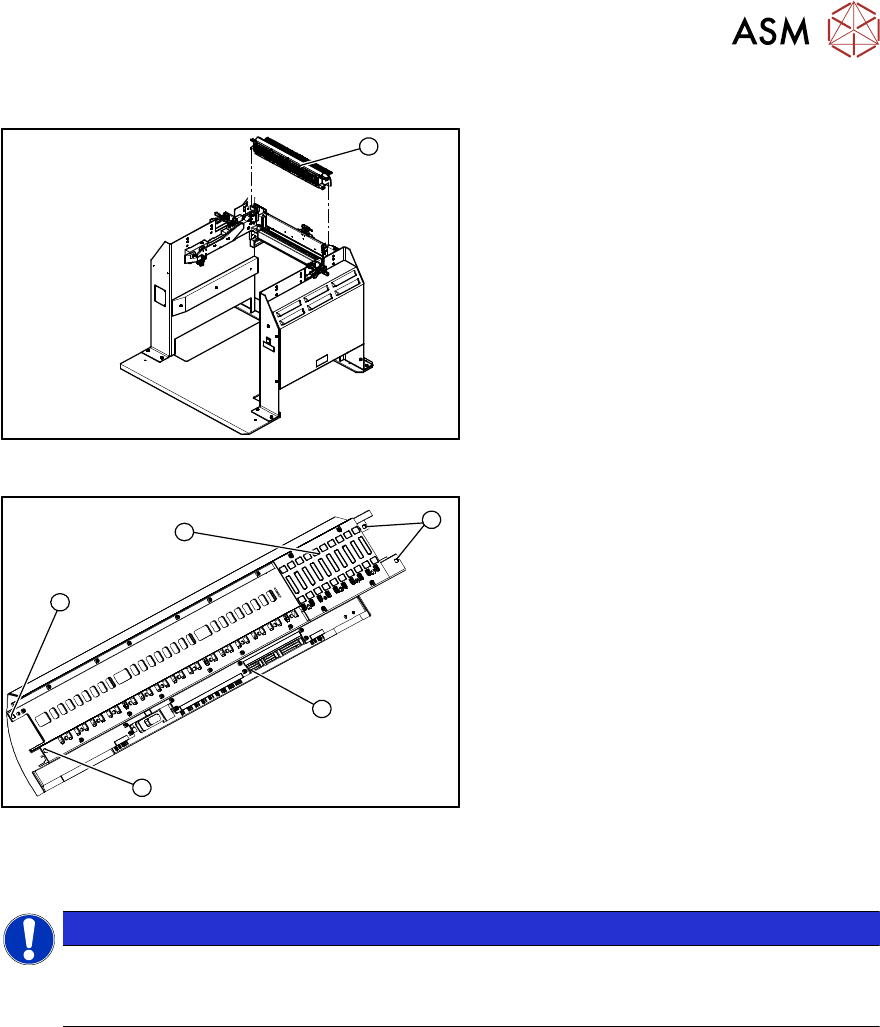

Overview
1
Fig.524: Feeder unlocking device on docking station
1. 40 fold feeder unlocking device
Removal / installation
The 40-fold feeder unlocking device is the same assembly used in the COTi. The service work is
identical with the procedure used for the COTi. All necessary service work is described there.
See also
2 9.2.5 "Replacing the 40-fold feeder unlock device" [}362]
9 Component feeding
9.4 Docking Station for Component Trolley
388 Service Manual SIPLACE X-Serie S 06/2019

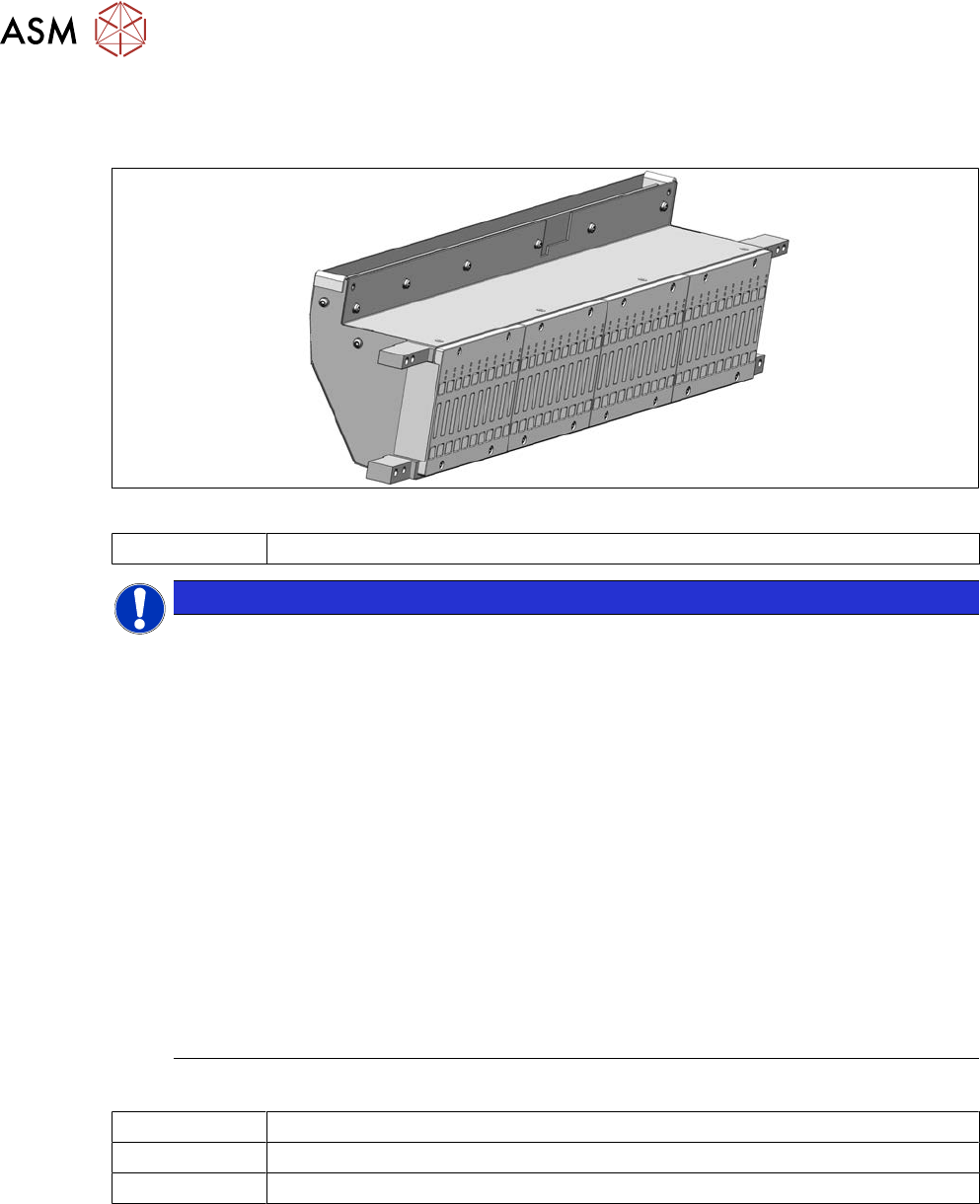

9.4.8 Replacing the Feeder Control Unit (FCU)
Parts
Fig.525: FCU
03059623Sxx X-FCU/ X-Series (replaces: [03020068-xx])
NOTICE
Observing the technical information
Observe the technical information "Replacing the FCU" (SIPLACE X-Series, SX4/DX4,
X‑SeriesS, Docking Station) [DE: TI2014-11D15] [EN: TI2014-11E15]:
Since June 2010, the "nozzle changer control" and the "cutter control" have been integrated
into the "X-FCU / SIPLACE X-Series" [03059623-xx]. The CAN nodes are therefore no
longer used.
The assembly is, however, not 100% downwards compatible with regard to the mechanical
installation.
► Docking station for component trolley SIPLACE [00116933‑xx] (SIPLACE X-
Series)
Any remaining old "FCU SIPLACE X-Series" [03020068‑xx] should be used for the
docking station for SIPLACE X‑Series component trolleys [00116933‑xx] and for spare
part disposal at these docking stations.
In order to use the new "X‑FCU SIPLACE X-Series" [03059623Sxx] on the "docking
station X [00116933‑xx]", you need to use an additional "cable set X-FCU for docking
station X [00116933‑xx]" [03098897‑xx].
Since March 2013, all new deliveries of the docking station for SIPLACE X-Series
have the new FCU.
Equipment and tools
00353832-xx Allen key set
Wire cutters
Cable ties
9 Component feeding
9.4 Docking Station for Component Trolley
Service Manual SIPLACE X-Serie S 06/2019 389
Overview
1
Fig.526: FCU on docking station
1. Feeder control unit
3
3
1
3
2
Fig.527: FCU overview
1. FCU assembly
2. Terminal strip
3. Screws fastening the FCU
Depending on the version, there will be
four or six screws.
Removal
NOTICE
Example shown as diagram
The required tasks are described using the example of the SIPLACE TX1 V1. The proced-
ure for the docking station is the same.
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation.
1.2 "Preparatory work..." [}16]
► Dismantle and remove the feeder unlock device.
9.4.7 "Replacing the 40-fold feeder unlocking device" [}387]
