9 Component feeding
9.5 Manual Table and JEDEC Tray Feeder
Service Manual SIPLACE X-Serie S 06/2019 395
9.5 Manual Table and JEDEC Tray Feeder
NOTICE
See the assembly instructions
For more information about the manual table and the JEDEC tray feeder, read the following
documents:
► Assembly instructions JEDEC Tray Feeder – X-Series S [00197446-xx]
► User manual JEDEC Tray Feeder [00197446-xx]
9.5.1 Manual table
Fig.538: Manual table
1. Fixture bar
2. FCU
3. Guide profiles on the front section
4. Fixture bar
5. Guide profiles on the back section
6. Fiducial feeder
7. Pneumatics
8. Feeder infeed
9. Location for the JTF
9 Component feeding
9.5 Manual Table and JEDEC Tray Feeder
396 Service Manual SIPLACE X-Serie S 06/2019

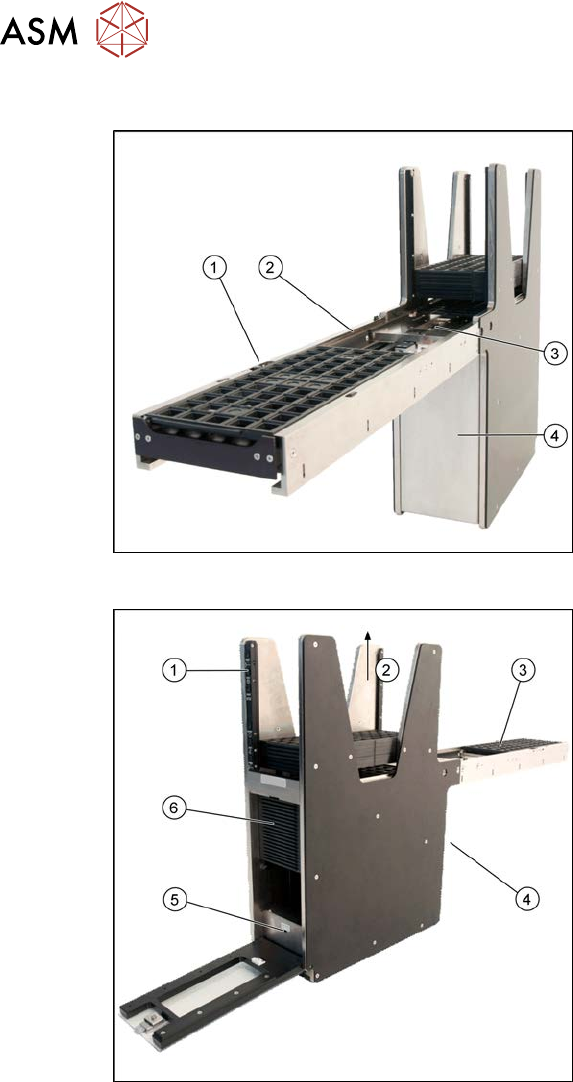

9.5.2 SIPLACE JTF-S
Fig.539: SIPLACE JTF-S – front
SIPLACE JTF-S [166670]:
1. Tray clamp
2. Toothed belt
3. Return tray pusher
4. Feeder control (behind cover)
Fig.540: SIPLACE JTF-S – back
1. Manual operation / Manual panel
2. Loading direction for empty JEDEC
trays
3. Tray pick position
4. Feeder control (back)
5. Tray switch thick/thin
6. Tray lift
9 Component feeding
9.5 Manual Table and JEDEC Tray Feeder
Service Manual SIPLACE X-Serie S 06/2019 397
9.5.3 Adapter
Fig.541: EEPROM and adapter board 30V
1. EEPROM
2. Adapter board 30 V
Fig.542: Adapter
1. Adapter for SIPLACE JTF-S, SIPLACE
JTF-M
– Adapter for SIPLACE JTF-M
[03110216-xx]
– Adapter for SIPLACE JTF-S
[03110552-xx]
The two adapters are mechanically identical
and differ only in their eSW.
