9 Component feeding 9.6 Smart Pin Support 398 Service Manual SIPLACE X-Serie S 06/2019 9.6 Smart Pin Support CAUTION Observe the assembly instructions ► When performing work to the Smart Pin Support, also observe the rel…
9 Component feeding
9.5 Manual Table and JEDEC Tray Feeder
Service Manual SIPLACE X-Serie S 06/2019 397
9.5.3 Adapter

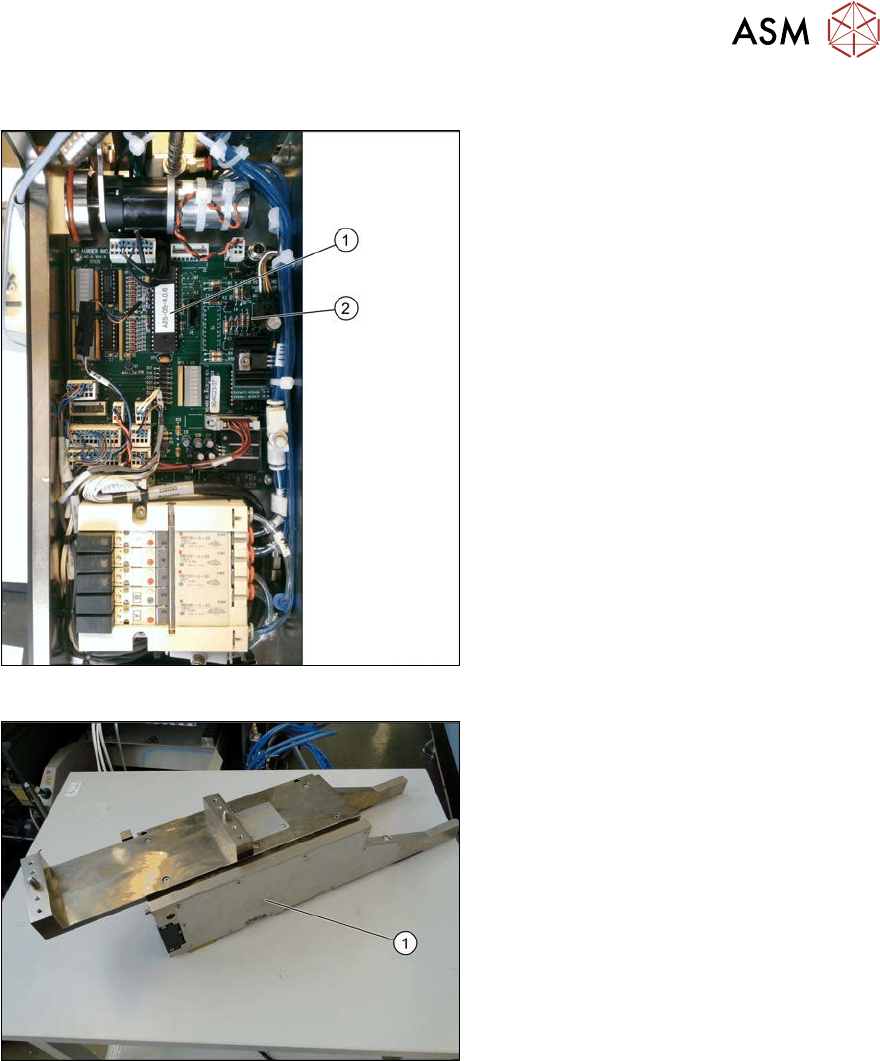

Fig.541: EEPROM and adapter board 30V
1. EEPROM
2. Adapter board 30 V
Fig.542: Adapter
1. Adapter for SIPLACE JTF-S, SIPLACE
JTF-M
– Adapter for SIPLACE JTF-M
[03110216-xx]
– Adapter for SIPLACE JTF-S
[03110552-xx]
The two adapters are mechanically identical
and differ only in their eSW.
9 Component feeding
9.6 Smart Pin Support
398 Service Manual SIPLACE X-Serie S 06/2019
9.6 Smart Pin Support
CAUTION
Observe the assembly instructions
► When performing work to the Smart Pin Support, also observe the relevant assembly
instructions:
SIPLACE X-Series S: assembly instructions "Smart Pin Support" [DE+EN:00197394-
xx]
SIPLACE SX1/SX2 V2: assembly instructions "Smart Pin Support" [DE
+EN:00197002-xx]
NOTICE
Exemplary description
The service work is described using the example of a pin picker for the SIPLACE SX1/SX2
with old strain reliefs. The procedure is the same for other machines or other pin picker ver-
sions. Any relevant differences will be clearly indicated.
Comparison
Fig.543: Pin picker versions
1 Pin picker on the
SIPLACE SX1/SX2 with
new strain reliefs
2 Pin picker on the
SIPLACE X-Series with
new strain reliefs
3 Pin picker on the
SIPLACE X-Series with
old strain reliefs
NOTICE
Fastening screws
The screws fastening the pin picker are captive screws in the SIPLACE X-Series S. This is
not the case in the SIPLACE SX1/SX2.
9 Component feeding
9.6 Smart Pin Support
Service Manual SIPLACE X-Serie S 06/2019 399
9.6.1 Replacing the Pin Picker Assembly
► For replacing the pin picker, read the Assembly instructions "Smart Pin Support – SIPLACE X-
Series S" [00197394-xx]. Observe the following instructions:
Fig.544: Fastening screws
► Make sure that you note the different
fastening screws for the pin picker.
► When assembling the pin picker, make
sure that you do not damage the
screwdrivers on the screw locks.
► After assembly, check the screw locks
to see whether they are loose. If this is
the case, remove the pin picker and re-
place the screw fastening the screw
lock.
► Make sure that the cables are run correctly.
► Replace any opened cable ties.
► Perform a complete calibration after the installation.
