9 Component feeding
9.6 Smart Pin Support
Service Manual SIPLACE X-Serie S 06/2019 407
9.6.7 Replacing the pneumatic cylinder
Parts, equipment and tools
●
Pneumatic cylinder [03088037Sxx]
●
Circlip pliers size 0 (supplier: http://www.hoffmann-tools.com – item no.:719770 J0)
●
Assembly instructions "Smart Pin Support" for SIPLACE X‑SeriesS [DEEN:00197394‑xx]
Overview

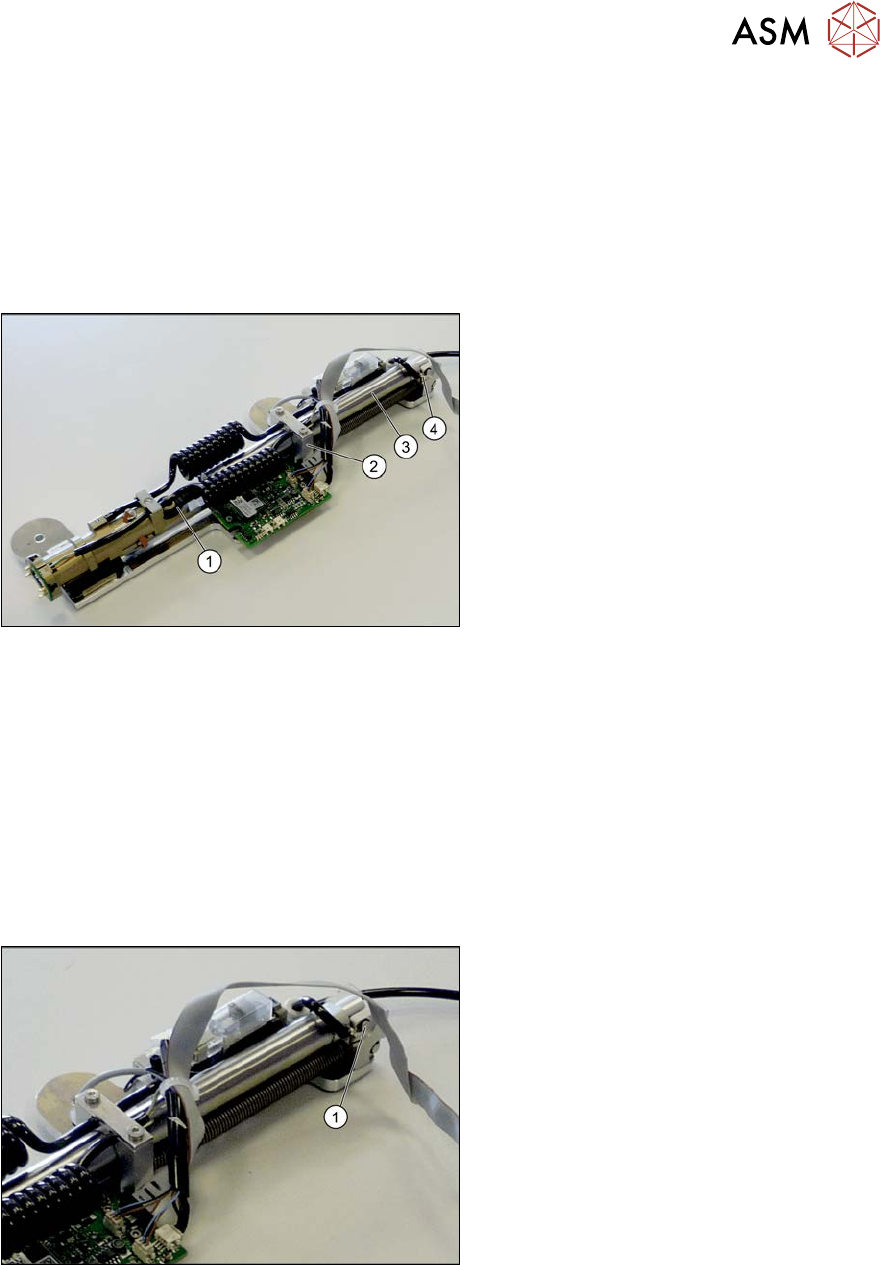

Fig.559: Pneumatic cylinder
1. Swivel head
2. Pneumatic cylinder guidance
3. Pneumatic cylinder
4. Pneumatic connection for pneumatic
cylinder
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation.
1.2 "Preparatory work..." [}16]
► Remove the pin picker. For more information, read section 9.6.1 "Replacing the Pin Picker
Assembly" [}399].
► Remove the swivel head. For more information, read section 9.6.6 "Replacing the swivel
head" [}406].
► Unplug the pneumatic connection to the pneumatic cylinder.
Fig.560: Holding bolt
► Loosen the circlip on the holding
bolt(1) of the pneumatic cylinder and
then pull out the holding bolt.
9 Component feeding
9.6 Smart Pin Support
408 Service Manual SIPLACE X-Serie S 06/2019
Installation
► Follow the removal instructions in reverse order for installation. Also observe the following
instructions:
– The circlips on the holding bolts are highly sensitive. Take care when placing these on the
holding bolt.
– Set the swivel head so that the following conditions are fulfilled:
– Check the linear guide travel path. The linear guide must be easy to move along the whole
length.
– Check that the sensors switch properly. The switch tag of the linear guide must have ap-
prox. 1 mm space to the trolley.
See also
2 9.6.12 "Replacing the top sensor" [}413]
2 9.6.13 "Replacing the bottom sensor" [}414]
9.6.8 Replacing the coil hose
Parts, equipment and tools
●
Coil hose for solenoid valve [03090227Sxx]
●
Assembly instructions "Smart Pin Support" for SIPLACE X‑SeriesS [DEEN:00197394‑xx]
NOTICE
Replacing the strain reliefs
When working with the spiral hose or the spiral cable, observe the Technical Information
"Smart Pin Support: Replacing Faulty Coiled Cables at the Pin Picker (Update)" [DE:
TI2013-09D04] [EN: TI2013-09E04].
► If needed, order the following additional parts:
Cover plate/SPS [03102482-xx]
Hose holder/SPS [03102480-xx]
Overview

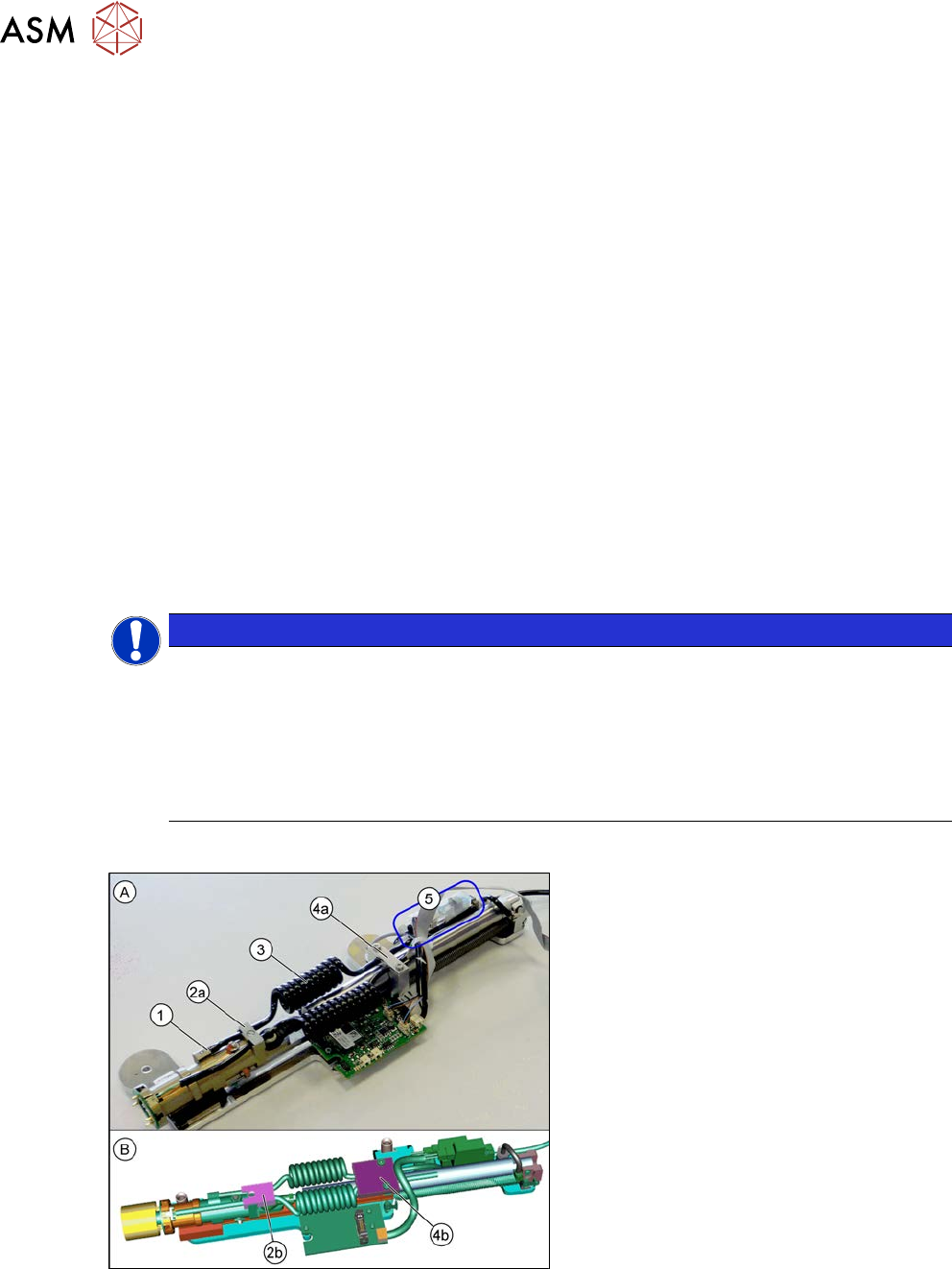

Fig.561: Coil hose – old and new version
A = Old version of Pin Picker
B = New version of Pin Picker
1. Pneumatic connection on return cylin-
der
2. Strain relief on return cylinder
2a: Old version
2b: New version
3. Coil hose
4. Strain relief on the pneumatic cylinder
guidance
4a: Old version
4b: New version
5. Valve terminal
9 Component feeding
9.6 Smart Pin Support
Service Manual SIPLACE X-Serie S 06/2019 409
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation.
1.2 "Preparatory work..." [}16]
► Remove the pin picker. For more information, read section 9.6.1 "Replacing the Pin Picker
Assembly" [}399].
► Remove the strain relief on the back section of the cylinder.
► Remove the strain relief on the pneumatic cylinder guidance.
► Remove the coil hose on the pneumatic connection of the return cylinder.

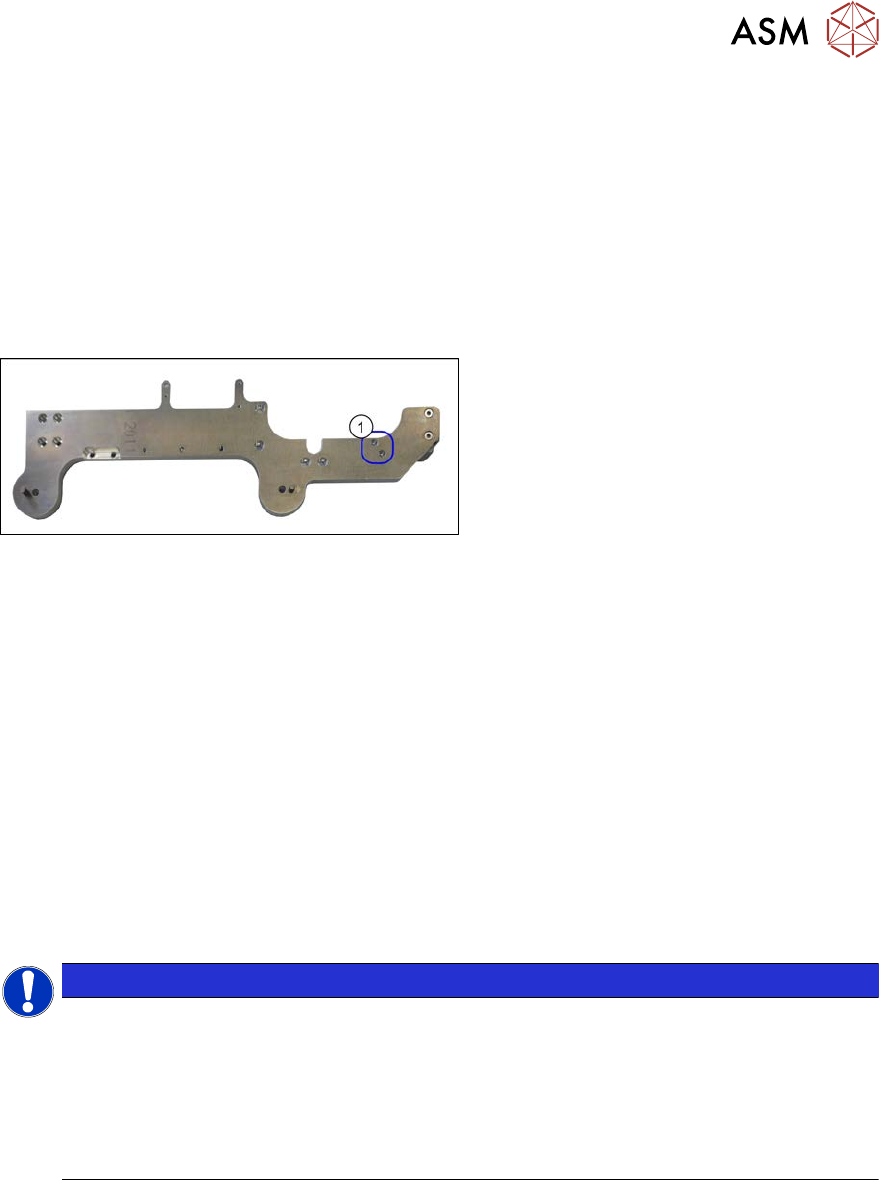

Fig.562: Screws fastening the valve terminal
► Remove the two screws(1) fastening
the valve terminal. These are on the
back of the pin picker.
► Remove the coil hose from the valve terminal.
Installation
► Follow the removal instructions in reverse order for installation. Also observe the following
instructions:
– Make sure that the coil hose does not rub against anything. It is important that the coil
hose and the coiled cable do not touch when fully extended.
9.6.9 Replacing the coiled cable
Parts, equipment and tools
●
Coiled cable [03090273-xx]
●
Safety varnish red [00318197-xx]
●
Assembly instructions "Smart Pin Support" for SIPLACE X‑SeriesS [DEEN:00197394‑xx]
NOTICE
Replacing the strain reliefs
When working with the spiral hose or the spiral cable, observe the Technical Information
"Smart Pin Support: Replacing Faulty Coiled Cables at the Pin Picker (Update)" [DE:
TI2013-09D04] [EN: TI2013-09E04].
► If needed, order the following additional parts:
Cover plate/SPS [03102482-xx]
Hose holder/SPS [03102480-xx]
