3 Power supply 3.4 Power supply and transformer module (up to serial number Gxxx) Service Manual SIPLACE X-Serie S 06/2019 69 3.4.15.1 SP distributor assembly (power supply) Fig.69: 03076607-01 LED [03076607-01] LED Col…
3 Power supply
3.4 Power supply and transformer module (up to serial number Gxxx)
68 Service Manual SIPLACE X-Serie S 06/2019
3.4.15 Replacing the SP splitter (A10)
Parts, equipment and tools
Fig.68: SP splitter (A10)
1. SP splitter (A10) [03076607‑xx]
●
12x microfuse 5x20/T6.3A/ceramic
[03010626-xx] (supplied – see machine
service box)
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation.
1.2 "Preparatory work..." [}16]
► Before you start working, check the power supply for absence of voltage and observe the
waiting times!
► Loosen the screws fastening the mesh cover on the SP splitter and then remove the mesh
cover.
► Unplug all electrical connections to the SP splitter. Mark their positions, to make clear assign-
ment easier later on.
► Loosen the screws fastening the SP splitter and then remove this.
Installation
► Follow the removal instructions in reverse order for installation.
3 Power supply
3.4 Power supply and transformer module (up to serial number Gxxx)
Service Manual SIPLACE X-Serie S 06/2019 69

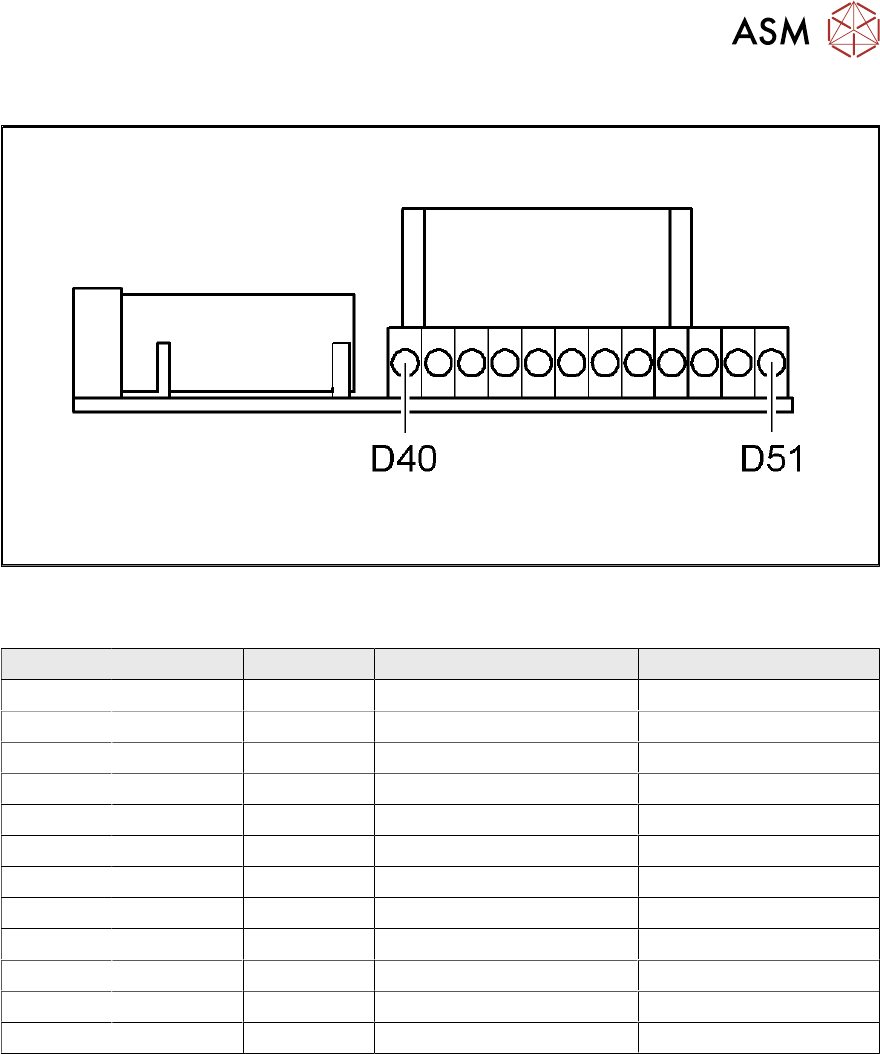

3.4.15.1 SP distributor assembly (power supply)
Fig.69: 03076607-01
LED [03076607-01]
LED Color Status Signal name Description
D40 GN ON 150V_POWER +150VDC gantry 1
D41 GN ON 150V_POWER +150VDC gantry 2
D42 GN ON 150V_POWER +150VDC gantry 3
D43 GN ON 150V_POWER +150VDC gantry 4
D44 GN ON 40V_POWER +42VDC gantry 1
D45 GN ON 40V_POWER +42VDC gantry 2
D46 GN ON 40V_POWER +42VDC gantry 3
D47 GN ON 40V_POWER +42VDC gantry 4
D48 GN ON +24V +24VDC gantry 3/4
D49 GN ON +24V +24VDC gantry 1/2
D50 GN ON +24 V +24VDC GCU 3/4
D51 GN ON +24 V +24VDC GCU 1/2
3 Power supply
3.4 Power supply and transformer module (up to serial number Gxxx)
70 Service Manual SIPLACE X-Serie S 06/2019
3.4.16 Replacing the microfuse (F40 to F51)
Parts, equipment and tools
●
Microfuse 6.3A T / 150VDC [03010626-xx]
NOTICE
Fuses
A fuse kit for the power supply is included with the delivery of the machine in a separate
package or may be in the power supply.

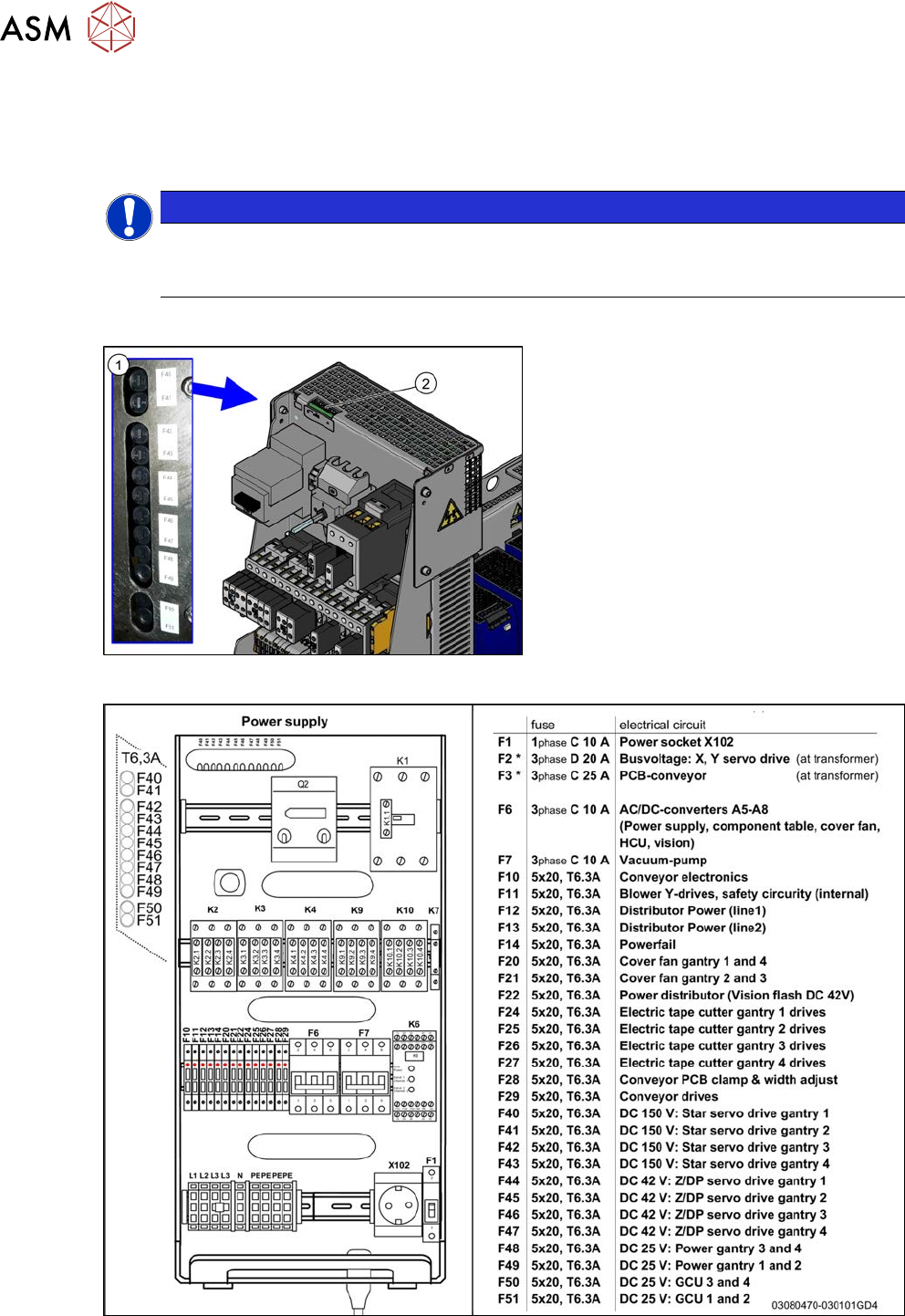

Overview
Fig.70: Microfuses and LEDs
1. Microfuses F40 to F51
2. LED D40 to D51
The LEDs show the operational readiness of
the individual microfuses.
Fig.71: Microfuses
