3 Power supply
3.4 Power supply and transformer module (up to serial number Gxxx)
82 Service Manual SIPLACE X-Serie S 06/2019
3.4.21.1 Adjustment of the Motor Protection Switch PKE32
This section applies only for the "motor protection switch PKE32" [03098183‑xx].
NOTICE
Supply of the vacuum pump with machine current
The following adjustment values are valid for all machines.
Exception: For machines with vacuum pumps that are supplied via the machine power sup-
ply other values may apply.

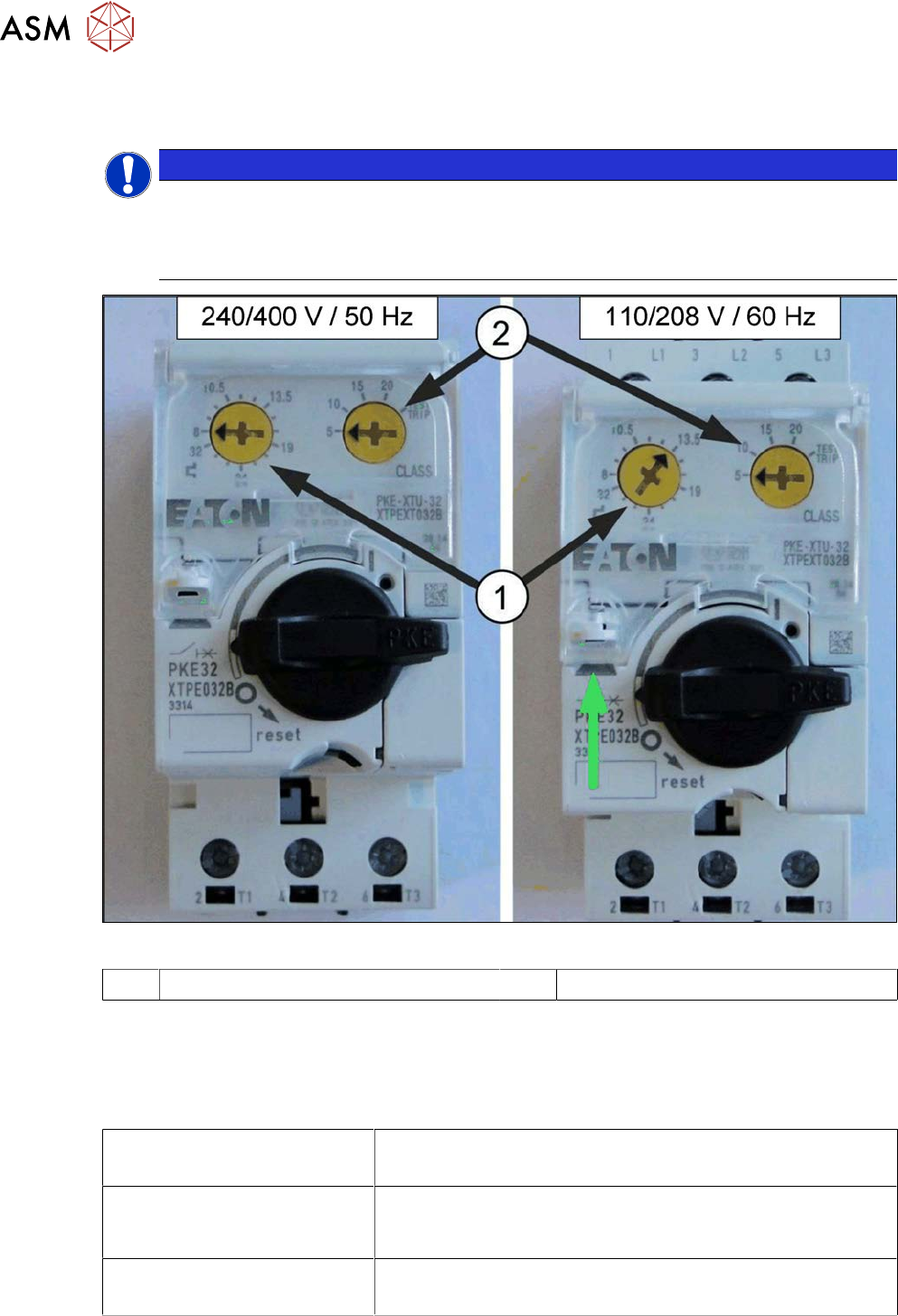

Fig.92: Adjusting the settings of the protective motor switch PKE32
1 Rated current 2 Overcurrent class
► At the marked position (green arrow), open the cover above the adjustment screws. Use a
size 1 screwdriver for this.
► Set the overcurrent class (2) to the value 5. This applies to all machines.
► Set the rated current (1) to the following values:
Without vacuum pump
●
240/400V 50Hz network: rated current: 8.0A
●
110/208V 60Hz USA network: rated current: 13.5A
With one vacuum pump
(SX1/SX2, DX1/DX2, SX4/DX4,
X-Series S)
●
240/400V (50Hz) network: rated current: 8.0A
●
110/208V (60Hz ) USA network: rated current: 13.5A
With two vacuum pumps
(SX4/DX4, X-Series S)
●
240/400V (50Hz) network: rated current: 13.5A
●
110/208V (60Hz ) USA network: rated current: 17.2A
3 Power supply
3.5 Power supply and transformer module (from serial number Hxxxx)
Service Manual SIPLACE X-Serie S 06/2019 83
3.4.22 Replacing the machine mains power connection cable
Parts, equipment and tools
●
Machine line connection cable [00335210-xx]
Removal/installation
► Read the relevant chapter of the user manual.
3.5 Power supply and transformer module (from serial
number Hxxxx)
DANGER
Checking for absence of voltage!
► Before you start working, check the power supply for absence of voltage and observe
the waiting times!
See also
2 3.5.4 "Checking For Absence of Voltage" [}86]
3.5.1 Overview

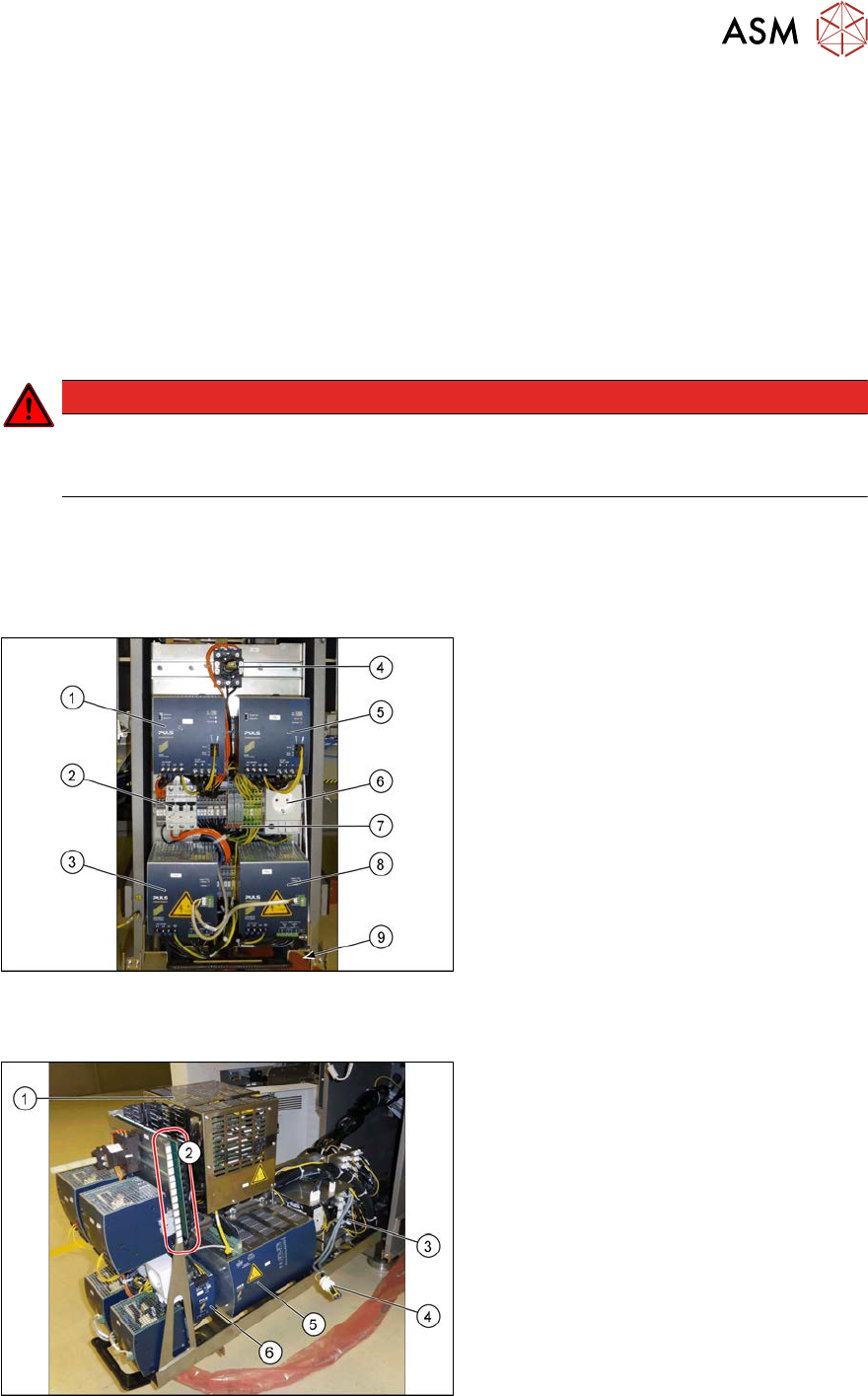

Fig.93: Overview of the power supply front
1. AC/DC converter DC24V/40A 3 phase
[03102840‑xx]
2. Circuit breaker FAZ-C16/3-NA 16A 3p
[03118366‑xx]
3. AC/DC converter DC300/150V 1.3kW 3
phase [03103087‑xx]
4. Main switch [03114066-xx]
5. AC-/DC converter 36V 26.7A 960W 3
phase [03103331‑xx]
6. Service socket (if present)
7. Measuring points for absence of voltage
2x 300 V DC and ground
8. AC/DC converter DC300/150V 1.3kW 3
phase [03103087‑xx]
9. Locking screw for power supply
Fig.94: Overview of the power supply at the side
1. Contactor safety breaker [03112066‑xx]
2. Distribution and fusing assembly X-
SeriesS [03118289‑xx]
3. Connections for vacuum pump
4. Connection for 110 Volt option
5. Capacitor battery PCS417.771
[03106016‑xx]
6. AC/DC-Converter DC24V/20A 3-
PHASE [03055232‑xx]
3 Power supply
3.5 Power supply and transformer module (from serial number Hxxxx)
84 Service Manual SIPLACE X-Serie S 06/2019
3.5.2 Overview of Distributor and I/O Module

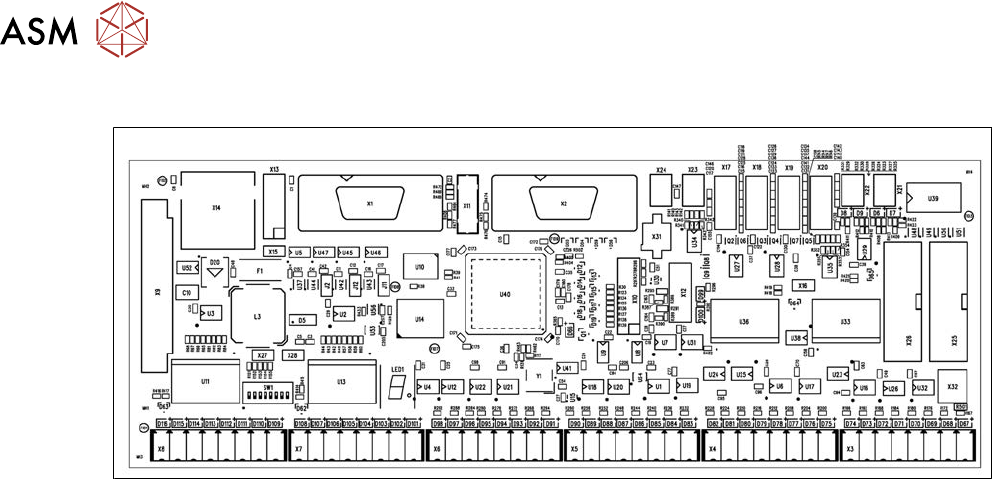

Fig.95: Distributor [03103753-02] (with SMPS)
