3 Power supply
3.5 Power supply and transformer module (from serial number Hxxxx)
96 Service Manual SIPLACE X-Serie S 06/2019
3.5.8 Setting the Voltage on the AC/DC Converters
Parts, equipment and tools
●
Voltage measuring device
Overview

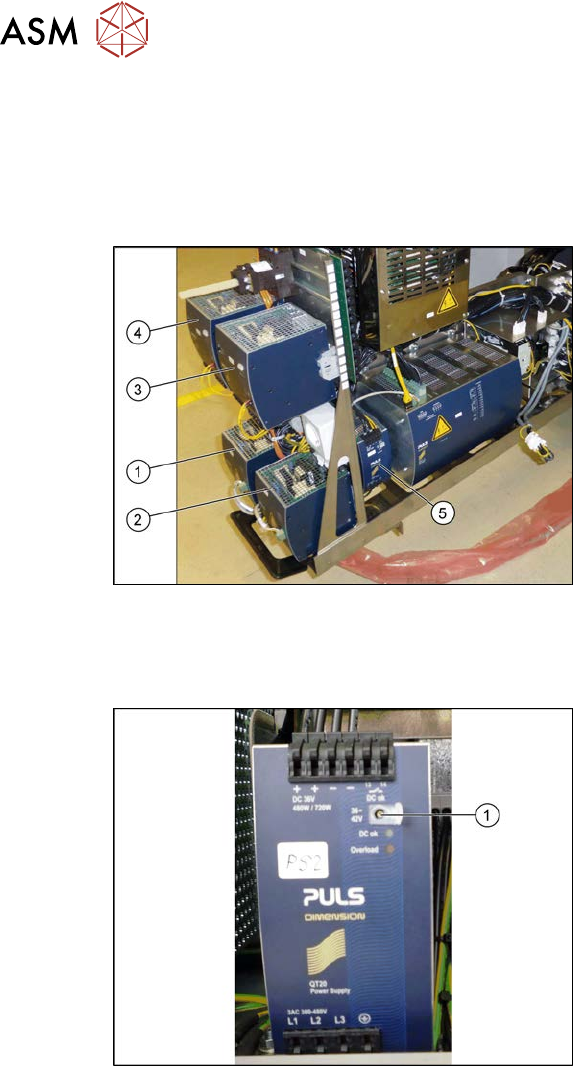

Fig.113: Overview of the AC/DC converter
1.
PS1: AC-/DC converter DC300/150V
1.3kW 3 phase [03103087‑xx]
300/160 V for gantry 1/4
2.
PS2: AC-/DC converter DC300/150V
1.3kW 3 phase [03103087‑xx]
300/160 V for gantry 2/3
3.
PS3: AC/DC converter 36V 26.7A
960W 3 phase [03103331‑xx]
→ 42 V for Vision, head, conveyor mo-
tors
4.
PS4: AC/DC converter DC24V/40A 3
phase [03102840‑xx]
→ 27 V for FCU
5. AC/DC converter DC24V/20A 3
phase [03055232‑xx]
→ 24V
Setting
Fig.114: Setting the AC-DC converter
► Open the protective cap on the setting
screw(1).
► Use a flat-bladed screwdriver to set the
correct voltage on the AC/DC con-
verter.
Check the voltage with a suitable
voltage measuring device between the
terminals + and–.
3 Power supply
3.5 Power supply and transformer module (from serial number Hxxxx)
Service Manual SIPLACE X-Serie S 06/2019 97
3.5.9 Replacing the main switch
Parts, equipment and tools
●
Main switch 3 pin 25A type P1-25/V/SVB [03114066-xx]
Overview

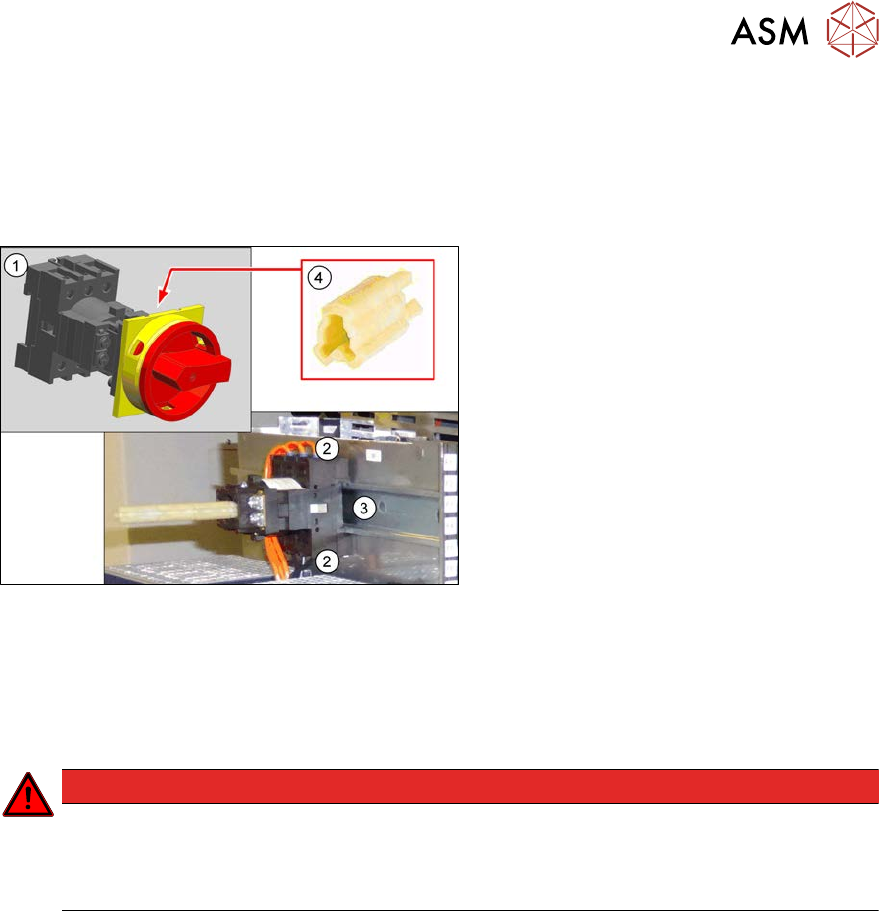

Fig.115: Main switch - overview
1. Main switch 3 pin 25A type P1-25/V/
SVB [03114066-xx]
2. Electrical connections (3 each on top
and bottom)
3. Mounting rail
4. Axis extension ZAV-T0 for T0, T1, P1
[03119456‑xx]
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation.
1.2 "Preparatory work..." [}16]
DANGER
Checking for absence of voltage!
► Before you start working check the power supply for absence of voltage and observe
the waiting times! For more information about this read section 3.5.4 "Checking For
Absence of Voltage" [}86].
► Unplug the electrical connections on top and bottom of the main switch. You might like to
mark their positions to make clear assignment easier later on.
► Pull the main switch off the assembly rail.
Installation
► Follow the removal instructions in reverse order for installation.
3 Power supply
3.5 Power supply and transformer module (from serial number Hxxxx)
98 Service Manual SIPLACE X-Serie S 06/2019
3.5.10 Replacing the circuit breaker
Parts, equipment and tools
Fig.116: Circuit breaker
1. Circuit breaker FAZ-C16/3-NA 16A 3p
[03118366‑xx]
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation.
1.2 "Preparatory work..." [}16]
DANGER
Checking for absence of voltage!
► Before you start working check the power supply for absence of voltage and observe
the waiting times! For more information about this read section 3.5.4 "Checking For
Absence of Voltage" [}86].
► Unplug the electrical connections on top and bottom of the circuit breaker. You might like to
mark their positions to make clear assignment easier later on.
► Remove the circuit breaker from the assembly rail. To do this, pull downward the two black
lugs that are located on the left and right side at the rear of the circuit breaker.
► Lift off the circuit breaker from the assembly rail.
Installation
► Follow the removal instructions in reverse order for installation.
