4 Operation User manual Docking station for SIPLACE SX co mponent trolleys 4.1 Controls and displays Edition 02/2018 70 4.1.2 Controls 4 Fig. 4.1 - 2 Docking station - controls and displays (1) Feeder module tear down (b…
User manual Docking station for SIPLACE SX component trolleys 4 Operation
Edition 02/2018 4.1 Controls and displays
69
4 Operation
4.1 Controls and displays
4.1.1 Pneumatic unit and connections
4
Fig. 4.1 - 1 Docking station - pneumatic unit and connections
(1) Rotary knob for setting the operating pressure
(2) Compressed air connection
(3) Mains switch and mains connection
(4) Switch S1 and S2 for setting the CAN bus address
(5) CAN bus connection
(6) Label with diagram of switch S1 and S2 for addressing the CAN bus
(7) Manometer for showing operating pressure
2
1
7
3
4
5
6
4 Operation User manual Docking station for SIPLACE SX component trolleys
4.1 Controls and displays Edition 02/2018
70
4.1.2 Controls
4

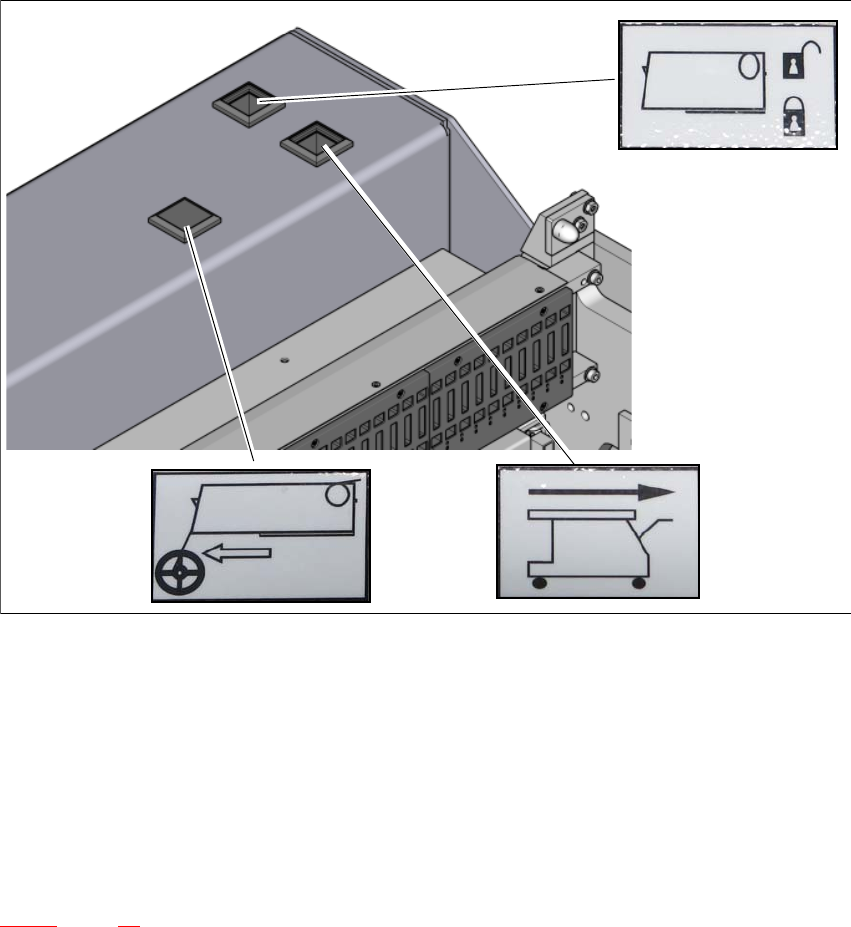

Fig. 4.1 - 2 Docking station - controls and displays
(1) Feeder module tear down (black button)
(2) Component trolley unlocking function (white button)
(3) Locking and unlocking of feeder modules (green button)
4.1.3 CAN bus addresses
The adjustable CAN bus addresses are on the label, above the switches S1 and S2 (item 6 in fig.
4.1 - 1
, page 69).
1
2
3
User manual Docking station for SIPLACE SX component trolleys 4 Operation
Edition 02/2018 4.2 Adjusting the conveyor height
71
4.2 Adjusting the conveyor height
You need fork wrenches size SW22 and SW24 plus a spirit level.
4
Fig. 4.2 - 1 Adjusting the conveyor height
(1) X (floor to centering pin)
(2) Centering pin
