1 Installation manual SetupCenter Patch and Extensions (00169117) SIPLACE 05/2006 Edition 10 1.5.2 Double Check with Component Name This new Barcode type “Doub leCheckWithComponent ” was added to the Barcode labels type …
SIPLACE 1 Installation manual SetupCenter Patch and Extensions (00169117)
05/2006 Edition
9

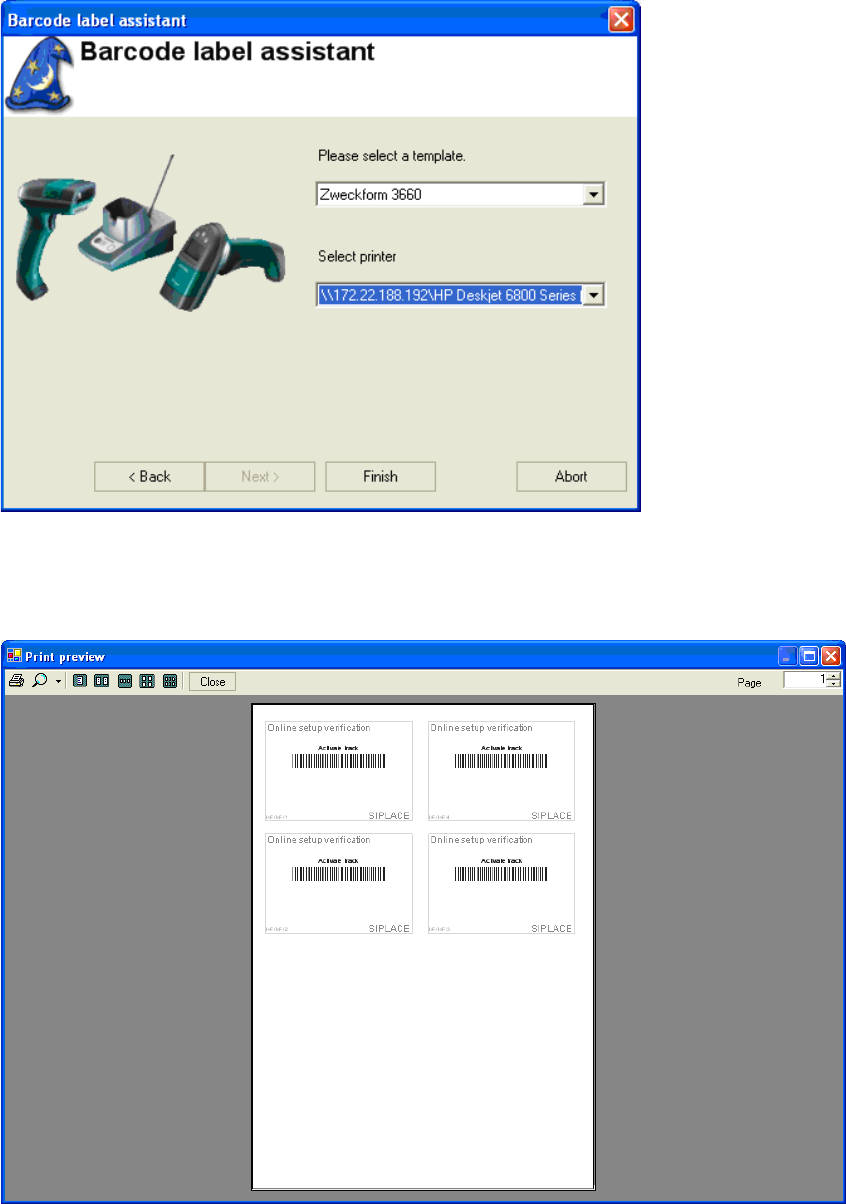

: Select a template and a printer and click on "Finish".
1
The Print preview window opens showing the selected Barcodes. 1
You can now pint this Barcodes by clicking on the printer symbol in the upper left corner. 1
1
1 Installation manual SetupCenter Patch and Extensions (00169117) SIPLACE
05/2006 Edition
10
1.5.2 Double Check with Component Name
This new Barcode type “DoubleCheckWithComponent” was added to the Barcode labels type list.1
This Barcode expects the component Name with a Prefix. You can add this Barcode to the scan-
ning sequence as each other Barcode. 1
: Click on Options -> Settings…
1
1
: Select “Barcode Labels” on the left.
1
1
SIPLACE 1 Installation manual SetupCenter Patch and Extensions (00169117)
05/2006 Edition
11
: You can now add a new Barcode as usual and change the type to “DoubleCheckWithCompo-
nent”.
1
1
1
