4. 6-month maintenance
3-42
Chapter 3 Periodic maintenance items
6
Detach the filter of control box.
The filters are located at front and lateral side.
Detach the machine front filter with filter cover
by loosening 2 mounting screw by hand.
Detach the machine lateral side filter by
loosening a mounting screw by hand.
n
NOTE
The multiple cables are connected to the control box.
Disconnect some cables as necessary when the access to
filter is interfered.
7
Clean the filter with a vacuum cleaner
or a vacuum assembly removing the
dust adhering to the filter.
n
NOTE
When the dust or dirt cannot be removed, or the filter
itself is deteriorated, it requires the filter replacement
detaching the cover.
8
Return the filter to its original position
by the reverse procedure of detaching
it.
9
Return the covers.
1. Attach the inner cover.
2. Attach the tape cutter cover.
c
CAUTION
• Be careful not to forget the reconnecting of ground wire
to the inner cover.
• Be careful not to tuck the cable upon attaching covers.

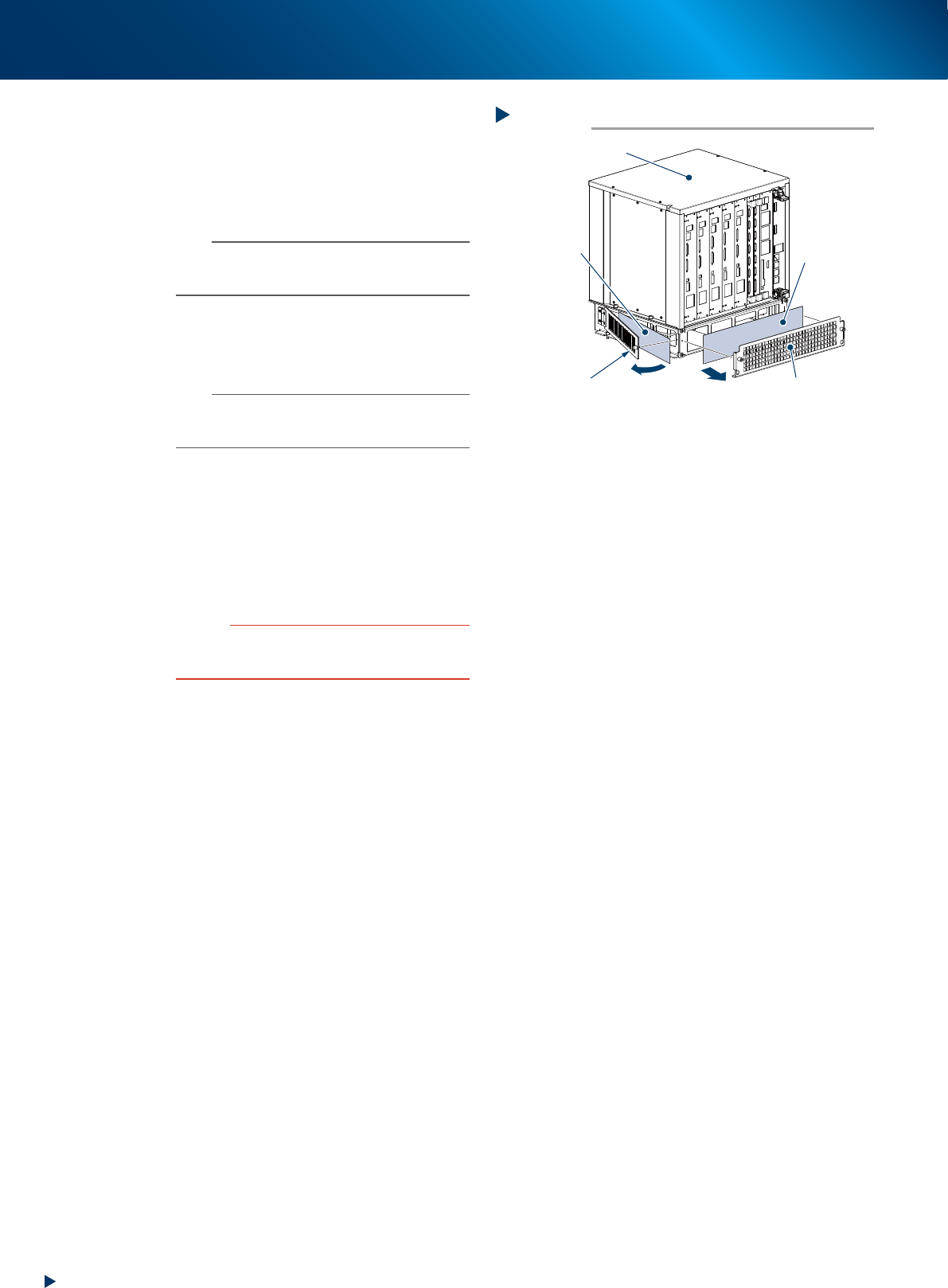

Detaching the filter of control box
Step 6
Control box
Front filter
Lateral side filter
Filter cover
Filter mounting screw
53382-KMX-00
5. 1-year maintenance
3-43
Chapter 3 Periodic maintenance items
5. 1-year maintenance
This section describes 1-year maintenance items.
5.1 HM head: Cleaning the spline shaft interior
Generally, the spline shaft interior should be cleaned once a year. Perform the following procedures.
1
Store all the nozzles to nozzle station.
1. Open the [Unit] - [Head] screen.
2. Select any head unit from "Table Select".
3. Press the [Nozzle Change] button.
4. Select "ALL" for "Head Number" and select
"Store Nozzle" for "Nozzle Type" on the
"Nozzle Change" screen.
5. Press the [OK] button to return all nozzles to
the nozzle station.
n
NOTE
When the nozzle station is not equipped, press the
emergency stop button and detach the nozzles by hand.
e
2
Move the head unit.
1. Press the emergency stop button and detach
the feeder exchange carriage.
2. Open the machine safety cover and move
the head unit to convenient position to work.
3
Pull out the lower end of air hose.
4
Fix the Z-axis as shown in the figure
right, by placing the Z-axis linear scale
hidden by shaft, and by inserting a
hexagon wrench into the Z-axis fixing
hole.
n
NOTE
As there are cables around the head and they may
prevent a hexagon wrench to insert into the hole. In such
case, use a wire (less than
φ
2.5mm) or similar instead to
mount the Z-axis.
TIP
The common type hexagon wrench can fix approximately
5 heads at once. HM head unit has 10 heads, so cleaning
them in 2 part is recommended.
5
Detach the maintenance bolt using a
flat-head screwdriver or a precision
spanner.
6
Prepare for cleaning.
1. Place a paper cup or a lint-free cloth
beneath the target head.
2. Refill the ethanol into cleaning kit.
53354-KMX-10

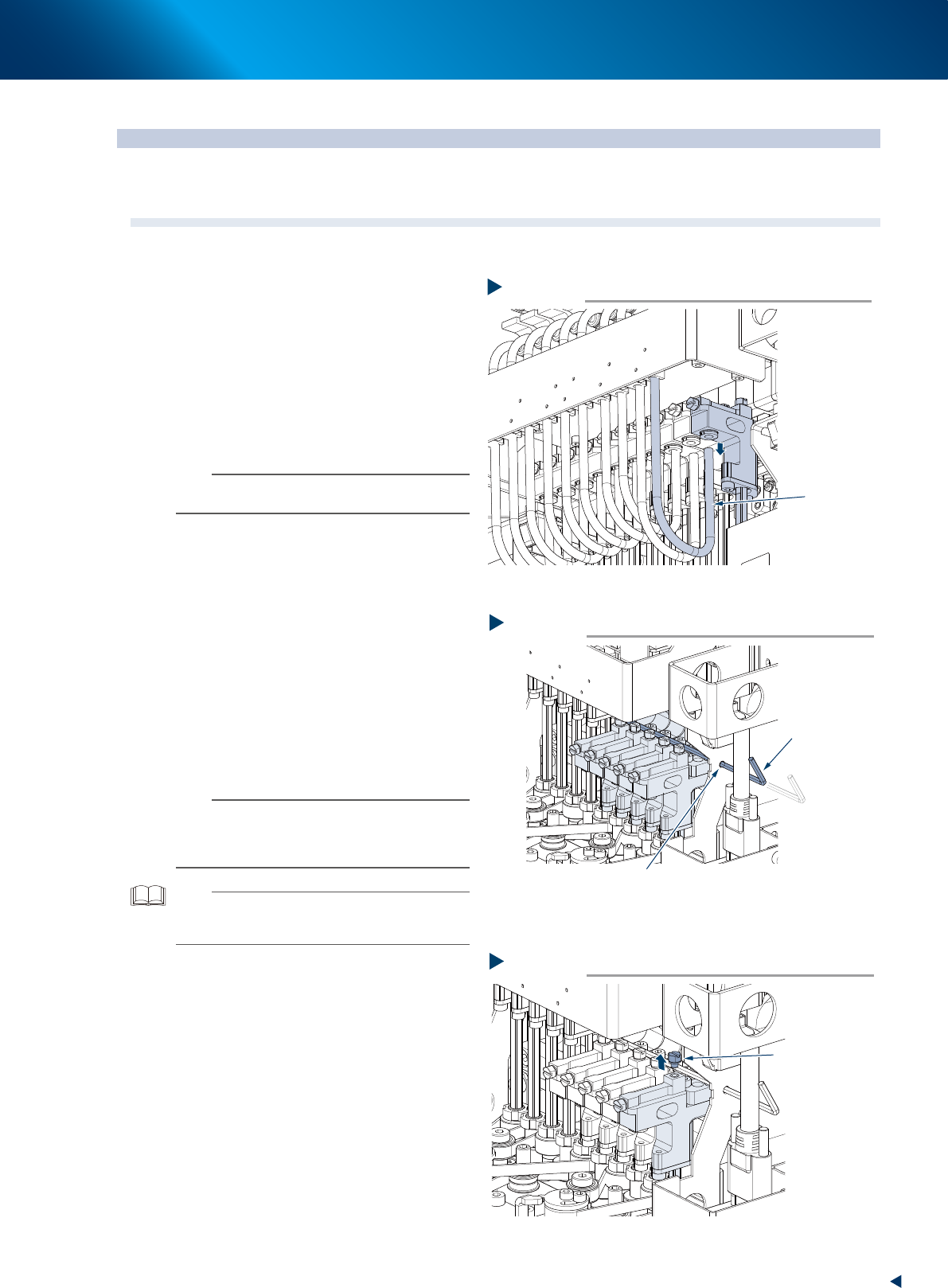

Step 3
Removing the air hose and maintenance bolt
Air hose
Step 4
Fixing the Z-axis
Hexagon wrench
φ2.5mm
Z-axis fixing hole
53355-KMX-10
Detaching the Maintenance bolt
Step 5
Maintenance bolt
533H7-KMX-00
5. 1-year maintenance
3-44
Chapter 3 Periodic maintenance items
7
Clean the spline shaft interior.
1. Insert the nozzle of the cleaning kit into the
cleaning hole of the spline shaft.
2. Pour ethanol into the spline shaft air path to
clean away dust and grime.
c
CAUTION
Be sure to insert the nozzle tip of the cleaning kit at least
25 mm into the spline shaft. If not inserted enough, ethanol
might flow out on the packings.
8
Blow air into the spline air path.
1. Prepare an air blow tool (option) and
connect it to the air connector located at the
center of the feeder exchange carriage.
2. Close the hole pulled out the air hose to
prevent the air leakage, then air-blow the
spline shaft interior.
3. Check that the soiled ethanol has not been
exhausted from the tip of spline shaft.
n
NOTE
Repeat Steps 6 and 7 until the ethanol flown out from
spline shaft becomes clear.
9
Return the head to its original position.
1. Mount the maintenance bolt, insert the air
hose and attach the nozzle.
2. Pull out the hexagon wrench (or the wire)
fixing the Z-axis.
n
NOTE
When the nozzles are detached by hand, return each
nozzle to the head which it was detached.

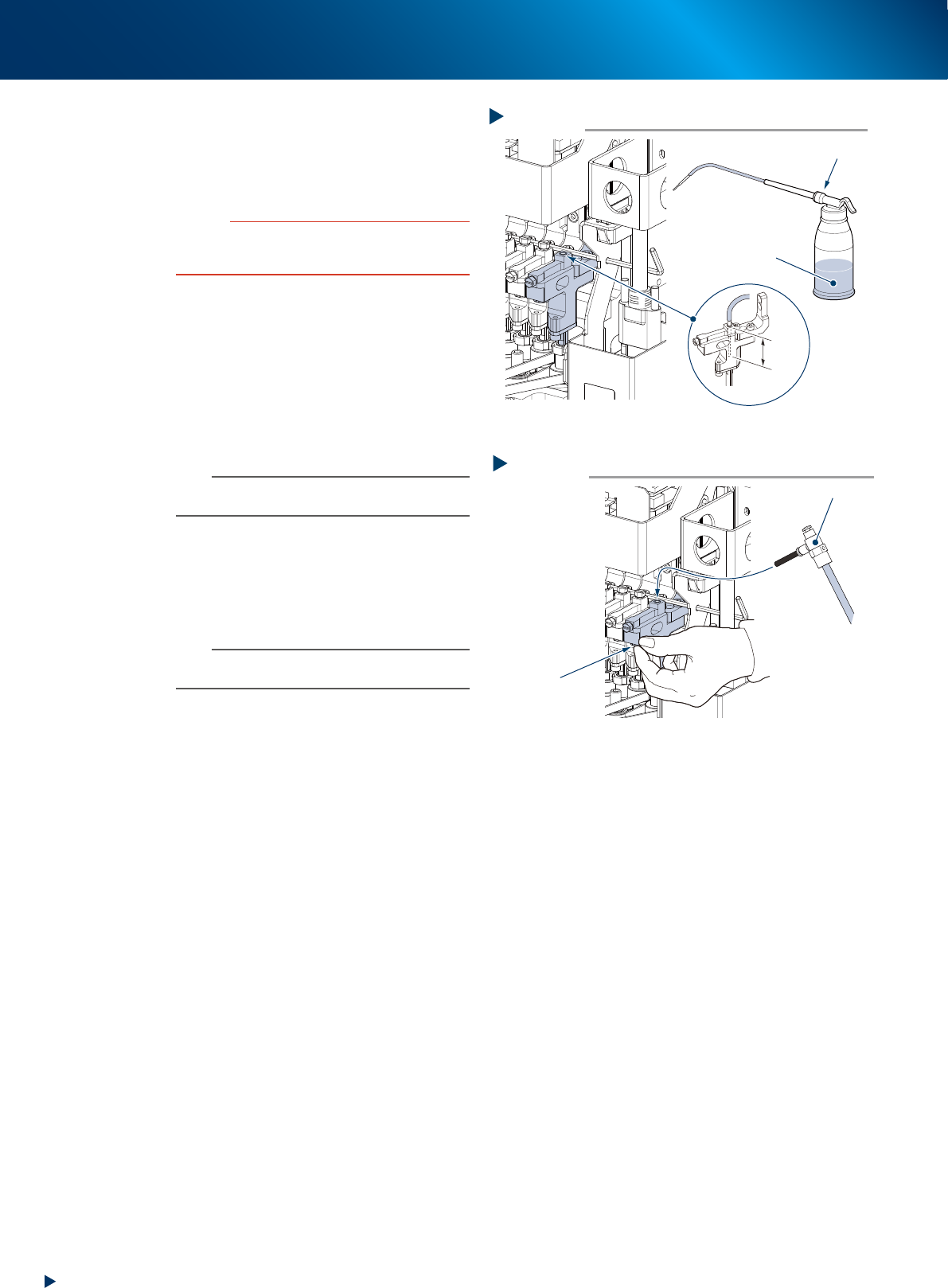

Step 7
Ethanol
Cleaning the spline shaft interior
Cleaning kit
25mm
or more
53356-KMX-10
Step 8
Blowing the air path
Close with finger
Air blow tool
53357-KMX-10
