1. Specifications
ap-1
Appendix
1. Specifications
1.1 Air regulator unit
1.1.1 Supply air pressure
The air regulator for controlling the air pressure to the machine's pneumatic units is located at the lower left
panel on the front side of the machine. Specify the appropriate air pressure setting shown below.

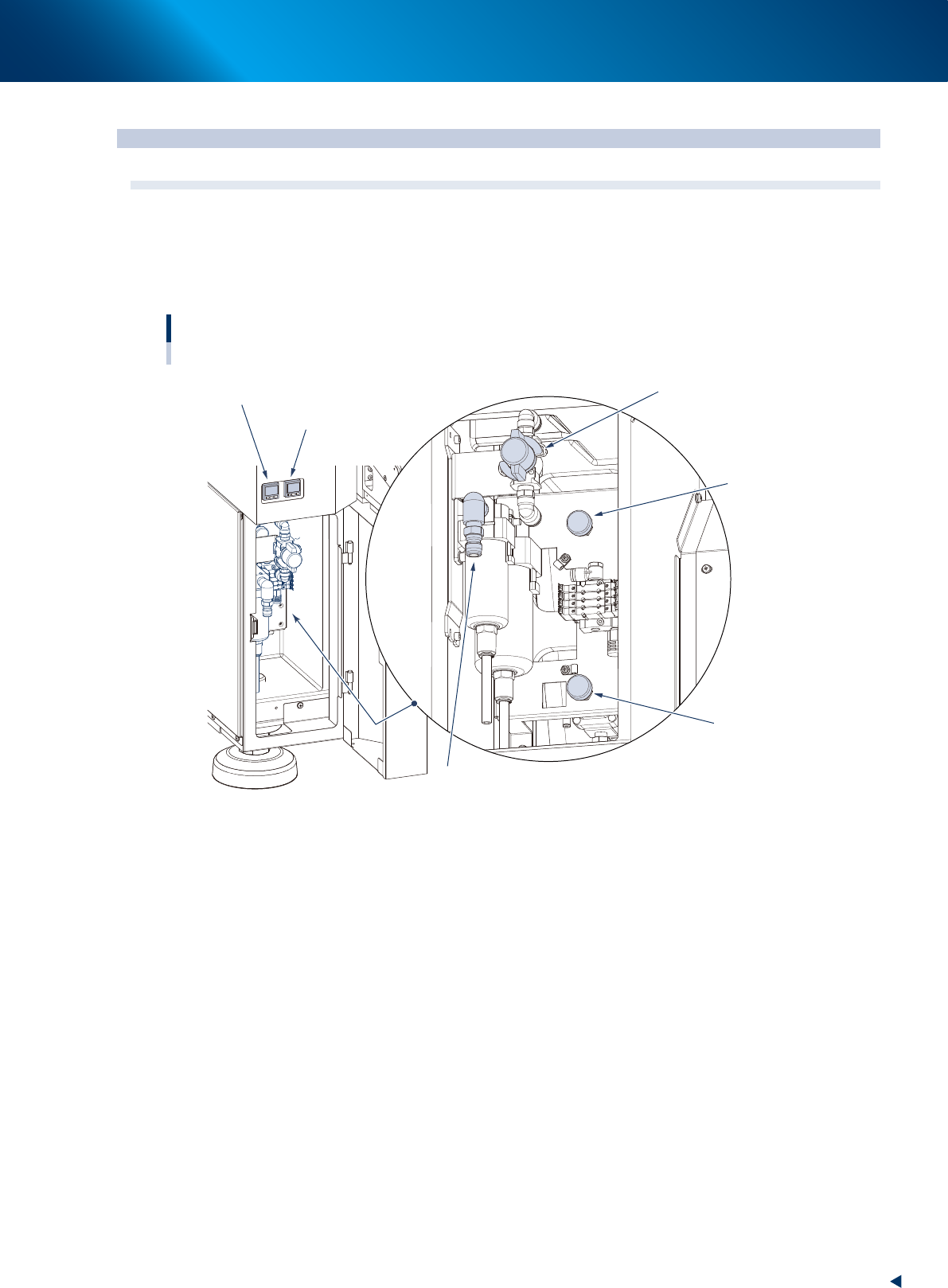

Air pressure regulator section
Air supply/exhaust switch
Air pressure gauge (table B)
Air pressure gauge (table A)
Source air connector
Air pressure regulator
(table A)
Air pressure regulator
(table B)
53A01-KMX-00
►
Supply air pressure
This is the pressure of the source air supplied to the machine. Before setting the air pressure with the
air regulator, make sure that this supply air pressure is in the following optimal range.
YRM20 : 0.45MPa or more
►
Air pressure gauge
When within the normal range, the air pressure displays in green. When the air pressure is beyond
the upper/lower limit values (air down detection), an error occurs, and the air pressure displays in
red.
►
Set air pressure and air down detection
Set air pressure for main machine : 0.40MPa (0.39MPa~0.41MPa)
(When it achieves 0.45MPa, the air pressure gauge displays in
red.)
Air down detection pressure : 0.33MPa
►
Air supply/shutoff swith (valve)
Turning this switch to the right shuts off air supply and exhausts air that remains inside the machine.
►
Source air connector
Prepare an air hose with an inner diameter of at least 8 mm having a 40SH socket (Nitto Koki, or
equivalent), and connect it to this connector. Use dry, clean air passed through an air filter.
1. Specifications
ap-2
Appendix
1.2 Power connection terminals
The power connection terminals are located inside the front lower panel of the machine. Connect the power
cables shown below to the primary side terminals L1, L2, L3 of main breaker and ground terminal on the
main machine.
►
Puwer supply specifications
Item Specification Remarks
Power supply 3-phase AC 200/208/220/240/380/400/416V +/-10%
Frequency 50 / 60Hz
Power capacity 2.5kVA (Peak 5.4kVA)
5.4 kVA is the value when X and Y
axes move at full speed.
Breaker rating 30A
Includes the inrush current of the
transformer.
Maximum current 55A
When 200V power is supplied.
Average power
consumption
2.2kW

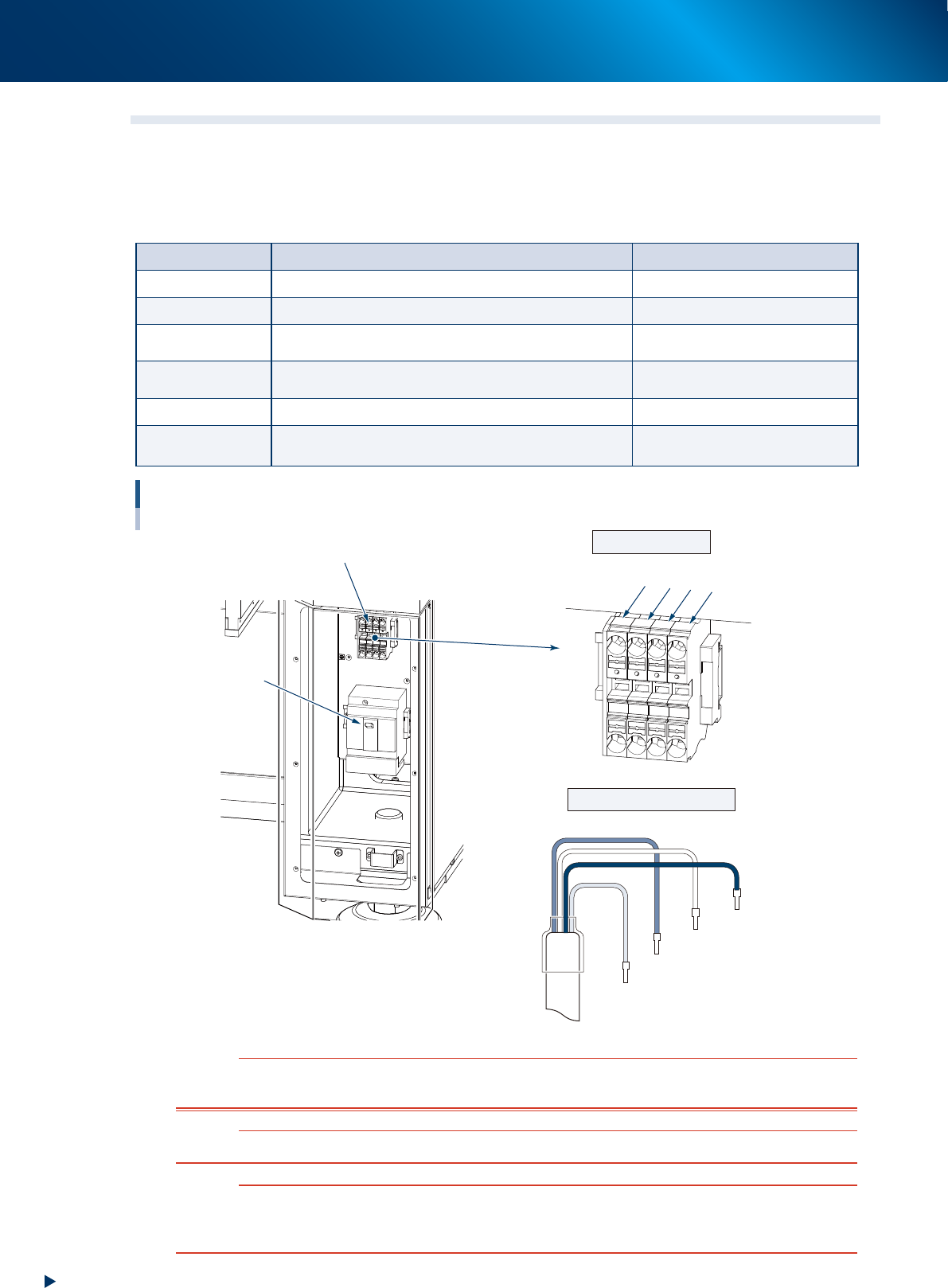

Power connection terminals
Front left lower part of machine
Terminal block
Main breaker
L1 (Red)
L1
L2
L3
PE
L3 (Black)
L2 (White)
PE (Green)
Power input termials
Example of cable arrangement
53A02-KMX-00
w
WARNING
TO AVOID THE RISK OF ELECTRICAL SHOCK, MAKE SURE THAT THE POWER SOURCE IS OFF BEFORE CONNECTING THE
POWER CABLE. ALSO MAKE SURE THAT THE GROUND CABLE IS SECURELY CONNECTED TO THE MACHINE.
c
CAUTION
Use a power cable whose conductor cross-section area is greater than 6.0mm
2
.
c
CAUTION
By referring to the figure above, be sure to connect the power cable correctly to the L1, L2 and L3 terminals on the power
input terminal block so that they are in the normal phase. Incorrect connection may cause the vacuum pump to turn in the
wrong direction and drastically damage to the components in the vacuum pump.
1. Specifications
ap-3
Appendix
1.3 Connection between machines
To exchange signals such as board request and operation status with the downstream or upstream machine,
the "NEXT INTERFACE" and "PREVIOUS INTERFACE" connectors located on the rear of the machine are
used.
The "NEXT INTERFACE" connector connects to the downstream machine, and the "PREVIOUS INTERFACE"
connector connects to the upstream machine such as a loader.
At the standard "R to L" flow line, the PREVIOUS INTERFACE is located on the observer's left and the NEXT
INTERFACE on the right.
Both connectors use AMP206043-1 (14 pin, receptacle).

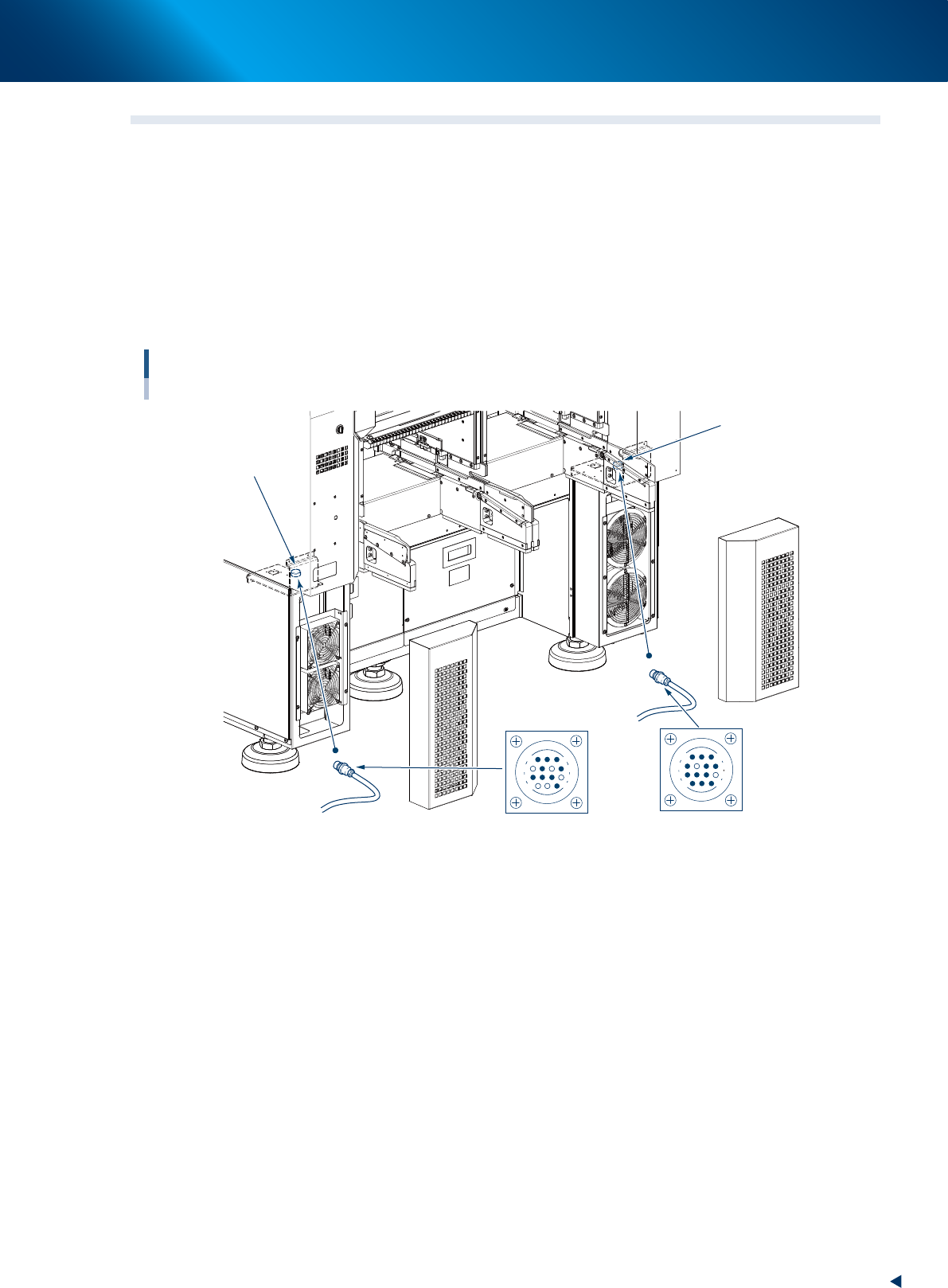

Connection between machines
NEXT
INTERFACE connector
INTERFACE connector
PREVIOUS
AMP 206043-1
(14-pin receptacle)
AMP 206043-1
(14-pin receptacle)
14
11
12
7
4
8
1
3
14
11
12
7
8
3
1
4
53A03-KMX-00
