2. Preparing for maintenance tasks 1-6 Chapter 1 Maintenance ► Others related to nozzle Part name Part number Remarks SHAFT , NOZZLE 0402 KMX-M7713-00X 8103A nozzle tip only SHAFT , NOZZLE 0603 KMX-M7714-00X 8104A nozzle…
2. Preparing for maintenance tasks
1-5
Chapter 1 Maintenance
2.1.3 Common to all models
█

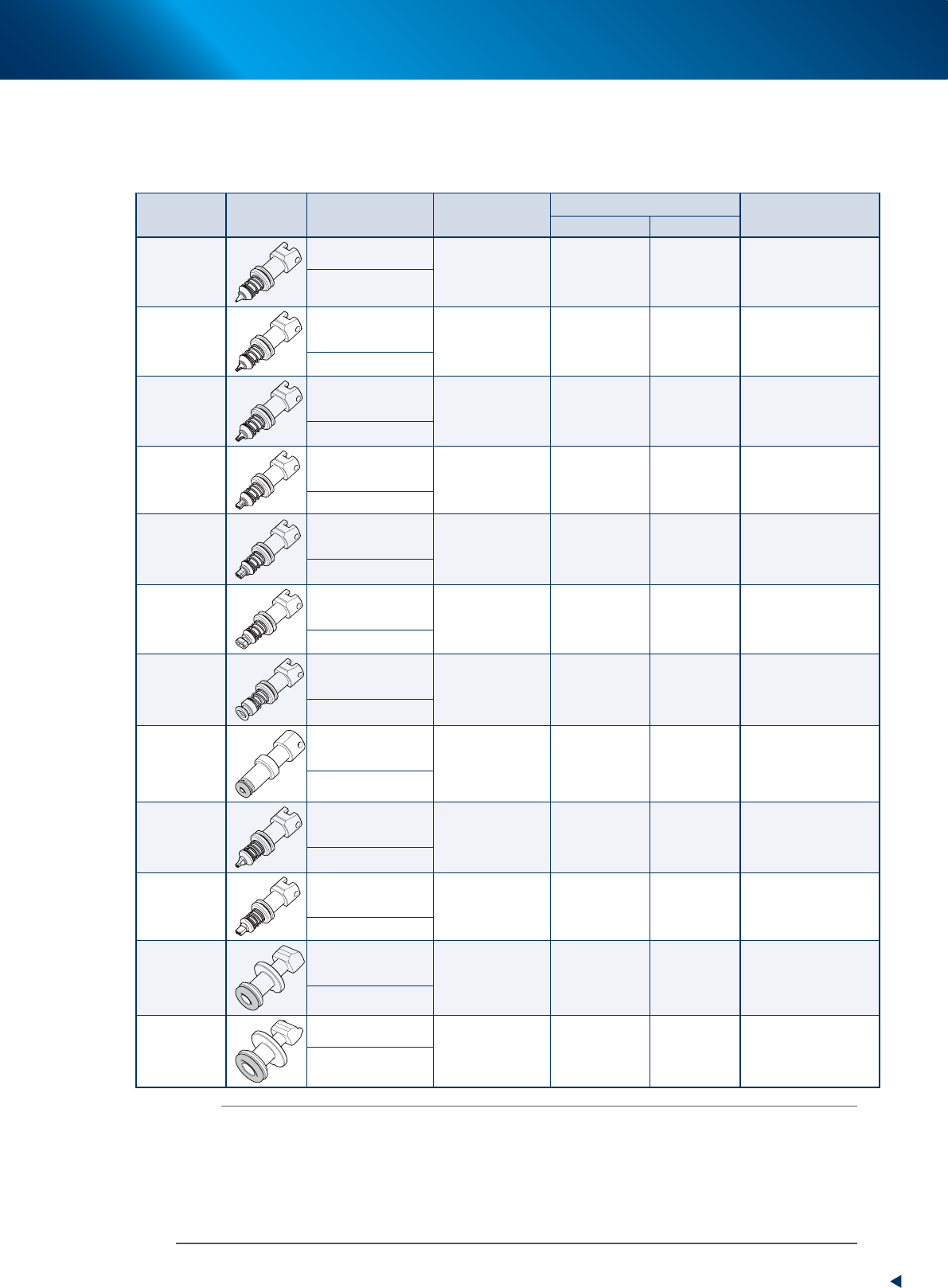

Consumable parts (optional purchased)
►
Nozzles
Model Exterior
Part number and
name
Size of
target part
Head No.
Remark
RM head unit HM head unit
Type 8103A
KMX-M7713-A0X
0402 mm /
01005 inch
All heads All heads
NOZZLE 8103A ASSY.
Type 8104A
KMX-M7714-A0X
0603 mm /
0201 inch
All heads All heads
HM head:
Available only for the
nozzle group 81XH
NOZZLE 8104A ASSY.
Type 8105A
KMX-M7715-A0X
1005 mm /
0402 inch
All heads All heads
HM head:
Available only for the
nozzle group 81XH
NOZZLE 8105A ASSY.
Type 8106A
KMX-M7716-A0X
1608 mm /
0603 inch
All heads All heads
HM head:
Available only for the
nozzle group 81XH
NOZZLE 8106A ASSY.
Type 8107A
KMX-M7717-A0X
2012 mm /
0805 inch
All heads All heads
HM head:
Available only for the
nozzle group 81XH
NOZZLE 8107A ASSY.
Type 8108A
KMX-M7718-A0X
3216, 3225 mm/
1206,1210 inch
All heads All heads
NOZZLE 8108A ASSY.
Type 8109A
KMX-M7719-A0X
3.2 × 3.2 mm to
7.2 × 7.2 mm
components
1, 3, 5, 7, 9,
11, 13, 15, 17
All heads
NOZZLE 8109A ASSY.
Type 8110R
KMX-M7720-A0X
7.2 × 7.2 mm to
12 × 12 mm
components
3, 8, 12, 17 -
NOZZLE 8110R ASSY.
Type 8004H
KMX-M7723-A0X
0603, 1005 mm/
0201, 0402 inch
- All heads
NOZZLE 8004H ASSY.
Type 8006H
KMX-M7724-A0X
1608, 2012 mm/
0603, 0805 inch
- All heads
HM head:
Available only for the
nozzle group 80XH
NOZZLE 8006H ASSY.
Type 8011H
KMX-M7725-A0X
12 × 12 mm to
32 × 32 mm
components
- 1, 3, 5, 7, 9
HM head:
Available only for the
nozzle group 80XH
NOZZLE 8011H ASSY.
Type 8012H
KMX-M7726-A0X
32 × 32 mm to
45 × 45 mm
components
- 3, 8
NOZZLE 8012H ASSY.
n
NOTE
The nozzles named "80XX" (example: 8004H, 8006H) are called as the "Standard nozzle (wide range nozzle)" and
those of "81XX" (example: 8101A, 8102A) as the "Neighbouring nozzle". The "Standard nozzle" can adopt wide range
of component size to be picked up, in otherwise the "Neighbouring nozzle" can be set the neighbouring intervals for each
nozzles.
For HM head units, they are shipped with the nozzle group setting on [Machine Setting] - [Machine Information] - [Machine
Variation Setting] screen as "80XH (standard type)" or "81XH (neighbouring type)". For RM head units, the setting is only
"81XH (neighbouring type)".
2. Preparing for maintenance tasks
1-6
Chapter 1 Maintenance
►
Others related to nozzle
Part name Part number Remarks
SHAFT, NOZZLE 0402 KMX-M7713-00X 8103A nozzle tip only
SHAFT, NOZZLE 0603 KMX-M7714-00X 8104A nozzle tip only
SHAFT, NOZZLE 1005 KMX-M7715-00X 8105A nozzle tip only
SHAFT, NOZZLE 1608 KMX-M7716-00X 8106A nozzle tip only
SHAFT, NOZZLE 2012 KMX-M7717-00X 8107A nozzle tip only
SHAFT, NOZZLE 3216 KMX-M7718-00X 8108A nozzle tip only
BODY, NZL. 0603/1005 KMX-M7723-00X 8004H nozzle tip only
BODY, NZL. 1608/2012 KMX-M7724-00X 8006H nozzle tip only
SPRING KMX-M7703-00X For 8103A, 8104A, 8105A, 8106A, 8107A, and 8109A
SPRING KHN-M7713-00X For 8004H and 8006H
PIN KMX-M7704-10X
For 8103A, 8104A, 8105A, 8106A, 8107A, 8109A, 8004H and
8006H
O-RING KMX-M7702-00X For 8103A, 8104A, 8105A, 8106A, 8107A, and 8109A
O-RING 90990-17J081 For nozzle tip of 8011H, countermeasured to ozone
O-RING 90990-17J082 For nozzle tip of 8012H, countermeasured to ozone
O-RING 90990-17J087 For nozzle tip of 8010R, countermeasured to ozone
n
NOTE
The parts (Part Nos.) in this manual are at the time of issuing this manual. The Part Nos. may be changed without prior
notice. Make sure to verify the latest Part Nos. before ordering.
2. Preparing for maintenance tasks
1-7
Chapter 1 Maintenance
►
Body: consumable parts for base unit (optional purchased)
ノズル

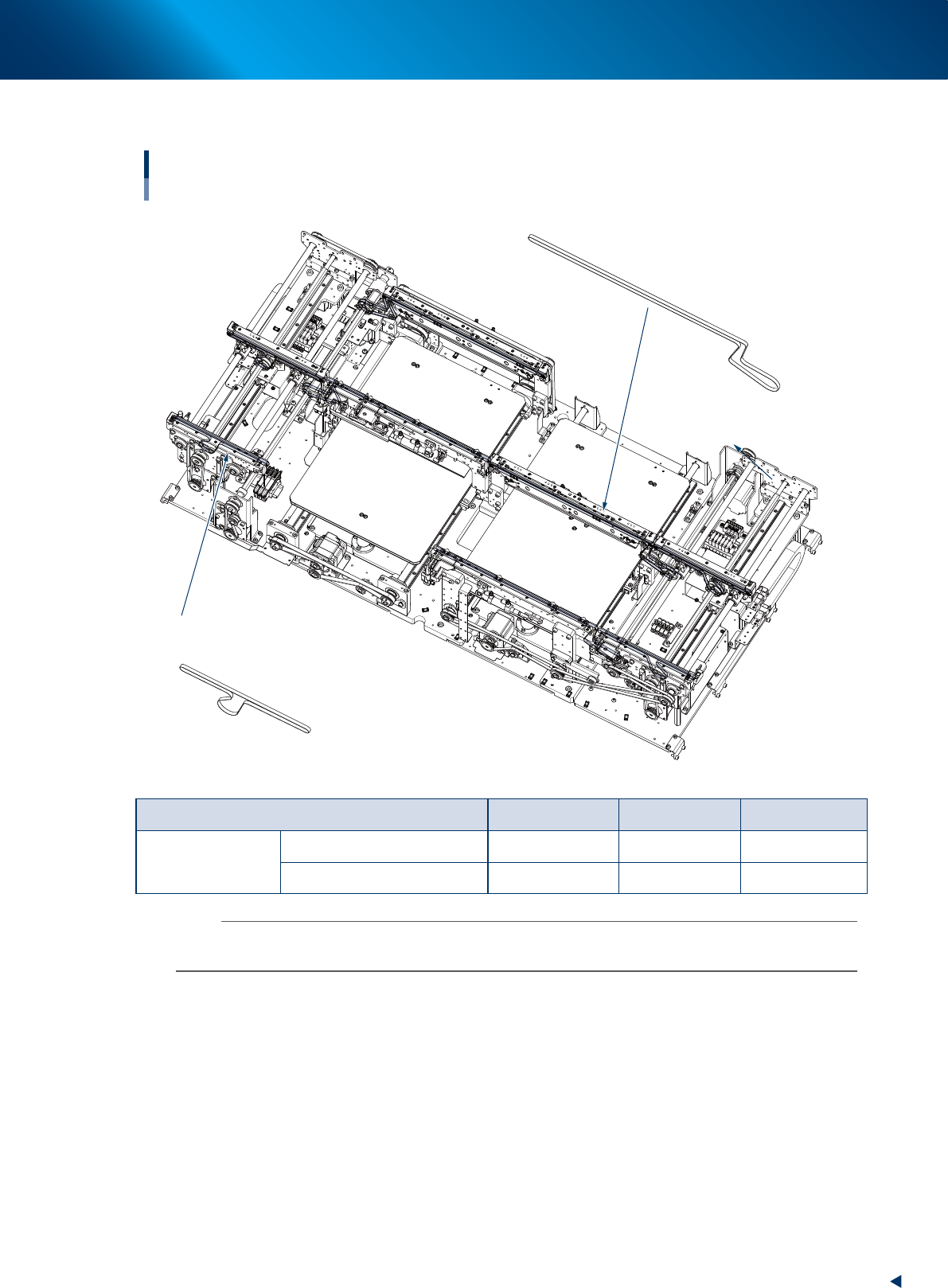

Consumable parts (body: optional purchased for base unit)
Conveyor transfer belt
Conveyor transfer belt
(for exit and entrance)
Conveyor transfer belt
(for stage 1 and stage 2)
53110-KMX-00
Name Part name Part No. Remarks
Conveyor transfer belt
Entrance and exit (CV1, CV4) BELT, CONVEYOR KMX-M917H-00X Length of 646mm
Stage 1 and stage 2 (CV2, CV3) BELT, CONVEYOR KMX-M9110-00X Length of 1170mm
n
NOTE
The parts (Part Nos.) in this manual are at the time of issuing this manual. The Part Nos. may be changed without prior
notice. Make sure to verify the latest Part Nos. before ordering.
