2. Preparing for maintenance tasks 1-9 Chapter 1 Maintenance 2.2 Replacement parts T he replacement parts handled in this document are the parts of whic h their deterioration caused by trouble or aging ma y stop machine …
2. Preparing for maintenance tasks
1-8
Chapter 1 Maintenance
Vacuum pump
(for RM head unit)
Vacuum pump filter
Rear right side of body
Consumable parts (body: optional purchased for base unit)
Filters
Upper surface of machine body (4 positions)
Front and lateral side of controller
Remove and reverse
Upper surface fan filter
Air intake filter at front
Air intake filter on lateral side
Air filter
Oil mist filter
Mist filter element
Filter element
Rear right side of body
Front left side of body
Remove and
reverse
Fan filter
Air intake filter
Front
Rear
53111-KMX-10
Name Part name Part No. Remarks
Filter element
FILTER ELEMENT KLF-M8502-50X Air filter (media)
Mist filter element
MIST FILTER ELEMENT KLF-M8502-70X Mist filter (media)
Upper surface fan filter
FILTER, FAN KMK-M131M-00X Upper surface of cover (4 positions)
Fan filter
(rear surface of base)
FILTER, TOP COVER FAN KLF-M130J-00X Machine rear, on the observers' right
Air intake filter
FIRTER,Y FAN KMX-M13NE-00X Front and rear cover, total of 4 positions
Air intake fan filter
(control box)
MEDIA FILTER
KME-M53A9-00X
KME-M53A9-10X
Air intake fan filter at front
Air intake fan filter at side
Vacuum pump
VACUUM PUMP SUB ASSY
KMX-M85AA-00X For RM head unit
Vacuum pump filter
FILTER, VAC. PUMP KMX-M8611-00X For RM head unit
n
NOTE
The Part Nos. may be changed without prior notice. Make sure to verify the latest Part Nos. before ordering.
2. Preparing for maintenance tasks
1-9
Chapter 1 Maintenance
2.2 Replacement parts
The replacement parts handled in this document are the parts of which their deterioration caused by trouble
or aging may stop machine operation, though the machine adjustment is not required after replacement. As
to YRM20, the replacement procedures of following parts are illustrated.

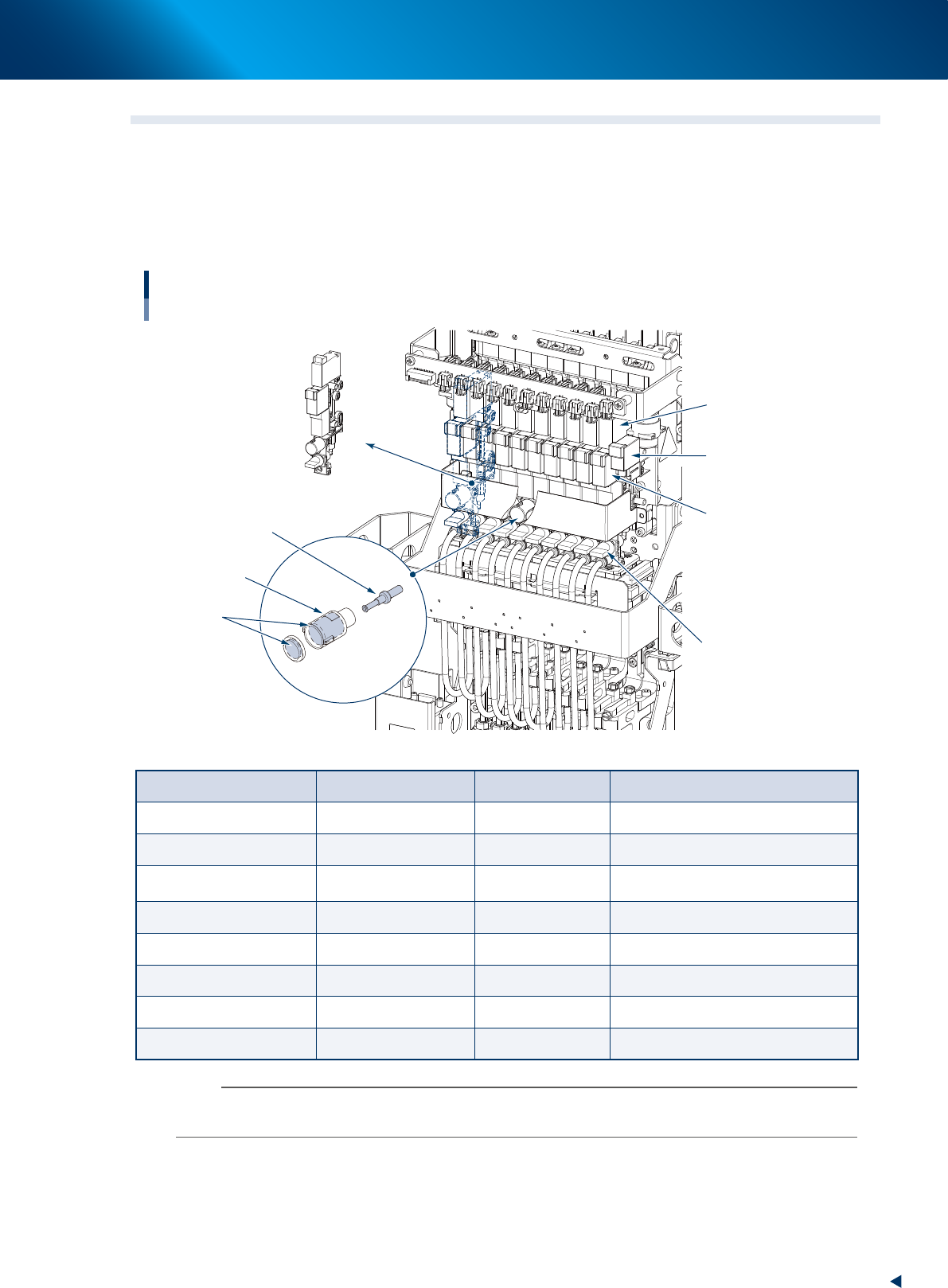

2.2.1 HM head unit
Replacement parts
HM head (cover and connector removed)
Blow valve
for cleaning
Blow valve
Operation valve
Bit cap
Ejector bit
Muffler
Filter cap
Spare ejector
53103-KMX-00
Name Part name Part No. Remarks
Blow valve VALVE, SPARE KLF-M7152-00X
Used to blow ejector
Operation valve VALVE KLF-M7153-00X
Used to generate vacuum of ejector
Ejector bit BIT KLW-M7154-00X
Replacement recommended after 2 years
Non-reusable
Bit cap BIT CAP KLW-M7156-00X
Muffler MUFFLER KLW-M715A-00X
Muffler inside of bit cap
Blow valve for cleaning VALVE KLW-M7158-00X
Filter cap FILTER CAP KLW-M7155-00X
Spare ejector EJECTOR KLW-M7157-10X
Valve and ejector unit for one head
n
NOTE
The parts (Part Nos.) in this manual are at the time of issuing this manual. The Part Nos. may be changed without prior
notice. Make sure to verify the latest Part Nos. before ordering.
2. Preparing for maintenance tasks
1-10
Chapter 1 Maintenance
2.2.2 RM head unit
Replacement parts
RM head
Blow switching valve
Air filter
Vacuum level switching valve
180 degrees reversed
53104-N2-20
Name Part name Part No. Remarks
Blow switching valve VALVE KLF-M7153-10X
Vacuum level switching valve VALVE KMX-M7052-00X
Air filter FILTER 1000PCS. KMB-M3857-01X
Quantity: 1000
(KMB-M3856-00X, same as
quantity 20)
n
NOTE
The parts (Part Nos.) in this manual are at the time of issuing this manual. The Part Nos. may be changed without prior
notice. Make sure to verify the latest Part Nos. before ordering.
