2. Preparing for maintenance tasks 1-14 Chapter 1 Maintenance 2.3.2 Lubricating tools and grease █ Lubricating tools and grease list (deliver ed with machine, or optional parts) Delivered with machine Optional parts Lubr…

100%1 / 181
2. Preparing for maintenance tasks
1-13
Chapter 1 Maintenance
█

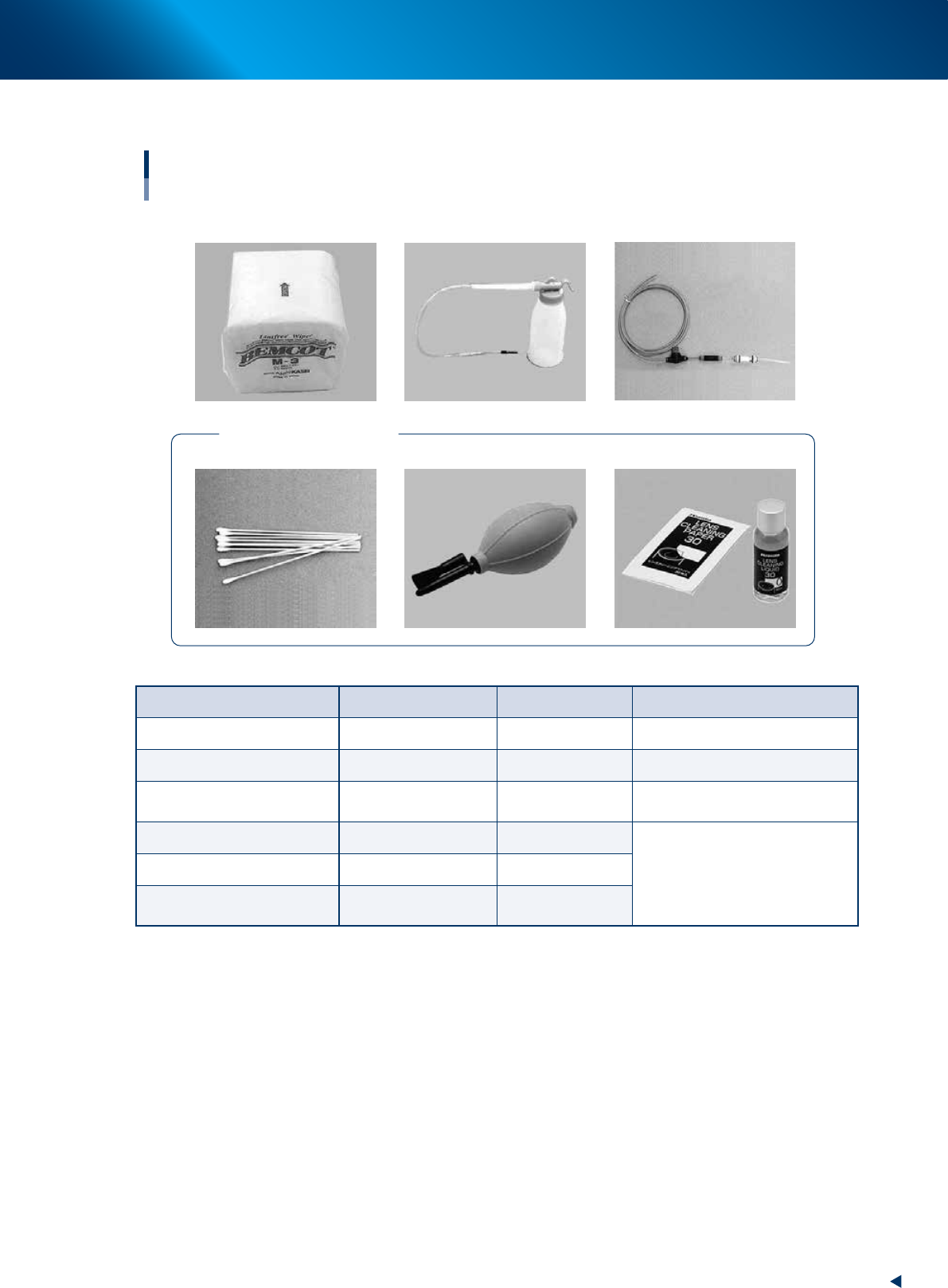

Cleaning tools (Optional item)
Cleaning tools
Optional purchased items
Cleaning kitLint-free cloth
Vacuum assembly
Cotton swab (15cm) Blower brush
CLEANER, VISION SET
Lens cleaner and lens cleaning paper
53106-KMX-30
Name Part name Part No. Remarks
Lint-free cloth WIPER KGS-M3840-00X
Cleaning kit CLEANING KIT KHN-M8860-01X
Vacuum assemby VACUUM ASSY KHY-M88V0-A0X
Used to clean (vacuum)
Air hose (diameter of 4mm)
Cotton swab (15cm) SWAB KGA-M3802-00X
CLEANER, VISION SET
(KHW-M3801-A0X)
Blower brush BLOWER KGA-M3803-00X
Lens cleaner
Lens cleaning paper
CLEANER, LENS KGA-M3801-00X
2. Preparing for maintenance tasks
1-14
Chapter 1 Maintenance

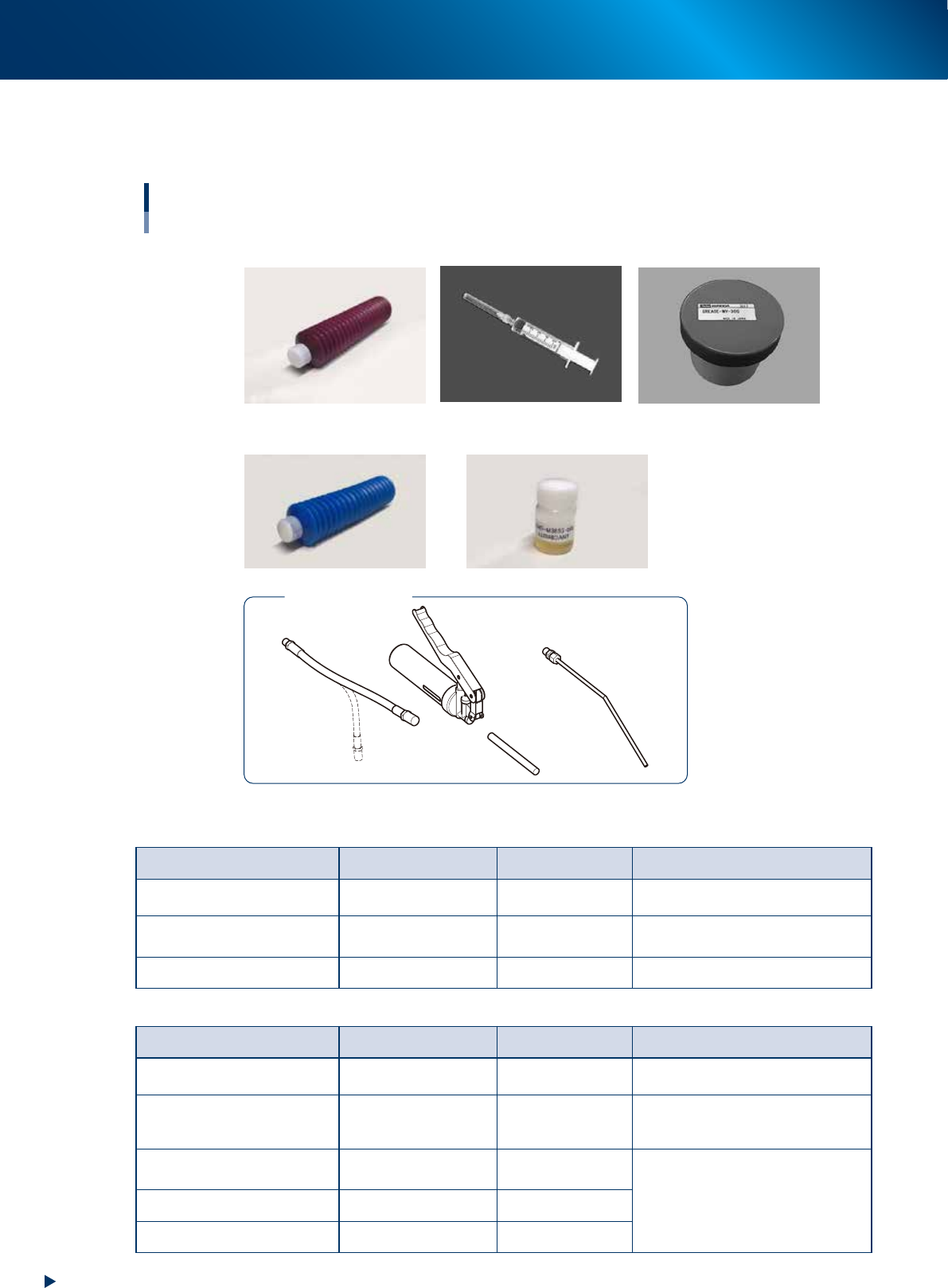

2.3.2 Lubricating tools and grease
█
Lubricating tools and grease list (delivered with machine, or optional parts)
Delivered
with machine
Optional parts
Lubricating tools and grease
Delivered with machine body / Optional purchased parts
Lithium grease NSL Grease for RM headLubricating syringe for nozzle slide section
Grease gun
Standard nozzle
Flexible type nozzle
Bent type nozzle
GREASE GUN SET
Dedicated oil (for upper area of RM head nozzle shaft)LG2 grease (for RM head scissors gear)
53107-KMX-10
►
Delivered with machine
Name Part name Part No. Remarks
Grease
GREASE PACK (NSL) K48-M3856-00X
NSL grease
For ball screw and guide of all axes
Lubricating syringe for nozzle
slide section
SYRINGE, OIL KV8-M8870-00X Turbin oil, VG32
Grease
GREASE 30G KMB-M3854-00X For spool upon selecting RM head
►
Optional parts
Name Part name Part No. Remarks
LG2 grease
GREASE PACK LG2 KW7-M3851-00X
80g-pack
Dedicated for RM head / Scissors gear
Dedicated oil
LUBRICANT 20ML KMB-M3855-00X
LS bell hammer oil
Dedicated for RM head / Upper of nozzle
shaft
Grease gun
(with standard nozzle)
GREASE GUN K48-M3852-01X
• GREASE GUN SET
KHW-M3852-A0X
Nozzle (flexible chuck type)
GREASE NOZZLE K48-M3857-00X
Nozzle (30° bent type)
GREASE NOZZLE K48-M3854-00X
2. Preparing for maintenance tasks
1-15
Chapter 1 Maintenance
█
Precautions when handling grease
w
WARNING
INFLAMMATION MAY OCCUR IF GREASE OR LUBRICANT GETS INTO THE EYES. BEFORE HANDLING THE GREASE OR
LUBRICANT, WEAR SAFETY GOGGLES TO ENSURE THE GREASE OR LUBRICANT DOES NOT GET INTO THE EYES.
w
WARNING
INFLAMMATION MAY OCCUR IF GREASE OR LUBRICANT COMES INTO CONTACT WITH SKIN. BE SURE TO WEAR
PROTECTIVE GLOVES TO PREVENT CONTACT WITH SKIN.
w
WARNING
DO NOT TAKE ORALLY OR EAT GREASE OR LUBRICANT. EATING WILL CAUSE DIARRHEA AND VOMITING.
c
Caution
After use, tightly cap the grease tube to ensure dust, debris and moisture do not enter inside. Store the grease in a dark
location not exposed to direct sunlight and keep it away from fire and heating sources.
