2. Preparing for maintenance tasks 1-16 Chapter 1 Maintenance 2.3.3 Special tools █ Special tools (optional purchase items) Special tools Optional purchase items HM head: leaf spring mount tool RM head: filter insertion …
2. Preparing for maintenance tasks
1-15
Chapter 1 Maintenance
█
Precautions when handling grease
w
WARNING
INFLAMMATION MAY OCCUR IF GREASE OR LUBRICANT GETS INTO THE EYES. BEFORE HANDLING THE GREASE OR
LUBRICANT, WEAR SAFETY GOGGLES TO ENSURE THE GREASE OR LUBRICANT DOES NOT GET INTO THE EYES.
w
WARNING
INFLAMMATION MAY OCCUR IF GREASE OR LUBRICANT COMES INTO CONTACT WITH SKIN. BE SURE TO WEAR
PROTECTIVE GLOVES TO PREVENT CONTACT WITH SKIN.
w
WARNING
DO NOT TAKE ORALLY OR EAT GREASE OR LUBRICANT. EATING WILL CAUSE DIARRHEA AND VOMITING.
c
Caution
After use, tightly cap the grease tube to ensure dust, debris and moisture do not enter inside. Store the grease in a dark
location not exposed to direct sunlight and keep it away from fire and heating sources.
2. Preparing for maintenance tasks
1-16
Chapter 1 Maintenance

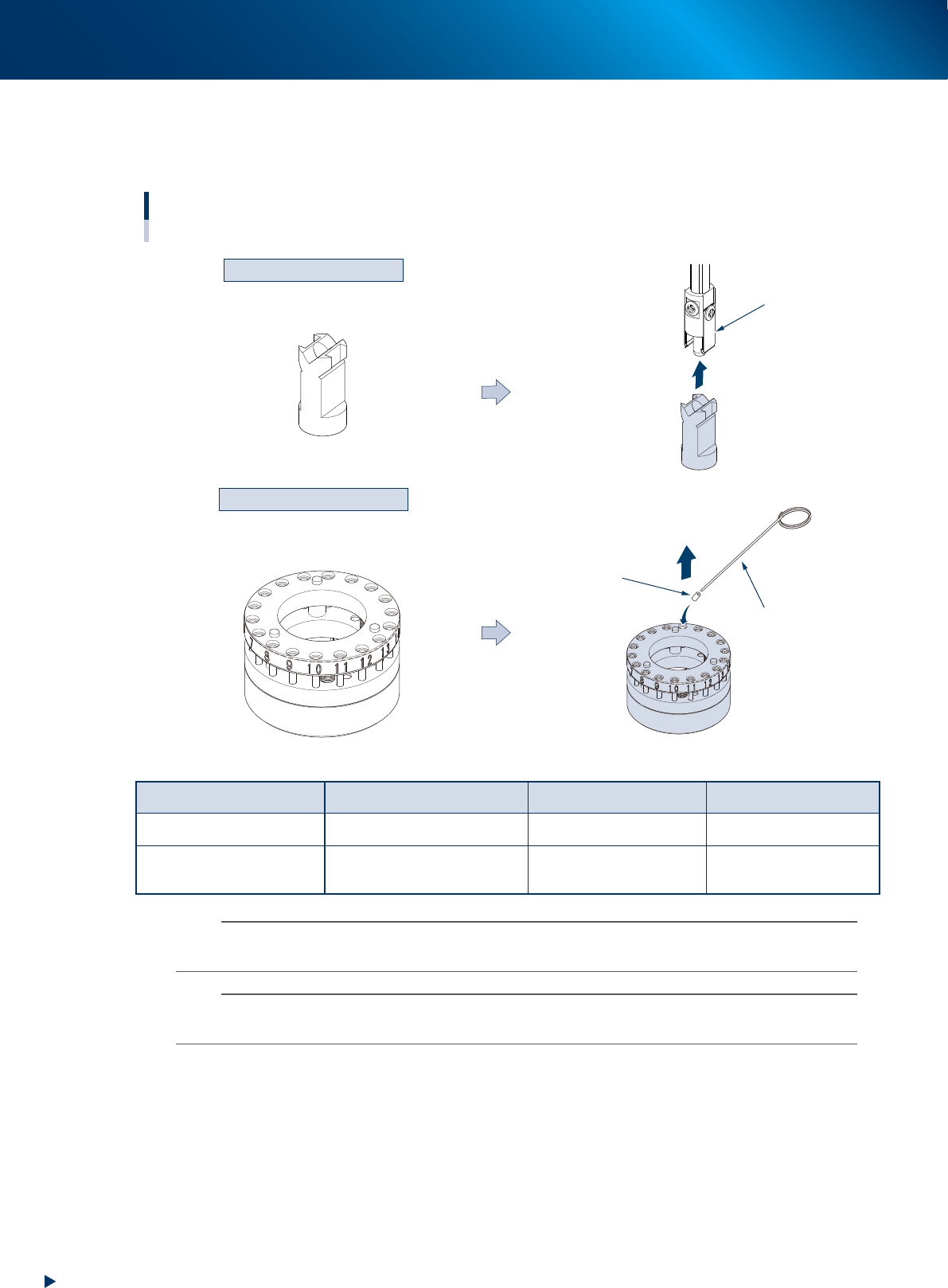

2.3.3 Special tools
█
Special tools (optional purchase items)
Special tools
Optional purchase items
HM head: leaf spring mount tool
RM head: filter insertion tool
Leaf spring
Needle pierce
Inserts to head
Filter
53109-KMX-00
Name Part name Part No. Remarks
Leaf spring mount tool TOOL, LEAF SPRING KGS-M8810-00X For HM head
Filter insertion tool FILTER INSERT JIG KMB-M3810-00X
For RM head, provided
with needle pierce
n
NOTE
The leaf springs can be mounted more uniformly by using the leaf spring mount tool. Using this tool is recommended for the
tool owners.
n
NOTE
The parts (Part Nos.) in this manual are at the time of issuing this manual. The Part Nos. may be changed without prior
notice. Make sure to verify the latest Part Nos. before ordering.
2. Preparing for maintenance tasks
1-17
Chapter 1 Maintenance
2.4 Required tools
Prepare the following tools and items necessary for maintenance.
: Delivered with machine : Optional items : Prepared by user
►
Tool list
Name Description
Phillips screwdriver
Large and small
Flat-head screwdriver
Large and small
Phillips precision screwdriver
#0, #1 (used to replace the nozzle leaf spring or valve)
Flat-head precision screwdriver
Used to remove O-ring or to replace retaining ring
Hex wrench set
1 set
Cutting pliers
Used to cut cable ties upon cleaning the inside of side view camera
Longnose pliers
Used to pull out the spool
Precision spanner
Used for spline shaft maintenance
T-type wrench
Used to replace the vacuum pump
Plastic spatula, brush
Used to clean the belt guide unit or pulley
Vacuum assembly
Used to clean the upper surface of feeder plate
Grease gun
Used to supply grease
Air blow tool
Used for cleaning
Ultrasonic bath
Used to wash nozzle
Lubricating syringe for nozzle slide
section
Used to lubricate turbine oil (VG32)
Nozzle cleaning wire
Used for nozzle cleaning
►
Other tool list
Name Description
Lint-free cloth
Use lint-free cleaning paper or cloth
Square cloth
Used to prevent the parts from lost or soiled (2 pcs)
Cleaning alcohol
Use absolute ethanol.
Paper cup or tray Used to clean the interior of spline shaft
Cable tie (100mm, 250mm)
Used to clean the interior of side view camera
Cotton swab (15cm)
Used to clean the camera prism and lighting
Lens cleaner, Lens cleaning paper
Used to clean the camera lighting
Blower brush
Used to clean the camera lighting or similar
Cleaning kit
Used to clean the interior of spline shaft
[for HM head] Leaf spring mount tool
Used to mount the leaf spring to HM head unit
[for RM head] Filter insertion tool
Used to mount multiple filters to RM head unit at once. A tweezers
can be used instead for it upon replacing nozzle shafts one by one.
►
Safety protectors
Name Description
Protection (dust-proof) goggles
Always wear these goggles and mask when using alcohol, such as absolute
ethanol or an air blow.
Protection (dust-proof) mask
Protection gloves
Always wear these gloves when using grease.
