2. Cleaning the feeder plate and related 2-12 Chapter 2 Daily maintenance items 2. Cleaning the feeder plate and related Chips or foreign object falling on the feeder plate or the clamp unit may be bitten in between the …
1. Checking the nozzle
2-11
Chapter 2 Daily maintenance items
►

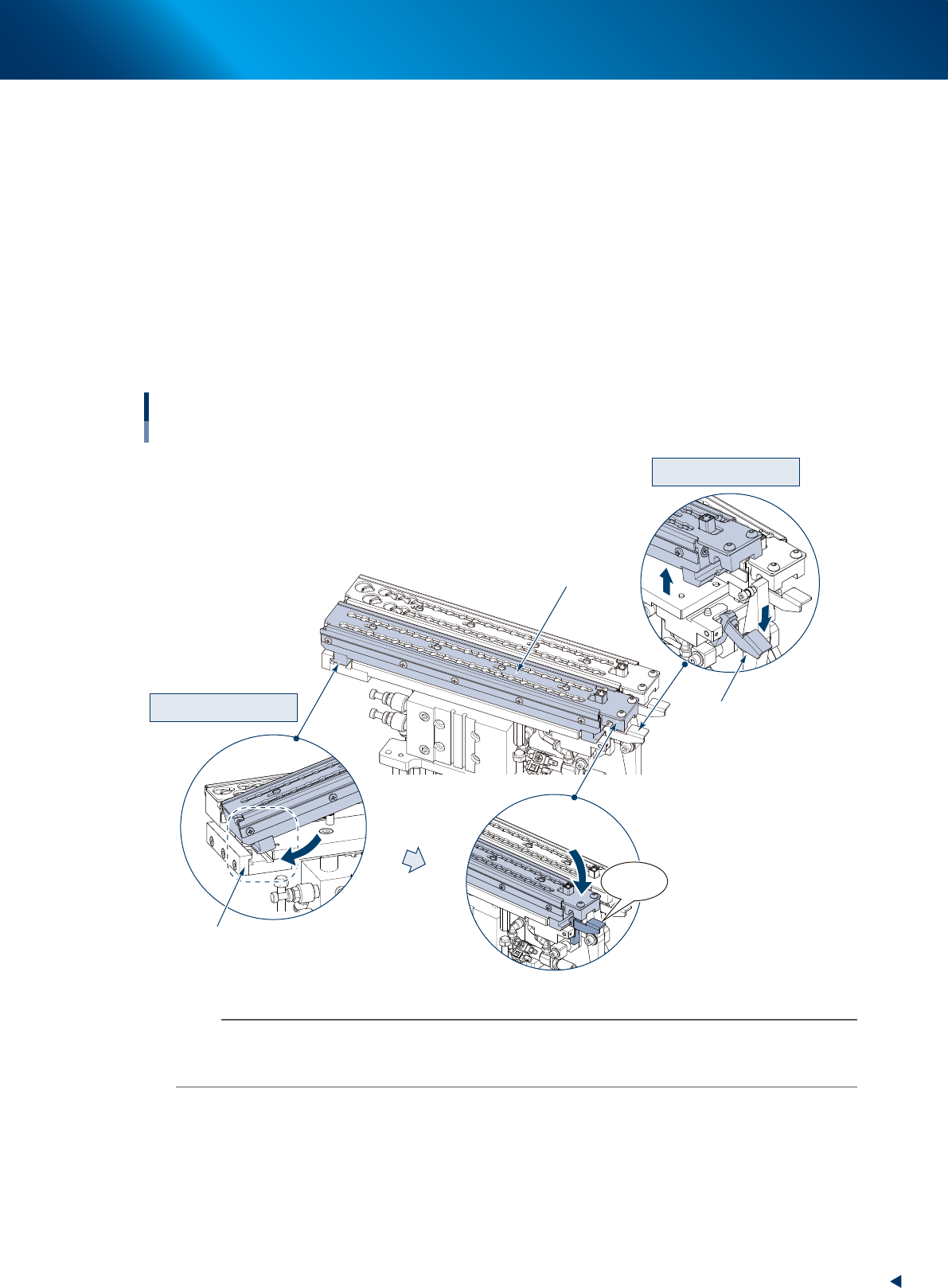

Checking nozzles by detaching the whole nozzle holder
When the nozzle station (option) is installed, another procedure can be performed by detaching the
whole nozzle holder storing nozzles from the nozzle station base section.
e
1. Return all nozzles in the nozzle holder and close shutter, then press the emergency stop button and
open the machine safety cover.
2. Lay the holder retaining lever frontward and detach the nozzle holder upward.
3. Check and clean the nozzles, then return nozzles.
4. Check if there is no foreign matter on the nozzle station, and insert the nozzle holder likely to hook
it into the attaching block section of base unit. Then push down the holder retaining lever while
pressing the nozzle holder until it clicks.
5. Check that the nozzle holder is fixed securely.
Detaching nozzle holder
Attaching nozzle holder
Click!
Detaching nozzles
Detaching the whole nozzle holder
Holder retaining lever
Mounting block
Nozzle holder
53206-KMX-10
n
NOTE
The nozzle holder shutter is equipped with magnet and it is closed after detaching the nozzle holder.
The nozzle can be detached while shifting the shutter by hand.
Moreover, do not make upside down the nozzle holder with opening the shutter as the nozzles may drop off.
2. Cleaning the feeder plate and related
2-12
Chapter 2 Daily maintenance items

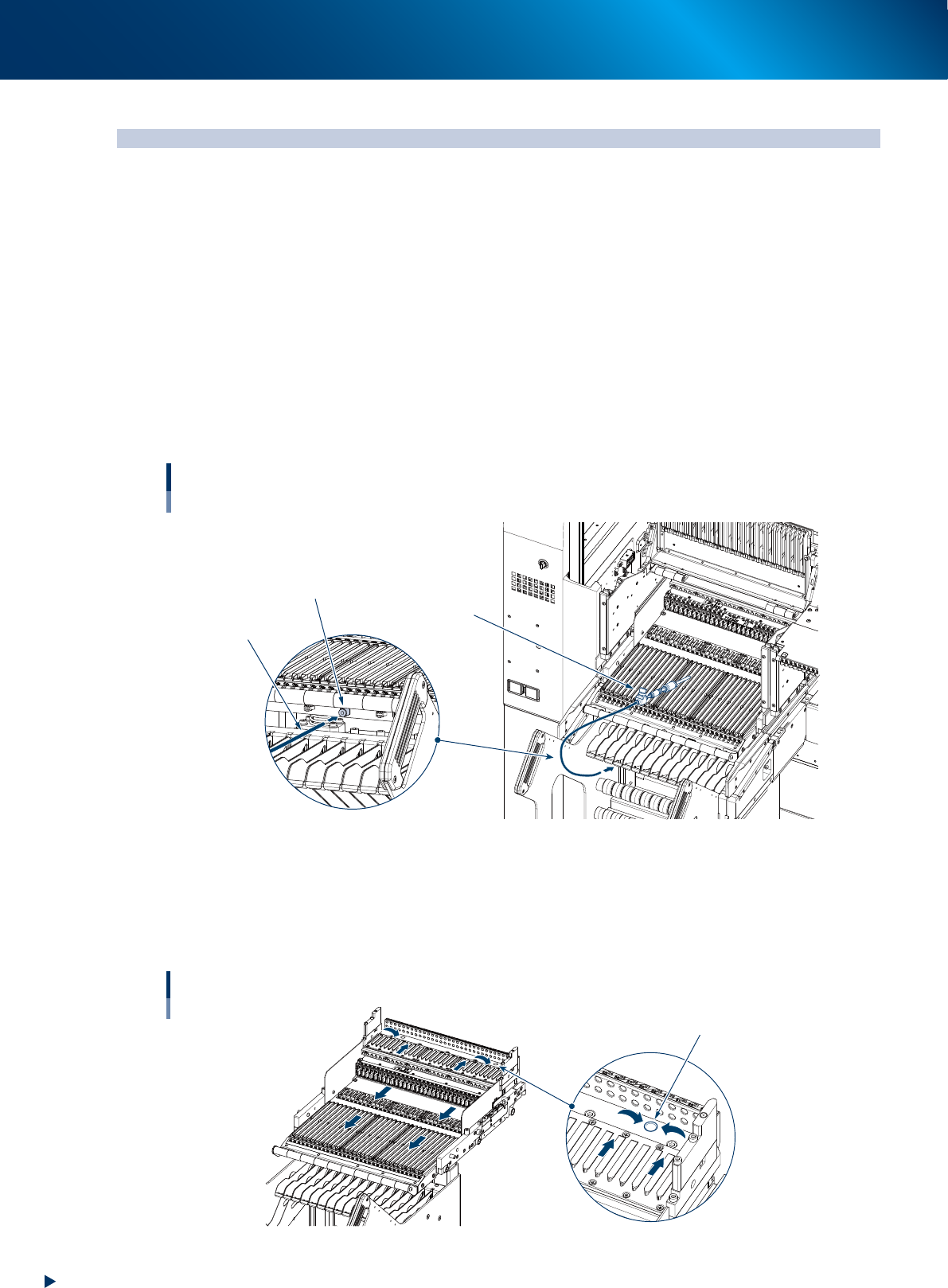

2. Cleaning the feeder plate and related
Chips or foreign object falling on the feeder plate or the clamp unit may be bitten in between the parts
during feeder setting and cause the pickup position to deviate. Also, the chips or foreign object which
are bitten upon attaching the feeder exchange carriage may cause the communication error or similar.
Periodic inspection and cleaning are recommended to prevent this problem.
►
Cleaning with vacuum cleaner
1. Detach the Feeder exchange carriage from the machine.
2. Use a household vacuum cleaner, etc. to suction the dust and small debris.
►
Cleaning with vacuum assembly
1. Connect the optional vacuum assembly (KHY-M88V0-A0X) to the air connectors on the front of the
feeder exchange carriage.
2. Suction the dust and small debris using a vacuum assembly.
Air connector
Vacuum assembly
Air hose of
vacuum assembly
Connecting a vacuum assembly
To the air connector on the feeder exchange carriage
53201-KMX-00
►
Cleaning with feeder plate cleaning brush
1. Detach the feeder exchange carriage from the machine.
2. Using a feeder plate cleaning brush, sweep out the chips and debris in the direction of arrow shown
in the figure below.
Cleaning feeder plate
Dusting hole
53202-KMX-00
2. Cleaning the feeder plate and related
2-13
Chapter 2 Daily maintenance items
►

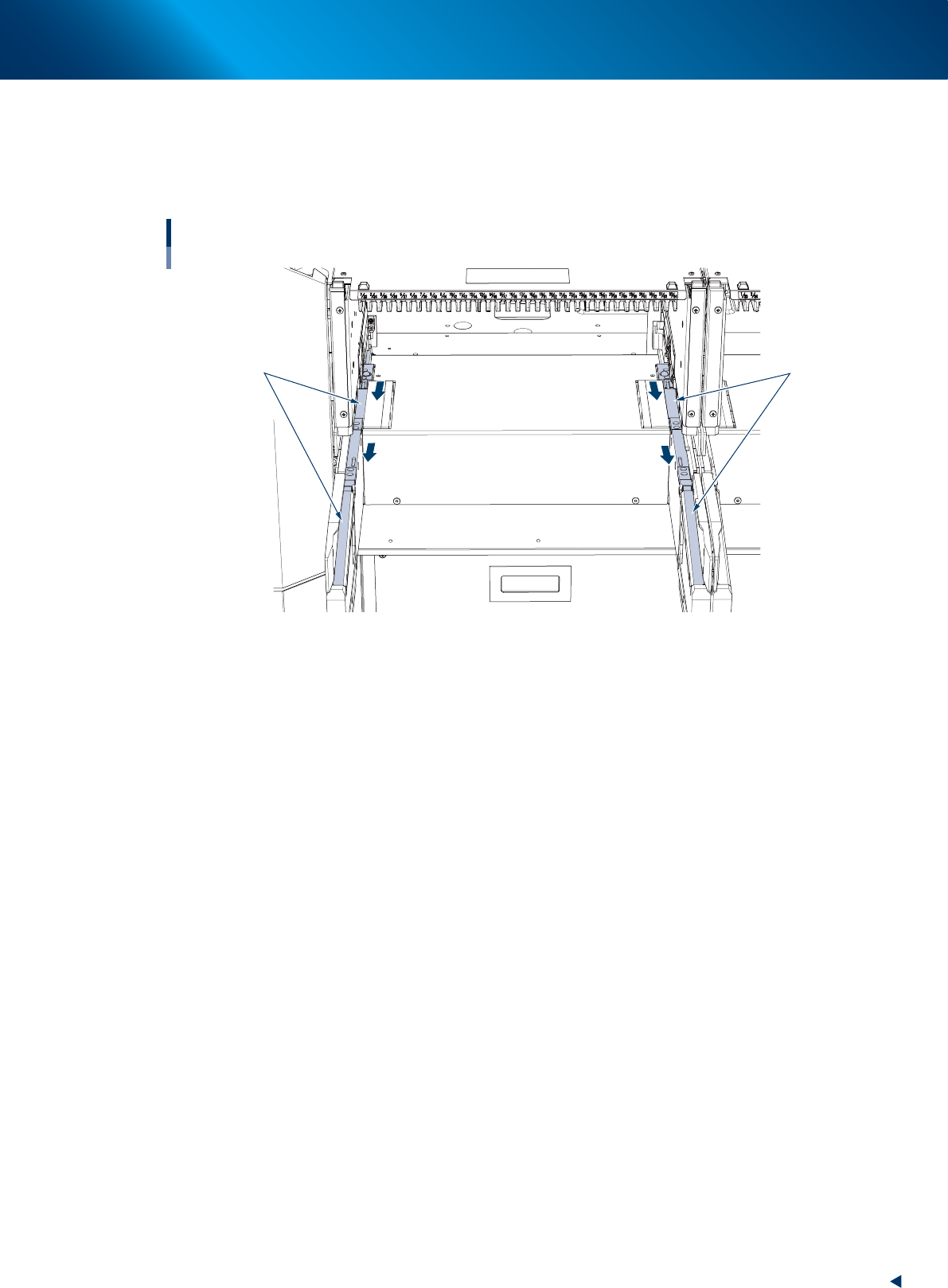

Cleaning clamp unit
1. Detach the feeder exchange carriage from the machine.
2. Using a feeder plate cleaning brush, sweep out the chips and debris in the direction of arrow shown
in the figure below.
Cleaning clamp unit
Target of cleaning
Target of cleaning
53203-KMX-00
