3. Label positions iv Safety instructions 3. Label positions The following warning/caution labels are attached to Y AMAHA products to ensure safe and corr ect use. Check that the information on each label is clearly legi…
2. Warning labels
iii
Safety instructions
2.1.2 Mark description

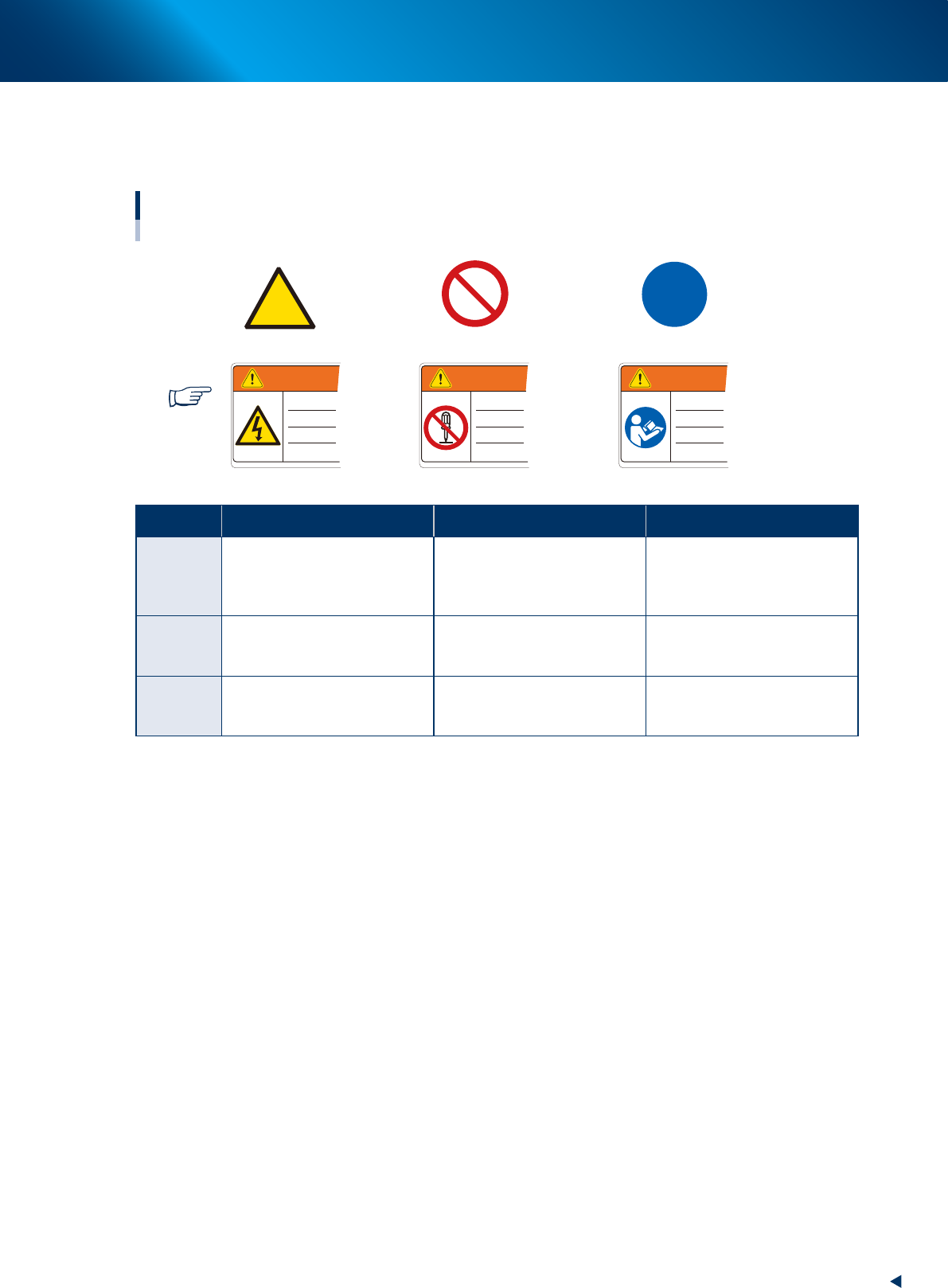

The mark of warning label includes following 3 types. Each mark has its own meaning and is typically used
with a pictogram to emphasize the message.
WARNING WARNINGWARNING
Mark and pictogram
Marks and examples used with pictogram
Warning mark Prohibition mark Instruction mark
Usage examples
93002-YRM-00
Warning Prohibition Instruction
Definition
Indicates a hazard, how to
avoid the hazard, and potential
consequences of ignoring the
warning.
Indicates a prohibited action to
avoid the potential hazard.
Indicated an action that must
be taken to avoid the potential
hazard.
Shape/
Color
Yellow triangle with black
border. Pictogram is black on
yellow.
Red circle with slash.
Pictogram is black and located
behind slash.
Blue circle. Pictogram is white
on blue.
Message
example
Risk of electrical shock
Do not modify or disassemble
safety cover switch.
Read the manual to understand
procedure before starting
operation.
3. Label positions
iv
Safety instructions
3. Label positions
The following warning/caution labels are attached to YAMAHA products to ensure safe and correct
use. Check that the information on each label is clearly legible and comply with the instructions.
For safety precautions other than those on the labels shown in this section, see the instructions in
"4. Safety".
n
NOTE
• Labels are basically attached to the positions as below, although they may differ slightly depending on specifications, etc.
• See "Power connection terminals" described in the appendix of the maintenance manual when connecting power to this
equipment.
█

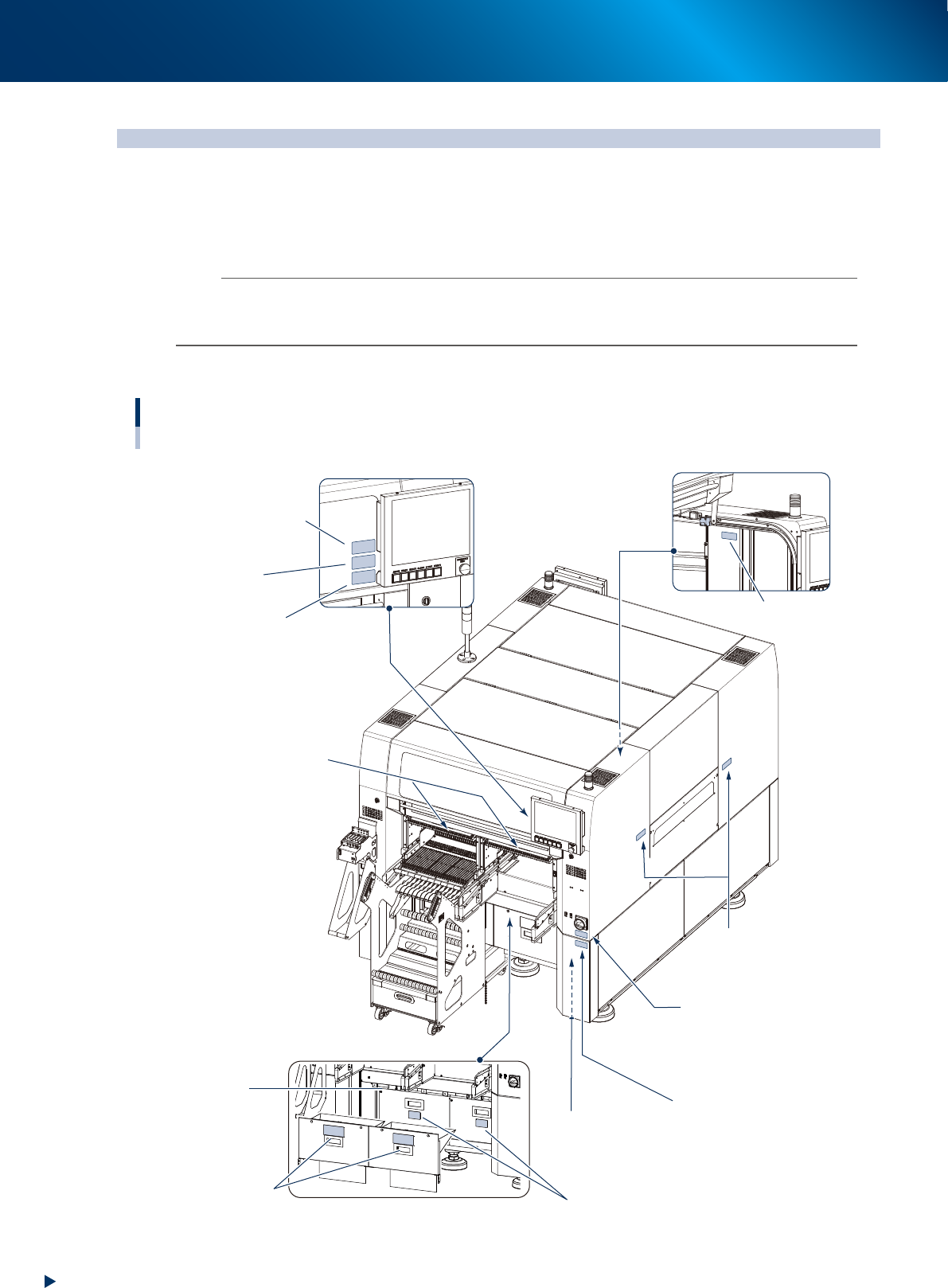

Label positions
tooltip
■ Safety cover (front)
No.3
[CAUTION]
Feeder reinsertion
No.4 [WARNING]
Strong magnetic field
No.5 [WARNING]
Injuring hands
No.1 [WARNING]
Precaution for operation
No.2 [WARNING]
Electrical shock hazard
No.5 [WARNING]
Injuring hands
■ Main switch
No.6 [WARNING]
Tampers prohibited
■ Cover inner side
No.2 [WARNING]
Electrical shock hazard
No.7 [WARNING]
Cut hazard
No.8 [CAUTION ]
Crush
No.6 [WARNING]
Tampers prohibited
No.9 [CAUTION ]
Electrical shock hazard
Warning/caution labels
Front
■ Conveyor opening
(right side)
■ Upper cover
■ Power connecting
■ Cover (power connecting)
■ Cutter safety cover (front)
93011-KMX-00
3. Label positions
v
Safety instructions
►
Warning/caution labels (front)

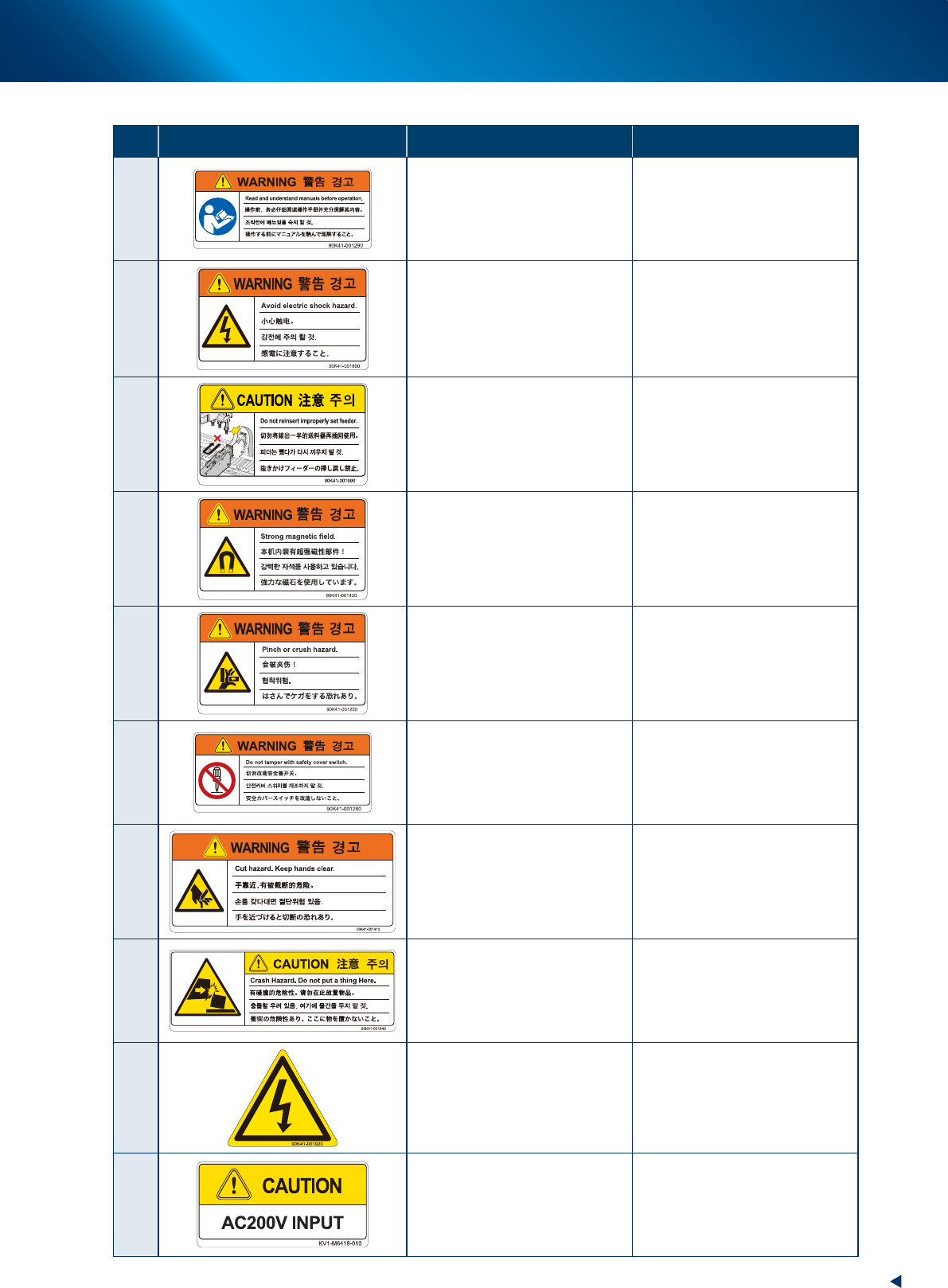

No. Label Message Measures
1
Damage to machine or injury to
person.
Before handling the product
(equipment) always read manuals and
make sure you fully understand the
contents.
2
Electrical shock hazard Do not touch power supply inside
cover.
3
The carrier tape could make contact
with the head,
possibly causing machine damage.
When a feeder is extracted from its
loaded position, be sure that the
feeder has been completely extracted
before pressing it back into its loaded
position.
4
Death, serious injury or equipment
malfunction
Observe precautions necessary due to
strong magnetic fields.
5
· Hands or fingers might be caught
between moving parts and covers,
causing injury.
· Hands or fingers might be pinched
by moving parts, causing injury.
Never place hands or fingers in
machine during operation such as
when handling tray magazines.
6
Injury from touching moving parts
during machine operation
Do not touch or tamper with safety
cover switches and do not operate
machine if any safety cover switches
were deactivated.
7
Injury from tape cutter Do not put hands into cutter unit while
power or air is supplied.
8
Could cause machine damage
(collisions with head, etc.).
Verify that no objects have been
placed on the top cover of the feeder
exchange carriage.
9
Electrical shock hazard Do not touch while power is supplied.
10
Machine damage or malfunction Connect power only at the specified
voltage.
