– 5 – T ap e F ee der GD-38080 ,3808 3 , G T -38080 1303-001 No. Part No. Part Name Qty . Detail Y amaha Hitachi GD-38080 GD-38083 GT -38080 101 KYD-MC10C-00 1016100L ASSY_FRAME1 1 1 1 101-01 KYD-MC103-00 1016B002 FRAME1…
– 4 –
M

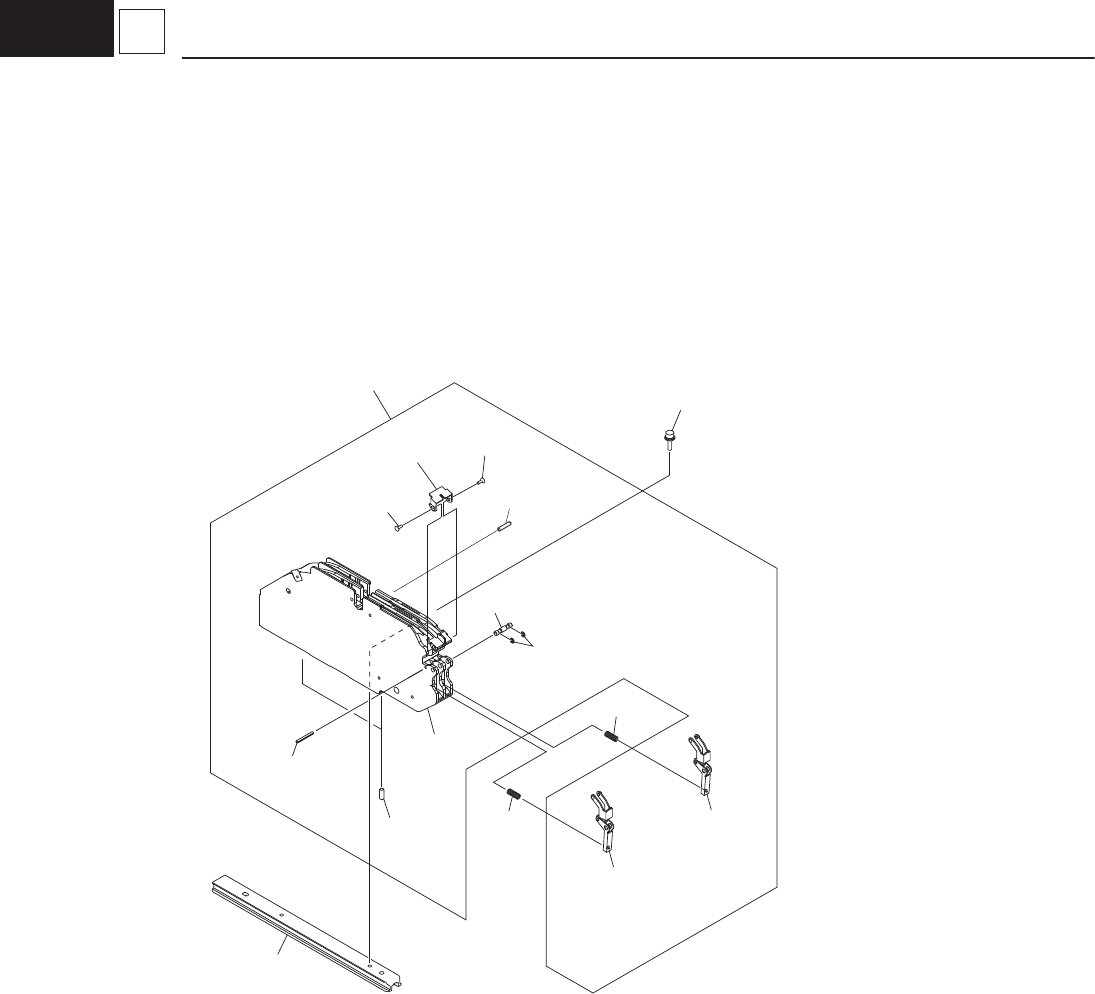

2 Frame 1 Assy
1710-003
101-09
112
101-01
101-08
101-05
101-08
101-04
101-06
112
101-03
101-03
101-07
111
101-02
132
101
– 5 –
Tape Feeder GD-38080,38083, GT-38080
1303-001
No.
Part No.
Part Name
Qty.
Detail
Yamaha Hitachi
GD-38080 GD-38083 GT-38080
101 KYD-MC10C-00 1016100L ASSY_FRAME1 1 1 1
101-01 KYD-MC103-00 1016B002 FRAME1 1 1 1
101-02 KYD-MC13M-00 216E1484 PIN_LOCATE 4 4 4
101-03 KYD-MC10T-00 016J0024 ASSY_HOOK 2 2 2
101-04 KYD-MC13L-00 216D0468 PIN_HINGE 1 1 1
101-05 KYD-MC13H-00 212A2190 GUIDE 1 1 1
101-06 90440-01J020 221KA002 ROHS_RING 2 2 2
101-07 91609-20020 221J0059 SPRING,PIN 1 1 1
101-08 90167-02JA06 221DA103 MACHINE SCREW 2 2 2 FLT M2.5L6
101-09 KYD-MC12R-00 1016B00P PIN_LOCATE 2 2 2
111 KYB-M940H-00 1016B005 SLIDE(BASE) 1 1 1
112 KYD-MC12P-00 1016B007 SPRING_COMP(F) 2 2 2
132 90990-01J147 221AA103 BOLT,HEX.S/H WW 2 2 2 M4L14 SW+FW
– 6 –
M

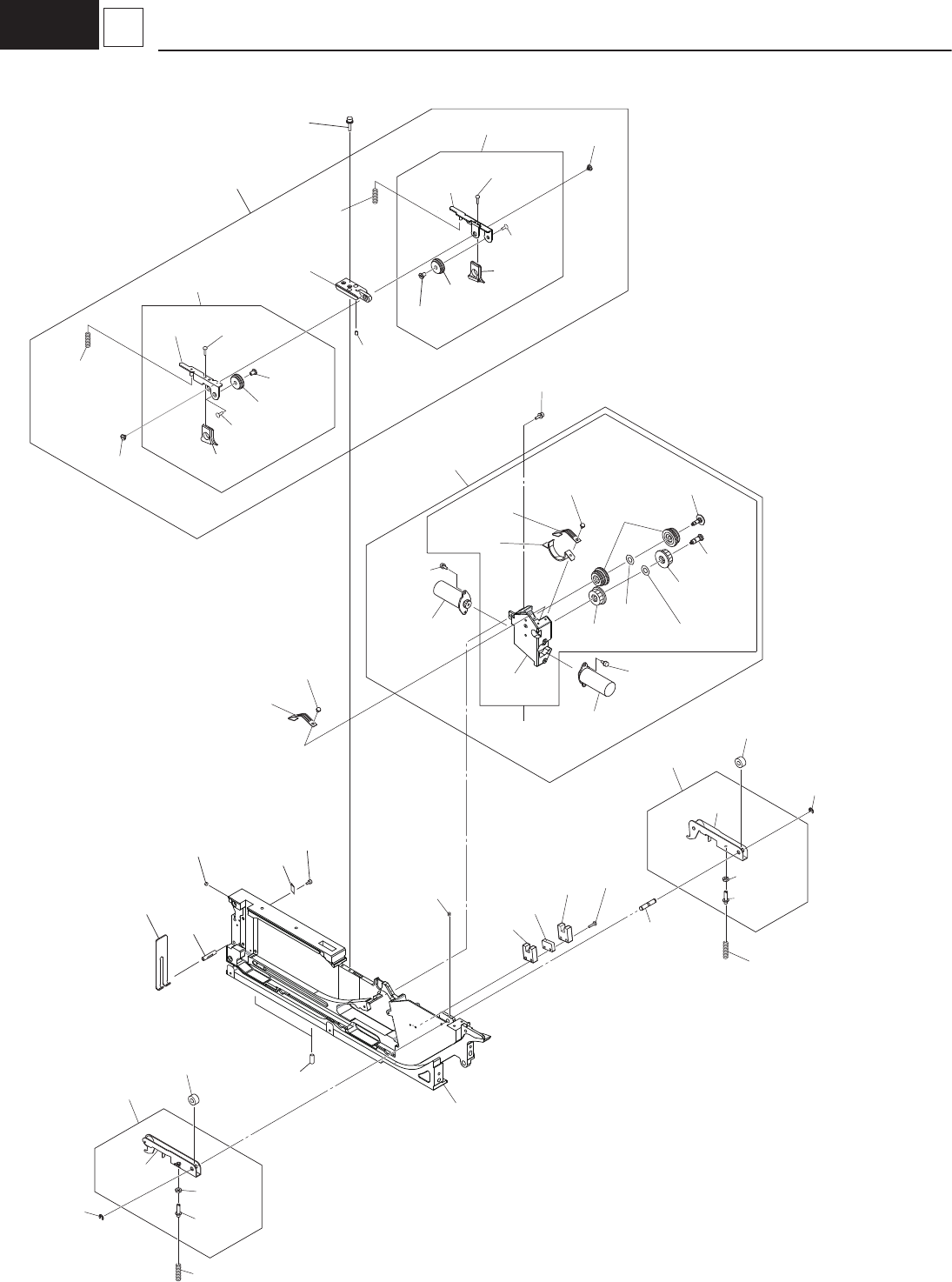

3 Frame 2 Assy
1710-003
206-16
206-06
206-02
206-04
206-13
206-12
206-14
206-11
206-15
206-05
206-04
206-23
206-21
206-03
206-24
206-26
206-25
206-22
206
215
206-01
206-07
224
223
213
214
203
202
207-09
207-09
201
209
210
219
222
217
208
204-02
204-03
208
205-01
219
205-03
210
204-01
211
211
212
205-02
218
207-04
207-10
220
221
207-08
207-03
207-07
207-03
207-05
207-06
207-11
207-11
216
207-01
207
204
205
207-02
207-12
207-20
