– 9 – T ap e F ee der GD-38080 ,3808 3 , G T -38080 1303-001 No. Part No. Part Name Qty . Detail Y amaha Hitachi GD-38080 GD-38083 GT -38080 301 KYD-MC10E-00 1016100N ASSY_FRAME3 1 1 1 301-01 KYD-MC102-00 1016B001 FRAME3…
– 8 –
M

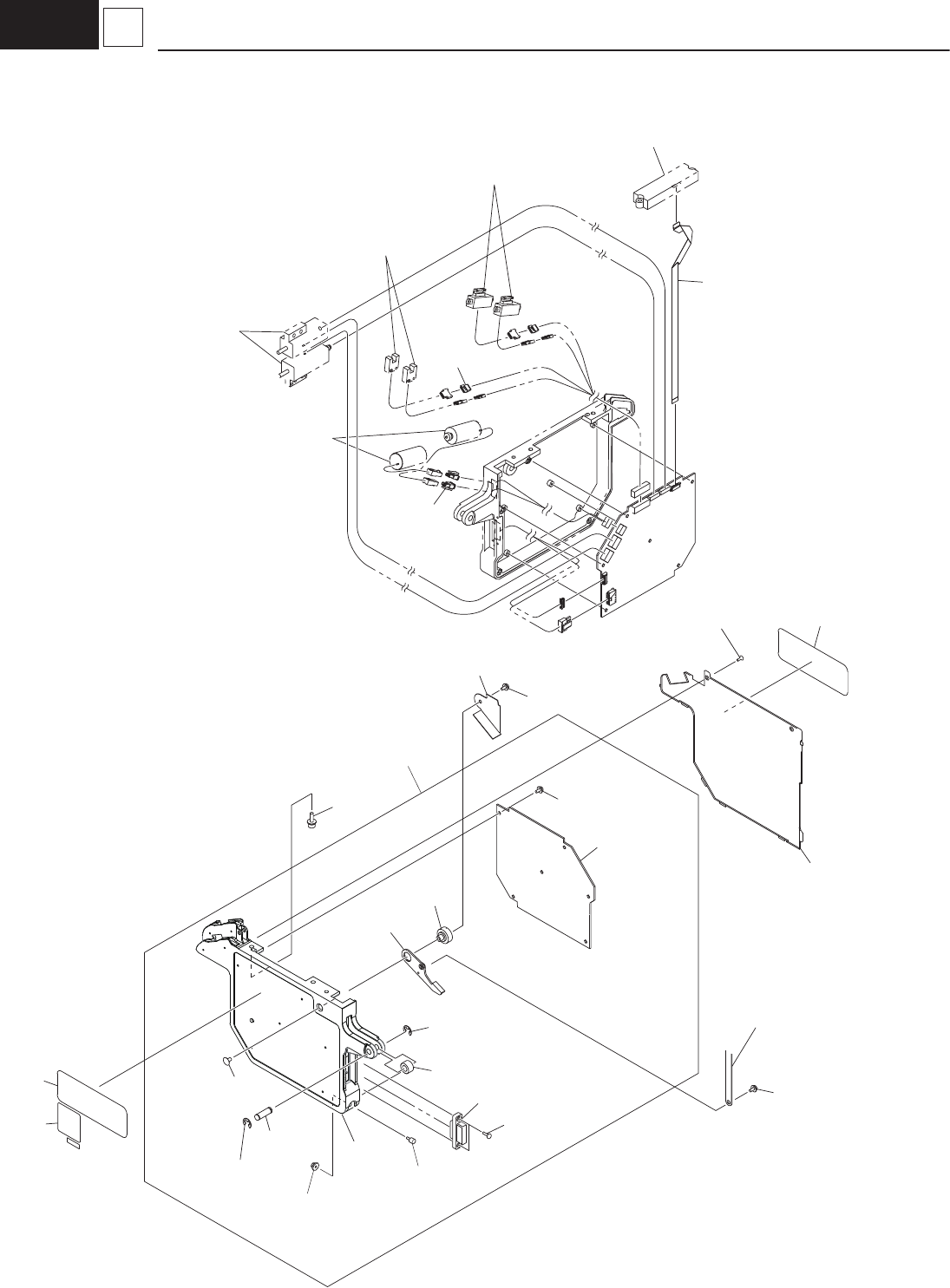

4 Frame 3 Assy
1710-003
301-07
301-08
301-10
301-01
301-05
301-04
330
330
331
301-03
301-02
344
327
301-10
333
301-16
301-15
301-09
301-06
301-11
301-12
301-13
338
309
301
338
306
318
319
See Fig.M-5
Key No.406-02
Key No.407-02
See Fig.M-3
Key No.211
See Fig.M-7
Key No.622
(GD-38080)
(GD-38083)
See Fig.M-3
Key No.207-09
See Fig.M-1
Key No.5
See Fig.M-1
Key No.4
– 9 –
Tape Feeder GD-38080,38083, GT-38080
1303-001
No.
Part No.
Part Name
Qty.
Detail
Yamaha Hitachi
GD-38080 GD-38083 GT-38080
301 KYD-MC10E-00 1016100N ASSY_FRAME3 1 1 1
301-01 KYD-MC102-00 1016B001 FRAME3 1 1 1
301-02 KYB-M121E-00 016S1022 ASSY_LEVER 1 1 1
301-03 KYB-M122D-00 216D0448 PIN_HINGE 1 1 1
301-04 KYB-M9413-00 213C0206 ROLLER 1 1 1
301-05 KYB-M122F-00 216F0879 PIN_GUIDE 1 1 1
301-06 KYD-MC12D-00 0988A170 PIN_LOCATE 1 1 1
301-07 90990-11J009 221DA051 MACHINE SCREW 6 6 6
301-08 98702-04006 221DA113 SCREW,FLAT HEAD 1 1 1
301-09 90166-02JA08 221DA007 SCREW,PAN HEAD 2 2 2
301-10 90440-01J040 221KB001 CIRCLIP 2 2 2
301-11 95302-04600 221FA007 NUT,HEXAGON 1 1 1 M4
301-12 92902-04100 221HA004 WASHER 1 1 1 SW4
301-13 92902-04200 221HA104 WASHER 1 1 1 FW4
301-15 KYD-MC143-00 4W202800 CORD 1 1 1
301-16 KYD-MC142-00 4U240497 UNIT_DRIVER 1 1 1
306 KYD-MC124-00 4W300035 WIRE 1 1 1
309 KYB-M121M-00 211A8626 COVER 1 1 1
318 KYD-MC10V-00 0926B504 CORD 1 1
318 KYD-MC123-00 4W204791 HNS,FEEDER-SENSOR 1
319 KYD-MC10W-00 0926B505 CORD 1 1 1
327 KYD-MC10J-00 1016B00B COVER 1 1 1
330 KYB-MCH0M-00 0926B008 PLATE_NOTICE 2 2 2
331
KYD-MC10B-10 ASSY_NAMEPLATE 1 1
KYD-MC14P-10 ASSY_NAMEPLATE 1
333 90990-01J146 221AA102 BOLT,HEX.S/H WW 2 2 2 M4L12 SW+FW
338 90990-11J009 221AA051 ROHS_HEX-SCT 2 2 2 M3L6 SW+FW
344 90167-02JA06 221DA103 MACHINE SCREW 2 2 2 FLT M2.5L6
– 10 –
M

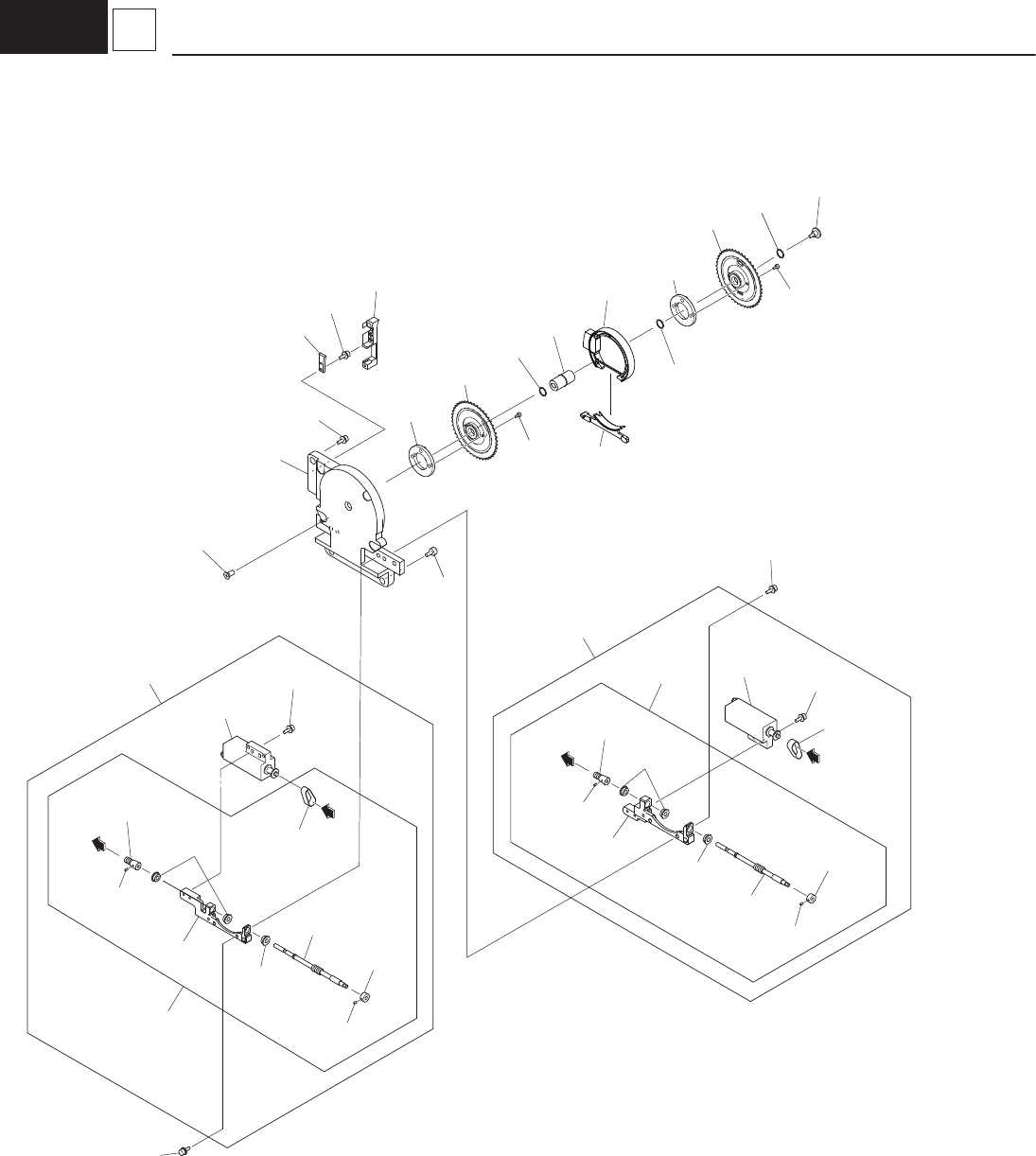

5 Driving Base Assy
1710-003
B
411
410
406-16
406-12
416
409
412
413
or
or
414
421
422
or
or
423
417
404
403
405
416
418
439
419
415
433
439
406-11
406-13
406-04
406-02
406-14
406-14
406-03
418
407-17
407-12
407-13
407-14
407-14
406-15
406-01
406-16
407-15
407-17
407-03
407-16
407-02
401
420
408
402
407-11
407-01
407
406
B
C
C
