– 13 – T ap e F ee der GD-38080 ,3808 3 , G T -38080 1303-001 No. Part No. Part Name Qty . Detail Y amaha Hitachi GD-38080 GD-38083 GT -38080 513 KYD-MC12M-00 10161304 ASSY_SUPPRESSOR 2 2 513 KYD-MC10S-00 1016B301 ASSY_S…
– 12 –
M

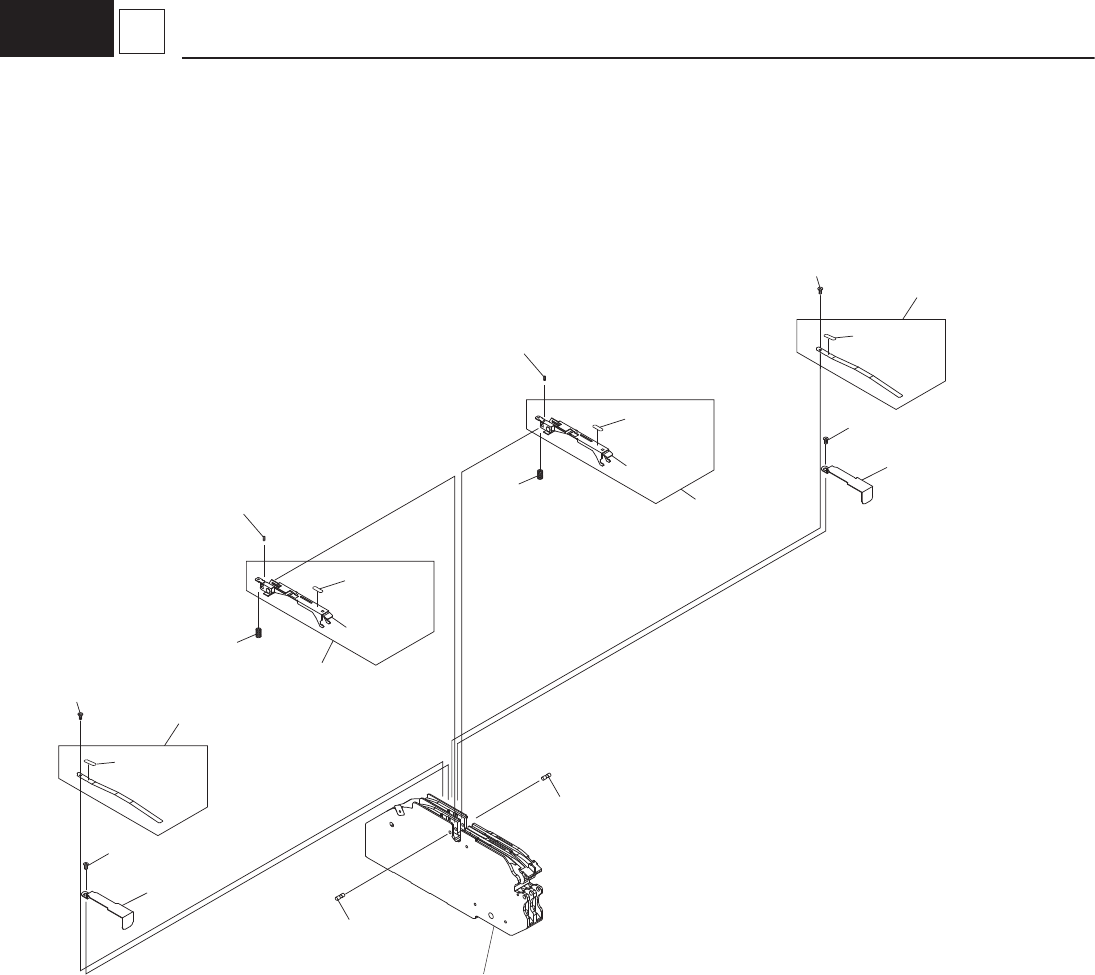

6 Suppressor Section
1710-003
See Fig.M-2
Key No.101-01
513
541
517
517-03
513-02
513-01
516
516
540
540
541
515
541
541
515
514
514
513
513-02
513-01
517
517-03
– 13 –
Tape Feeder GD-38080,38083, GT-38080
1303-001
No.
Part No.
Part Name
Qty.
Detail
Yamaha Hitachi
GD-38080 GD-38083 GT-38080
513 KYD-MC12M-00 10161304 ASSY_SUPPRESSOR 2 2
513 KYD-MC10S-00 1016B301 ASSY_SUPPRESSOR 2
513-01 KYD-MC10R-00 1016B300 ASSY_SUPPRESSOR 2 2
513-02 KYD-MC108-00 0804000K NAME PLATE 2 2
514 KYD-MC12A-00 0926B31X SPRING_COMP(SUP) 2 2 2
515 KYD-MC13B-00 1016B303 PLATE 2 2 2
516 KYD-MC13A-00 1016B302 PIN_GUIDE 2 2 2
517 KYD-MC115-00 1016111N ASSY_PLATE(MAGNET) 2 2
517 KYD-MC114-00 1016111L ASSY_PLATE(MAGNET) 2
517-03 KYD-MC107-00 08040005 PLATE_INDEX 2
540 90990-02J037 221C0100 SCREW,SET 2 2 2 SET M2L3
541 90990-08J035 221DB001 MACHINE SCREW 4 4 4 PAN M2L4 SW+FWS
– 14 –
M
7 Joint Detection Unit
1710-003
642
643
622
620
621
628
645
See Fig.M-4
Key No.301-01
