– 2 – M M T ape Feeder GD-38080,38083, GT -38080 1 Cover Section 1710-003 25 44 8 26 37 24 44 44 7 35 36 4 34 5 29 See Fig.M-2 Key No.101-01 See Fig.M-3 Key No.201 32 45
– 1 –
8mm Tape Feeder
CONTENTS
M Tape Feeder GD-38080,38083, GT-38080 2
1 Cover Section 2
2 Frame 1 Assy 4
3 Frame 2 Assy 6
4 Frame 3 Assy 8
5 Driving Base Assy 10
6 Suppressor Section 12
7 Joint Detection Unit 14
– 2 –
M

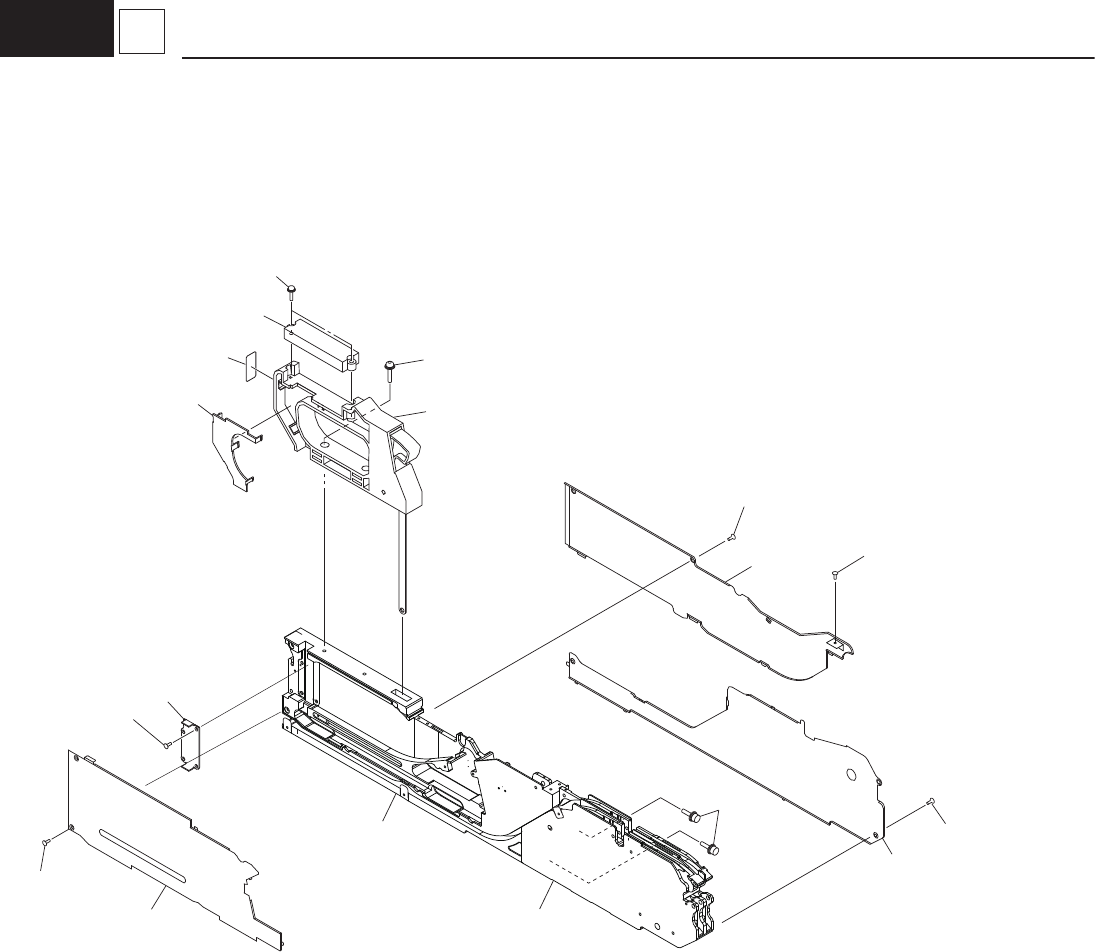

M Tape Feeder GD-38080,38083, GT-38080
1 Cover Section
1710-003
25
44
8
26
37
24
44
44
7
35
36
4
34
5
29
See Fig.M-2
Key No.101-01
See Fig.M-3
Key No.201
32
45
– 3 –
Tape Feeder GD-38080,38083, GT-38080
No.
Part No.
Part Name
Qty.
Detail
Yamaha Hitachi
GD-38080 GD-38083 GT-38080
4 KYD-MC125-00 0926100J ASSY_GRIP 1 1 1
5 KYD-MC121-00 4B111602 PCB_MOUNT 1 1 1
7 KYD-MC11W-00 211AB843 COVER(GRIP) 1 1 1
8 KYD-MC13C-00 211AC692 COVER 1 1 1
24 KYD-MC10H-00 1016B008 COVER(LA) 1 1 1
25 KYD-MC10K-00 1016B00Q
COVER(LB)
1 1 1
26 KYD-MC10L-00 1016B00X COVER(RB) 1 1 1
29
KYD-MC10A-10 ASSY_NAMEPLATE 1 1
KYD-MC14N-10 ASSY_NAMEPLATE 1
32 90990-01J147 221AA103 BOLT,HEX.S/H WW 2 2 2 M4L14 SW+FW
34 KYD-MC14H-00 221DA133 MECH SCREW 2 2 2 TPG M3L12
35 90990-06J009 221AB004 BOLT_HEX-SCT 2 2 2 BUTTAN M4L22
36 92902-04200 221HA104 WASHER 2 2 2 FW4
37 90167-02J204 221DA101 MACHINE SCREW 4 4 4 FLT M2L4
44 90167-02JA06 221DA103 MACHINE SCREW 7 7 7 FLT M2.5L6
45 90166-02JA06 221DA005 SCREW,PAN HEAD 1 1 1 PAN M2.5L6
1506-002
