3-23 AL VEG-ID Selection Modes When you tick a blank check box ( £ ), a checkmark appears inside the check box ( þ ), indicating that the item is selected. Some selection options are available. All Selection : Click the …
3-22
ALVEG-ID
Description of Displayed Contents
[1]
[2]
[3]
Fig. C20
[1]
This is a list of inspection results that were passed by the inspection.
[2]
This is a preview window that shows the results of the feeder inspection
related to the serial No. selected by the cursor in
[1]
.
[3]
Narrowing
The results of inspection to be displayed in the list can be narrowed by
the designated condition.
(1)
Serial No. :
Serial Nos. can be narrowed (text-based narrowing).
(2) Date :
The date of inspection can be specied and
narrowing can be made based on the specied date.
Tick either one of the check boxes and then press the [Narrow] button.
Pressing the [Release] button cancels the narrowing.
0809-002
6.1 Accuracy Measurement Table
3-23
ALVEG-ID
Selection Modes
When you tick a blank check box (
£
), a checkmark appears inside the check
box (
þ
), indicating that the item is selected.
Some selection options are available.
All Selection
:
Click the [Sel All] button located on the
lower right corner of the window.
Single Selection (Mouse)
:
Double-click the item to be selected.
Single Selection (Keyboard)
:
Move the cursor to the item to be selected
and press the [Space] key.
Multiple Selection (Mouse)
:
Press the left button of the mouse and drag
the pointer to the items to be selected.
After that, click the right button of the
mouse. A pop-up window opens. Click
"Select".
When the items cannot be selected by
clicking, press the [Space] key on the
keyboard.
Multiple Selection (Keyboard) :
While pressing the [Shift] key, move the
cursor to the items to be selected and press
the [Space] key.

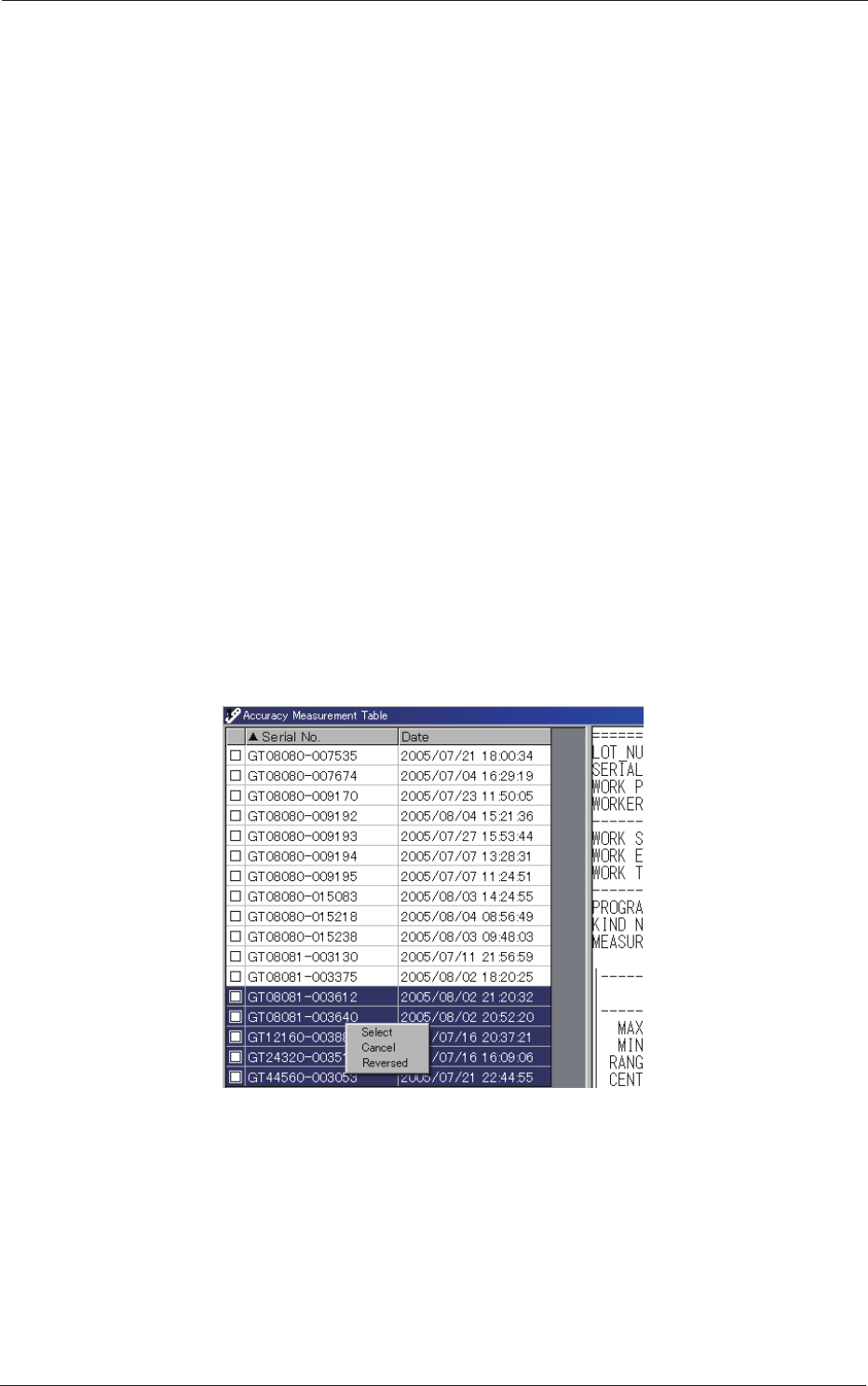

Fig. C21
0809-002
6.1 Accuracy Measurement Table
3-24
ALVEG-ID
[Print] Button
When pressed, this button prints the item(s) selected by your selection mode.
Select the print options in the "Print Setting" group box.
Accuracy
Table :
The results of up to 50 feeders can be
printed on a piece of A4 paper.
Preview :
The contents (related to up to three
feeders) in the preview window
(displayed on the right pane) can be
printed on a piece of
A4 paper.
Deletes from table after printing :
After printing is executed, the le of
the accuracy results is transferred to
another folder to make it clear if the
le is already printed or not.
(Path to Folder: D:\MeasureComp)
0809-002
