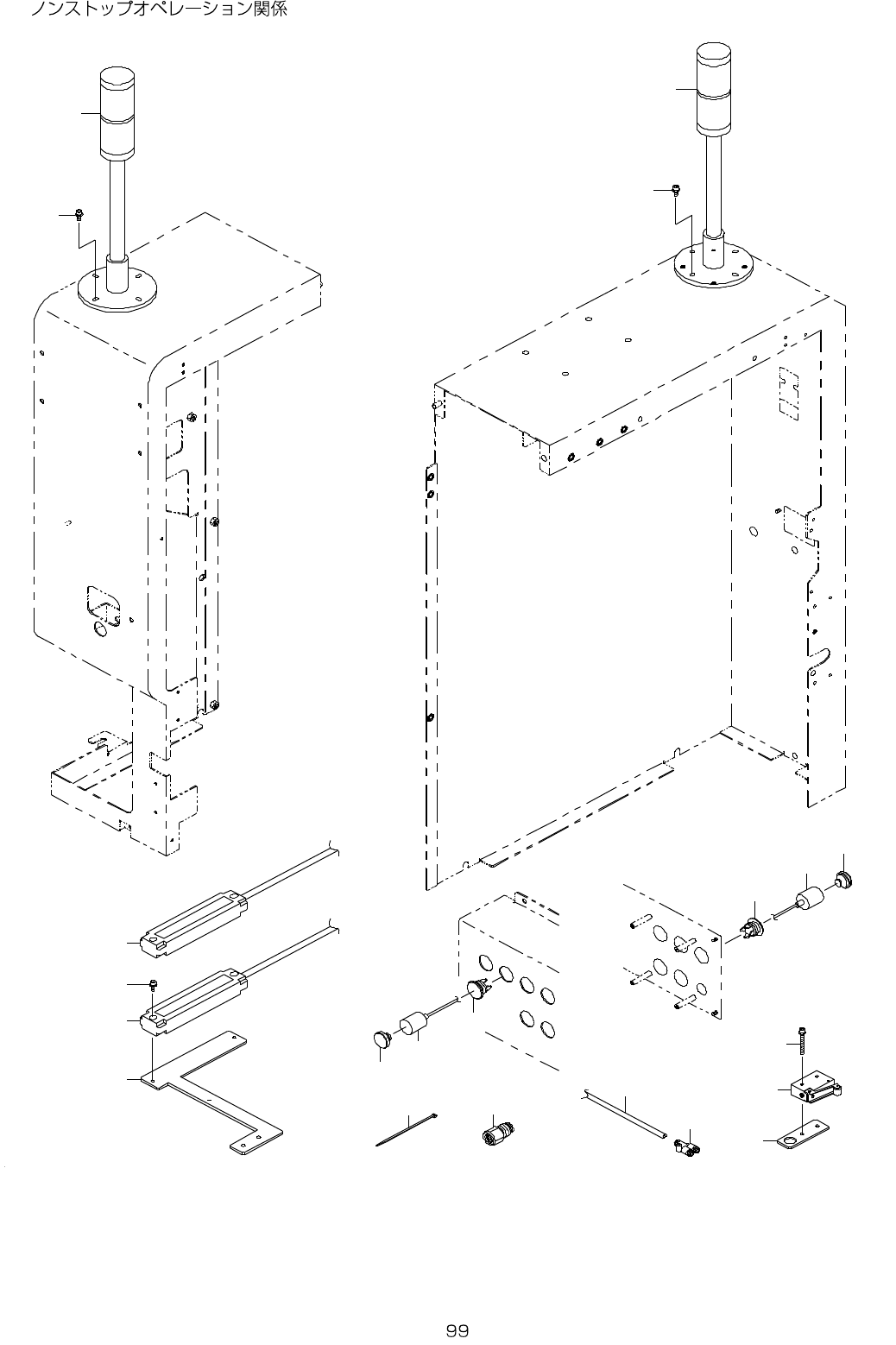

50. NON-STOP OPERATION COMPONENTS
2
1
2
1
3
6
7
1 5
8
9
1 0
1 1
1 2
1 3
1 4
4
1 6
5
4
1 6
5
- -

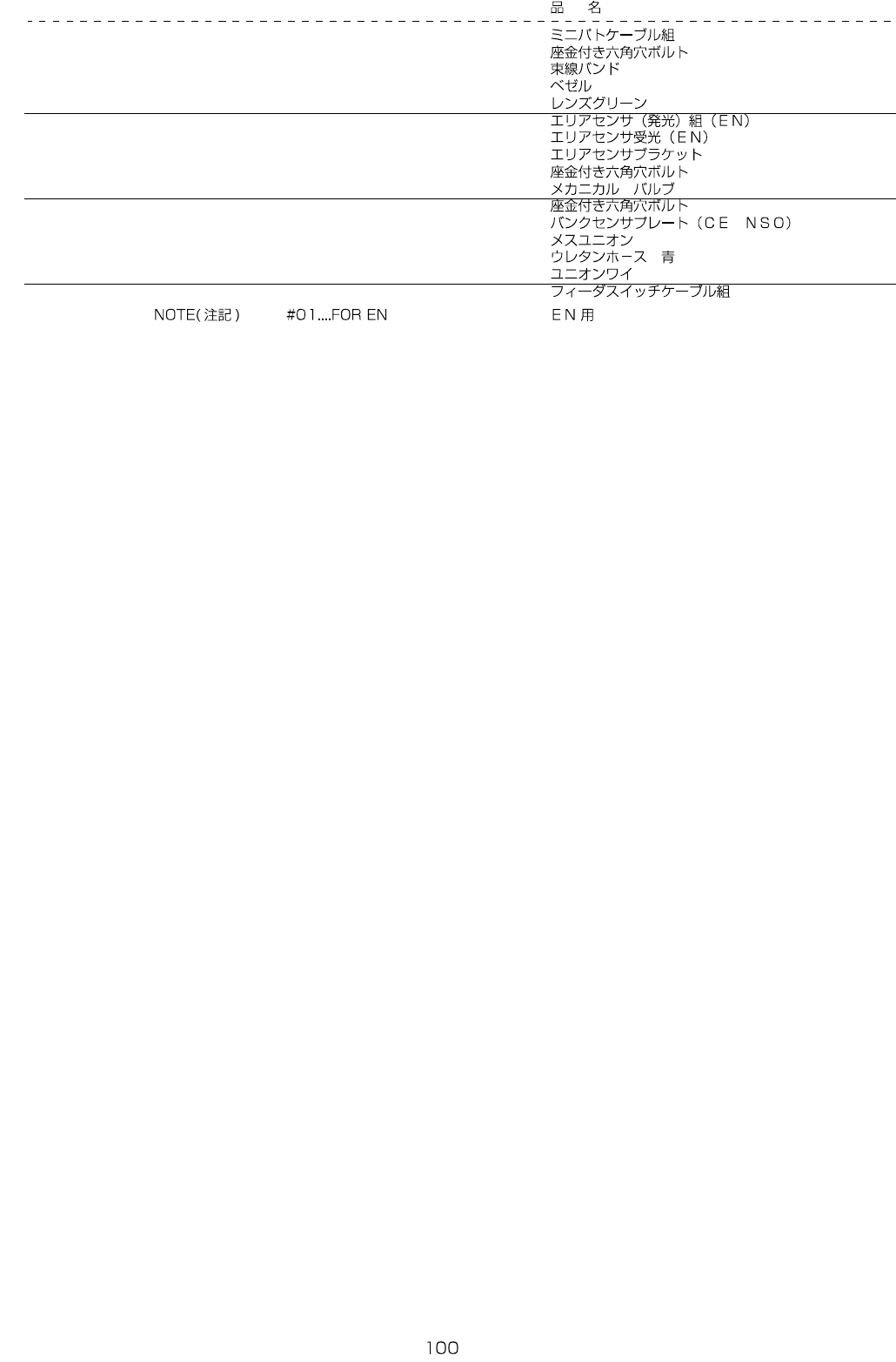

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E9819-729-0A0 MINI PAT CABLE ASM. 2
2 SL-6041092-TN SCREW 8
3 EA-9500B01-00 CABLE BAND 10
4 HA-0055300-10 BEZEL 2
5 HA-0055300-20 LENS GREEN 2
6
#01
400-02323 AREA SENS LIGHT ASM(EN) 2
7
#01
400-02324 AREA SENSOR DETECTOR ASM.(EN) 2
8
#01
E6189-729-000 AREA SENSOR BRACKET 4
9
#01
SL-6041042-TN BOLT 8
10
#01
PV-0105051-00 MECHANICAL VALVE 2
11
#01
SL-6043592-TN SCREW 4
12
#01
E4325-725-000 BANK SENSOR PLATE (CE NSO) 2
13
#01
PJ-3010651-06 KNIFE UNION 2
14
#01
BT-0600400-EC TUBE HOSE, BLUE 0.2
15
#01
PJ-3080600-03 Y UNION 2
16 400-02252 FEEDER SWITCH CABLE ASM 2
- -

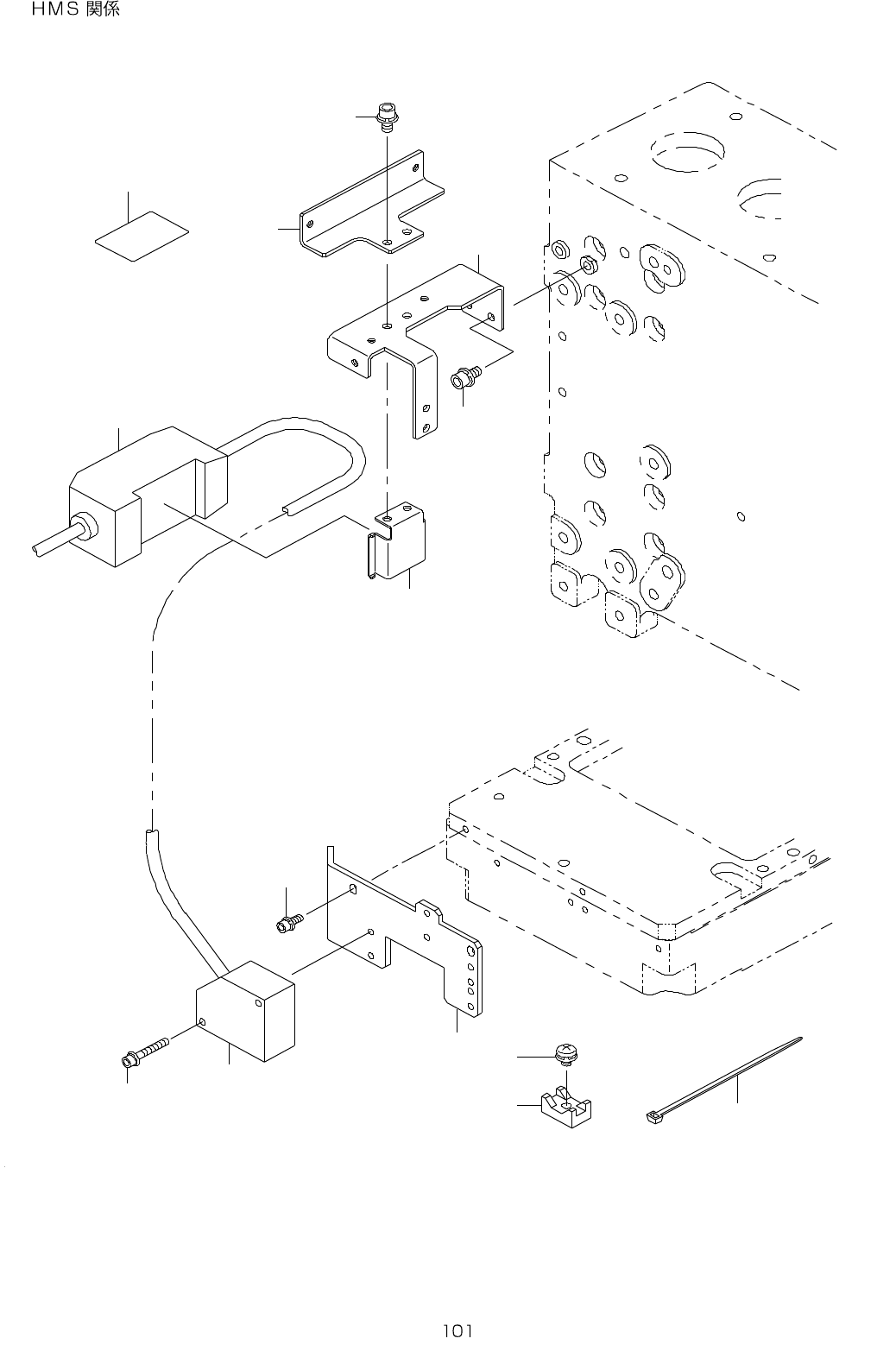

51. HMS COMPONENTS
5
7
9
8
4
2
3
1
1 0
6
4
1 1
7
1 2
