- - RE F .NO N O TE PART NO D E S C R I P T I O N Q t y 1 EA-9500B01-00 C ABLE BAND 7 2 H X - 00 294 00-00 FI X ED BA SE 6 3 SL-403 06 91- S C SCREW M3 L= 6 6 4 SL-604 08 92- T N B O L T 4 5 400-46055 HMS BRACK ET 1 6 …
- -
51. HMS COMPONENTS
5
7
9
8
4
2
3
1
1 0
6
4
1 1
7
1 2
- -

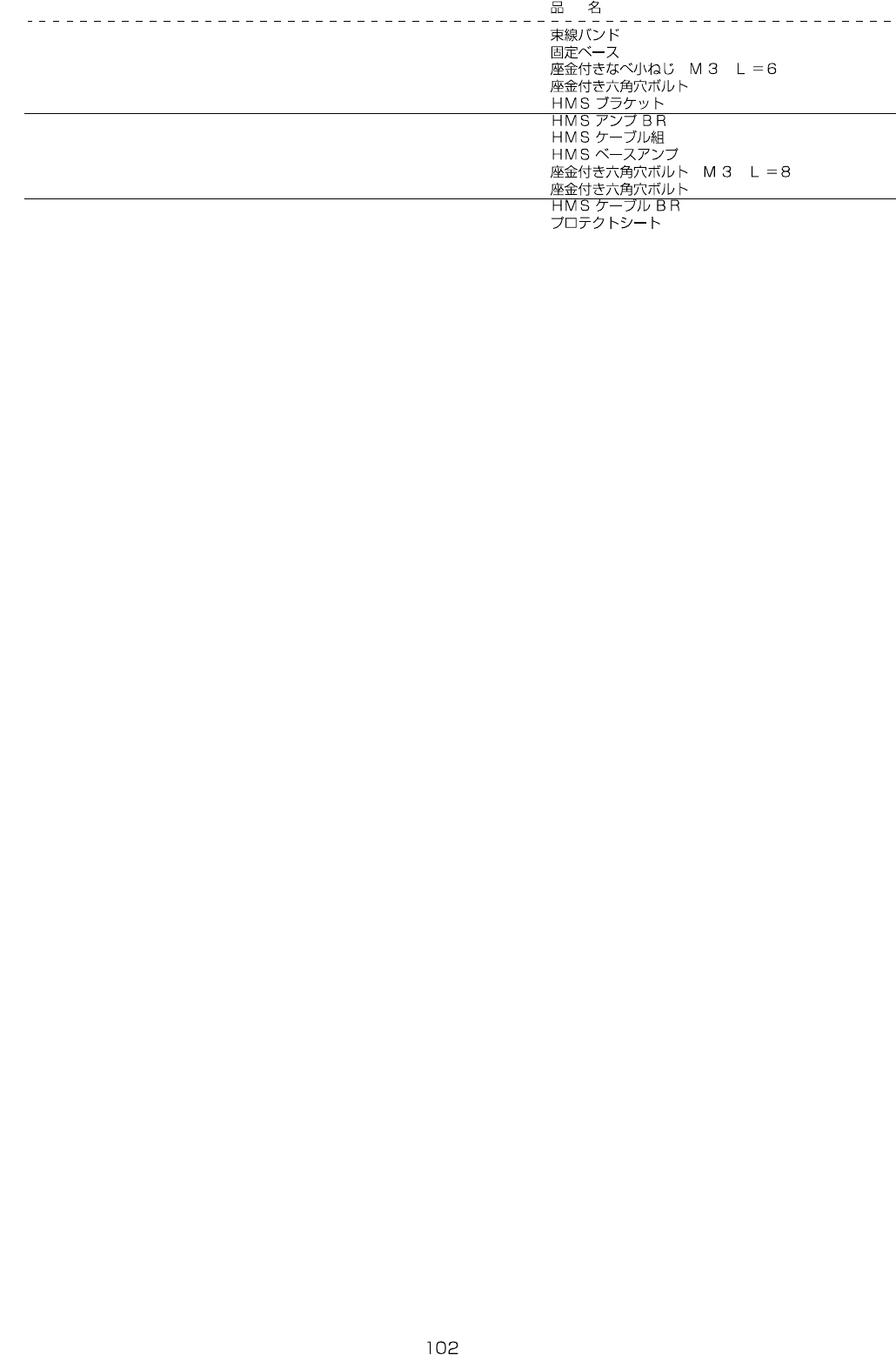

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 EA-9500B01-00 CABLE BAND 7
2 HX-0029400-00 FIXED BASE 6
3 SL-4030691-SC SCREW M3 L=6 6
4 SL-6040892-TN BOLT 4
5 400-46055 HMS BRACKET 1
6 400-46508 HMS AMP BR 1
7 400-02185 HMS CABLE ASM 1
8 400-01722 HMS BASE AMP 1
9 SL-6030892-TN SCREW M3 L=8 2
10 SL-6032042-TN SCREW 2
11 400-55289 HMS CABLE BR 1
12 400-01306 CABLE PROTECTOR SHEET 0.25
- -
52. BAD MARK READER COMPONENTS
5
7
8
6
9
2
1
4
3
