- - 59. M INI PAT & SO T CHEC K TA B LE COMPONENTS 1 1 3 2 2 8 6 7 4 5
- -

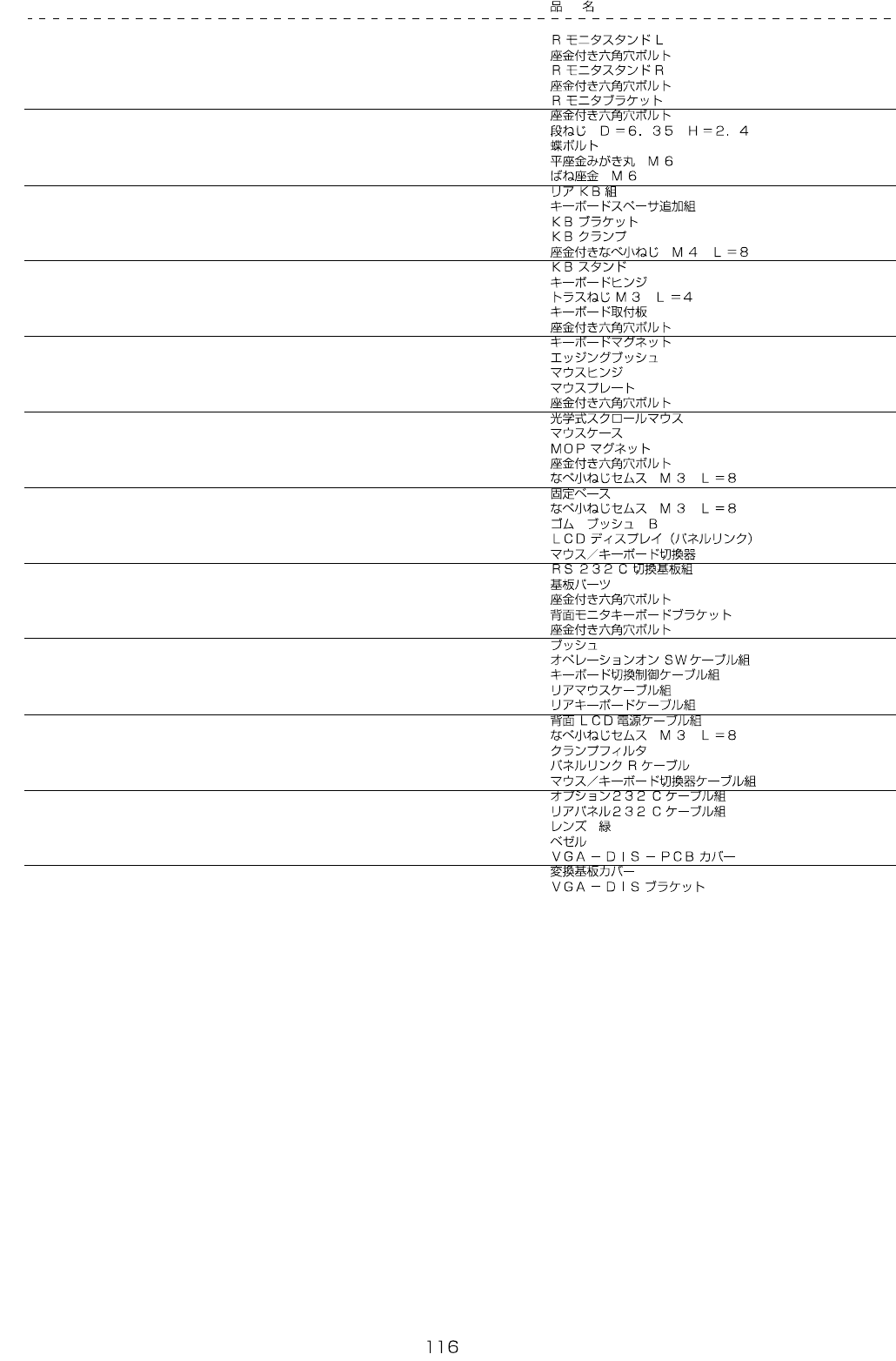

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-01472 R MONITOR STAND L 1
2 SL-6041092-TN SCREW 2
3 400-01473 R MONITOR STAND R 1
4 SL-6041092-TN SCREW 2
5 400-01474 R MONITOR BRACKET 1
6 SL-6041092-TN SCREW 4
7 SD-0640246-SP HINGE SCREW D=6.35 H=2.4 2
8 161-87007 WING BOLT 1
9 WP-0641601-SC WASHER 1
10 WS-0610002-KN SPRING WASHER 6.1X12.2X1.5 1
11 400-52412 REAR KB ASSY 1
12 400-03318 KEY BOARD SP ASM (1)
13 400-46603 KB BRACKET (1)
14 400-01440 KB CLAMP (1)
15 SL-4040891-SC SCREW M4 L=8 (2)
16 400-01441 KB STAND (1)
17 E1349-721-000 KEYBOARD HINGE (3)
18 SM-0030401-SC SCREW M3 L=4 (12)
19 E1395-729-000 KEYBOARD FITTING PLATE (2)
20 SL-6041092-TN SCREW (4)
21 E1346-721-000 KEYBOARD MAGNET (2)
22 HX-0009600-00 EDGE BUSHING 0.24
23 400-46619 MOUSE HINGE 1
24 400-46605 MOUSE PLATE 1
25 SL-6040892-TN BOLT 2
26 400-80173 OPTICAL SCROLL MOUSE 1
27 401-23609 MOUSE CASE 1
28 E2506-716-000 MOP MAGNET 1
29 SL-6041092-TN SCREW 2
30 SL-4030891-SC SCREW M3X8 6
31 HX-0029400-00 FIXED BASE 1
32 SL-4030891-SC SCREW M3X8 1
33 HX-0005500-0B RUBBER BUSHING B 1
34 400-25669 LCD DSP 1
35 400-03281 MOUSE/KEYBOARD SELECTOR 1
36 400-26382 RS232C CHANGE PCB ASM 1
37 HX-0035400-0A BOARD PARTS 4
38 SL-6041092-TN SCREW 2
39 400-75077 REAR MONITOR KEYBOARD BR 1
40 SL-6041092-TN SCREW 2
41 HX-0036700-0A BUSH 0.5
42 400-02251 OPERATION ON SW CABLE ASM 2
43 400-02253 CHANGE BOX CABLE ASM 1
44 400-02303 R-MOUSE CABLE ASM 1
45 400-02304 R-KEYBOARD CABLE ASM 1
46 400-02322 R-LCD POWER CABLE ASM 1
47 SL-4030891-SC SCREW M3X8 4
48 HN-0014900-0A CLAMP FILTER 3
49 400-28018 PANEL-LINK R CABLE 1
50 400-03282 MOUSE/KEYBOARD SELECTOR CABLE ASM 1
51 400-02264 OP 232C CABLE ASM. 1
52 400-02263 OP-232C CABLE(R)ASM 1
53 HA-0055300-10 LENSE GREEN 2
54 HA-0055300-2A BEZEL 2
55 400-00513 VGA DIS PCB COVER 1
56 400-26001 CGANGE-PCB COVER 1
57 400-00512 VGA DIS BRACKET 1
- -
59. MINI PAT & SOT CHECK TABLE COMPONENTS
1
1
3
2
2
8
6
7
4
5
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E9819-729-0A0 MINI PAT CABLE ASM. 2
2 SL-6041092-TN SCREW 8
3 EA-9500B01-00 CABLE BAND 10
4 400-45984 SOT CHECK BASE 1
5 SM-1030601-SC SCREW M3 L=6 2
6 PJ-3010405-05 HALF UNION 1
7 PJ-3050400-01 TEE UNION 1
8 BT-0400251-EA TUBE HOSE, BLUE 0.5
