- - 65 . M AIN LINE FILTER COMPONENTS 3 4 3 0 2 9 3 1 3 2 2 2 2 3 2 6 2 4 1 9 2 1 3 3 2 0 2 7 2 5 1 8 1 7 1 1 1 2 5 2 1 4 1 6 1 6 9 8 7 6 1 3 1 4 2 8 1 5 1 0 3 4 3
- -

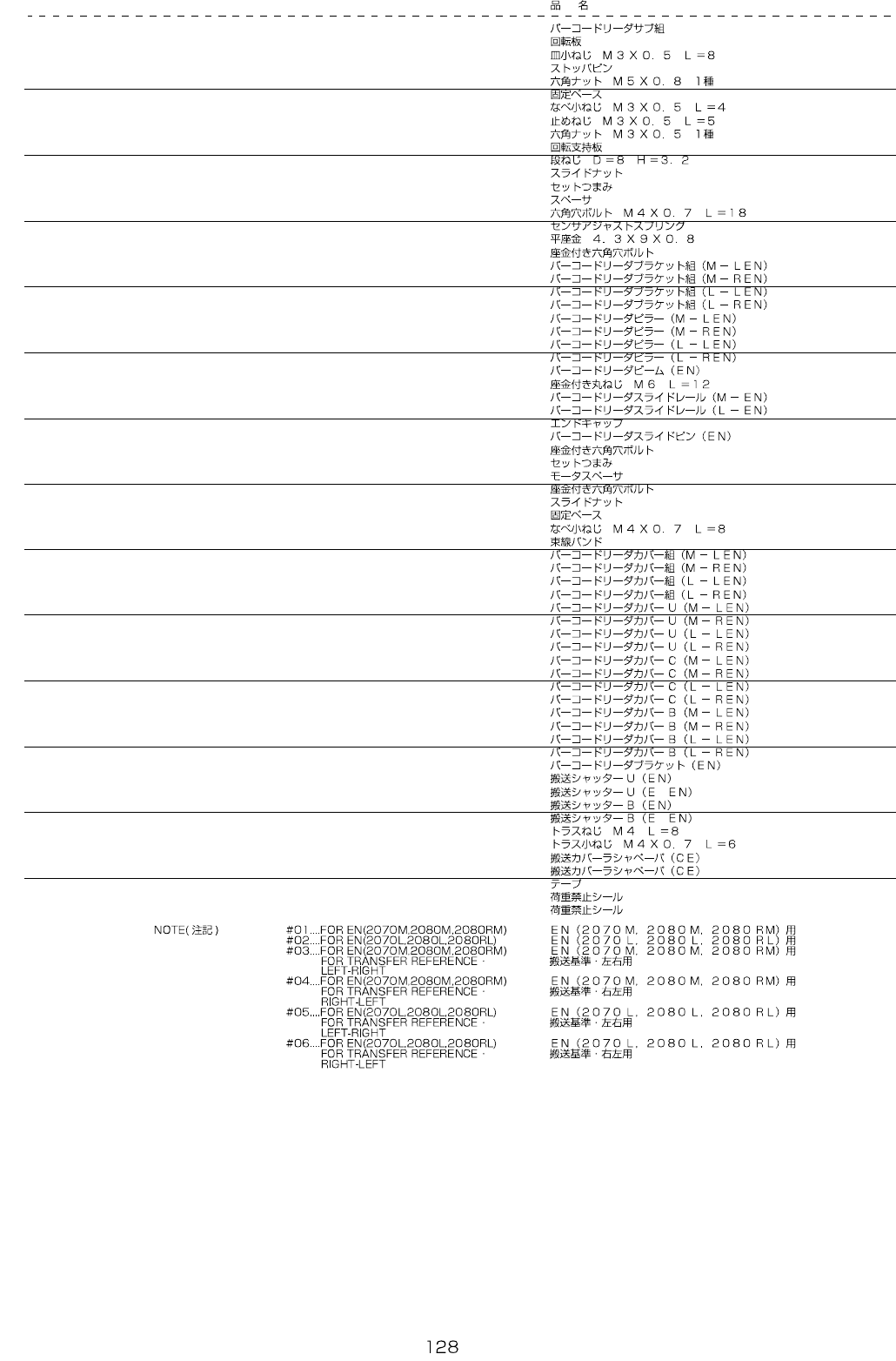

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-34046 BARCODE READER SUB ASM 1
2 400-28299 ROTARY PLATE (1)
3 SM-1030801-SC SCREW M3 L=8 (2)
4 G6025-875-000 STOPPER PIN (1)
5 NM-6050001-SC NUT M5X0.8 TYPE1 (1)
6 HX-0029400-00 FIXED BASE (1)
7 SM-4030401-SC SCREW M3X0.5 L=4 (1)
8 SM-8030502-TP SCREW M3 L=5 (1)
9 NM-6030001-SC NUT M3X0.5 TYPE1 (1)
10 400-28300 ROTARY SUPPORT PLATE (1)
11 SD-0800327-TP SHOULDER SCREW (1)
12 400-28302 SLIDE NUT (4)
13 G6518-880-000 SET PICK-UP (1)
14 400-58815 SPACER (1)
15 SM-6041802-TN SCREW M4X0.7 L=18 (2)
16 400-00912 SENSOR ADJUST SPRING (2)
17 WP-0430801-SC WASHER 4.3X9X0.8 (4)
18 SL-6040892-TN BOLT (1)
19
#03
400-33896 BCR BRACKET ASM(M-LEN) 1
20
#04
400-33906 BCR BRACKET ASM(M-REN) 1
21
#05
400-33912 BCR BRACKET ASM(L-LEN) 1
22 #06 400-33921 BCR BRACKET ASM(L-REN) 1
23
#03
400-33898 BCR PILLAR(M-LEN) (2)
24
#04
400-33907 BCR PILLAR(M-REN) (2)
25
#05
400-33913 BCR PILLAR(L-LEN) (2)
26
#06
400-33922 BCR PILLAR(L-REN) (2)
27 400-33897 BCR BEAM(EN) (2)
28 SL-3061232-TN SCREW (4)
29
#01
400-33899 BCR SLIDE RAIL(M-EN) (1)
30
#02
400-33914 BCR SLIDE RAIL(L-EN) (1)
31 400-28301 END CAP (2)
32 #02 400-33900 BCR SLIDE PIN(EN) (2)
33
#02
SL-6040692-TN BOLT (2)
34
#02
G6518-880-000 SET PICK-UP (2)
35
#02
GBR-11115000 MOTOR SPACER. (2)
36
#01
SL-6041092-TN SCREW (4)
37 400-28302 SLIDE NUT (6)
38 HX-0029400-00 FIXED BASE (4)
39 SM-4040801-SC SCREW M4X0.7 L=8 (4)
40 EA-9500B01-00 CABLE BAND 8
41
#03
400-34047 BCR COVER ASM(M-LEN) 1
42
#04
400-34048 BCR COVER ASM(M-REN) 1
43 #05 400-34049 BCR COVER ASM(L-LEN) 1
44
#06
400-34050 BCR COVER ASM(L-REN) 1
45
#03
400-33901 BCR COVER U(M-LEN) (1)
46
#04
400-33908 BCR COVER U(M-REN) (1)
47
#05
400-33915 BCR COVER U(L-LEN) (1)
48 #06 400-33923 BCR COVER U(L-REN) (1)
49
#03
400-33902 BCR COVER C(M-LEN) (1)
50
#04
400-33909 BCR COVER C(M-REN) (1)
51
#05
400-33918 BCR COVER C(L-LEN) (1)
52
#06
400-33924 BCR COVER C(L-REN) (1)
53 #03 400-33903 BCR COVER B(M-LEN) (1)
54
#04
400-33910 BCR COVER B(M-REN) (1)
55
#05
400-33919 BCR COVER B(L-LEN) (1)
56
#06
400-33925 BCR COVER B(L-REN) (1)
57 400-33904 BCR COVER BRACKET(EN) (1)
58 #01 400-01480 CONVEYOR SHUTTER U (EN) (1)
59
#02
400-27248 CONVEYOR SHUTTER U(E EN) (1)
60
#01
400-01481 CONVEYOR SHUTTER B (EN) (1)
61
#02
400-27249 CONVEYOR SHUTTER B(E EN) (1)
62 SM-0040801-SC SCREW (20)
63 SM-0040601-SC SCREW M4X0.7 L=6 (3)
64
#01
E1143-721-000 WOOLEN CLOTH PAPER (3)
65
#02
E1143-721-000 WOOLEN CLOTH PAPER (5)
66 400-01490 TAPE (2)
67 E5721-729-000 LABEL (1)
68 401-05884 LOAD PROHIBITION LABEL (1)
- -
65. MAIN LINE FILTER COMPONENTS
3 4
3 0
2 9
3 1
3 2
2 2
2 3
2 6
2 4
1 9
2 1
3 3
2 0
2 7
2 5
1 8
1 7
1 1
1 2
5
2
1
4
1 6
1 6
9
8
7
6
1 3
1 4
2 8
1 5
1 0
3 4
3
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 PF-0154010-A0 AIR FILTER 1
2 PF-9010070-00 FILTER ELEMENT (1)
3 BT-1200801-EF TUBE 2
4 SL-6082092-TN BOLT 2
5 400-16815 DRAIN TANK 1
6 BT-1000651-EB POLYURETHANE TUBE 0.8
7 PJ-3031000-02 STRAGHT 1
8 PJ-3090400-03 STRAGHT 1
9 BT-0400251-EA TUBE HOSE, BLUE 0.16
10 400-55291 FILTER BRACKET 1
11 E2506-716-000 MOP MAGNET 2
12 400-55290 DRAIN TANK STAY 1
13 HX-0029400-00 FIXED BASE 1
14 SM-4040601-SC SCREW M4X0.7 L=6 1
15 EA-9500B01-00 CABLE BAND 1
16 PJ-3041254-01 ELBOW UNION D=12 2
17
#01
PF-0154010-A0 AIR FILTER 1
18 PF-9010070-00 FILTER ELEMENT (1)
19
#01
BT-1200801-EF TUBE 2
20
#01
400-16815 DRAIN TANK 1
21
#01
BT-1000651-EB POLYURETHANE TUBE 0.8
22
#01
PJ-3031000-02 STRAGHT 1
23
#01
PJ-3090400-03 STRAGHT 1
24
#01
BT-0400251-EA TUBE HOSE, BLUE 0.16
25
#01
SL-6061692-TN BOLT 2
26
#01
400-55291 FILTER BRACKET 1
27
#01
HX-0005500-0J RUBBER BUSHING 1
28
#01
E2506-716-000 MOP MAGNET 2
29
#01
400-55290 DRAIN TANK STAY 1
30
#01
SL-6040892-TN BOLT 2
31
#01
HX-0029400-00 FIXED BASE 1
32
#01
SM-4040601-SC SCREW M4X0.7 L=6 1
33
#01
EA-9500B01-00 CABLE BAND 1
34
#01
PJ-3041254-01 ELBOW UNION D=12 2
