- - REF.NO NOT E P A RT NO D E S C R I P T I O N Q ty 1 #01 400-61126 V ACUU M CA B L E ASM 70 1 2 #02 400-61127 V ACUU M CA B L E ASM 80 1 3 #01 PJ-3010405 - 05 H ALF UNION 6 4 #02 PJ-3010405 - 05 H ALF UNION 7 5 40 0…
- -

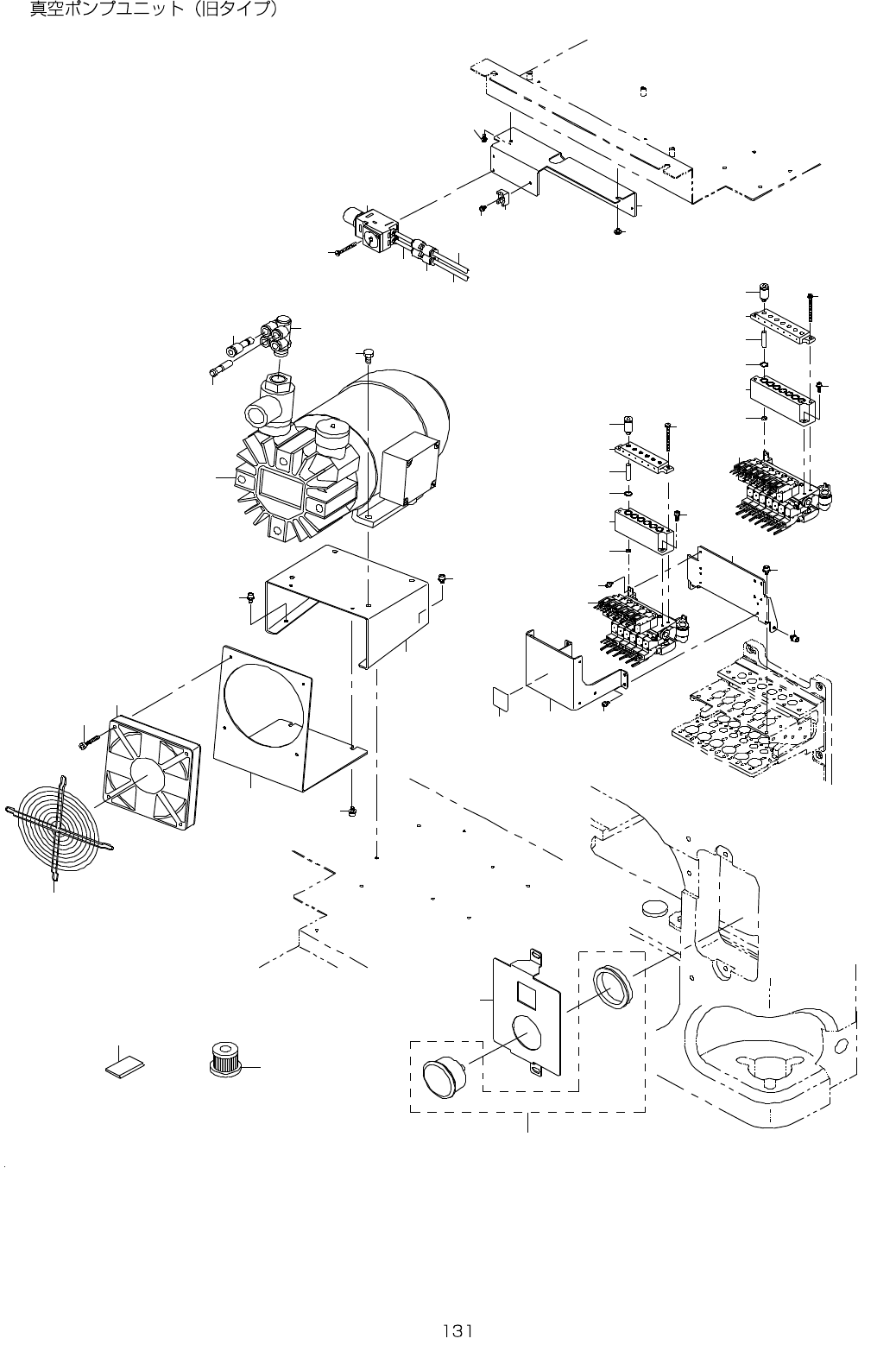

66. VACCUM PUMP UNIT (OLD TYPE)
5
9
9
6
7
2 3
2 4
2 6
2 8
2 9
3 3
3 2
2 8
3 1
1 3
1 1
1 7
1 9
3
2 2
1 5
3 5
3 4
2
1 2
1 8
2 0
4
1 6
2 2
3 7
3 8
3 9
4 1
3 6
4 2
4 3
3 0
4 5
4 6
4 6
2 7
2 1
2 1
8
1 0
1
2 5
4 0
1 4
4 4
4 7
4 8
- -

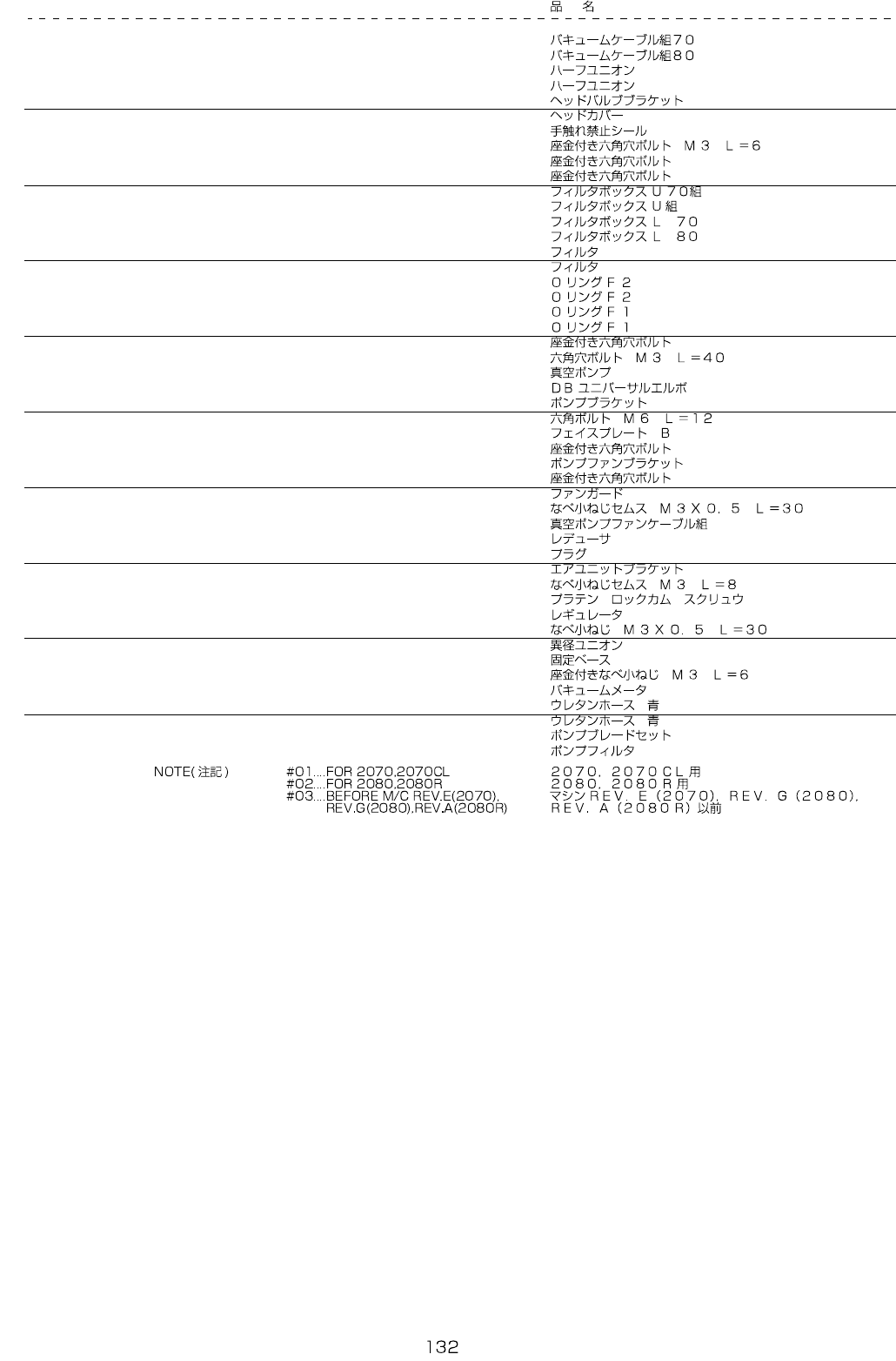

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
400-61126 VACUUM CABLE ASM 70 1
2
#02
400-61127 VACUUM CABLE ASM 80 1
3
#01
PJ-3010405-05 HALF UNION 6
4
#02
PJ-3010405-05 HALF UNION 7
5 400-60224 HEAD VALVE BRACKET 1
6 400-94360 HEAD_COVER 1
7 E3858-715-000 SEAL 1
8 SL-6030692-TN SCREW M3 L=6 4
9 SL-6040642-TN BOLT 4
10 SL-6030642-TN SCREW M3 L=6 4
11
#01
400-64231 FILTER BOX U70 ASM 1
12
#02
400-60556 FILTER BOX U ASM 1
13
#01
400-62187 FILTER BOX L 70 1
14
#02
400-62188 FILTER BOX L 80 1
15
#01
400-46646 FILTER 6
16
#02
400-46646 FILTER 7
17
#01
400-46059 O RING F2 6
18
#02
400-46059 O RING F2 7
19
#01
400-46058 O RING F1 6
20
#02
400-46058 O RING F1 7
21 SL-6031042-TN SCREW 2
22 SM-6034002-TN SCREW M3 L=40 2
23 400-44551 VACUUM PUMP 1
24 400-46541 DB UNIVERSAL ELBOW 1
25 400-46553 PUMP BRACKET 1
26 SM-9061203-SE SCREW M6 L=12 4
27 400-56768 FACE PLATE B 1
28 SL-6040892-TN BOLT 4
29 400-60226 PUMP FAN BRACKET 1
30 SL-6040892-TN BOLT 2
31 HM-0003300-30 FAN GUARD 1
32 SL-4033091-SC SCREW M3 L=30 4
33 400-54705 VAC FAN CABLE ASM 1
34 PJ-3010600-03 REDUCER 1
35 PX-9500070-00 PLUG 1
36 400-60222 AIR UNIT BRACKET 1
37 SL-4030891-SC SCREW M3X8 1
38 E1038-871-000 PLATEN LOCK CAM SCREW 1
39 PF-0200040-00 REGULATOR 1
40 SM-4033001-SC SCREW M3 L=30 2
41 PJ-3030600-03 UNION 2
42 HX-0029400-00 FIXED BASE 3
43 SL-4030691-SC SCREW M3 L=6 3
44 400-46540 VACUUM METER 1
45 BT-0400251-EA TUBE HOSE, BLUE 0.03
46 BT-0600400-EC TUBE HOSE, BLUE 16.95
47
#03
400-61995 PUMP BLADE SET 1
48
#03
400-61996 PUMP FILTER 1
- -

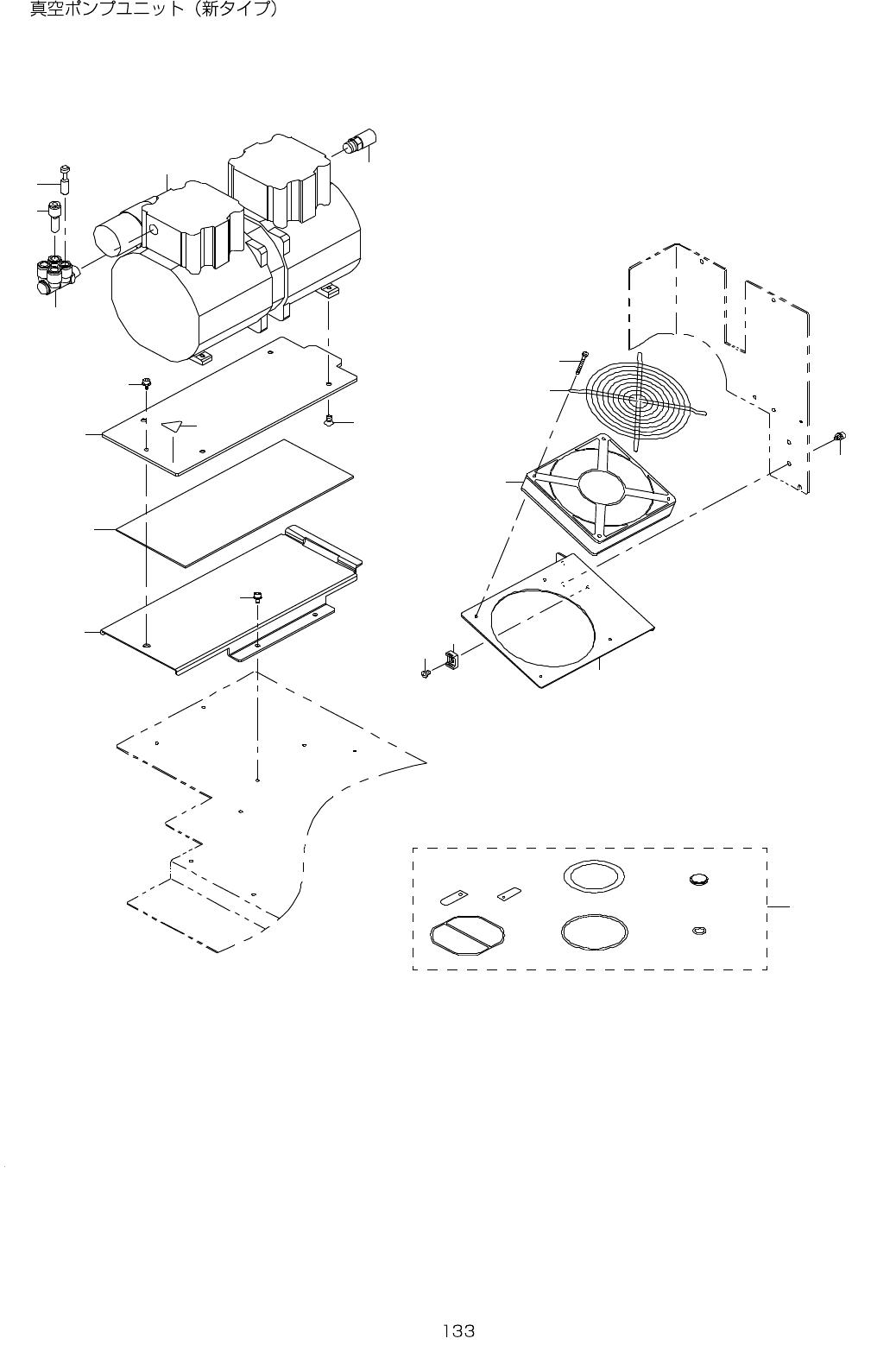

67. VACCUM PUMP UNIT (NEW TYPE)
9
4
1 2
3
1
2
7
6
5
1 0
1 1
1 3
1 6
1 7
1 4
1 5
1 9
1 8
8
2 0
