- - 81. SYSTE M D I A G RAM ( O VE RALL RE P LA C EMEN T TA B L E F) I C F U L L I C F U L L 1 1 - 1 A 1 0 - 1 B P O W E R U N I T( 6 / 1 3 ) 1 0 - 2 A 7 - 1 D 8 5 M M P I T C H 8 0 C O J I S C A N , J N T F / R R F I …
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-01951 BANK FPI F PCB ASM. 1
2 400-01941 BASE FEEDER PCB ASM. 1
3 400-01949 BANK/FPI-R PCB ASSY 1
4 400-02244 BANK FR CABLE ASM 1
5 400-02243 BANK FL CABLE ASM 1
6 400-02088 BANK F CABKE ASM 1
7 400-02089 BANK R CABKE ASM 1
8 400-02245 BANK RL CABLE ASM 1
9 400-02246 BANK RR CABLE ASM 1
10 400-03265 SIGNAL TOWER ASM 1
11 400-02090 SIGNAL LIGHT CABLE ASM 1
12 400-02052 B ASE MTC CABLE ASM 1
13 400-02104 MTC I/F(L) CABLE ASM 1
14 400-02086 FPI R CABLE ASM 1
15
#01
400-73931 KE-2080-ST(RFID) 1
16 400-73032 4 PORT MPC (1)
17 400-73748 RFID S BRANCH MTC I/F CABLE ASM (1)
18 400-73745 RFID MTC I/F(L) CABLE ASM (1)
19 401-22523 RFID BANK F CONTROL BOX CABLE ASM (1)
20 401-22524 RFID BANK R CONTROL BOX CABLE ASM (1)
21 401-22525 RFID M BRANCH CONTROL BOX CABLE ASM (1)
22 401-22526 RFID S BRANCH CONTROL BOX CABLE ASM (1)
23 KK-0000009-50 CONNECTOR (1)
24 400-73749 RFID M BRANCH MTS I/F CABLE ASM (1)
25 400-73746 RFID M BRANCH MTC I/F CABLE ASM (1)
26 KK-0000009-50 CONNECTOR (1)
27 400-73750 RFID S BRANCH MTS I/F CABLE ASM (1)
28 401-22522 RFID CONTROL BOX FG CABLE (60) ASM 1
29 400-02052 B ASE MTC CABLE ASM 1
30 E8626-729-0A0 FPI LED BOARD ASM. 1
31 400-02250 FPI LED CABLE ASM B 1
32 400-02087 FPI F CABLE ASM 1
33 400-02250 FPI LED CABLE ASM B 1
34 400-02249 FPI LED CABLE ASM A 1
35 400-02249 FPI LED CABLE ASM A 1
- -
81. SYSTEM DIAGRAM (OVERALL REPLACEMENT TABLE F)
I C F U L L
IC F U L L
11-1A
10-1B
POWER UNIT(6/13)
10-2A
7-1D
8 5 M M PI T C H 8 0
C O J I S C A N ,
JNT F/R
R F I D W I R I N G
K E - 2 0 8 0 - S T ( R F I D )
S P A R E C H A N G E R T A B L E U N I T ( G X - 6 _ R F I D )
S P A R E C H E N G E R T A B L E U N I T ( G X - 6 _ E N - R F I D )
A N T F / R
A N TE N N A A R R A Y .
CN F/R
CN04
CONNECTOR BRACKET(OVERALL REPLACEMENT TABLE F)
CN11
CN649
FEEDER I/F PCB (F)
CN661 CN1
CN662 CN2
CN507
CONECTOR
REALY
CN020
CN04
COVER
CN025
POWERUNIT(5/13)
CN00
CN01
F.G.
CN10CN10CN04
CN04
O L D - T Y P E O V E R A L L
R E P L A C E M A N T
A D A P T E R
I C F U L L
CONECTOR
REALY
CN020
CN10
CN9
CN10
CN9
CN10-2
CN9-2
CN10-1
CN9-1
CN670-2
CN669-2
CN670-1
CN669-1CN2
CN1
CN761
CN760
CN751
CN750CN662
CN661
CN649
(OLD-TYPE OVERALL REPLACEMENT TABLE F)
TABLE (OPTION)
OVERALL REPLACEMENT
BRACKET
CONNECTOR
FEEDER I/F PCB (F)
FEEDER BANK PCB(FR)
FEEDER BANK PCB(FL)
CN761
CN760
CN670-2
CN669-2
CN10-2
CN9-2
CN10
CN9
FEEDER BANK PCB(FR)
CN751CN670-1CN10-1 CN10
CN750CN669-1CN9-1 CN9
FEEDER BANK PCB(FL)
CONNECTORBRACKET(OVERALL REPLACEMENT TABLE F)
CN04
CN11
CN649
FEEDER I/F PCB (F)
CN661 CN1
CN662 CN2
COVER
CN025
CN507
CN00
CN01
F.G.
1 9
2 4
1
1 8
2
1 2
1 3
1 4 1 5 1 6 1 7
3
4
7 8 9 1 0
5
6
2 5
2 8
2 9
2 6
2 7
2 3
2 0 2 2
1 1
- -

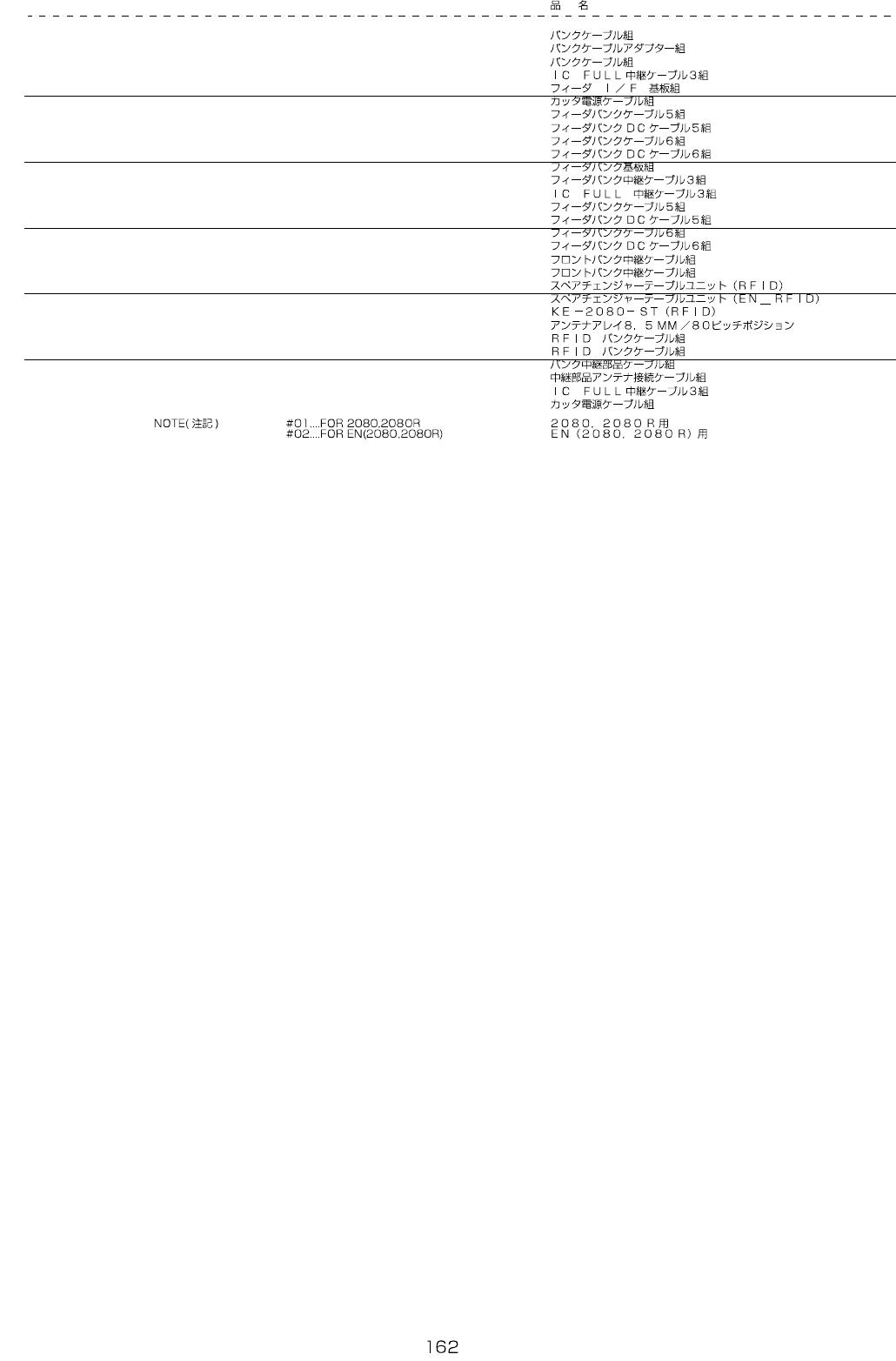

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-45436 BANK CABLE ASM 1
2 400-45437 BANK CABLE ADAPTER ASM 1
3 E9530-729-0A0 BANK CABLE ASM. 1
4 E9395-721-0A0 IC FULL RELAY CABLE 3 ASM. 1
5 E8618-721-0A0 FEEDER I/F BOARD ASM. 1
6 E9532-729-0A0 CUTTER POWER SOURCE CABLE ASM. 1
7 E9378-721-0A0 FEEDER BANK CABLE 5 ASM 1
8 E9384-721-0A0 FEEDER BANK DC CABLE 5 ASM. 1
9 E9379-721-0A0 FEEDER BANK CABLE 6 ASM. 1
10 E9385-721-0A0 FEEDER BANK DC CABLE 6 ASM. 1
11 E8615-715-0A0 FEEDER BANK CIRCUIT BOARD ASM. 1
12 E9388-725-0A0 FEEDER BANK RELAY CABLE 3 ASM. 1
13 E9395-725-0A0 IC FULL RELAY CABLE 3 ASM. 1
14 E9378-721-0A0 FEEDER BANK CABLE 5 ASM 1
15 E9384-721-0A0 FEEDER BANK DC CABLE 5 ASM. 1
16 E9379-721-0A0 FEEDER BANK CABLE 6 ASM. 1
17 E9385-721-0A0 FEEDER BANK DC CABLE 6 ASM. 1
18 400-02315 BANK RLY CABLE ASM F 1
19 400-02315 BANK RLY CABLE ASM F 1
20
#01
400-73973 SPARE CHANGER TABLE UNIT (RFID) 1
21
#02
400-73976 SPARE CHANGER TABLE UNIT (EN_RFID) 1
22 #01 400-73931 KE-2080-ST(RFID) 1
23 400-73665 ANTENNA ARRAY 8.5MM PITCH / 80 POSITION (1)
24 400-73741 RFID BANK CABLE ASM (1)
25 400-73753 RFID BANK CABLE ASM (1)
26 400-75356 BANK F/R JOINT PARTS CABLE ASM (1)
27 400-75358 JOINT PARTS ANTENNA ARRAY F/R CABLE ASM (1)
28 E9395-721-0A0 IC FULL RELAY CABLE 3 ASM. 1
29 E9532-729-0A0 CUTTER POWER SOURCE CABLE ASM. 1
