- - 8. VCS COMPONEN T S 1 3 1 3 1 5 8 1 6 1 2 1 1 3 5 3 7 3 9 4 0 5 9 5 9 1 8 2 1 2 0 2 2 2 3 2 7 2 8 A A 3 0 3 1 2 6 2 5 3 3 3 2 2 9 1 9 3 8 3 4 B B 7 8 8 0 6 0 8 1 8 2 7 0 7 6 6 6 6 7 6 8 6 9 7 1 7 2 7 3 7 4 6 2 6 5 …
- -

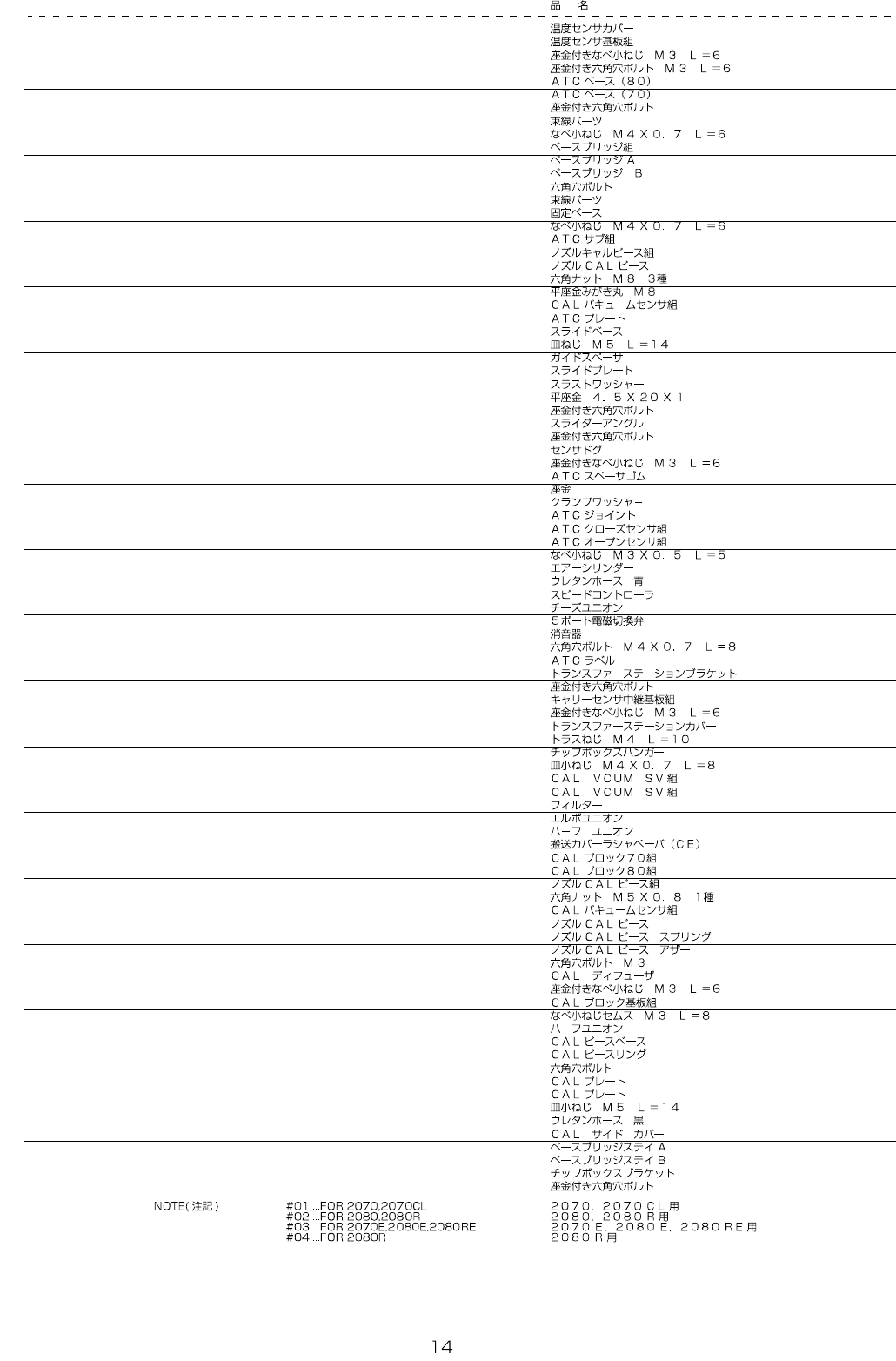

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E2142-729-000 TEMPERATURE SENSOR COVER 1
2 400-29824 TEMPERATURE SENSOR PCB ASM 1
3 SL-4030691-SC SCREW M3 L=6 3
4 SL-6030692-TN SCREW M3 L=6 2
5
#02
400-45972 ATC BASE(80) 2
6
#01
400-45971 ATC BASE(70) 1
7 SL-6062092-TN SCREW M6 L=20 4
8 HX-0034400-00 HARNESS PARTS 3
9 SM-4040601-SC SCREW M4X0.7 L=6 3
10 400-45988 BASE BRIDGE ASM 1
11 400-45987 BASE BRIDGE A (1)
12 400-00633 BASE BRIDGE B (2)
13 SM-6082502-TP SCREW M8 L=25 (4)
14 HX-0034400-00 HARNESS PARTS (2)
15 HX-0029400-00 FIXED BASE (5)
16 SM-4040601-SC SCREW M4X0.7 L=6 (7)
17 400-50374 ATC SUB ASM 1
18 400-00648 NOZZLE CAL PIECE ASSY (1)
19 E5172-729-000 NOZZLE CAL PIECE (1)
20 NM-6080003-SC NUT M8 (1)
21 WP-0841601-SC WASHER 8.4X17.4X1.6 (1)
22 400-02126 CAL VCUM SENSOR ASM (1)
23 400-45973 ATC PLATE (1)
24 400-45974 SLIDE BASE (1)
25 SM-1051452-TN PLATE SCREW M5 L=14 (4)
26 400-45975 GUIDE SPACER (4)
27 400-45976 SLIDE PLATE (1)
28 E3404-700-000 THRUST WASHER (8)
29 WP-0451016-SP WASHER 4.5X20X1 (4)
30 SL-6041092-TN SCREW (4)
31 400-45977 SLIDER ANGLE (1)
32 SL-6041092-TN SCREW (2)
33 400-45978 SENSOR DOG (1)
34 SL-4030691-SC SCREW M3 L=6 (1)
35 400-01286 ATC SPACER RUBBER (1)
36 B2107-816-000 WASHER (1)
37 GLA-02335000 CLAMP WASHER (1)
38 E3528-729-000 ATC JOINT (1)
39 400-45503 ATC CLOSE SENS ASM (1)
40 400-45502 ATC OPEN SENS ASM (1)
41 SM-4030501-SC SCREW M3X0.5 L=5 (4)
42 400-42709 AIR CYLINDER (1)
43 BT-0400251-EA TUBE HOSE, BLUE (0.4)
44 PC-0105080-00 SPEED CONTROLLER (2)
45 400-62594 CHEESE UNION (2)
46 PV-1502060-A0 5 PORT MAGNETIC TRANSFER VALVE (1)
47 PX-0505010-00 SILENCER (2)
48 SM-6040802-TN SCREW (2)
49 400-45983 ATC LABEL (1)
50 400-45981 TRANSFER STATION BRACKET (1)
51 SL-6041092-TN SCREW (4)
52 400-01964 CARRY SENSOR RELAY PCB ASM. (2)
53 SL-4030691-SC SCREW M3 L=6 (8)
54 400-45982 TRANSFER STATION COVER (1)
55 SM-0041001-SC SCREW M4 L=10 (1)
56 400-45980 CHIP BOX HANGER (1)
57 SM-1040801-SC SCREW M4X0.7 L=8 (2)
58 400-50375 CAL VCUM SV ASM (1)
59 400-02125 CAL VCUM SV ASM (1)
60 400-00641 FILTER (1)
61 PJ-3040405-04 ELBOW UNION (1)
62 PJ-3010605-03 HALF UNION (1)
63 E1143-721-000 WOOLEN CLOTH PAPER (1)
64
#01
400-50376 CAL BLOCK 70 ASM 1
65
#02
400-50377 CAL BLOCK 80 ASM 1
66 400-57039 NOZZLE CAL PIECE ASM (1)
67 NM-6050001-SC NUT M5X0.8 TYPE1 (1)
68 400-02126 CAL VACUUM SENSOR ASSY (1)
69 400-45979 NOZZLE CAL PIECE (1)
70 L203E-121-000 NOZZLE CAL PIECE OUTER SP (1)
71 L203E-021-000 NOZZLE CAL PIECE OUTER (1)
72 SM-6030602-TN HEX SCREW M3 X 6 (2)
73 L202E-621-000 CAL DIFFUSER (1)
74 SL-4030691-SC SCREW M3 L=6 (2)
75 400-07376 CALBLOCK PCB ASM (1)
76 SL-4030891-SC SCREW M3X8 (2)
77 PJ-3010405-05 HALF UNION (1)
78
#02
400-45995 CAL PIECE BASE (1)
79 #02 400-45996 CAL PIECE RING (1)
80
#02
SM-6031602-TN SCREW M3 L=16 (4)
81
#02
L202E-421-000 CAL PLATE (1)
82
#01
400-45994 CAL PLATE (1)
83 SM-1051452-TN PLATE SCREW M5 L=14 (2)
84 BT-0400251-EB URETHANE HOSE, BLACK (0.3)
85 L202E-521-000 CAL SIDE COVER (1)
86
#03
400-16709 BASE BRIDGE STAY A 1
87
#03
400-16710 BASE BRIDGE STAY B 1
88
#04
400-81247 CHIP BOX BR 1
89 #04 SL-6041092-TN SCREW 2
- -

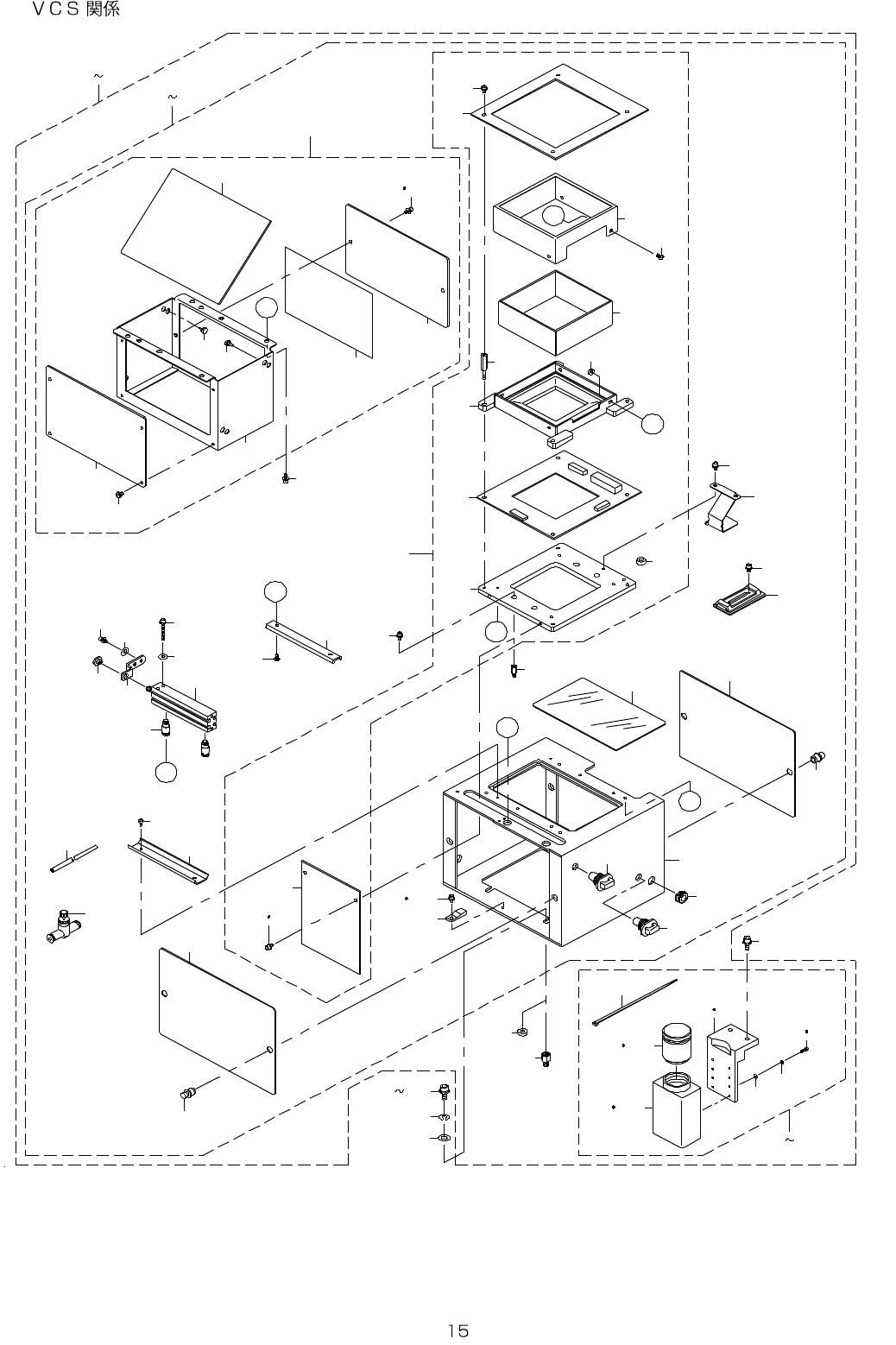

8. VCS COMPONENTS
1 3
1 3
1 5
8
1 6
1 2
1 1
3 5
3 7
3 9 4 0
5 9
5 9
1 8
2 1
2 0
2 2
2 3
2 7
2 8
A
A
3 0 3 1
2 6
2 5
3 3
3 2
2 9
1 9
3 8
3 4
B
B
7 8 8 0
6 0
8 1
8 2
7 0
7 6
6 6 6 7
6 8 6 9
7 1 7 2
7 3 7 4
6 2 6 5
7 7
1 4
9 1 0
2 4
1 3
4 6
7
1 7
1 7
4 4
4 3
4 3
C
C
D
D
4 5
4 8
4 6
4 7
5 1
5 3
5 4
5 2
5 0
4 9
5 5
5 6
5 8
5 7
4 1
4 2
4 1
3 6
4 4
6 1
7 5
- -

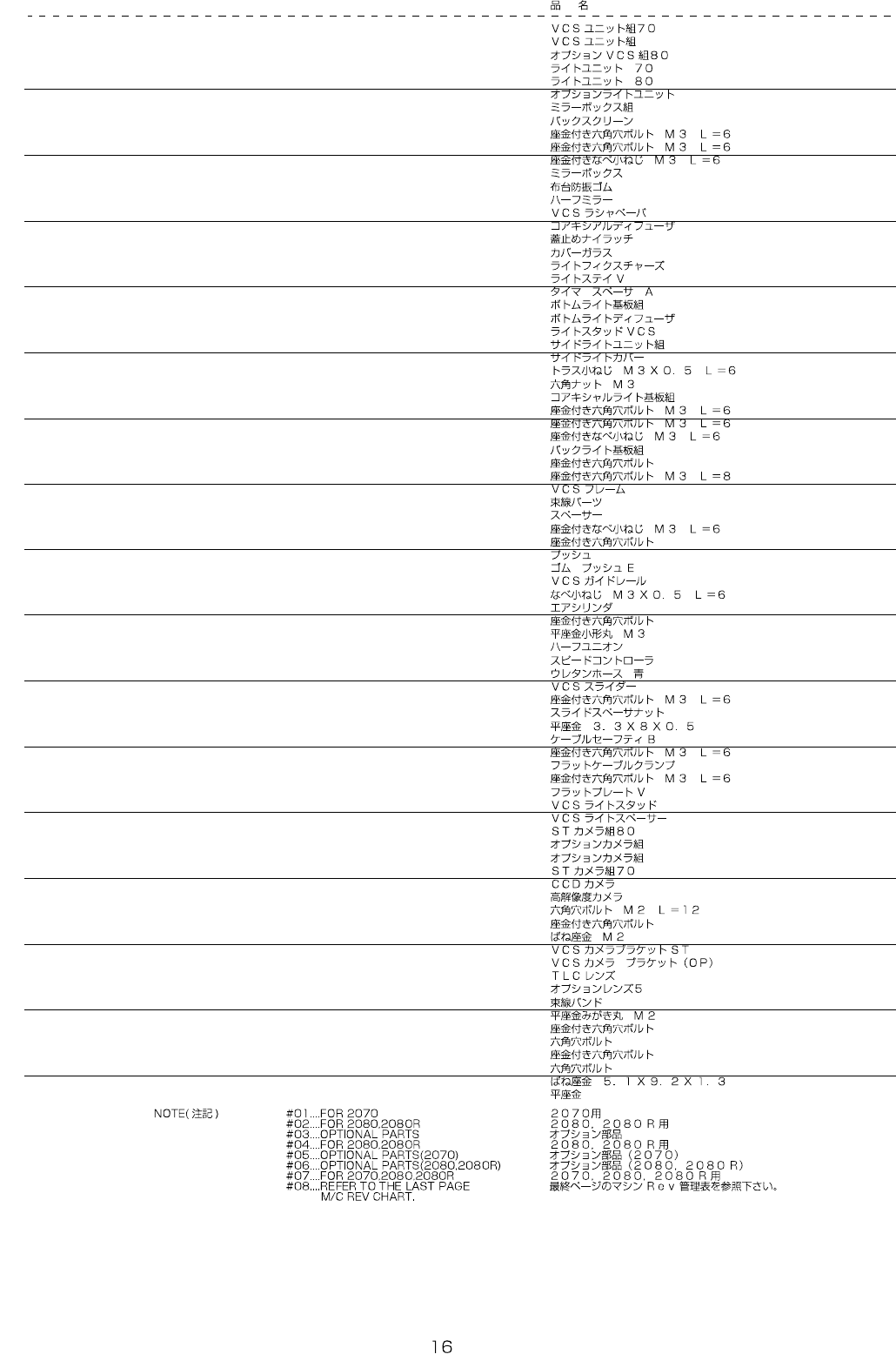

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
400-55281 VCS UNIT ASM 70 1
2 #02 400-50378 VCS UNIT ASM 1
3
#03
400-59524 OPTION VCS ASM 80 1
4
#01
400-55279 LIGHT UNIT 70 (1)
5
#02
400-55280 LIGHT UNIT 80 (1)
6
#03
400-00625 OPTION LIGHT UNIT (1)
7 #03 400-00607 MIRROR BOX ASSY (1)
8 400-00620 BACK SCREEN (1)
9
#03
SL-6030692-TN SCREW M3 L=6 (2)
10
#04
SL-6030692-TN SCREW M3 L=6 (2)
11 SL-4030691-SC SCREW M3 L=6 (4)
12 400-00617 MIRROR BOX (1)
13 118-04606 RUBBER PLUG (8)
14 400-00618 HALF MIRROR (1)
15 400-00619 VCS FLOCK PAPER (1)
16 400-00621 COAXIAL DIFFUSER (1)
17 M8808-301-000 NYLATCH (4)
18 400-00611 COVER GLASS (1)
19
#03
400-00640 LIGHT FIXTURES (1)
20 400-00612 LIGHT STAY V (1)
21 E2143-715-000 TIMER SPACER A (4)
22 400-01917 BOTTOM LIGHT PCB ASM (1)
23 400-00614 BOTTOM LIGHT DIFFUSER (1)
24 400-23599 LIGHT STUD VCS (4)
25 400-01939 SIDE LIGHT PCB UNIT ASM (1)
26 400-00615 SIDE LIGHT COVER (1)
27 SM-0030601-SC SCREW M3X0.5 L=6 (4)
28 NM-6030003-SC NUT M3 (4)
29 400-01915 COAXIAL LIGHT PCB ASM (1)
30
#03
SL-6030692-TN SCREW M3 L=6 (2)
31
#04
SL-6030692-TN SCREW M3 L=6 (2)
32 SL-4030691-SC SCREW M3 L=6 (4)
33 400-01911 BACK LIGHT PCB ASM. (1)
34 SL-6030642-TN SCREW M3 L=6 (4)
35 SL-6030892-TN SCREW M3 L=8 (4)
36 400-00610 VCS FRAME (1)
37 HX-0034400-00 HARNESS PARTS (1)
38 #07 HX-0035400-0B PCB SUPPORT L=8MM (4)
39
#04
SL-4030691-SC SCREW M3 L=6 (1)
40
#03
SL-6030592-TN SCREW M3 L=5 (1)
41
#03
HX-0036500-00 PUSH (2)
42
#03
HX-0005500-0E RUBBER BUSHING (2)
43 #03 400-00628 VCS GUIDE RAIL (1)
44
#03
SM-4030601-SC SCREW M3 X 6 (8)
45
#03
PA-0605001-A0 AIR CYLINDER (1)
46
#03
SL-6032542-TN SCREW (2)
47
#03
WP-0320500-SC WASHER M3 (2)
48 #03 PJ-3010405-05 HALF UNION (2)
49
#03
PC-0124070-00 SPEED CONTROLLER (2)
50
#03
BT-0400251-EA TUBE HOSE, BLUE (0.6)
51
#03
400-00629 VCS SLIDER (1)
52
#03
SL-6030692-TN SCREW M3 L=6 (2)
53 #03 400-00630 SLIDE SPACER NUT (1)
54
#03
WP-0330516-SC WASHER 3.3X8X0.5 (1)
55
#03
400-00631 CABLE SAFETY B (1)
56
#03
SL-6030692-TN SCREW M3 L=6 (2)
57
#03
HX-0058000-00 FLAT CABLE CLAMP (1)
58 #03 SL-6030692-TN SCREW M3 L=6 (1)
59 400-00609 FLAT PLATE V (2)
60
#02
400-45992 VCS LIGHT STUD (4)
61
#01
400-45991 VCS LIGHT SPACER (4)
62
#02
400-50379 ST CAMERA ASM 80 (1)
63 #05 400-56735 OP CAMERA ASSY (1)
64
#06
400-64354 OP CAMERA ASSY (1)
65
#01
401-61035 ST CAMERA ASM 70 (1)
66
#08
401-57591 CCD CAMERA (1)
67
#03
400-28240 HIGH RESOLUTION CAMERA (1)
68 #07 SM-6021202-TN SCREW M2 L=12 (4)
69
#03
SL-6031092-TN SCREW (4)
70
#07
WS-0210002-KN SPRING WASHER M2 (4)
71
#07
401-57621 VCS_CAMERA_BR_ST (1)
72
#03
400-56583 VCS CAMERA BR(OP) (1)
73 #07 E3723-700-000 TLC LENS (1)
74 #03 400-00634 OPTION LENS 5 (1)
75
#03
EA-9500B01-00 CABLE BAND (6)
76
#07
WP-0220301-SC WASHER M2 (4)
77 SL-6041292-TN SCREW 2
78
#01
SM-6051692-TN BOLT 4
79 #02 SL-6051292-TN BOLT 4
80
#03
SM-6050802-TN BOLT 4
81
#03
WS-0510002-KN SPRING WASHER 4
82
#03
WP-0641600-SC WASHER 6.4X12.5X1.6 4
