- - REF.NO N O TE PA RT NO D E S C R I P T I O N Qty 1 #04 400-50350 C OVER F U L ST ASM. 1 2 #01 400-52347 C OVER F U L EN ASM. 1 3 400-46 563 COVER FUL (1) 4 400-01 464 ST OPPER SUPPORT (1 ) 5 400-49 671 COVER CU SH …
- -

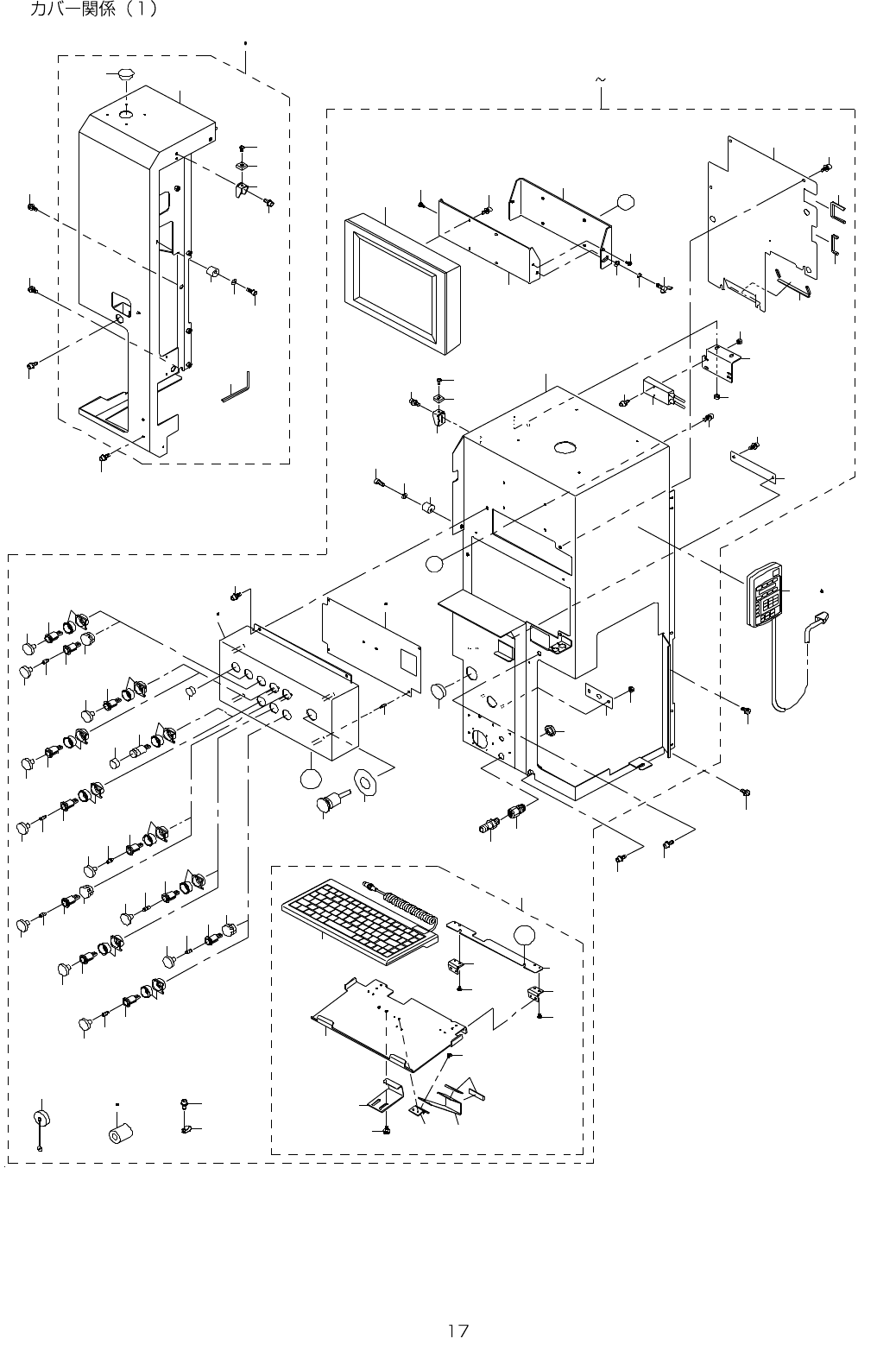

9. COVER COMPONENTS (1)
5
6
7
9
1 0
1 1
4
1 2
3 2
3 2
4 4
5 4
5 4
3 1
3 2
3 3
3 3
3 4
3 6
3 5
3 2
4 2
3 2
2 3
2 6
2 4
5 2
5 0
5 1
5 3
4 6
5 5
6 3
5 6
5 7
5 8
5 7
3 8
3 9
6 2
4 9
3 2
5 4
3 7
1 4
1 4
1 4
1 4
1 3
1 3
1 3
1 3
2 8
3
8 0
4 5
4 6
2 9 3 0
2 5
2 1
2 1
2 1
2 2
2 2
2 2
2 0
2 7
1 9
7 9
5 9 6 0
1 2
A
A
1 5 1 8
8 3
8 4 8 5
4 1
B
B
7 3
6 5
7 5
7 3
4 8
6 5
6 1
6 8
8 1
8 2
7 8
7 3
6 7
4 7
6 5
8 7
7 1
7 5
6 5
7 3
8 7
7 5
6 5
7 0
6 4
6 6
7 6
7 4
6 9
6 4
7 2
7 2
7 7
6 4
7 2
7 6
6 6
6 4
7 4
6 4
7 2
7 4
6 4
6 9
7 0
4 0
8
4 3
8 6
8 8 8 9
- -

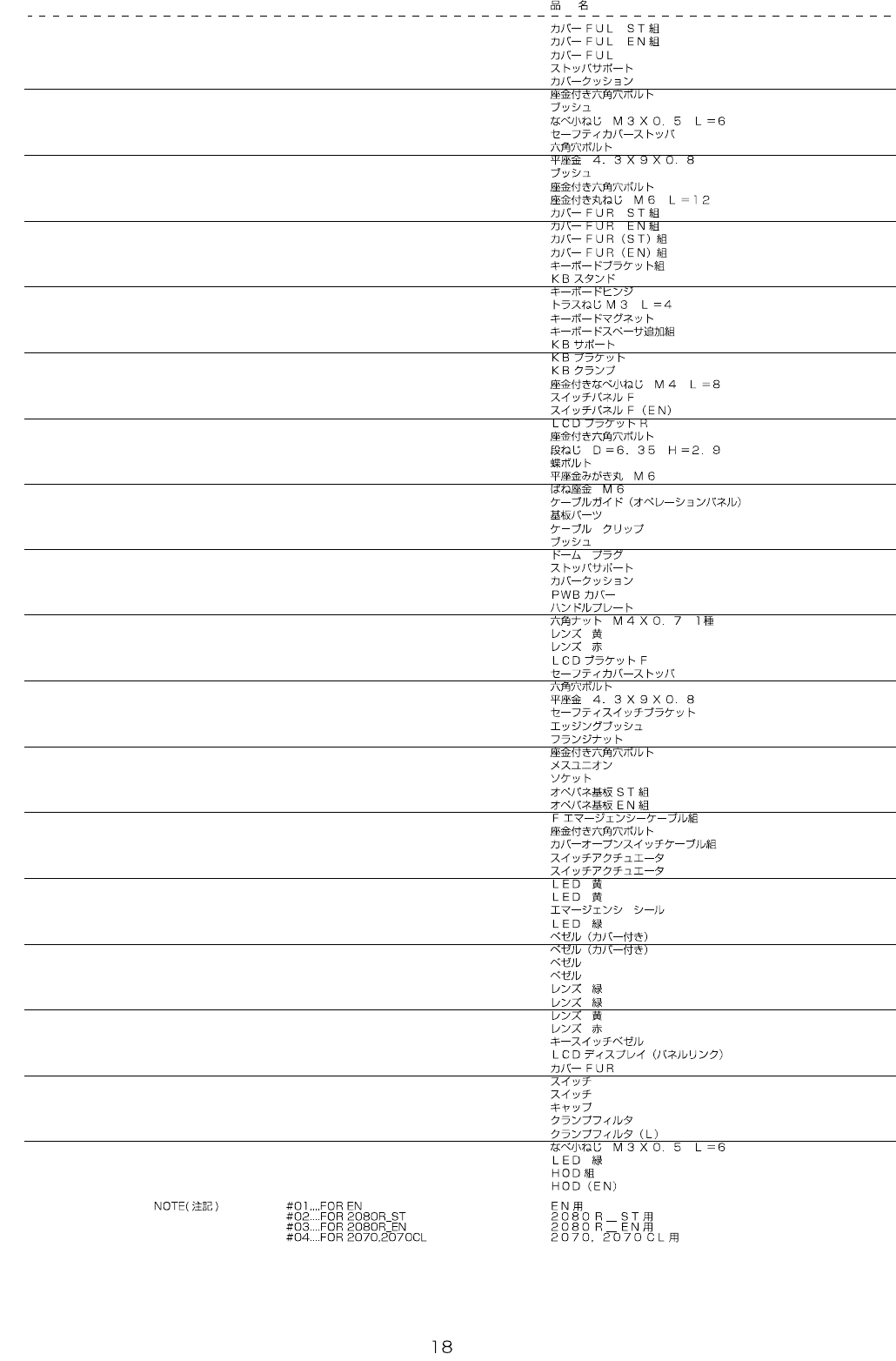

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#04
400-50350 COVER FUL ST ASM. 1
2 #01 400-52347 COVER FUL EN ASM. 1
3 400-46563 COVER FUL (1)
4 400-01464 STOPPER SUPPORT (1)
5 400-49671 COVER CUSHIONR (1)
6 SL-6041092-TN SCREW (2)
7 HX-0036700-0A BUSH (0.3)
8 SM-4030601-SC SCREW M3 X 6 (1)
9 400-56924 SAFETY COVER STOPPER (1)
10 SM-6042002-TN BOLT (1)
11 WP-0430801-SC WASHER 4.3X9X0.8 (1)
12 HX-0032600-0B BUSH (1)
13 SL-6061292-TN SCREW 4
14 SL-3061232-TN SCREW 4
15
#04
400-50351 COVER FUR ST ASM. 1
16
#01
400-52348 COVER FUR EN ASM. 1
17 #02 400-80217 COVER FUR(ST)ASM 1
18
#03
400-80218 COVER FUR(EN)ASM 1
19 400-50352 KEY BOARD BR ASM (1)
20 400-01441 KB STAND (1)
21 E1349-721-000 KEYBOARD HINGE (3)
22 SM-0030401-SC SCREW M3 L=4 (12)
23 E1346-721-000 KEYBOARD MAGNET (2)
24 400-03318 KEY BOARD SP ASM (1)
25
#01
400-46604 KB SUPPORT (1)
26 400-46603 KB BRACKET (1)
27 400-01440 KB CLAMP (1)
28 SL-4040891-SC SCREW M4 L=8 (2)
29 400-46574 SWITCH PANEL F (1)
30
#01
400-46623 SWITCH PANEL F (EN) (1)
31 400-01437 LCD BRACKET R (1)
32 SL-6041092-TN SCREW (20)
33 400-96860 SHOULDER SCREW D=6.35 H=2.9 (2)
34 161-87007 WING BOLT (1)
35 WP-0641601-SC WASHER (1)
36 WS-0610002-KN SPRING WASHER 6.1X12.2X1.5 (1)
37 400-01438 CABLE GUIDE(OPERATI ON PANEL) (1)
38 HX-0035400-0D BASE PARTS (4)
39 HX-0015000-0D CABLE CLIP (1)
40 HX-0032600-0C DOME PLUG (2)
41 HX-0032600-0M DOME PLUG (1)
42 400-01464 STOPPER SUPPORT (1)
43 400-49671 COVER CUSHIONR (1)
44 400-01470 PWB COVER (1)
45 E1316-725-000 HANDLE PLATE (1)
46 NM-6040001-SC NUT M4X0.7 TYPE1 (4)
47
#01
HA-0055200-1A SWITCH (1)
48 #01 HA-0055200-10 SWITCH (1)
49 400-01436 LCD BRACKET F (1)
50 400-56924 SAFETY COVER STOPPER (1)
51 SM-6042002-TN BOLT (1)
52 WP-0430801-SC WASHER 4.3X9X0.8 (1)
53 400-01453 SAFETY SWITCH BRACKET (1)
54 HX-0009600-00 EDGE BUSHING (0.231)
55 NM-3040520-SF FLANGE NUT M4 (2)
56 SL-6041642-TN SCREW (2)
57 PJ-3010651-06 KNIFE UNION (1)
58 E2904-700-000 SOCKET (1)
59 400-01953 OPERATION PWB ASM.(ST) (1)
60
#01
400-01954 OPERATION PWB ASM.(EN) (1)
61 400-02205 F EMG SWITCH CABLE ASM. (1)
62 SL-6041092-TN SCREW (4)
63 400-02254 COVER OPEN SW CABLE ASM (1)
64 HA-0053400-20 SWITCH ACTUATOR (6)
65
#01
HA-0053400-20 SWITCH ACTUATOR (5)
66 HA-0053400-60 LED YELLOW (2)
67
#01
HA-0053400-60 LED YELLOW (1)
68 E1326-715-000 EMERGENCY SEAL (1)
69 HA-0053400-6B LED GREEN (2)
70 HA-0053400-4A BEZEL (2)
71
#01
HA-0053400-4A BEZEL (1)
72 HA-0055200-30 BEZEL (4)
73 #01 HA-0055200-30 BEZEL (4)
74 HA-0055200-1B LENSE GREEN (3)
75
#01
HA-0055200-1B LENSE GREEN (3)
76 HA-0055200-1A LENSE YELLOW (2)
77 HA-0055200-10 LENSE RED (1)
78
#01
HA-0055200-20 KEY SWITCH BEZEL (1)
79 400-25669 LCD DSP (1)
80 400-46564 COVER FUR (1)
81
#01
HA-0053500-20 SWITCH (1)
82
#01
HA-0053500-3A SWITCH (1)
83
#01
HK-0429901-9A CAP (1)
84 #01 HN-0014900-0A CLAMP FILTER (1)
85
#01
HN-0014900-00 CLAMP FILTER(L) (2)
86 SM-4030601-SC SCREW M3 X 6 (1)
87
#01
HA-0053400-6B SWITCH (2)
88 E9649-729-000 HOD ASM. 1
89 #01 E9662-729-000 HOD (EN) 1
- -
10. COVER COMPONENTS (2)
2 3
1 8
5
6
7
8
8
9
1 0
1 1
1 2
1 3
1 4
1 5
1 6
1 7
1 3
1 9
6 2
6 3
3 3
5 0 5 1
3 4
3 5
3 6
3 7
5 9
4 1
4 4
4 6
4 5
4 9
4 7
5 2
4 8
5 3
5 5
5 6
7 4
7 4
7 4
7 4
7 4
7 4
2 9 3 0
5 8
3 1
3 2
6 4
4 2
4 3
7 2
2 1
4
2 0
3 9
4 0
2 2
7 1
6 6
7 0
2 7
2 7
6 6
6 8
6 5
2 7
6 6
6 8
2 7
5 7
6 7
5 4
5 4
2 8
2 6
5 4
2 8
6 0
2 6
6 9
7 3
2 8
9 0
8 8
9 1
9 5
9 3
9 4
8 9
9 2
2 4 2 5
8 6
9 6
8 7
7 9
7 8
8 5
8 4
7 5
7 6
3 8
6 1
8 3
8 2
8 1
8 0
7 7
7 4
9 7
9 7
