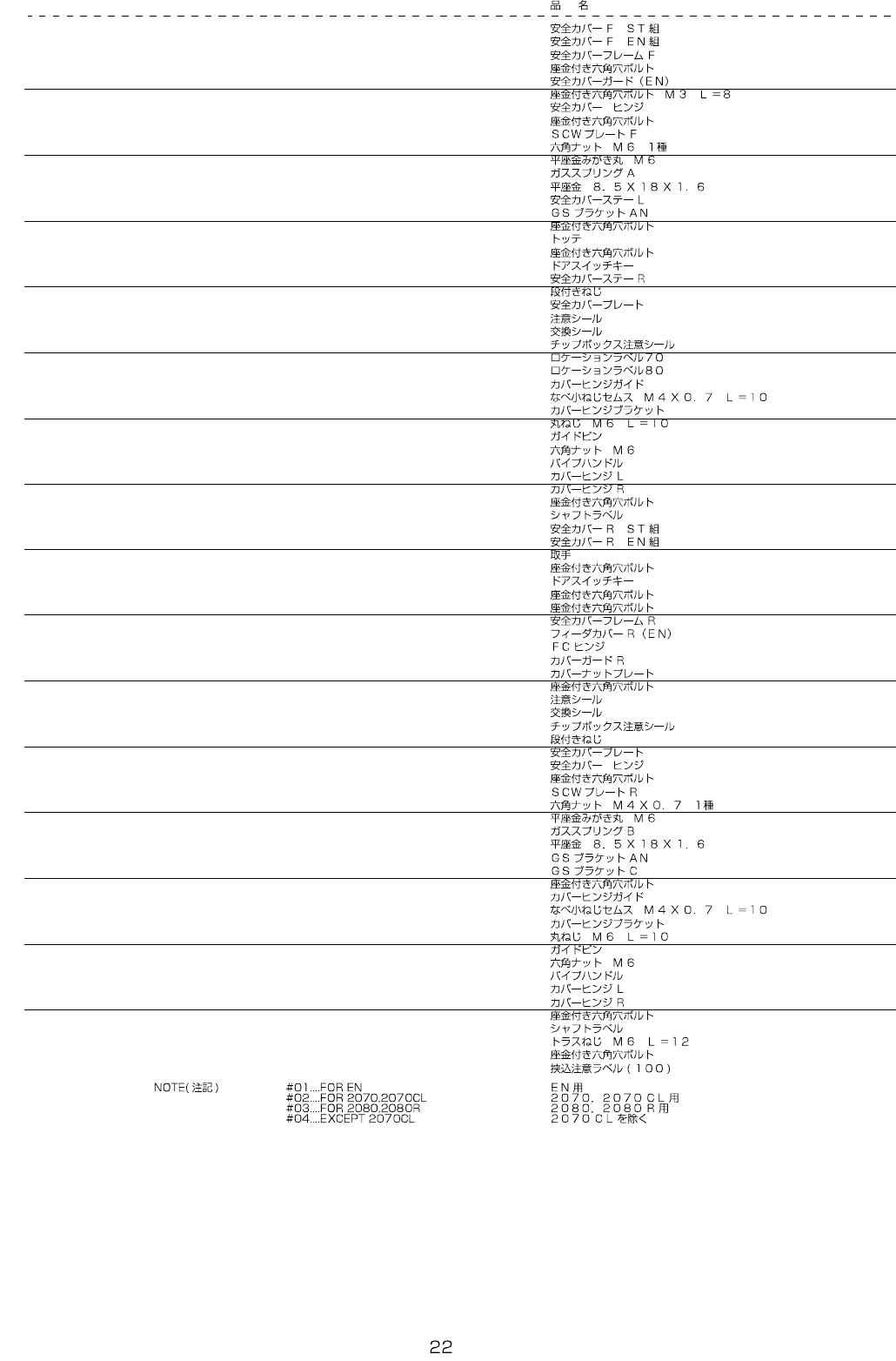

- - 12. COVE R C O MPONEN T S (4 ) 7 9 1 1 6 1 3 1 3 3 2 1 8 2 0 2 1 2 3 6 6 2 7 2 4 2 6 5 4 6 1 7 2 8 5 2 2 9 3 0 3 6 5 5 9 5 8 5 6 5 3 5 7 8 1 2 1 4 1 6 8 5 7 3 5 5 6 5 9 8 8 2 9 7 7 7 8 8 0 3 1 3 4 4 0 4 1 3 9 3 7 3…
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-50355 SAFETY COVER F ST ASM. 1
2 #01 400-52351 SAFETY COVER F EN ASM. 1
3 400-46575 SAFETY COVER FRAME F (1)
4 SL-6041042-TN BOLT (2)
5
#01
400-01451 SAFETY COVER GUARD (EN) (1)
6
#01
SL-6030892-TN SCREW M3 L=8 (5)
7 E1318-715-000 SAFTY COVER HINGE (2)
8 SL-6061242-TN BOLT (4)
9 400-46578 SCW PLATE F (1)
10 NM-6060001-SC NUT M6 (12)
11 WP-0641601-SC WASHER (12)
12 401-10174 GAS_SPRING_A (2)
13 WP-0850002-SC WASHER 8.5X18X1.6 (8)
14 400-46606 SAFETY COVER STAY L (1)
15 400-31236 GS BRACKET AN (2)
16 SL-6061242-TN BOLT (4)
17 400-46608 KNOB (1)
18 SL-6051092-TN BOLT (2)
19 HA-0052800-10 SWITCH (1)
20 400-46607 SAFETY COVER STAY R (1)
21 400-38381 STEP SCREW (4)
22 400-46577 SAFETY COVER PLATE (1)
23 400-50445 CAUTION SEAL (1)
24 400-50446 SEAL (1)
25 400-51621 CHIP BOX CAUTION SEAL (1)
26
#02
400-46635 LOCATION LABEL 70 (1)
27 #03 400-46636 LOCATION LABEL 80 (1)
28 400-43524 COVER HINGE GUIDE (2)
29 SL-4041091-SC SCREW M4 L=10 (4)
30 400-43527 COVER HINGE BRACKET (2)
31 SM-3061052-TN SCREW M6 L=10 (4)
32 400-43528 GUIDE PIN (4)
33 NM-6060003-SC NUT M6 (4)
34 400-43529 PIPE HANDLE (1)
35 400-43530 COVER HINGE L (1)
36 400-43531 COVER HINGE R (1)
37 SL-6040892-TN BOLT (4)
38 E3065-729-000 SHAFT LABEL (2)
39
#04
400-50356 SAFETY COVER R ST ASM. 1
40
#01
400-52352 SAFETY COVER R EN ASM. 1
41 400-46608 KNOB (1)
42 SL-6051092-TN BOLT (2)
43 HA-0052800-10 SWITCH (1)
44 SL-6041042-TN BOLT (2)
45
#01
SL-6051092-TN BOLT (12)
46 400-46576 SAFETY COVER FRAME R (1)
47
#01
400-46634 FEEDER COVER R(EN) (1)
48 #01 E1196-725-000 FC HINGE (3)
49
#01
400-55159 COVER GUARD R (1)
50
#01
400-55160 COVER NUT PLATE (1)
51
#01
SL-6040892-TN BOLT (3)
52 400-50445 CAUTION SEAL (1)
53 400-50446 SEAL (1)
54 400-51621 CHIP BOX CAUTION SEAL (1)
55 400-38381 STEP SCREW (4)
56 400-46577 SAFTY COVER PLATE (1)
57 E1318-715-000 SAFTY COVER HINGE (2)
58 SL-6061242-TN BOLT (4)
59 400-46579 SCW PLATE R (1)
60 NM-6040001-SC NUT M4X0.7 TYPE1 (8)
61 WP-0641601-SC WASHER (8)
62 401-10173 GAS_SPRING_B (2)
63 WP-0850002-SC WASHER 8.5X18X1.6 (8)
64 400-31236 GS BRACKET AN (2)
65 400-43523 GS BRACKET C (2)
66 SL-6061242-TN BOLT (4)
67 400-43524 COVER HINGE GUIDE (2)
68 SL-4041091-SC SCREW M4 L=10 (4)
69 400-43527 COVER HINGE BRACKET (2)
70 SM-3061052-TN SCREW M6 L=10 (4)
71 400-43528 GUIDE PIN (4)
72 NM-6060003-SC NUT M6 (4)
73 400-43529 PIPE HANDLE (1)
74 400-43530 COVER HINGE L (1)
75 400-43531 COVER HINGE R (1)
76 SL-6040892-TN BOLT (4)
77 E3065-729-000 SHAFT LABEL (2)
78 SM-0061201-SC SCREW 8
79 SL-6061242-TN BOLT 8
80 401-05874 CRUSH HAZARD LABEL (100) 2
- -
12. COVER COMPONENTS (4)
7
9 1 1
6
1 3
1 3
3 2
1 8 2 0
2 1 2 3
6
6
2 7
2 4 2 6
5 4
6
1 7
2 8
5 2
2 9
3 0
3 6
5
5 9
5 8
5 6
5 3
5 7
8
1 2
1 4 1 6
8
5 7
3 5
5 6
5 9
8
8
2 9
7 7
7 8 8 0
3 1
3 4
4 0
4 1
3 9
3 7
3 8
3 3
3 3
A
B
A
B
1 4
4 2
4 4
4 7 4 9
6
4 5
4 6
4 3
5 0
5 1
8 1
8 2
8 2
8 2
8 2
8 3
8 4
7 5
7 6
3 5
7 6
6 2
6 3
6 4
6 5
6 6
6 7
6 8
6 9
7 0
7 1
7 2
7 3
8 5
8 6
6 1
5 5
6 0
7 4
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
400-50357 COVER SUB M ASM. 1
2
#02
400-50364 COVER SUB L ASM. 1
3
#07
400-60995 COVER SUB(E) ASM 1
4
#03
400-61004 COVER SUB(E_EN) ASM 1
5 WS-0820002-KN SPRING WASHER M8 (2)
6 SL-3061232-TN SCREW (4)
7 NM-6040001-SC NUT M4X0.7 TYPE1 (1)
8 SL-6041092-TN SCREW (4)
9
#01
400-46568 COVER CUL (1)
10
#02
400-46587 COVER CUL L (1)
11
#07
400-60211 COVER CUL(E) (1)
12 SL-6061292-TN SCREW (1)
13 NM-6060001-SC NUT M6 (2)
14
#01
400-46570 COVER CUC (1)
15
#02
400-46588 COVER CUC L (1)
16
#07
400-60213 COVER CUC(E) (1)
17 SL-6041292-TN SCREW (12)
18
#01
400-46611 COVER SUL (1)
19
#02
400-46613 COVER SUL L (1)
20
#07
400-60214 COVER SUL(E) (1)
21
#01
400-46569 COVER CUR (1)
22
#02
400-46589 COVER CUR L (1)
23
#07
400-60212 COVER CUR(E) (1)
24
#01
400-46612 COVER SUR (1)
25
#02
400-46614 COVER SUR L (1)
26
#07
400-60215 COVER SUR(E) (1)
27 SL-3061232-TN SCREW (7)
28 400-01463 CABLE GUIDE (MOTOR) (1)
29 400-03265 SIGNAL TOWER ASM (1)
30 NM-6080001-SC NUT M8X1.25 (2)
31 400-46571 PULLEY COVER L (1)
32 SL-6061292-TN SCREW (4)
33 SL-6061292-TN SCREW (4)
34 400-46572 PULLEY COVER R (1)
35 SL-3061232-TN SCREW (7)
36 WP-0841601-SC WASHER 8.4X17.4X1.6 (2)
37 400-46629 Y CB BAND (1)
38 400-46630 Y CB BAND RUBBER (1)
39 L804E-821-0A0 COVER TOP FAN ASM (1)
40 HM-0010100-10 FILTER (3)
41 SL-4033591-SC SCREW M3X35
(12)
42 400-46619 MOUSE HINGE (1)
43 400-46605 MOUSE PLATE (1)
44 SL-4040891-SC SCREW M4 L=8 (4)
45 401-23609 MOUSE CASE (1)
46 E2506-716-000 MOP MAGNET (1)
47
#05
400-43526 COVER SUPPORT R 1
48
#06
400-43788 COVER SUPPORT R (R) 1
49
#07
400-60217 COVER SUPPORT R(E) 1
50 400-80173 OPTICAL SCROLL MOUSE 1
51 HA-0053800-00 SWITCH 1
52 HX-0036700-0A BUSH 0.2
53
#02
400-01514 YBR COVER(L) 1
54
#04
E1457-729-000 MTC SHUTTLE COVER 1
55
#04
SM-0040601-SC SCREW M4X0.7 L=6 4
56
#02
SL-4040891-SC SCREW M4 L=8 4
57
#02
SL-4040891-SC SCREW M4 L=8 4
58
#02
400-01513 YBL COVER(L) 1
59 HX-0032600-0H CABLE PARTS 2
60
#08
400-33517 VISION MONITOR BRACKET ASM 1
61 400-99654 CRT BASE (1)
62 HX-0022100-0A RUBBER BUSHING (1)
63 400-99655 FREE STOP HINGE (1)
64 SL-6040892-TN BOLT (4)
65 400-99657 CRT STOPPER (1)
66 L127E-021-000 COVER CUSHION (1)
67 SM-6030602-TN SCREW M3X6 (1)
68 SL-6040892-TN BOLT (2)
69 400-99656 CRT BR (1)
70 HX-0029400-00 FIXED BASE (1)
71 SM-4040601-SC SCREW M4X0.7 L=6 (1)
72 SL-6040892-TN BOLT (4)
73 SL-6041092-TN SCREW (4)
74 SM-3040652-TN SCREW M4 L=6 4
75 400-17782 MAIN POWER SWITCH NOTICE LABEL 1
76 401-05877 WATCH YOUR HANDS LABEL (100) 2
77 E2106-716-000 LABEL 1
78
#05
400-43525 COVER SUPPORT L 1
79
#06
400-43787 COVER SUPPORT L (L) 1
80
#07
400-60216 COVER SUPPORT L(E) 1
81 HX-0036700-0A BUSH 0.5
82 401-05876 WATCH YOUR HANDS LABEL (75) 4
83 CM-3001000-04 DANGER LABEL (50) 1
84 401-05879 ELECTRIC HAZARD LABEL (50) 1
85
#08
401-02599 8.4 LCD MONITOR(CE) 1
86 EA-9500B00-00 CABLE BAND (1)
