- - REF.NO NOTE PART NO D E S C R I P T I O N Qty 1 #01 400-50357 COVER SUB M ASM. 1 2 #02 400-50364 C OVER SUB L ASM. 1 3 #07 400-60995 C OVER SUB(E) ASM 1 4 #03 400-61004 CO VER SUB(E_EN) ASM 1 5 WS-0 820002-KN SPRIN…
- -

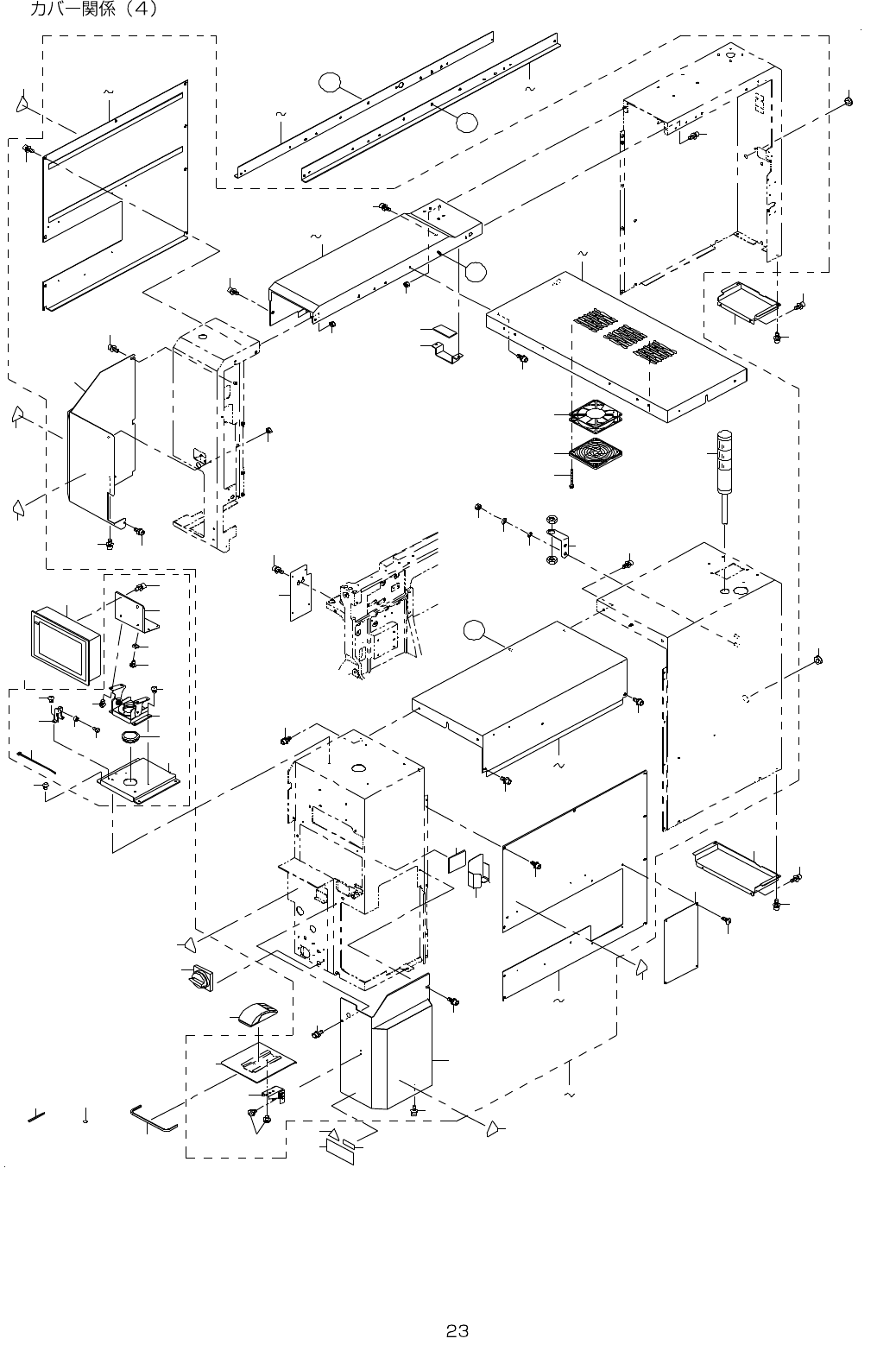

12. COVER COMPONENTS (4)
7
9 1 1
6
1 3
1 3
3 2
1 8 2 0
2 1 2 3
6
6
2 7
2 4 2 6
5 4
6
1 7
2 8
5 2
2 9
3 0
3 6
5
5 9
5 8
5 6
5 3
5 7
8
1 2
1 4 1 6
8
5 7
3 5
5 6
5 9
8
8
2 9
7 7
7 8 8 0
3 1
3 4
4 0
4 1
3 9
3 7
3 8
3 3
3 3
A
B
A
B
1 4
4 2
4 4
4 7 4 9
6
4 5
4 6
4 3
5 0
5 1
8 1
8 2
8 2
8 2
8 2
8 3
8 4
7 5
7 6
3 5
7 6
6 2
6 3
6 4
6 5
6 6
6 7
6 8
6 9
7 0
7 1
7 2
7 3
8 5
8 6
6 1
5 5
6 0
7 4
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
400-50357 COVER SUB M ASM. 1
2
#02
400-50364 COVER SUB L ASM. 1
3
#07
400-60995 COVER SUB(E) ASM 1
4
#03
400-61004 COVER SUB(E_EN) ASM 1
5 WS-0820002-KN SPRING WASHER M8 (2)
6 SL-3061232-TN SCREW (4)
7 NM-6040001-SC NUT M4X0.7 TYPE1 (1)
8 SL-6041092-TN SCREW (4)
9
#01
400-46568 COVER CUL (1)
10
#02
400-46587 COVER CUL L (1)
11
#07
400-60211 COVER CUL(E) (1)
12 SL-6061292-TN SCREW (1)
13 NM-6060001-SC NUT M6 (2)
14
#01
400-46570 COVER CUC (1)
15
#02
400-46588 COVER CUC L (1)
16
#07
400-60213 COVER CUC(E) (1)
17 SL-6041292-TN SCREW (12)
18
#01
400-46611 COVER SUL (1)
19
#02
400-46613 COVER SUL L (1)
20
#07
400-60214 COVER SUL(E) (1)
21
#01
400-46569 COVER CUR (1)
22
#02
400-46589 COVER CUR L (1)
23
#07
400-60212 COVER CUR(E) (1)
24
#01
400-46612 COVER SUR (1)
25
#02
400-46614 COVER SUR L (1)
26
#07
400-60215 COVER SUR(E) (1)
27 SL-3061232-TN SCREW (7)
28 400-01463 CABLE GUIDE (MOTOR) (1)
29 400-03265 SIGNAL TOWER ASM (1)
30 NM-6080001-SC NUT M8X1.25 (2)
31 400-46571 PULLEY COVER L (1)
32 SL-6061292-TN SCREW (4)
33 SL-6061292-TN SCREW (4)
34 400-46572 PULLEY COVER R (1)
35 SL-3061232-TN SCREW (7)
36 WP-0841601-SC WASHER 8.4X17.4X1.6 (2)
37 400-46629 Y CB BAND (1)
38 400-46630 Y CB BAND RUBBER (1)
39 L804E-821-0A0 COVER TOP FAN ASM (1)
40 HM-0010100-10 FILTER (3)
41 SL-4033591-SC SCREW M3X35
(12)
42 400-46619 MOUSE HINGE (1)
43 400-46605 MOUSE PLATE (1)
44 SL-4040891-SC SCREW M4 L=8 (4)
45 401-23609 MOUSE CASE (1)
46 E2506-716-000 MOP MAGNET (1)
47
#05
400-43526 COVER SUPPORT R 1
48
#06
400-43788 COVER SUPPORT R (R) 1
49
#07
400-60217 COVER SUPPORT R(E) 1
50 400-80173 OPTICAL SCROLL MOUSE 1
51 HA-0053800-00 SWITCH 1
52 HX-0036700-0A BUSH 0.2
53
#02
400-01514 YBR COVER(L) 1
54
#04
E1457-729-000 MTC SHUTTLE COVER 1
55
#04
SM-0040601-SC SCREW M4X0.7 L=6 4
56
#02
SL-4040891-SC SCREW M4 L=8 4
57
#02
SL-4040891-SC SCREW M4 L=8 4
58
#02
400-01513 YBL COVER(L) 1
59 HX-0032600-0H CABLE PARTS 2
60
#08
400-33517 VISION MONITOR BRACKET ASM 1
61 400-99654 CRT BASE (1)
62 HX-0022100-0A RUBBER BUSHING (1)
63 400-99655 FREE STOP HINGE (1)
64 SL-6040892-TN BOLT (4)
65 400-99657 CRT STOPPER (1)
66 L127E-021-000 COVER CUSHION (1)
67 SM-6030602-TN SCREW M3X6 (1)
68 SL-6040892-TN BOLT (2)
69 400-99656 CRT BR (1)
70 HX-0029400-00 FIXED BASE (1)
71 SM-4040601-SC SCREW M4X0.7 L=6 (1)
72 SL-6040892-TN BOLT (4)
73 SL-6041092-TN SCREW (4)
74 SM-3040652-TN SCREW M4 L=6 4
75 400-17782 MAIN POWER SWITCH NOTICE LABEL 1
76 401-05877 WATCH YOUR HANDS LABEL (100) 2
77 E2106-716-000 LABEL 1
78
#05
400-43525 COVER SUPPORT L 1
79
#06
400-43787 COVER SUPPORT L (L) 1
80
#07
400-60216 COVER SUPPORT L(E) 1
81 HX-0036700-0A BUSH 0.5
82 401-05876 WATCH YOUR HANDS LABEL (75) 4
83 CM-3001000-04 DANGER LABEL (50) 1
84 401-05879 ELECTRIC HAZARD LABEL (50) 1
85
#08
401-02599 8.4 LCD MONITOR(CE) 1
86 EA-9500B00-00 CABLE BAND (1)
- -
13. COVER COMPONENTS (5)
8
9
4 5
1 0
3 5
3 0
3 2
3 3
3 4
4 1
2 5
4 4
2 2
4 7
1 9
2 6
2 3
4 6
3 7
4 6
2 1
3 0
3 0
4 9
4 9
4 9
3 6
8
4 3
4 9
4 9
3 5
3 5
1 7
3 1
3 1
3 1
2 7
4 2
2 9
2 6
1 6
7
2 8
3 9
3 8
4 0
3 9
4 0
1
1 3
1 4
1 5
1 2
1 1
9
2 0
4 8
5 0
5 2
2 4
5 1
1 8
5 1
5 2
5 1
5 2
5 1
3 8
5 2
