- - 13. COVE R C O MPONEN T S (5 ) 8 9 4 5 1 0 3 5 3 0 3 2 3 3 3 4 4 1 2 5 4 4 2 2 4 7 1 9 2 6 2 3 4 6 3 7 4 6 2 1 3 0 3 0 4 9 4 9 4 9 3 6 8 4 3 4 9 4 9 3 5 3 5 1 7 3 1 3 1 3 1 2 7 4 2 2 9 2 6 1 6 7 2 8 3 9 3 8 4 0 3 9…
- -

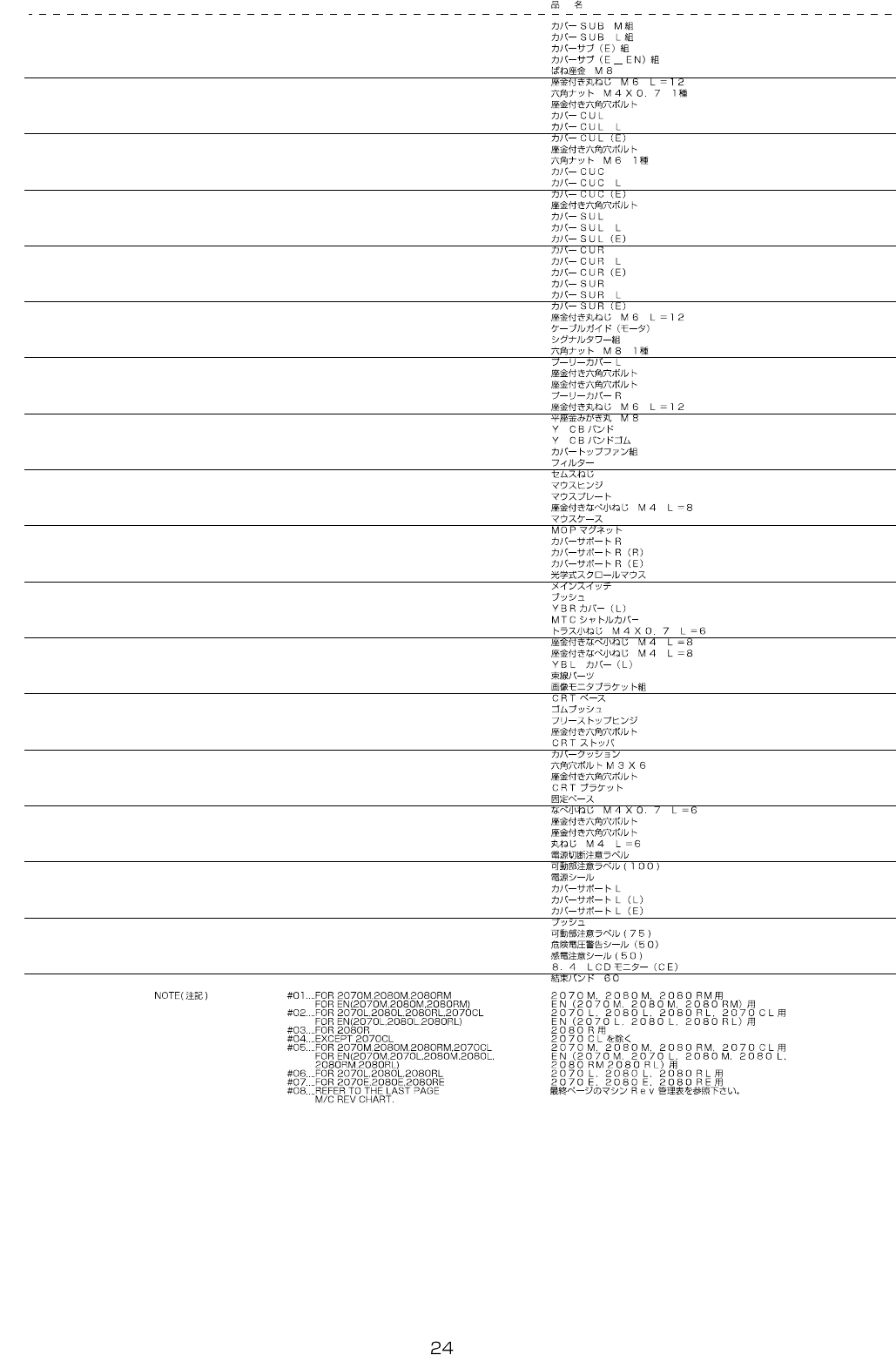

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
400-50357 COVER SUB M ASM. 1
2
#02
400-50364 COVER SUB L ASM. 1
3
#07
400-60995 COVER SUB(E) ASM 1
4
#03
400-61004 COVER SUB(E_EN) ASM 1
5 WS-0820002-KN SPRING WASHER M8 (2)
6 SL-3061232-TN SCREW (4)
7 NM-6040001-SC NUT M4X0.7 TYPE1 (1)
8 SL-6041092-TN SCREW (4)
9
#01
400-46568 COVER CUL (1)
10
#02
400-46587 COVER CUL L (1)
11
#07
400-60211 COVER CUL(E) (1)
12 SL-6061292-TN SCREW (1)
13 NM-6060001-SC NUT M6 (2)
14
#01
400-46570 COVER CUC (1)
15
#02
400-46588 COVER CUC L (1)
16
#07
400-60213 COVER CUC(E) (1)
17 SL-6041292-TN SCREW (12)
18
#01
400-46611 COVER SUL (1)
19
#02
400-46613 COVER SUL L (1)
20
#07
400-60214 COVER SUL(E) (1)
21
#01
400-46569 COVER CUR (1)
22
#02
400-46589 COVER CUR L (1)
23
#07
400-60212 COVER CUR(E) (1)
24
#01
400-46612 COVER SUR (1)
25
#02
400-46614 COVER SUR L (1)
26
#07
400-60215 COVER SUR(E) (1)
27 SL-3061232-TN SCREW (7)
28 400-01463 CABLE GUIDE (MOTOR) (1)
29 400-03265 SIGNAL TOWER ASM (1)
30 NM-6080001-SC NUT M8X1.25 (2)
31 400-46571 PULLEY COVER L (1)
32 SL-6061292-TN SCREW (4)
33 SL-6061292-TN SCREW (4)
34 400-46572 PULLEY COVER R (1)
35 SL-3061232-TN SCREW (7)
36 WP-0841601-SC WASHER 8.4X17.4X1.6 (2)
37 400-46629 Y CB BAND (1)
38 400-46630 Y CB BAND RUBBER (1)
39 L804E-821-0A0 COVER TOP FAN ASM (1)
40 HM-0010100-10 FILTER (3)
41 SL-4033591-SC SCREW M3X35
(12)
42 400-46619 MOUSE HINGE (1)
43 400-46605 MOUSE PLATE (1)
44 SL-4040891-SC SCREW M4 L=8 (4)
45 401-23609 MOUSE CASE (1)
46 E2506-716-000 MOP MAGNET (1)
47
#05
400-43526 COVER SUPPORT R 1
48
#06
400-43788 COVER SUPPORT R (R) 1
49
#07
400-60217 COVER SUPPORT R(E) 1
50 400-80173 OPTICAL SCROLL MOUSE 1
51 HA-0053800-00 SWITCH 1
52 HX-0036700-0A BUSH 0.2
53
#02
400-01514 YBR COVER(L) 1
54
#04
E1457-729-000 MTC SHUTTLE COVER 1
55
#04
SM-0040601-SC SCREW M4X0.7 L=6 4
56
#02
SL-4040891-SC SCREW M4 L=8 4
57
#02
SL-4040891-SC SCREW M4 L=8 4
58
#02
400-01513 YBL COVER(L) 1
59 HX-0032600-0H CABLE PARTS 2
60
#08
400-33517 VISION MONITOR BRACKET ASM 1
61 400-99654 CRT BASE (1)
62 HX-0022100-0A RUBBER BUSHING (1)
63 400-99655 FREE STOP HINGE (1)
64 SL-6040892-TN BOLT (4)
65 400-99657 CRT STOPPER (1)
66 L127E-021-000 COVER CUSHION (1)
67 SM-6030602-TN SCREW M3X6 (1)
68 SL-6040892-TN BOLT (2)
69 400-99656 CRT BR (1)
70 HX-0029400-00 FIXED BASE (1)
71 SM-4040601-SC SCREW M4X0.7 L=6 (1)
72 SL-6040892-TN BOLT (4)
73 SL-6041092-TN SCREW (4)
74 SM-3040652-TN SCREW M4 L=6 4
75 400-17782 MAIN POWER SWITCH NOTICE LABEL 1
76 401-05877 WATCH YOUR HANDS LABEL (100) 2
77 E2106-716-000 LABEL 1
78
#05
400-43525 COVER SUPPORT L 1
79
#06
400-43787 COVER SUPPORT L (L) 1
80
#07
400-60216 COVER SUPPORT L(E) 1
81 HX-0036700-0A BUSH 0.5
82 401-05876 WATCH YOUR HANDS LABEL (75) 4
83 CM-3001000-04 DANGER LABEL (50) 1
84 401-05879 ELECTRIC HAZARD LABEL (50) 1
85
#08
401-02599 8.4 LCD MONITOR(CE) 1
86 EA-9500B00-00 CABLE BAND (1)
- -
13. COVER COMPONENTS (5)
8
9
4 5
1 0
3 5
3 0
3 2
3 3
3 4
4 1
2 5
4 4
2 2
4 7
1 9
2 6
2 3
4 6
3 7
4 6
2 1
3 0
3 0
4 9
4 9
4 9
3 6
8
4 3
4 9
4 9
3 5
3 5
1 7
3 1
3 1
3 1
2 7
4 2
2 9
2 6
1 6
7
2 8
3 9
3 8
4 0
3 9
4 0
1
1 3
1 4
1 5
1 2
1 1
9
2 0
4 8
5 0
5 2
2 4
5 1
1 8
5 1
5 2
5 1
5 2
5 1
3 8
5 2
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#05
400-61005 BOTTOM COVER(E_EN) ASM 1
2
#01
400-50358 BOTTOM COVER ST ASM. (1)
3
#02
400-52353 BOTTOM COVER EN ASM. (1)
4 #04 400-60996 BOTTOM COVER(E_ST) ASM (1)
5
#04
400-61006 BOTTOM COVER(E_ST) ASM (1)
6
#06
400-74131 BOTTOM COVER (1070CL) ASM 1
7 400-50359 COVER SBL ASM. (1)
8 E9252-729-HA0 BASE FAN (L) ASM. (2)
9 SL-4033591-SC SCREW M3X35 (4)
10 400-46592 COVER SBL (1)
11 400-66540 BRAKE CAUTION LABEL (1)
12 SL-6040892-TN BOLT (1)
13 WP-0430801-SC WASHER 4.3X9X0.8 (1)
14 WS-0410002-KN SPRING WASHER (1)
15 NM-7040032-SC HEXAGONAL CAP NUT, TYPE 3 M4 (1)
16 SL-3061232-TN SCREW (5)
17
#03
400-01518 INSIDE COVER R (1)
18
#03
SL-4061091-SC SCREW (5)
19 400-17019 COVER RBC(E) (1)
20
#06
SM-3051052-TN SCREW M5 L=10 (2)
21 SL-3061232-TN SCREW (4)
22 #03 HX-0050300-00 EMI GASKET (1.9)
23 400-01507 SETUP COVER (1)
24 E1038-871-000 PLATEN LOCK CAM SCREW (2)
25 SL-4030899-1S SCREW (2)
26 400-46610 COVER RBR (1)
27 SL-3061232-TN SCREW (4)
28 400-50360 COVER SBR ASM. (1)
29 400-46591 COVER SBR (1)
30 HM-0010100-10 FILTER (3)
31 SL-4033591-SC SCREW M3X35 (6)
32 PJ-3081000-01 UNION Y (1)
33 SM-4042001-SC SCREW M4 X 20 (1)
34 SL-6042592-TN SCREW (1)
35 400-02326 BASE FAN(R)ASM (3)
36 HX-0033400-0D SPACER (1)
37 SL-3061232-TN SCREW (4)
38 400-26955 CORNER COVER (2)
39 SM-3061052-TN SCREW M6 L=10 (4)
40 WP-0641601-SC WASHER (4)
41 400-26959 COVER RBL (1)
42 SL-3061232-TN SCREW (4)
43
#03
400-01517 INSIDE COVER F (1)
44
#03
SL-4061091-SC SCREW (9)
45 400-46590 COVER FB (1)
46 SL-3061232-TN SCREW (4)
47
#03
HX-0050300-00 EMI GASKET (3)
48
#06
400-75047 COVER RBT(L) (1)
49 NM-6030001-SC NUT M3X0.5 TYPE1 10
50 B2585-220-000 CASSETTE PRESSER RUBBER MAGNET 2
51 CM-3001000-04 DANGER LABEL (50) 4
52 401-05879 ELECTRIC HAZARD LABEL (50) 4
