- - 26. HE AD COMP O NE N TS ( 1) 7 8 8 1 4 1 3 A A B B 5 3 8 2 8 3 8 3 8 3 1 5 1 6 1 6 1 7 3 6 2 2 2 4 2 5 2 6 2 6 2 7 2 8 2 9 3 2 3 3 3 4 3 7 3 8 3 8 3 9 4 0 4 1 4 2 4 3 4 4 4 5 4 6 4 7 4 8 4 9 5 0 5 1 5 2 5 3 5 4 5 …
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-21958 FLOOR TROLLEY SUB UNIT 1
2 400-21959 TROLLEY BOTTOM ASSY (1)
3 400-21912 TROLLEY FRAME BL (1)
4 400-21913 TROLLEY FRAME BR (1)
5 400-21914 TROLLEY BASE PLATE (1)
6 SM-3061252-TN SCREW M6 L=12 (6)
7 400-21957 TROLLEY CASTER (75) (2)
8 WP-0612516-SD WASHER 6.1X15.2X2.5 (8)
9 SM-6060802-TN BOLT (8)
10 400-21956 TROLLEY CASTER (50) (2)
11 SM-6060802-TN BOLT (8)
12 E2711-721-000 TROLLEY STOPPER (2)
13 E2710-721-000 STOPPER ATTACHMENT (2)
14 SM-6060802-TN BOLT (8)
15 SL-6061242-TN BOLT (4)
16 NM-6060003-SC NUT M6 (4)
17 WP-0430801-SC WASHER 4.3X9X0.8 (2)
18 400-23476 FG GUM SHEET (1)
19 SM-6040802-TN SCREW (1)
20 400-21960 TROLLEY UPPER ASSY (1)
21 400-58933 TROLLEY FRAME L (1)
22 400-58934 TROLLEY FRAME R (1)
23 SM-6125052-TR SCREW (2)
24 400-01730 SCALE MARKS SEAL (2)
25 400-58935 TROLLEY UPPER PLATE (1)
26 SM-3061252-TN SCREW M6 L=12 (6)
27 400-01731 TROLLEY RUBBER B (4)
28 400-22464 STOPPER PLATE L ASSY (1)
29 400-53180 TROLLEY STOPPER PLATE L (1)
30 400-01748 TROLLEY SUB GUIDE (1)
31 SL-6063092-TN SCREW M6 L=30 (1)
32 E2703-721-000 TROLLEY SHAFT (1)
33 S1021-710-000 ST RUBBER FOOT (1)
34 SB-8160005-C0 BEARING (1)
35 SL-6041042-TN BOLT (4)
36 400-22465 STOPPER PLATE R ASSY (1)
37 400-01735 TROLLEY STOPPER PLATE (1)
38 400-01748 TROLLEY SUB GUIDE (1)
39 SL-6063092-TN SCREW M6 L=30 (1)
40 E2703-721-000 TROLLEY SHAFT (1)
41 S1021-710-000 ST RUBBER FOOT (1)
42 SB-8160005-C0 BEARING (1)
43 SL-6041042-TN BOLT (4)
44 SL-6082092-TN BOLT (4)
45 WP-1052001-SC WASHER 10 (4)
46 SL-6102042-TN SCREW (4)
47 400-21961 TROLLEY SLIDE ASSY (1)
48 400-21916 BANK PLATE L (1)
49 400-21917 BANK PLATE R (1)
50 400-23221 SUPPORT SHAFT (2)
51 400-01736 FS BRACKET L (1)
52 400-01737 FS BRACKET R (1)
53 SL-6061692-TN BOLT (4)
54 400-01739 FS PLATE (1)
55 SM-3040652-TN SCREW M4 L=6 (4)
56 400-21918 TAPE GUIDE (1)
57 400-68308 SET SCREW M4 L=8 (2)
58 E5721-729-000 LABEL (1)
59 SL-6102042-TN SCREW (2)
60 WP-1052001-SC WASHER 10 (2)
61 400-21962 TROLLEY HANDLE ASSY (2)
62 400-21920 TROLLEY HANDLE (1)
63 E2641-729-000 HANDLE CLIP (1)
64 E2635-729-000 HANDLE SLIDER (1)
65 400-21919 HANDLE SHAFT (1)
66 SL-6030642-TN SCREW M3 L=6 (1)
67 SL-6040642-TN BOLT (1)
68 PS-0600182-KP SPRING PIN (1)
69 PS-0400122-KP SPRING PIN (2)
70 SL-6082092-TN BOLT (4)
71 400-58936 TROLLEY COVER AL (1)
72 400-58937 TROLLEY COVER AR (1)
73 SM-3040652-TN SCREW M4 L=6 (4)
74 WP-0430801-SC WASHER 4.3X9X0.8 (4)
75 WP-0841601-SC WASHER 8.4X17.4X1.6 (2)
76 SL-6081242-TN BOLT (2)
77 E4981-700-000 LABEL (1)
78 E2737-721-000 BRACKET COVER 1
79 SM-4030601-SC SCREW M3 X 6 2
80 CM-3002000-03 ATTENTION LABEL 2
81 HX-0015000-0K CABLE CLIP 1
82 400-01734 SCREW 4
83 SL-6051492-TN BOLT 4
84 #01 E1173-725-000 PLATE STAND COVER L 1
85
#01
E1174-725-000 PLATE STAND COVER R 1
86 SL-6040892-TN BOLT 2
87 SL-6051092-TN BOLT 2
88
#01
400-01749 BANK FLAP ASSY 1
89 400-18388 BUTT HINGE (2)
90 400-18389 BANK FLAP (1)
91
#01
400-01750 BANK COVER 1
92
#01
SL-6040892-TN BOLT 4
93 401-05884 LOAD PROHIBITION LABEL 1
94 401-05880 CRUSH HAZARD LABEL (50) 2
- -
26. HEAD COMPONENTS (1)
7 8 8 1
4
1 3
A
A
B
B
5
3
8 2
8 3
8 3
8 3
1 5
1 6
1 6
1 7
3 6
2 2
2 4 2 5
2 6
2 6
2 7
2 8
2 9
3 2
3 3
3 4
3 7
3 8
3 8
3 9
4 0
4 1
4 2
4 3
4 4
4 5
4 6
4 7
4 8
4 9
5 0
5 1
5 2
5 3
5 4
5 5
5 6
5 7
5 8
5 9
6 0
6 1
6 2
6 3
6 3
6 3
6 4
6 4
6 4
6 4
6 5
7 27 3
9 2
9 4
9 3
9 5
9 6
9 8
9 9
9 9
1 0 0
1 0 2
1 0 3
1 7
C
C
6 6 7 1
3 1
9 5
9 3
9 3
9 5
1 8
9 1
8 3
8 3
8 3
7 4
7 7
7 5
7 5
7 7
9 7
1 0 4
1 4
3 5
2 0
7 6
7 6
8 4
8 5 8 6
8 7
9
8
7
1 2
8 8 8 9
3 0
1 0 1
1 0
1 2
1 1
9
8
7
9 0
7 5
7 7
7 6
1 9
2 1
2 3
6
- -

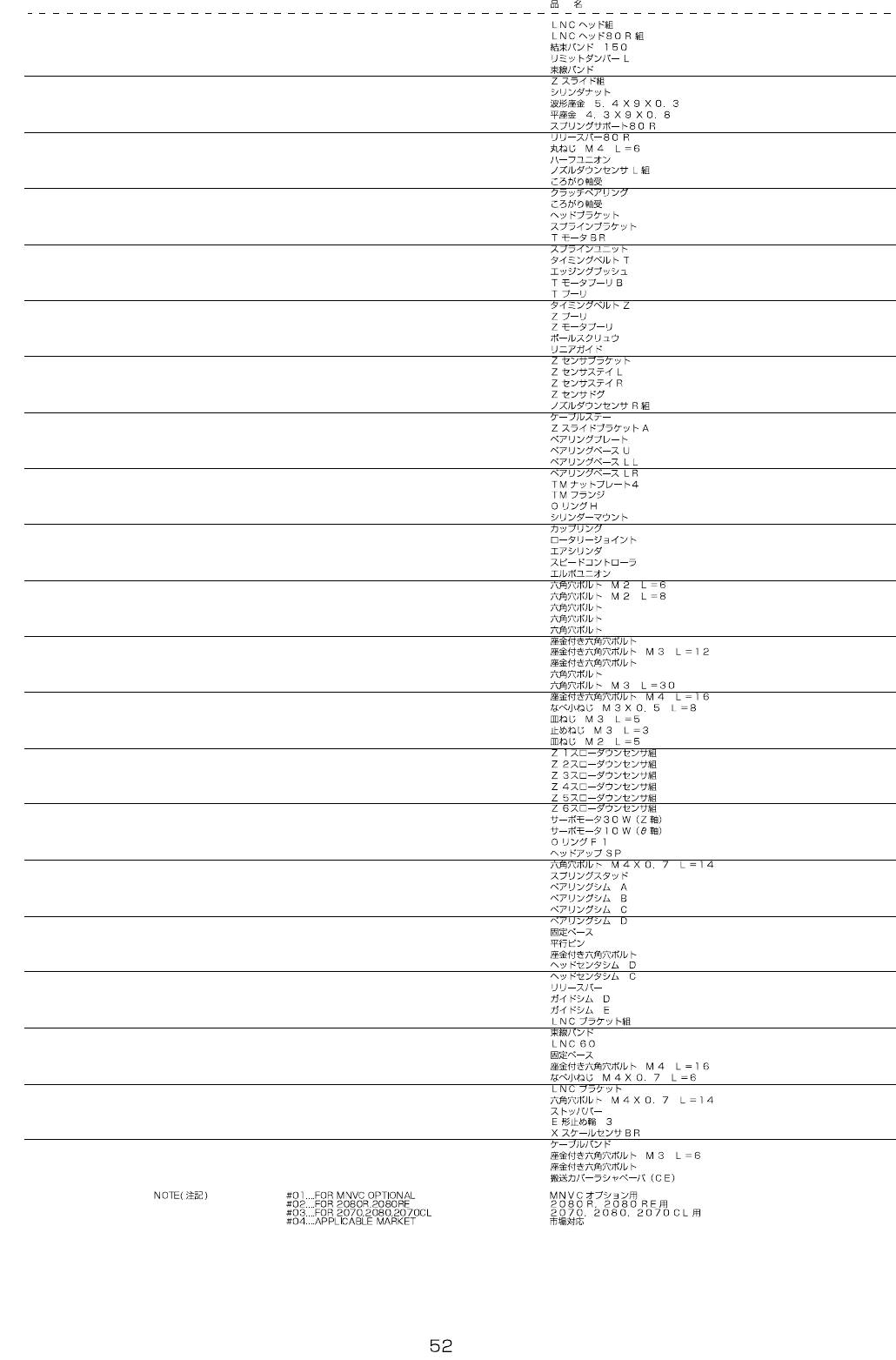

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-49065 LNC HEAD ASM 1
2 #02 400-81146 LNC HEAD 80R ASM 1
3 EA-9500B02-00 CABLE BAND 150 (4)
4 E3005-729-000 LIMIT DAMPER L (2)
5 EA-9500B01-00 CABLE BAND (5)
6 400-53293 Z SLID E ASM (6)
7 400-54879 CYLINDER NUT (2)
8 WZ-0541510-KP WAVED WASHER 5.4X9.0X0.3 (2)
9 WP-0430801-SC WASHER 4.3X9X0.8 (2)
10
#02
400-80369 SP SUPPROT 80R (1)
11
#02
400-80370 RELEASE BAR 80R (1)
12 SM-3040652-TN SCREW M4 L=6 (2)
13 PJ-2105041-00 HALF UNION (6)
14 400-45458 NOZZLE DOWN SENSOR L ASM (1)
15 SB-1060018-00 BEARING (6)
16 SB-1060004-00 CLUTCH BEARING (12)
17 SB-1080016-00 BEARING (12)
18 400-46051 HEAD BRACKET (1)
19 400-46052 SPLINE BRACKET (1)
20 400-71804 T MOTOR BR (1)
21 400-63959 SPLINE UNIT (6)
22 400-46521 TIMING BELT T (6)
23 HX-0009600-0A EDGING BUSH (0.12)
24
#04
400-79245 T MOTOR PULLEY B (6)
25 400-46516 T PULLEY (6)
26 400-46522 TIMING BELT Z (6)
27 400-01123 Z PULLEY (6)
28 400-01124 Z MOTOR PULLEY (6)
29 400-44583 BALL SCREW (6)
30 400-44585 LINEAR GUIDE (6)
31 400-46043 Z SENSOR BRACKET (1)
32 400-46615 Z SENSOR STAY L (1)
33 400-81645 Z SENSOR STAY R (1)
34 400-46054 Z SENSOR DOG (6)
35 400-45460 NOZZLE DOWN SENSOR R ASM (1)
36 400-90401 CABLE_STAY (1)
37 400-46631 Z SLIDE BRACKET A (6)
38 400-46056 BEARING PLATE (12)
39 400-46048 BEARING BASE U (6)
40 400-46049 BEARING BASE LL (3)
41 400-46050 BEARING BASE LR (3)
42 400-72868 TM NUT PLATE 4 (6)
43 400-71805 TM FRANGE (6)
44 400-46060 O RING H (6)
45 400-46070 CYLINDER MOUNT (2)
46 400-46515 COUPRING (6)
47 400-46525 ROTARY JOINT (6)
48 400-46524 AIR CYLINDER (2)
49 PC-0105080-00 SPEED CONTROLLER (2)
50 PJ-3040405-04 ELBOW UNION (2)
51 SM-6020602-TN SCREW M2 L=6 (48)
52 SM-6020802-TN SCREW M2 L=8 (54)
53 SM-6051602-TN BOLT (8)
54 SM-6041002-TN BOLT (4)
55 SM-6030802-TN BOLT (12)
56 SM-6030842-TN SCREW M3L=8 (24)
57 SL-6031292-TN SCREW M 3 L=12 (12)
58 SL-6031692-TN SCREW (18)
59 SM-6031602-TN SCREW M3 L=16 (24)
60 SM-6033002-TN SCREW M3 L=30 (4)
61 SL-6041692-TN SCREW M 4 L=16 (4)
62 SM-4030801-SC SCREW M3 X 8 (6)
63 SM-1030552-TN PLATE SCREW M3 L=5 (54)
64 SM-8030312-TP SCREW M3 L=3 (60)
65 SM-1020501-SC SCREW (12)
66 400-45462 Z1 SLOW DOWN SENSOR ASM (1)
67 400-45464 Z2 SLOW DOWN SENSOR ASM (1)
68 400-45465 Z3 SLOW DOWN SENSOR ASM (1)
69 400-45466 Z4 SLOW DOWN SENSOR ASM (1)
70 400-45468 Z5 SLOW DOWN SENSOR ASM (1)
71 400-45469 Z6 SLOW DOWN SENSOR ASM (1)
72 400-44534 SERVO MOTOR 30W(Z AXIS) (6)
73 400-44533 SERVO MOTOR 10W(THEAT AXIS) (6)
74 400-46058 O RING F1 (6)
75 400-58386 HEAD UP SP (2)
76 SM-6041402-TN SCREW M4X0.7 L=14 (2)
77 400-56921 SPRING STUD (2)
78 E3071-729-000 BEARING SHIM A (6)
79 E3072-729-000 BEARING SHIM B (6)
80 E3073-729-000 BEARING SHIM C (6)
81 E3074-729-000 BEARING SHIM D (6)
82 HX-0029400-00 FIXED BASE (9)
83 PH-0400122-C0 PIN (6)
84 SL-6041492-TN SCREW (2)
85 E3047-729-000 HAED CENTER SHIM D (3)
86 E3021-721-000 HAED CENTER SHIM C (3)
87 #03 400-78676 RELEASE BAR (1)
88 E3028-729-000 GUIDE SHIM D (3)
89 E3029-729-000 GUIDE SHIM E (3)
90 400-49066 LNC BRACKET ASM 1
91 EA-9500B01-00 C ABLE BAND (3)
92 400-45547 LNC 60 (1)
93 HX-0029400-00 FIXED BASE (3)
94 SL-6041692-TN SCREW M 4 L=16 (1)
95 SM-4040601-SC SCREW M4X0.7 L=6 (3)
96 400-46069 LNC BRACKET (1)
97 SM-6041402-TN SCREW M4X0.7 L=14 (2)
98 400-46527 STOPPER BAR (1)
99 RE-0300000-K0 E-RIN G 3 (2)
100 400-46547 X SCALE SENSOR BR (1)
101 400-46548 CABLE BAND (1)
102 SL- 6030692-TN SCR EW M3 L=6 (2)
103 SL- 6040892-TN BOLT (2)
104
#01
E1143-721-000 WOOLEN CLOTH PAPER 1
