KE-2070_KE-2080_KE-2080R-Rev14 - 第65页
- - REF.NO N O TE PA RT NO D E S C R I P T I O N Qty 1 400-81 147 I C H EAD80R ASM 1 2 EA-9500B01-00 CABLE BAND (5 ) 3 EA-9500B02-00 CABLE BAND 150 (1 ) 4 E30 05 -729-0 00 LIMI T DAMPER L (1 ) 5 400-78 104 I C Z S LIDE…
- -

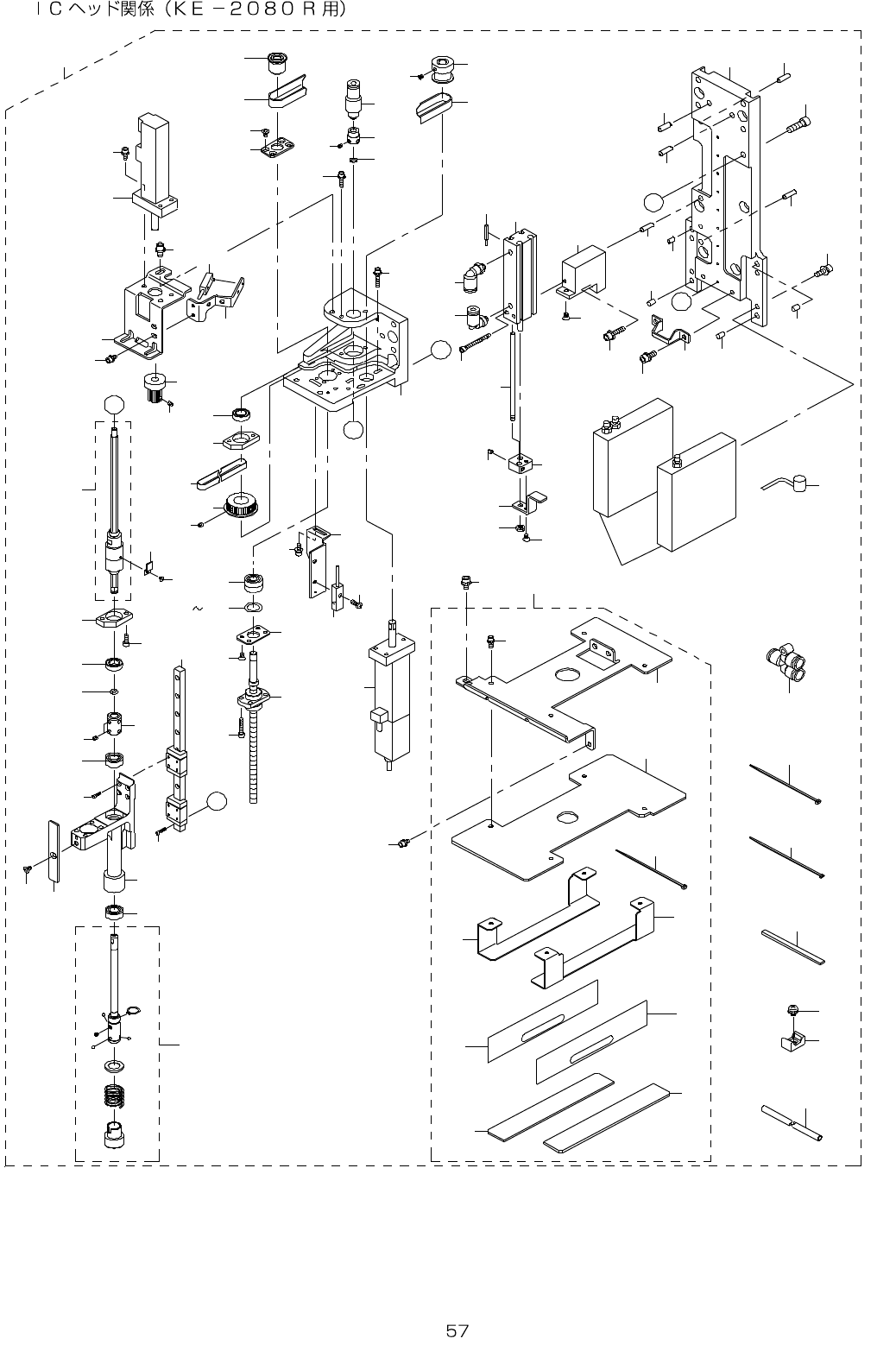

29. IC HEAD COMPONENTS (FOR KE-2080R)
4
1 3
B
2
3
3 2
1 6
1 6
2 5
2 5
2 6
3 5
3 9
4 5
5 6
5 7
6 1
6 5
6 7
6 7
6 7
6 8
6 8
6 8
1 7
1 8
1 9
6 3
2 7
6 4
2 0
1 5
8 4 8 7
4 4
3 4
3 4
5 9
4 2
7 1
3 8
A
A
6 6
4 8
4 8
5 0
5 1
5 4
5 0
5 1
2 1
4 0
1 7
4 3
3 0
7 6
7 9
7 4
7 4
8 3
3 7
3 6
8 0
3 6
7 7
7 2
2 9
2 3
6 8
6 0
1
8 0
8 1
8 2
1 4
5
7
B
3 4
1 2
1 2
1 2
3 4
3 4
8
4 1
4 6
7 2
7 3
5 2
4 9
4 7
5 3
6 2
6 9
7 0
7 5
6
6
9
1 0
7 8
3 1
5 5
5 8
2 2
1 2
C
C
3 3
1 1
2 8
3 8
2 4
- -

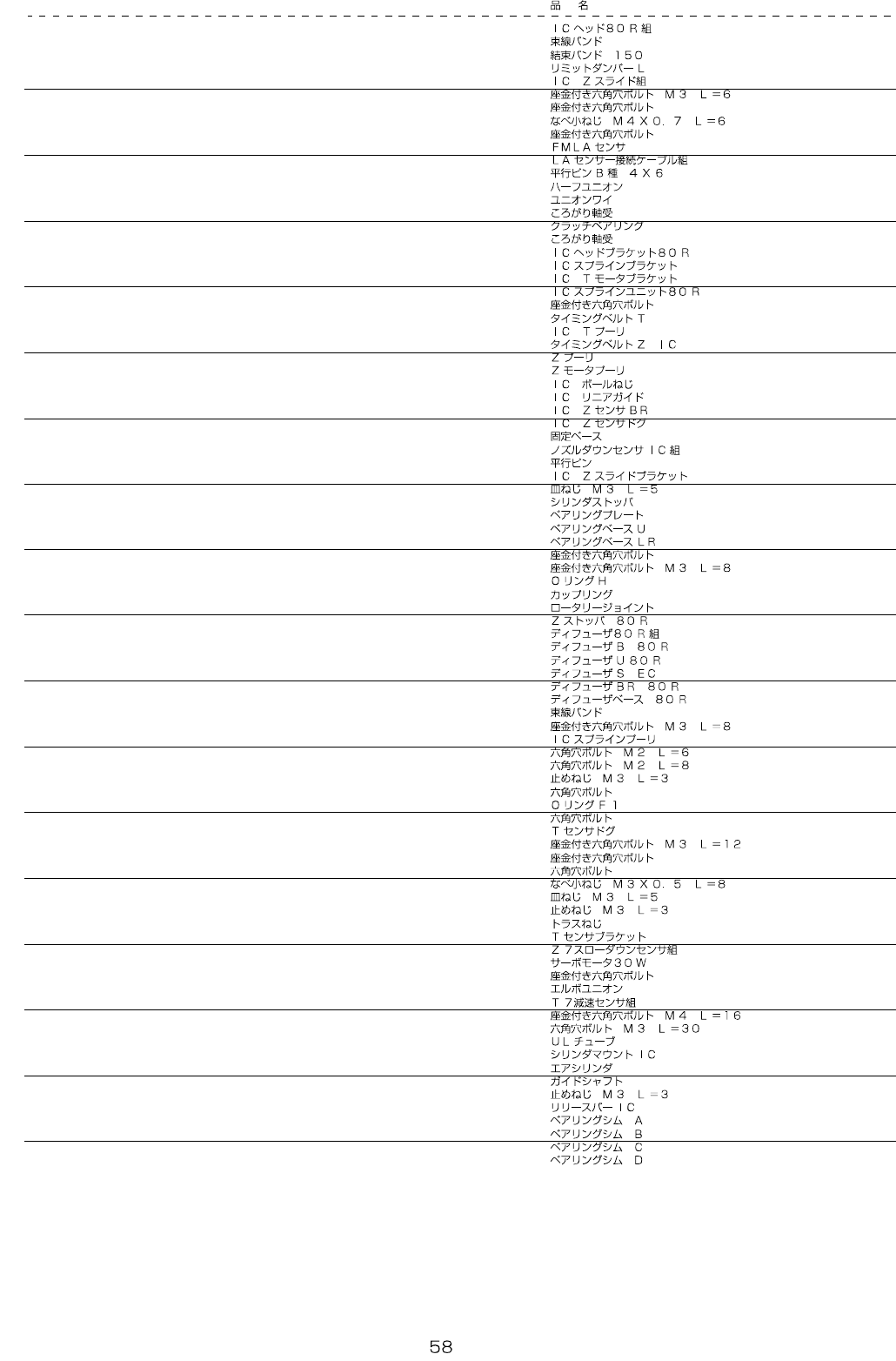

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-81147 IC HEAD80R ASM 1
2 EA-9500B01-00 CABLE BAND (5)
3 EA-9500B02-00 CABLE BAND 150 (1)
4 E3005-729-000 LIMIT DAMPER L (1)
5 400-78104 IC Z SLIDE ASM (1)
6 SL-6030692-TN SCREW M3 L=6 (3)
7 SL-6040892-TN BOLT (3)
8 SM-4040601-SC SCREW M4X0.7 L=6 (1)
9 SL-6040892-TN BOLT (3)
10 400-03264 FMLA SENSOR (1)
11 E9345-721-0A0 CABLE ASM. (1)
12 PH-0400062-C0 PARALLEL PIN TYPE B 4X6 (4)
13 PJ-2105041-00 HALF UNION (1)
14 PJ-3080400-06 UNION (2)
15 SB-1060018-00 BEARING (1)
16 SB-1060004-00 CLUTCH BEARING (2)
17 SB-1080016-00 BEARING (2)
18 400-80357 IC HEAD BRACKET 80R (1)
19 400-78033 IC SPLINE BRACKET (1)
20 400-78041 IC T MOTOR BR (1)
21 400-93090 IC SPLINE UNIT 80R 1
22 SL-6041292-TN SCREW (4)
23 401-33627 TIMING BELT T (1)
24 401-33628 IC T PULLEY (1)
25 400-46523 TIMING BELT Z IC (1)
26 400-01123 Z PULLEY (1)
27 400-01124 Z MOTOR PULLEY (1)
28 400-78038 IC BALL SCREW (1)
29 400-78036 IC LINEAR GUIDE (1)
30 400-46513 IC Z SENSOR BR (1)
31 400-78039 IC Z SENSOR DOG (1)
32 HX-0029400-00 FIXED BASE (1)
33 400-52405 NOZZLE DOWN SENSOR IC ASM (1)
34 PH-0400122-C0 PIN (5)
35 400-78034 IC Z SLIDE BRACKET (1)
36 SM-1030552-TN PLATE SCREW M3 L=5 (2)
37 400-58388 CYLINDER STOPPER (1)
38 400-46056 BEARING PLATE (2)
39 400-46048 BEARING BASE U (1)
40 400-46050 BEARING BASE LR (1)
41 SL-6041092-TN SCREW (2)
42 SL-6030892-TN SCREW M3 L=8 (2)
43 400-46060 O RING H (1)
44 400-46515 COUPRING (1)
45 400-46525 ROTARY JOINT (1)
46 400-80364 Z STOPPER 80R (1)
47 400-81148 DIFFUSER 80R ASM (1)
48 400-80366 DIFFUSER B 80R (2)
49 400-80365 DIFFUSER U 80R (1)
50 400-16065 DIFFUSER S EC (2)
51 400-80367 DIFFUSER BR 80R (2)
52 400-80368 DIFFUSER BASE 80R (1)
53 EA-9500B01-00 CABLE BAND (2)
54 SL-6030892-TN SCREW M3 L=8 (4)
55 401-33629 IC SPLINE PULLEY (1)
56 SM-6020602-TN SCREW M2 L=6 (8)
57 SM-6020802-TN SCREW M2 L=8 (9)
58 SM-8030312-TP SCREW M3 L=3 (2)
59 SM-6051602-TN BOLT (5)
60 400-46058 O RING F1 (1)
61 SM-6030802-TN BOLT (2)
62 400-80360 T SENSOR DOG (1)
63 SL-6031292-TN SCREW M3 L=12 (2)
64 SL-6031692-TN SCREW (3)
65 SM-6031602-TN SCREW M3 L=16 (4)
66 SM-4030801-SC SCREW M3 X 8 (1)
67 SM-1030552-TN PLATE SCREW M3 L=5 (11)
68 SM-8030312-TP SCREW M3 L=3 (10)
69 SM-0020201-SC SCREW (1)
70 400-80363 T SENSOR BR (1)
71 400-45470 Z7 SLOW DOWN SENSOR ASM (1)
72 400-44534 SERVO MOTOR 30W (2)
73 SL-6030842-TN SCREW M3 L=8 (3)
74 PJ-3040405-04 ELBOW UNION (2)
75 400-80210 T7 SLOW DOWN SENSOR ASM (1)
76 SL-6041692-TN SCREW M4 L=16 (1)
77 SM-6033002-TN SCREW M3 L=30 (1)
78 HX-0030600-00 UL TUBE ( 0.3)
79 400-78044 CYLINDER MOUNT IC (1)
80 400-46524 AIR CYLINDER (1)
81 400-58389 GUIDE SHAFT (1)
82 SM-8030312-TP SCREW M3 L=3 (1)
83 400-58387 RELEASE BAR IC (1)
84 E3071-729-000 BEARING SHIM A (1)
85 E3072-729-000 BEARING SHIM B (1)
86 E3073-729-000 BEARING SHIM C (1)
87 E3074-729-000 BEARING SHIM D (1)
- -

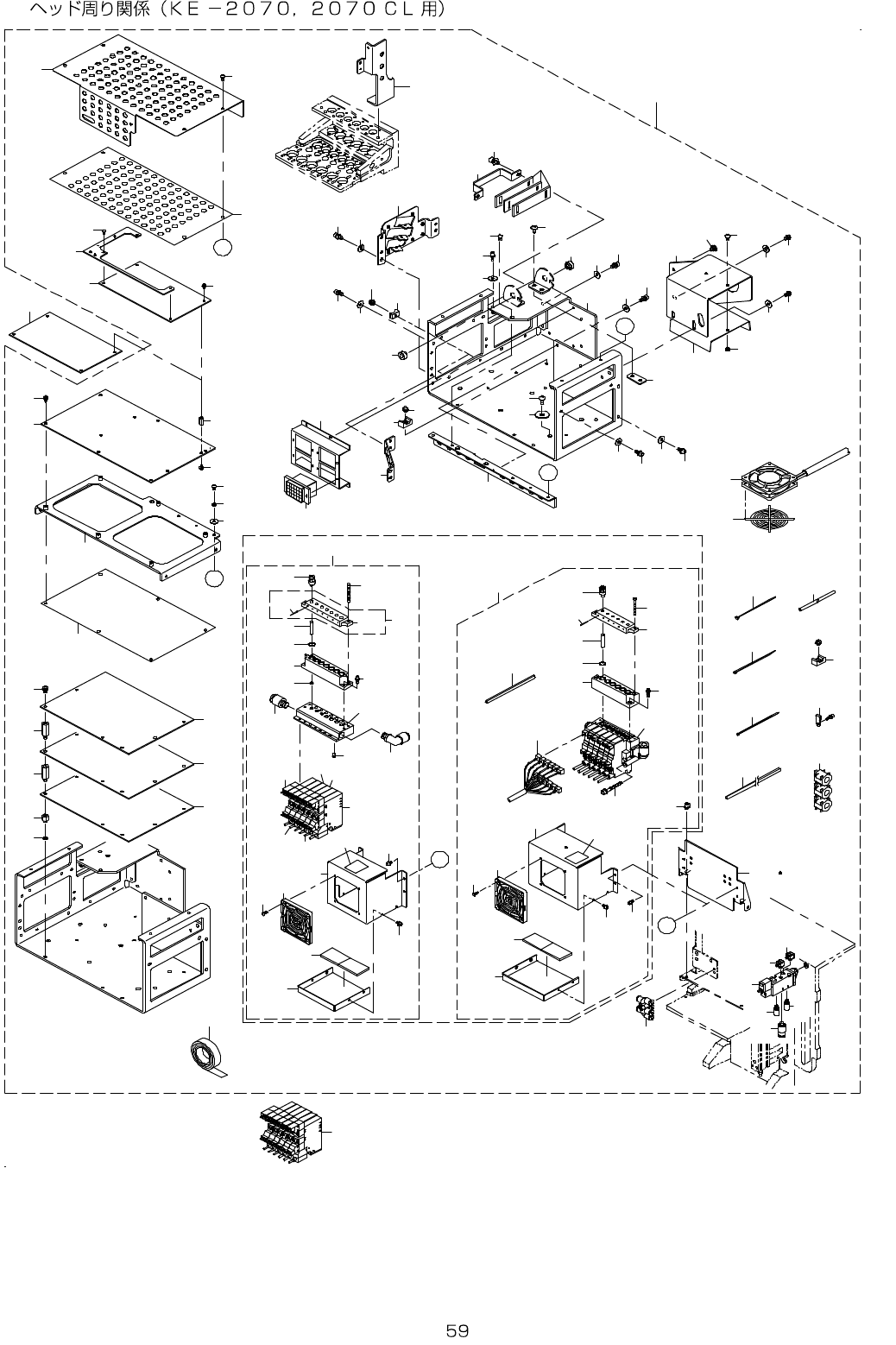

30. HEAD RELATED COMPONENTS (FOR KE-2070,2070CL)
3
4
5
1 1
1 1
2 2
2 3
1 5
2 4
2 5
2 6
3 6
4 5
4 4
4 5
4 6
3 5
1 0 5
B
B
1 2
2 1
3 4
1 8
6
7
2
9
8
1 0
1 0
2 7
5 1
5 2
5 2
5 0
3 3
4 0
1 9
1 3
1 4
3 3
A
A
4 1
4 2
4 3
5 3
5 5
3 7
3 8
4 1
3 3
3 3
4 1
3 3
4 1
4 1
3 7
4 1
4 0
3 3
2 8
5 6
5 7
2 0
3 3
2 9
3 2
4 4
1 6
3 1
4 1
4 1
4 0
1 7
8 9
4 7
4 7
4 7
1
4 0
4 1
3 9
4 0
4 0
4 1
4 9
2 3
4 8
1 1 0
1 0 6
9 1
1 0 7
9 7
1 0 0
9 8
9 9
1 0 4
1 0 3
9 5
9 4
1 0 2
9 6
9 6
1 0 9
1 0 8
1 0 1
9 2
9 0
3 0
5 8
5 4
6 7
7 4
7 1
6 6
6 5
6 3
6 4
6 2
6 1
7 2
7 3
6 9
C
C
5 9 6 0
1 1 1
9 3
8 6
8 7
8 8
8 3
8 3
7 8
8 1
8 2
8 0
7 6
8 5
7 7
7 0
7 9
8 4
7 5
6 8
